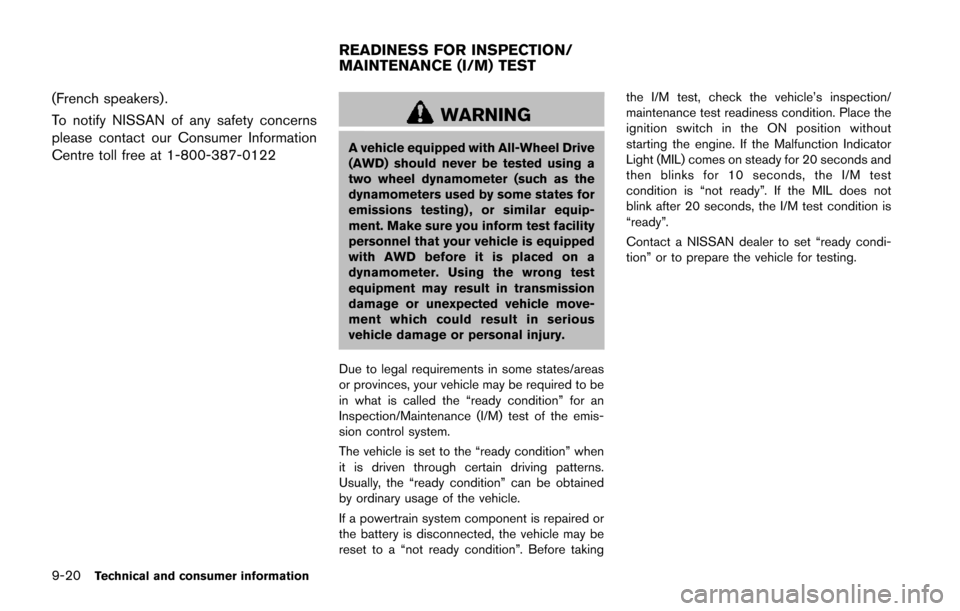

9-20Technical and consumer information
(French speakers).
To notify NISSAN of any safety concerns
please contact our Consumer Information
Centre toll free at 1-800-387-0122
WARNING
A vehicle equipped with All-Wheel Drive
(AWD) should never be tested using a
two wheel dynamometer (such as the
dynamometers used by some states for
emissions testing) , or similar equip-
ment. Make sure you inform test facility
personnel that your vehicle is equipped
with AWD before it is placed on a
dynamometer. Using the wrong test
equipment may result in transmission
damage or unexpected vehicle move-
ment which could result in serious
vehicle damage or personal injury.
Due to legal requirements in some states/areas
or provinces, your vehicle may be required to be
in what is called the “ready condition” for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Place the
ignition switch in the ON position without
starting the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds and
then blinks for 10 seconds, the I/M test
condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
Contact a NISSAN dealer to set “ready condi-
tion” or to prepare the vehicle for testing.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST

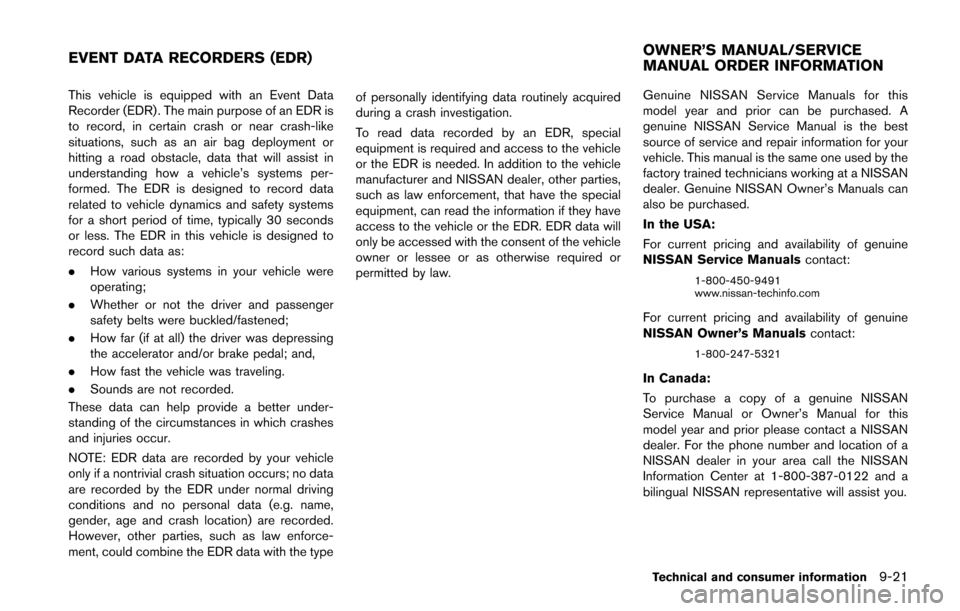

This vehicle is equipped with an Event Data
Recorder (EDR) . The main purpose of an EDR is
to record, in certain crash or near crash-like
situations, such as an air bag deployment or
hitting a road obstacle, data that will assist in
understanding how a vehicle’s systems per-
formed. The EDR is designed to record data
related to vehicle dynamics and safety systems
for a short period of time, typically 30 seconds
or less. The EDR in this vehicle is designed to
record such data as:
.How various systems in your vehicle were
operating;
. Whether or not the driver and passenger
safety belts were buckled/fastened;
. How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which crashes
and injuries occur.
NOTE: EDR data are recorded by your vehicle
only if a nontrivial crash situation occurs; no data
are recorded by the EDR under normal driving
conditions and no personal data (e.g. name,
gender, age and crash location) are recorded.
However, other parties, such as law enforce-
ment, could combine the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the vehicle
or the EDR is needed. In addition to the vehicle
manufacturer and NISSAN dealer, other parties,
such as law enforcement, that have the special
equipment, can read the information if they have
access to the vehicle or the EDR. EDR data will
only be accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law.
Genuine NISSAN Service Manuals for this
model year and prior can be purchased. A
genuine NISSAN Service Manual is the best
source of service and repair information for your
vehicle. This manual is the same one used by the
factory trained technicians working at a NISSAN
dealer. Genuine NISSAN Owner’s Manuals can
also be purchased.
In the USA:
For current pricing and availability of genuine
NISSAN Service Manuals
contact:
1-800-450-9491
www.nissan-techinfo.com
For current pricing and availability of genuine
NISSAN Owner’s Manuals contact:
1-800-247-5321
In Canada:
To purchase a copy of a genuine NISSAN
Service Manual or Owner’s Manual for this
model year and prior please contact a NISSAN
dealer. For the phone number and location of a
NISSAN dealer in your area call the NISSAN
Information Center at 1-800-387-0122 and a
bilingual NISSAN representative will assist you.
Technical and consumer information9-21
EVENT DATA RECORDERS (EDR) OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION

9-22Technical and consumer information

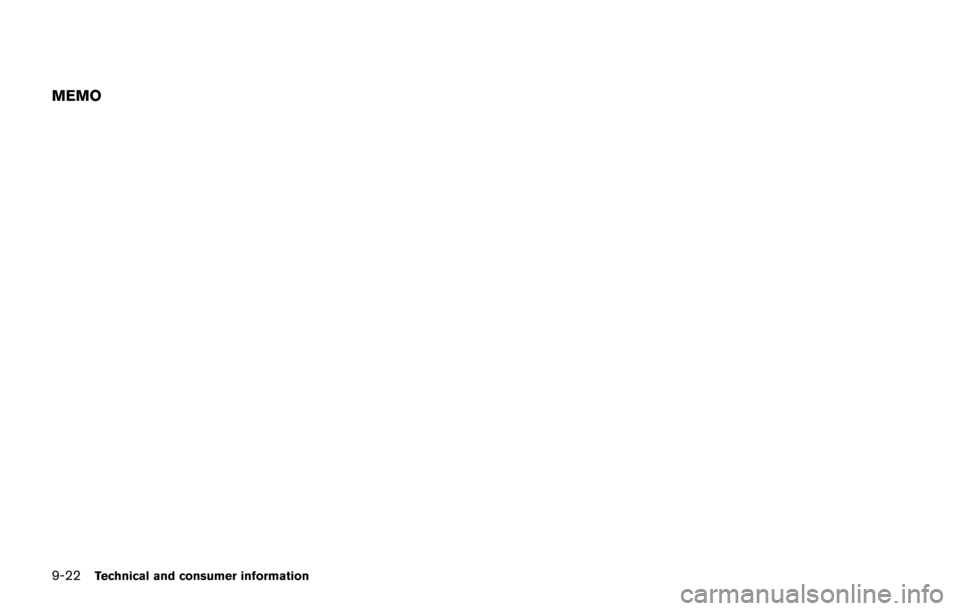

MEMO

10 Index
A
ABS (Anti-lock Braking System) ............................ 5-40
Adjusting the screen .................................................. 4-19
Advanced air bag system ......................................... 1-44
Air bag systemAdvanced air bag system .................................. 1-44
Front passenger air bag and status light....... 1-46
Front-seat mounted side-impact
supplemental air bag system ............................ 1-49
Roof-mounted curtain side-impact
supplemental air bag system ............................ 1-49
Air bag warning labels............................................... 1-52
Air bag warning light...................................... 1-52, 2-17
Air cleaner housing filter ........................................... 8-16
Air conditioner Air conditioner operation.................................... 4-20
Air conditioner service ........................................ 4-27
Air conditioner specification label.................... 9-12
Air conditioning system refrigerant and
lubricant recommendations....................... 4-27, 9-7
In-cabin microfilter ............................................... 4-27
Air conditioner operation........................................... 4-23
Alarm, How to stop alarm (see vehicle
security system)........................................................... 2-30
Alcohol, drugs and driving.......................................... 5-8
All-wheel drive (AWD)............................................... 5-33
Antenna.......................................................................... 4-70
Anti-lock Braking System (ABS) ............................ 5-40
Anti-lock braking system (ABS) warning light..... 2-13
Appearance care Exterior appearance care ...................................... 7-2
Interior appearance care ....................................... 7-5
Application download................................................. 4-71
Audible reminders....................................................... 2-19
Audio operation precautions.................................... 4-28 Audio setup .................................................................... 4-6
Audio system................................................................ 4-28
Steering wheel audio controls.......................... 4-69
Audio system voice commands............................... 4-96
Autolight system.......................................................... 2-36
Automatic Air conditioner....................................................... 4-24
Door locks................................................................. 3-6
AUX (Auxiliary) input....................................... 4-47, 4-52
Average fuel consumption ........................................ 2-11
Avoiding collision and rollover ................................... 5-7
B
Back door (See lift gate) .......................................... 3-20
Battery............................................................................ 8-13 Battery replacement, Intelligent Key................ 8-24
Battery replacement, Keyfob............................. 8-23
Battery saver system........................................... 2-37
Variable voltage control system........................ 8-14
Before starting the engine........................................ 5-15
Bluetooth
®Hands-Free Phone System
(Type B)......................................................................... 4-85
Bluetooth
®Hands-Free Phone System
(Type A) ......................................................................... 4-72
Bluetooth
®hands-free phone system
voice commands ......................................................... 4-94
Bluetooth
®settings..................................................... 4-90
Bluetooth®streaming audio ..................................... 4-67
Booster seats............................................................... 1-34
Brake Anti-lock Braking System (ABS) ..................... 5-40
Brake and clutch fluid......................................... 8-11
Brake system......................................................... 5-39
Parking brake operation ..................................... 5-29
Warning light......................................................... 2-13 Break-in schedule ....................................................... 5-31
Brightness control
Display ON/OFF button ........................................ 4-6
Instrument panel................................................... 2-38
Bulb check/instrument panel ................................... 2-13
Bulb replacement........................................................ 8-26
C
Cabin air filter............................................................... 4-27
Capacities and recommended fuel/lubricants ....... 9-2
Car phone or CB radio ............................................. 4-71
Cargo cover.................................................................. 2-44
Cargo floor box............................................................ 2-43
Catalytic converter, Three way catalyst................... 5-4
CD/USB memory care and cleaning ..................... 4-68
Check tire pressure warning...................................... 2-7
Child restraints............................................................. 1-18 Booster seats........................................................ 1-34
LATCH system...................................................... 1-20
Precautions on child restraints......................... 1-18
Child safety................................................................... 1-16
Child safety rear door lock ......................................... 3-6
Chimes, Audible reminders ...................................... 2-19
Circuit breaker, Fusible link...................................... 8-20
Cleaning exterior and interior............................ 7-2, 7-5
Clock.............................................................................. 2-41
Clock (models with navigation system)................... 4-8
Clutch fluid.................................................................... 8-11
Coat hook ..................................................................... 2-44
Cockpit ............................................................................ 2-3
Cold weather driving.................................................. 5-43
Compact Disc (CD) player (See
audio system)....................................... 4-44, 4-50, 4-60
Connect phone............................................................ 4-71
Connecting procedure............................................... 4-87

10-2
Continuously Variable Transmission
(CVT) fluid..................................................................... 8-11
Control panel buttons — color screen (Type A) ... 4-3
Control panel buttons — color screen
(Type B)......................................................................... 4-10
Controls, Steering wheel audio controls............... 4-69
Coolant Capacities and
recommended fuel/lubricants............................... 9-2
Changing engine coolant...................................... 8-8
Checking engine coolant level............................. 8-8
Corrosion protection .................................................... 7-7
Cover, Cargo cover.................................................... 2-44
Cruise control............................................................... 5-30
Cup holders.................................................................. 2-42
CVT, Driving with CVT (Continuously
Variable Transmission) ................................... 5-11, 5-17
D
Daytime running light system................................... 2-37
Defroster switch, Rear window and outside
mirror defroster switch............................................... 2-35
Dimensions and weights............................................. 9-9
Displaying Climate control........................................ 4-26
Door open warning light............................................ 2-14
Drive belt....................................................................... 8-15
Driving All-wheel drive (AWD)........................................ 5-33
Cold weather driving........................................... 5-43
Driving with CVT (Continuously
Variable Transmission) ............................. 5-11, 5-17
Driving with manual transmission.......... 5-11, 5-23
Precautions when starting and driving .............. 5-3
Safety precautions.................................................. 5-8
During a call ................................................................. 4-88
E
Economy, Fuel.............................................................. 5-33
Elapsed time..................................................... 2-11, 2-27
Electric power steering system ............................... 5-38
Electric power steering warning light .................... 2-14
Emission control information label.......................... 9-11
Emission control system warranty........................... 9-19
Ending a call................................................................. 4-88
Engine Before starting the engine................................. 5-15
Break-in schedule ................................................ 5-31
Capacities and
recommended fuel/lubricants............................... 9-2
Changing engine coolant...................................... 8-8
Changing engine oil and filter.............................. 8-9
Checking engine coolant level............................. 8-8
Checking engine oil level...................................... 8-8
Coolant temperature gauge ................................. 2-8
Emergency engine shut off....................... 5-14, 6-2
Engine block heater............................................. 5-44
Engine compartment check locations................ 8-6
Engine cooling system........................................... 8-7
Engine oil................................................................... 8-8
Engine oil and oil filter recommendation........... 9-6
Engine oil viscosity.................................................. 9-7
Engine serial number........................................... 9-10
Engine specifications ............................................. 9-8
If your vehicle overheats..................................... 6-10
Starting the engine .............................................. 5-15
Event Data Recorders (EDR)................................... 9-21
Exhaust gas (carbon monoxide)................................ 5-3
Extended storage fuse warning................................. 2-7
F
F.M.V.S.S./C.M.V.S.S. certification label ............... 9-11
FCC Regulatory information..................................... 4-86
Filter Air cleaner housing filter .................................... 8-16
Changing engine oil and filter.............................. 8-9
Flashers (See hazard warning flasher switch)....... 6-2
Flat tire............................................................................. 6-3
Flat towing .................................................................... 9-17
Floor mat cleaning ........................................................ 7-6
Fluid Brake and clutch fluid......................................... 8-11
Capacities and
recommended fuel/lubricants............................... 9-2
Continuously Variable Transmission
(CVT) fluid.............................................................. 8-11
Engine coolant......................................................... 8-7
Engine oil................................................................... 8-8
Window washer fluid .......................................... 8-12
FM/AM/SAT radio operation..................................... 4-58
FM-AM-SAT radio with Compact Disc
(CD) player ....................................................... 4-41, 4-48
FM-AM-SAT radio with Compact Disc (CD)
player (Type C) ............................................................ 4-57
Fog light switch........................................................... 2-39
Front manual seat adjustment.................................... 1-3
Front passenger air bag and status light.............. 1-46
Front seat, Front seat adjustment............................. 1-3
Front-seat active head restraints .............................. 1-9
Fuel Capacities and
recommended fuel/lubricants............................... 9-2
Distance to empty................................................ 2-10
Fuel economy........................................................ 5-33
Fuel information ....................................................... 9-4
Fuel octane rating ................................................... 9-4

Fuel-filler cap......................................................... 3-21
Fuel-filler door....................................................... 3-21
Gauge ........................................................................ 2-9
Fuel Efficient Driving Tips ......................................... 5-32
Fuses.............................................................................. 8-19
Fusible links.................................................................. 8-20
G
Gas cap......................................................................... 3-21
Gauge .............................................................................. 2-5 Engine coolant temperature gauge .................... 2-8
Fuel gauge................................................................ 2-9
Odometer.................................................................. 2-6
Speedometer............................................................ 2-6
Tachometer ............................................................... 2-8
Trip computer........................................................ 2-10
General maintenance ................................................... 8-2
Giving voice commands............................................ 4-93
Glove box...................................................................... 2-44
H
Hands-Free Phone System, Bluetooth®
(Type A) ......................................................................... 4-72
Hazard warning flasher switch................................... 6-2
Head restraints/headrests........................................... 1-5
Headlights Bulb replacement................................................. 8-27
Headlight switch................................................... 2-35
Heated seats................................................................ 2-40
Heater Engine block heater............................................. 5-44
Heater and air conditioner operation.............. 4-20
Help voice commands ............................................... 4-96
Hood release................................................................ 3-19
Horn................................................................................ 2-39 How to say numbers.................................................. 4-94
How to use brightness control button................... 4-15
How to use the APPS·i button................................ 4-12
How to use the back button........................... 4-6, 4-11
How to use the CAMERA button........................... 4-15
How to use the ON·OFF button/Volume
control knob.................................................................. 4-15
How to use the SETUP button ................................. 4-6
I
IC Regulatory information ......................................... 4-86
Ignition switch (with Intelligent Key system) ............................. 5-12
(without Intelligent Key system) ....................... 5-10
Key positions......................................................... 5-12
Immobilizer system...................................................... 2-31
In-cabin microfilter ...................................................... 4-27
Indicator lights.............................................................. 2-17
Information voice commands ................................... 4-96
Initialization.................................................................... 4-93
Inside mirror.................................................................. 3-25
Inspection/maintenance (I/M) test .......................... 9-20
Instrument brightness control .................................. 2-38
Instrument panel............................................................ 2-4
Integrated control system ............................. 2-21, 5-25
Intelligent Key system ................................................ 3-10 Intelligent Key system warning light................ 2-14
Key operating range ............................................ 3-12
Key operation ........................................................ 3-13
P position selecting warning light.................... 2-16
Remote keyless operation.................................. 3-16
Interior light replacement........................................... 8-28
Interior lights................................................................. 2-49
iPod
®connecting........................................................ 4-45
iPod®player operation................................... 4-54, 4-63
ISOFIX child restraint................................................. 1-20
J
Jump starting.................................................................. 6-8
K
Keyless entry (See remote keyless entry system) .................... 3-7
With Intelligent Key system (See Intelligent
Key system) ........................................................... 3-16
Keys.................................................................................. 3-2 For Intelligent Key system.................................. 3-10
L
LabelsAir bag warning labels........................................ 1-52
Air conditioner specification label.................... 9-12
Emission control information label................... 9-11
Engine serial number........................................... 9-10
F.M.V.S.S./C.M.V.S.S. certification label ........ 9-11
Tire and Loading information label ....... 8-31, 9-11
Vehicle identification number (VIN) ................. 9-10
LATCH system............................................................. 1-20
License plate, Installing front license plate .......... 9-13
Lift gate.......................................................................... 3-20
Light Air bag warning light........................................... 1-52
Bulb replacement................................................. 8-26
Fog light switch.................................................... 2-39
Headlight switch................................................... 2-35
Headlights bulb replacement............................ 8-27
Indicator lights....................................................... 2-17
Interior lights.......................................................... 2-49
Map lights .............................................................. 2-50
Replacement.......................................................... 8-26
10-3

10-4
Warning/indicator lights and
audible reminders................................................. 2-13
Lights, Exterior and interior light replacement ..... 8-28
Loading information (See vehicle
loading information) .................................................... 9-14
Lock Automatic door locks ............................................. 3-6
Door locks................................................................. 3-4
Lift gate lock.......................................................... 3-20
Power door lock...................................................... 3-4
Loose fuel cap warning.................................... 2-7, 3-23
Low fuel warning light................................................ 2-15
Low tire pressure warning light............................... 2-15
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) .... 5-4
M
Maintenance Battery..................................................................... 8-13
General maintenance ............................................. 8-2
Inside the vehicle .................................................... 8-3
Maintenance precautions...................................... 8-5
Maintenance requirements.................................... 8-2
Outside the vehicle................................................. 8-2
Seat belt maintenance........................................ 1-15
Making a call ................................................................ 4-87
Malfunction indicator light (MIL).............................. 2-18
Manual air conditioner................................................ 4-21
Manual front seat adjustment..................................... 1-3
Map lights ..................................................................... 2-50
Mechanical key (Intelligent Key system) ................. 3-4
Meter Trip computer........................................................ 2-10
Meters and gauges....................................................... 2-5 Instrument brightness control ........................... 2-38 Mirror
Inside mirror........................................................... 3-25
Outside mirrors..................................................... 3-25
Vanity mirror........................................................... 3-27
Monitor, RearView monitor ....................................... 4-15
Moonroof....................................................................... 2-48
My APPS voice commands...................................... 4-96
N
Navigation setup............................................................ 4-7
Navigation system voice commands...................... 4-95
New vehicle break-in.................................................. 5-31
NISSAN Vehicle Immobilizer System..................... 2-31
NISSAN voice recognition system ......................... 4-92
NissanConnect
TMApp
smartphone integration.............................................. 4-71
O
Odometer........................................................................ 2-6
Off-road recovery.......................................................... 5-7
Oil Capacities and
recommended fuel/lubricants............................... 9-2
Changing engine oil and filter.............................. 8-9
Checking engine oil level...................................... 8-8
Engine oil................................................................... 8-8
Engine oil viscosity.................................................. 9-7
One Shot Call.............................................................. 4-87
Operating tips.............................................................. 4-93
Outside air temperature display.............................. 2-10
Outside mirrors............................................................ 3-25
Overheat, If your vehicle overheats ........................ 6-10
Owner’s Manual/Service Manual
order information ......................................................... 9-21
P
Pandora®audio ........................................................... 4-66
Panic alarm.......................................................... 3-8, 3-17
Parking Brake break-in....................................................... 5-39
Parking brake operation ..................................... 5-29
Parking on hills ..................................................... 5-37
Phone Bluetooth
®Hands-Free Phone System
(Type A) .................................................................. 4-72
Car phone or CB radio ...................................... 4-71
Phone settings............................................................. 4-92
Power Electric power steering system ........................ 5-38
Moonroof................................................................ 2-48
Power door lock...................................................... 3-4
Power outlet .......................................................... 2-42
Power windows .................................................... 2-45
Precautions Audio operation .................................................... 4-28
Braking precautions............................................. 5-39
Child restraints...................................................... 1-18
Cruise control........................................................ 5-30
Driving safety............................................................ 5-8
Maintenance ............................................................. 8-5
Seat belt usage .................................................... 1-10
Supplemental restraint system.......................... 1-38
When starting and driving .................................... 5-3
Push starting ................................................................ 6-10
Push-button ignition switch.......................... 5-12, 5-13
R
Radio.............................................................................. 4-28 Car phone or CB radio ...................................... 4-71
Radio operation .................................................... 4-42

Steering wheel audio controls.......................... 4-69
Rapid air pressure loss................................................ 5-7
Readiness for inspection/maintenance
(I/M) test........................................................................ 9-20
Rear door lock, Child safety rear door lock........... 3-6
Rear seats....................................................................... 1-4
Rear window and outside mirror
defroster switch........................................................... 2-35
Rear window wiper and washer switch ................ 2-34
RearView monitor........................................................ 4-15
Receiving a call ........................................................... 4-88
Recorders, Event data ............................................... 9-21
Registering with NissanConnect
TMApp............... 4-71
Registering your vehicle in another country........... 9-9
Regulatory information ............................................... 4-86
Remote keyless entry function, For Intelligent
Key system.................................................................... 3-16
Remote keyless entry system..................................... 3-7
Reporting safety defects........................................... 9-19
Rollover............................................................................ 5-7
Roof, Moonroof............................................................ 2-48
S
Safety Child seat belts .................................................... 1-16
Reporting safety defects.................................... 9-19
Satellite radio operation ............................................ 4-49
Seat adjustment Front manual seat adjustment.............................. 1-3
Front seats................................................................ 1-3
Seat belt(s) Child safety............................................................ 1-16
Infants...................................................................... 1-17
Injured persons..................................................... 1-12
Larger children...................................................... 1-17
Precautions on seat belt usage........................ 1-10 Pregnant women .................................................. 1-12
Seat belt cleaning................................................... 7-6
Seat belt extenders.............................................. 1-15
Seat belt hooks .................................................... 1-15
Seat belt maintenance........................................ 1-15
Seat belt warning light........................................ 2-16
Seat belts............................................................... 1-10
Seat belts with pretensioners........................... 1-50
Shoulder belt height adjustment...................... 1-14
Small children........................................................ 1-17
Three-point type................................................... 1-12
Seat(s) Heated seats......................................................... 2-40
Seats .......................................................................... 1-2
Security system (NISSAN Vehicle Immobilizer
System) , Engine start................................................. 2-31
Security system, Vehicle security system ............. 2-29
Servicing air conditioner............................................ 4-27
Setting climate eco..................................................... 4-26
Shift lever Shift lock release.................................................. 5-22
Shift lock release Transmission.......................................................... 5-22
Shifting CVT (Continuously
Variable Transmission) ............................. 5-11, 5-17
Manual transmission................................. 5-11, 5-23
Shoulder belt height adjustment, For
front seats..................................................................... 1-14
SOURCE select switch............................................. 4-69
Spare tire.............................................................. 8-41, 9-8
Spark plugs .................................................................. 8-15
Speedometer.................................................................. 2-6
Starting Before starting the engine................................. 5-15
Jump starting............................................................ 6-8
Precautions when starting and driving .............. 5-3 Push starting ......................................................... 6-10
Starting the engine .............................................. 5-15
Status light, Front passenger air bag .................... 1-46
Steering Electric power steering system ........................ 5-38
Steering wheel switch for audio controls ...... 4-69
Tilting steering column........................................ 3-23
Storage .......................................................................... 2-42
Sun visors ..................................................................... 3-24
Supplemental air bag warning labels..................... 1-52
Supplemental air bag warning light............ 1-52, 2-17
Supplemental restraint system................................. 1-38 Precautions on supplemental
restraint system..................................................... 1-38
Switch Audio control steering wheel switch............... 4-69
Autolight switch.................................................... 2-36
Fog light switch.................................................... 2-39
Hazard warning flasher switch............................. 6-2
Headlight switch................................................... 2-35
Power door lock switch......................................... 3-5
Rear window and outside mirror
defroster switch.................................................... 2-35
Turn signal switch ................................................ 2-38
Vehicle dynamic control (VDC) off switch..... 2-39
System features........................................................... 4-94
System setup ................................................................. 4-7
T
Tachometer ..................................................................... 2-8
Temperature display.................................................... 2-10
Temperature gauge, Engine coolant
temperature gauge........................................................ 2-8
Text messaging............................................................ 4-88
Theft (NISSAN Vehicle Immobilizer System) ,
Engine start................................................................... 2-31
10-5
