2014 LEXUS LX570 Owners Manual

411-2. Opening, closing and locking the doors
1
Before driving
LX570_OM_OM60L21U_(U) ■
Battery-saving function
In the following circumstances, the entry func tion is disabled in order to prevent the
vehicle and electronic key batteries from discharging. ●
When the entry function has not been used for 2 weeks or more ●
When the electronic key has been left within approximately 3 ft. (1 m) of the
vehicle for 10 minutes or more
The system will resume operation when... ●
The vehicle is locked using th e door handle lock switch.●
The vehicle is locked/unlocked using the wireless remote control function
(  P. 48) or the mechanical key. (  P. 8 6 7 )■
Electronic key battery depletion ●
The standard battery life is 1 to 2 years.
(The card key battery life is about a year and a half.) ●
If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (  P. 4 3 )●
The battery becomes depleted even if the electronic key is not used because
the key always receives radio waves. If the smart access system with push-but-
ton start or the wireless remote control function does not operate, or the detec-
tion area becomes smaller, the battery may be depleted. Replace the battery
when necessary. (  P. 7 8 0 )●
To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of
the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Induction cookers
• Table lamps

421-2. Opening, closing and locking the doors
LX570_OM_OM60L21U_(U) ■
To operate the system properly
Make sure to carry the electronic key wh en operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the outside
of the vehicle.
Depending on the position and holding condition of the electronic key, the key may
not be detected corr ectly and the system may not operate properly. (The alarm may
go off accidentally, or the door lock prevention may not function.) ■
Note for the entry function ●
Even when the electronic key is within the effective range (detection areas), the
system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near the
ground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the
rear bumper center when the back door is locked or unlocked.
• The electronic key is on the instrument panel, floor or in the glove box when
the engine is started or “ENGINE ST ART STOP” switch modes are changed.●
Do not leave the electronic key on top of the instrument panel or near the door
pockets when exiting the vehicle. Depending on the radio wave reception con-
ditions, it may be detected by the an tenna outside the cabin and the door will
become lockable from the outside, poss ibly trapping the electronic key inside
the vehicle. ●
As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. ●
Even if the electronic key is not inside th e vehicle, it may be possible to start the
engine if the electronic key is near the window. ●
The doors may unlock if a large amount of water splashes on the door handle,
such as in the rain or in a car wash. (The doors will automatically be locked after
approximately 60 seconds if the doors are not opened and closed.)●
Gripping the door handle when wearing a glove may not unlock the door. ●
If the wireless remote control is used to lock the doors when the electronic key
is near the vehicle, there is a possibility that the door may not be unlocked by the
entry function. (Use the wireless re mote control to unlock the doors.)●
A sudden approach to the effective range or door handle operation may pre-
vent the doors from being unlocked. In this case, return the door handle to the
original position and check that the d oors unlock before pulling the door han-
dle.

431-2. Opening, closing and locking the doors
1
Before driving
LX570_OM_OM60L21U_(U) ■
When the vehicle is not driven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of
the vehicle. ■
Security feature
If a door is not opened within approx imately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again. ■
Alarms and warning indicators
A combination of exterior and interior alarms as well as warnings displayed on the
multi-information display are used to prevent theft of the vehicle and unforeseeable
accidents resulting from erroneous operation. Perform the appropriate correction
procedure described in the following table.
Alarm Situation Correction procedure
Exterior alarm
sounds once for
2 seconds An attempt was made to lock
the doors using the entry
function while the electronic
key was still inside the pas-
senger compartment Retrieve the electronic
key from the passenger
compartment and lock
the doors again
Exterior alarm
sounds once for
60 seconds An attempt was made to exit
the vehicle and lock the
doors without first turning the
“ENGINE START STOP”
switch OFF Tu r n t h e “ E N G I N E
START STOP” switch
OFF and lock the doors
again
Exterior alarm
sounds once for
5 seconds An attempt was made to lock
the vehicle while a door is
open Close all of the doors
and lock the doors again

441-2. Opening, closing and locking the doors
LX570_OM_OM60L21U_(U) Alarm Situation Correction procedure
Interior alarm pings
continuously The “ENGINE START
STOP” switch was turned to
ACCESSORY mode while
the driver’s door was open
(or the driver’s door was
opened while the “ENGINE
START STOP” switch was in
ACCESSORY mode) Tu r n t h e “ E N G I N E
START STOP” switch
OFF and close the
driver’s door
The “ENGINE START
STOP” switch was turned
OFF while the driver’s door
was open Close the driver’s door
Interior alarm
sounds continu-
ously
* 1
When the “ENGINE START
STOP” switch is in IGNI-
TION ON or ACCESSORY
mode, an attempt was made
to open the door and exit the
vehicle, and the shift lever
was not in “P” Shift the shift lever to “P”
and turn the “ENGINE
START STOP” switch
OFF
Interior and exte-
rior alarms sound
continuously
* 1
When the “ENGINE START
STOP” switch is in IGNI-
TION ON or ACCESSORY
mode, the driver’s door was
closed after the key was car-
ried outside the vehicle, and
the shift lever not in “P” Shift the shift lever to
“P”, turn the “ENGINE
START STOP” switch
OFF and close the
driver’s door again

451-2. Opening, closing and locking the doors
1
Before driving
LX570_OM_OM60L21U_(U) * 1
: A message will be shown on the multi-information display in the instrument
cluster.
* 2
: If the engine does not start when the electronic key is inside the vehicle, the
electronic key battery may be depleted or there may be difficulties receiving
signal from the key. (  P. 3 9 )■
If the smart access system with push-button start does not operate properly ●
Locking and unlocking the doors: Use the mechanical key. (  P. 8 6 7 )●
Starting the engine:  P. 8 6 8■
When the electronic key battery is fully depleted
 P. 7 8 0■
Customization
Settings (e.g. smart access system with push-button start) can be changed.
(Customizable features  P. 9 0 6 )Alarm Situation Correction procedure
Interior alarm pings
once
* 1
The electronic key has a low
battery Replace the electronic
key battery
An attempt was made to start
the engine without the elec-
tronic key being present, or
the electronic key was not
functioning normally Start the engine with the
electronic key
present
* 2
Interior alarm pings
once and exterior
alarm sounds 3
times
* 1
The driver’s door was closed
after the key was carried out-
side the vehicle, and the
“ENGINE START STOP”
switch was not turned OFF Tu r n t h e “ E N G I N E
START STOP” switch
OFF and close the
driver’s door again
An occupant carried the
electronic key outside the
vehicle and closed the door
while the “ENGINE START
STOP” switch was not OFF Bring the electronic key
back into the vehicle

461-2. Opening, closing and locking the doors
LX570_OM_OM60L21U_(U) ■
Certification for the smart access system with push-button start
For vehicles sold in the U.S.A.
FCC ID:NI4TMLF-5
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must a ccept any interference, including interfer-
ence that may cause undesired operation of the device.

471-2. Opening, closing and locking the doors
1
Before driving
LX570_OM_OM60L21U_(U) CAUTION■
Caution regarding interference with electronic devices ●
People with implantable cardiac pacemakers, cardiac resynchronization therapy-
pacemakers or implantable cardioverter de fibrillators should keep away from the
smart access system antennas. (  P. 3 8 )
The radio waves may affect the operation of such devices. If necessary, the entry
function can be disabled. Ask your Lexus dealer for details, such as the frequency
of radio waves and timing of the emitte d radio waves. Then, consult your doctor
to see if you should disable the entry function. ●
Users of any electrical medical device other than implantable cardiac pacemak-
ers, cardiac resynchronization therapy-pacemakers or implantable cardioverter
defibrillators should consult the manufacturer of the device for information about
its operation under the influence of radio waves.
Radio waves could have unexpected effe cts on the operation of such medical
devices.
Ask your Lexus dealer for details on disabling the entry function.

481-2. Opening, closing and locking the doors

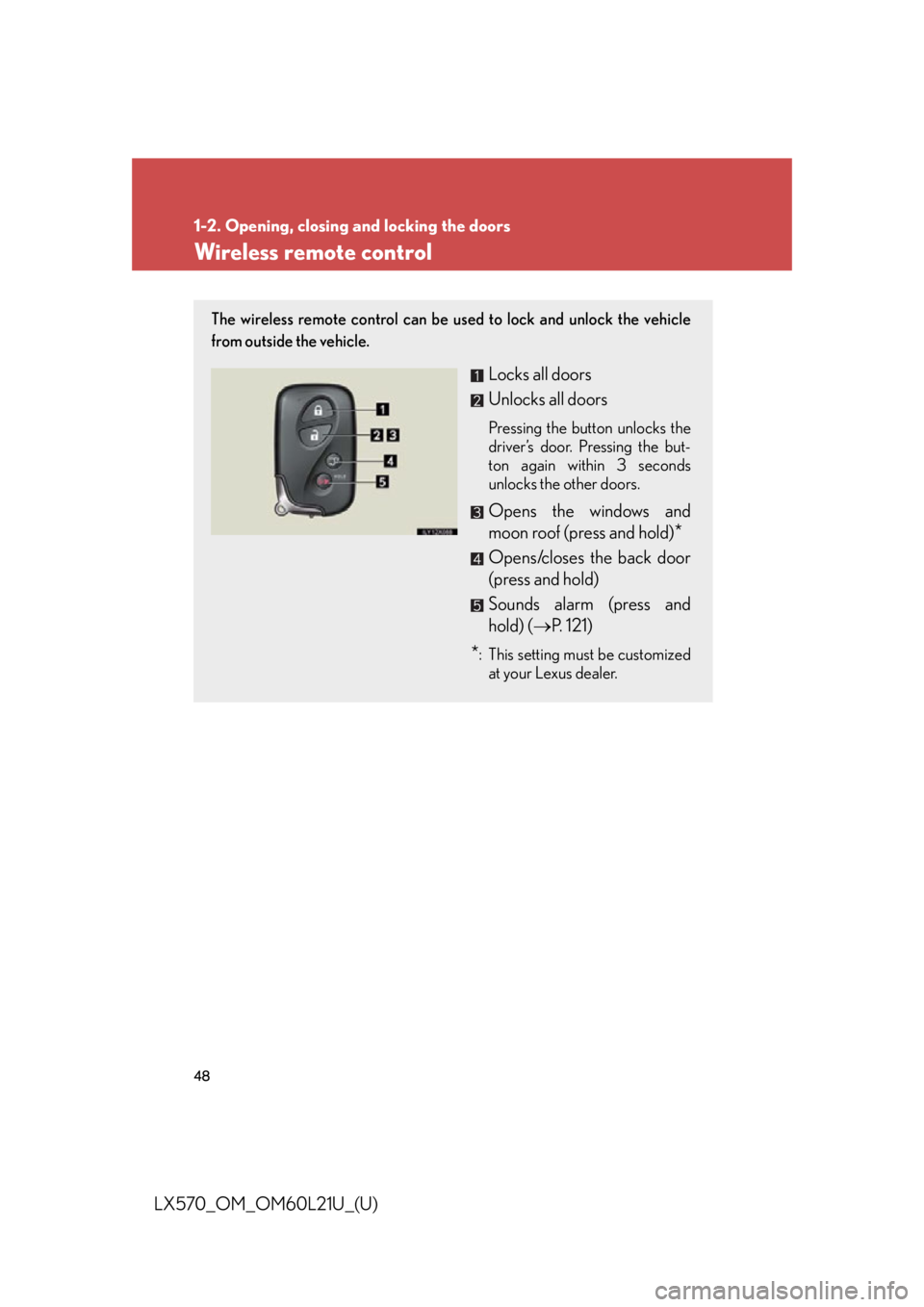

LX570_OM_OM60L21U_(U) Wireless remote control The wireless remote control can be us ed to lock and unlock the vehicle
from outside the vehicle.
Locks all doors
Unlocks all doors Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 3 seconds
unlocks the other doors.
Opens the windows and
moon roof (press and hold)
*Opens/closes the back door
(press and hold)
Sounds alarm (press and
hold) (  P. 121)
* : This setting must be customized
at your Lexus dealer.
