2014 Lexus IS250 Owner's Manual

3936-3. Using the storage features
6
Interior features
IS250_EE(OM53C51E)
■Cup holders
■Bottle holders
●When storing a bottle, close the cap.
●The bottle may not be stored depending on its size or shape.
●The rubber mats at the bottom of the front cup holders can be removed.
Cup holders/Bottle holders
XFrontXRear (if equipped)
To open, pull down the armrest and
press the button and release the
rear cup holder on the armrest.

3946-3. Using the storage features
IS250_EE(OM53C51E)
CAUTION
●Do not place anything other than cups or aluminum cans in the cup holders and bot-
tle in the bottle holders. Other items may be thrown out of the holders in the event of
an accident or sudden braking, causing injury.
●To prevent burns, cover hot drinks when placed in the cup holders.
NOTICE
To prevent damage to the rear cup holder, stow the cup holder before stowing the arm-
rest.

3956-3. Using the storage features
6
Interior features
IS250_EE(OM53C51E)
Raise the hooks when needed.
The cargo hooks are provided for
securing loose items.
Loosen the belt
Tighten the belt
Trunk features
Cargo hooks
CAUTION
To avoid injury, always return the cargo hooks to their stowed positions when not in use.
First-aid kit storage belt
1
2

3966-3. Using the storage features
IS250_EE(OM53C51E)
Hold the hook and lift up the lug-
gage mat.
Secure the luggage mat using the
hook.
Luggage mat
1
2
NOTICE
When closing the trunk, do not leave the luggage mat lever hooked on the edge of the
trunk. The luggage mat may get damaged.

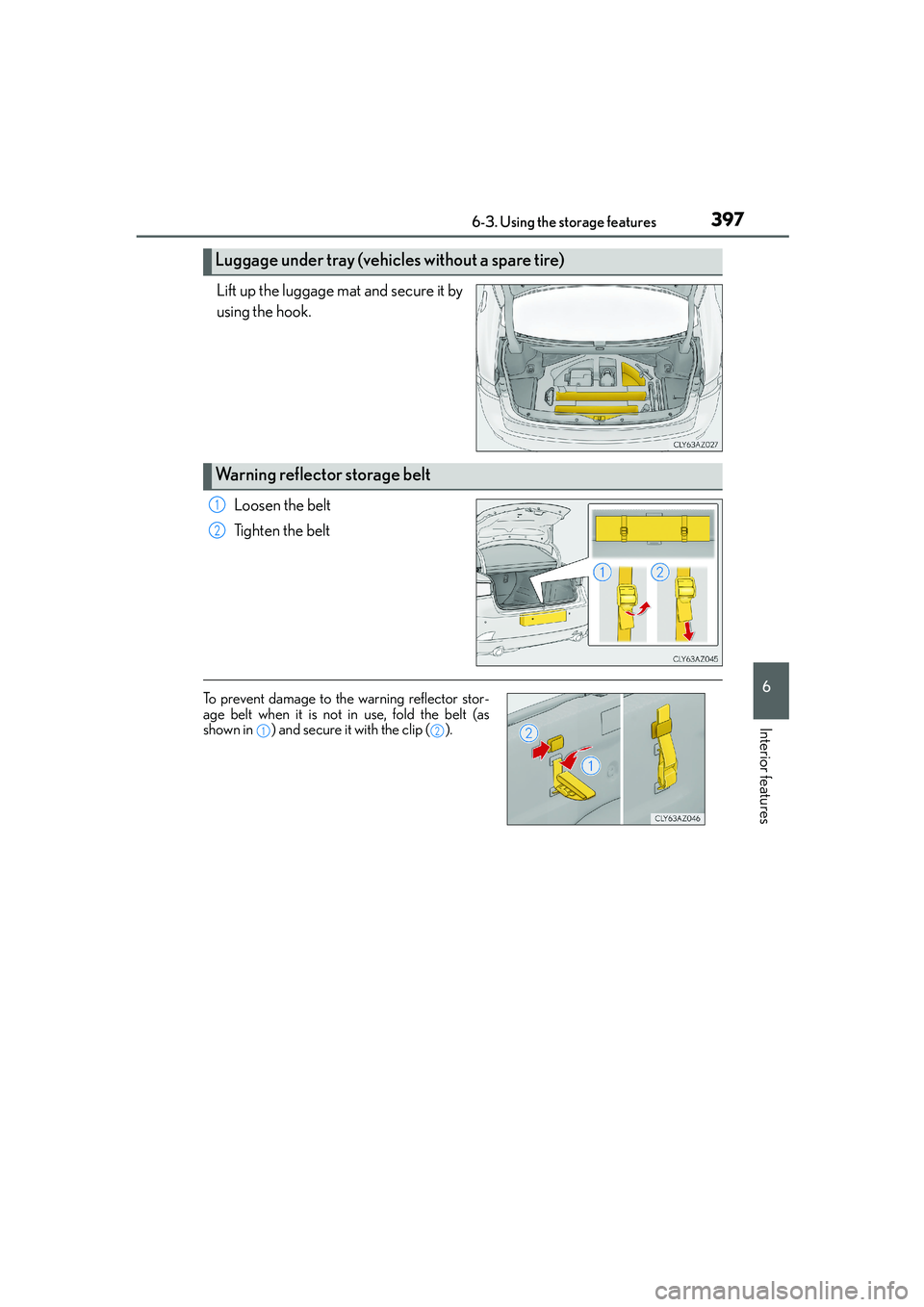

3976-3. Using the storage features
6
Interior features
IS250_EE(OM53C51E)
Lift up the luggage mat and secure it by
using the hook.
Loosen the belt
Tighten the belt
Luggage under tray (vehicles without a spare tire)
Warning reflector storage belt
1
2
To prevent damage to the warning reflector stor-
age belt when it is not in use, fold the belt (as
shown in ) and secure it with the clip ( ).
12

398
IS250_EE(OM53C51E)6-4. Using the other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
Slide the cover to open.
The light turns on when the cover is
opened.
The clock can be adjusted.
Pressing and holding will move the
clock hands backward.
Pressing and holding will move the
clock hands forward.
Other interior features
Sun visors
1
2
Vanity mirrors
Clock
1
2

3996-4. Using the other interior features
6
Interior features
IS250_EE(OM53C51E)
The power outlet can be used for 12 V accessories that run on less than 10 A.
Open the lid.
●The power outlet can be used when the engine switch is in ACCESSORY or IGNI-
TION ON mode.
Power outlet
●To fully close the console box with the cable
routed to outside the console box, insert the
cable into the holder.
NOTICE
●To avoid the damaging the power outlet, close the power outlet lid when the power
outlet is not in use. Foreign objects or liquids that enter the power outlet may cause a
short circuit.
●To prevent blown fuse, do not use an accessory that uses more than 12 V 10 A.
●To prevent battery discharge, do not use the power outlet longer than necessary
when the engine is off.

4006-4. Using the other interior features
IS250_EE(OM53C51E)
Fold down the armrest for use.
The rear sunshade can be raised and lowered.
Raise/lower
Armrest (if equipped)
NOTICE
To prevent damage to the armrest, do not apply too much load on the armrest.
Rear sunshade (if equipped)
