2014 Lexus IS250 Owner's Manual

1213-2. Opening, closing and locking the doors and trunk
3
Operation of each component
IS250_EE(OM53C51E)
◆Door lock switches
Locks all the doors
Unlocks all the doors
◆Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened by
pulling the inside handle even if the
lock buttons are in the lock position.
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
The door cannot be locked if the engine switch is in ACCESSORY or IGNITION
ON mode, or the electronic key is left inside the vehicle. However, the key may not be
detected correctly and the door may be locked.
Unlocking and locking the doors from the inside
1
2
1
2
Locking the front doors from the outside without a key
1
2

1223-2. Opening, closing and locking the doors and trunk
IS250_EE(OM53C51E)
The door cannot be opened from inside
the vehicle when the lock is set.
Unlock
Lock
These locks can be set to prevent chil-
dren from opening the rear doors. Push
down on each rear door switch to lock
both rear doors.
The following functions can be set or canceled:
For instructions on customizing, refer to P. 551.
Rear door child-protector lock
1
2
Automatic door locking and unlocking systems
FunctionOperation
Speed linked door locking functionAll the doors are locked when the vehicle speed
is approximately 20 km/h (12 mph) or higher.
Shift position linked door locking
functionShifting the shift lever out of P locks all the
doors.
Shift position linked door unlocking
functionAll doors are automatically unlocked when
shifting the shift lever to P.
Driver's door linked door unlocking
functionAll doors are automatically unlocked when
driver’s door is opened.

1233-2. Opening, closing and locking the doors and trunk
3
Operation of each component
IS250_EE(OM53C51E)
■Switching the door unlock function (vehicles with entry function)
It is possible to set which doors the entry function unlocks using the wireless remote con-
trol.
Turn the engine switch off.
Cancel the intrusion sensor and tilt sensor of the alarm system to prevent unintended
triggering of the alarm while changing the settings. (if equipped) (→P. 8 6 )
When the indicator light on the key surface is not on, press and hold , or
for approximately 5 seconds while pressing and holding .
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds, and
repeat step .)
For vehicles with an alarm: To prevent unintended triggering of the alarm, unlock the
doors using the wireless remote control and open and close a door once after the set-
tings have been changed. (If a door is not opened within 30 seconds after is
pressed, the doors will be locked again and the alarm will automatically be set.)
In a case that the alarm is triggered, immediately stop the alarm. (→P. 8 4 )
1
2
3
3
Multi-information
displayUnlocking functionBeep
(Left-hand drive vehi-
cles)
(Right-hand drive
vehicles)
Holding the driver’s door handle
unlocks only the driver’s door.
Exterior: Beeps 3 times
Interior: Pings onceHolding the front passenger’s
door handle unlocks all the
doors.
Holding either front door handle
unlocks all the doors.Exterior: Beeps twice
Interior: Pings once

1243-2. Opening, closing and locking the doors and trunk
IS250_EE(OM53C51E)
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the impact or the type of accident, however, the system may
not operate.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. (→P. 5 2 4 )
■Conditions affecting the operation of the smart entry & start system or wireless remote
control
→P. 1 3 2
■Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: →P. 551)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant being thrown out of the
vehicle, resulting in death or serious injury.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of the doors while driving.
Be especially careful with the front doors, as the doors may be opened even if the
inside lock buttons are in locked position.
●Set the rear door child-protector locks when children are seated in the rear seats.
■When using the wireless remote control and operating the power windows and moon
roof
Operate the power window or moon roof after checking to make sure that there is no
possibility of any passenger having any of their body parts caught in the window or
moon roof. Also, do not allow children to operate the wireless remote control. It is pos-
sible for children and other passengers to get caught in power window and moon roof.

1253-2. Opening, closing and locking the doors and trunk
3
Operation of each component
IS250_EE(OM53C51E)
Press the opener switch.
◆Trunk button
Vehicles with entry function:
While carrying the electronic key,
press the button on the trunk lid.
When all the doors are unlocked with
the power door lock system, the
trunk can be opened without carry-
ing the electronic key.
Vehicles without entry function:
Unlock all the doors with the power
door lock system and press the but-
ton on the trunk lid.
Tr u n k
The trunk can be opened using the trunk opener, entry function or wireless
remote control.
Opening the trunk from inside the vehicle
Opening the trunk from outside the vehicle

1263-2. Opening, closing and locking the doors and trunk
IS250_EE(OM53C51E)

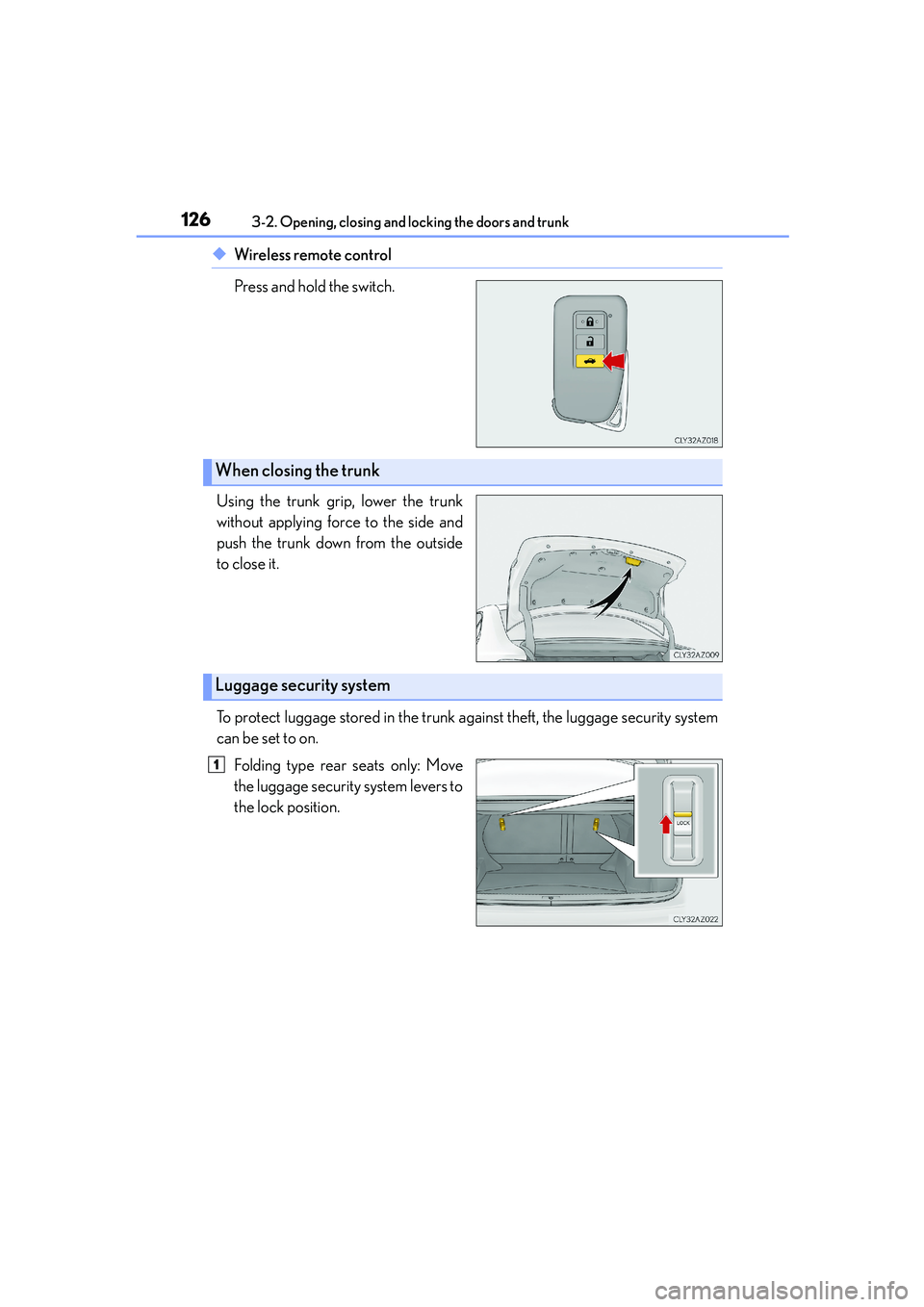

◆Wireless remote control
Press and hold the switch.
Using the trunk grip, lower the trunk
without applying force to the side and
push the trunk down from the outside
to close it.
To protect luggage stored in the trunk against theft, the luggage security system
can be set to on.
Folding type rear seats only: Move
the luggage security system levers to
the lock position.
When closing the trunk
Luggage security system
1

1273-2. Opening, closing and locking the doors and trunk
3
Operation of each component
IS250_EE(OM53C51E)
To disable the trunk opener, turn the
main switch in the glove box off
On
Off
When the main switch is off, the trunk
lid cannot be opened even with the
wireless remote control or entry
function.
■Trunk light
The trunk light turns on when the trunk is opened.
■Function to prevent the trunk being locked with the electronic key inside
●When all doors are locked, closing the trunk lid with the electronic key left inside the
trunk will sound an alarm.
In this case, the trunk lid can be opened pressing the trunk release button on the trunk
lid.
●If the spare electronic key is put in the trunk with all the doors locked, the key confine-
ment prevention function is activated so the trunk can be opened. In order to prevent
theft, take all electronic keys with you when leaving the vehicle.
●If the electronic key is put in the trunk with all the doors locked, the key may not be
detected depending on the location of the key and the surrounding radio wave condi-
tions. In this case, the key confinement prevention function cannot be activated, causing
the doors to lock when the trunk is closed. Make sure to check where the key is before
closing the trunk.
●The key confinement prevention function cannot be activated if any one of the doors is
unlocked. In this case, open the trunk using the trunk opener.
■Using the mechanical key
The trunk can be also opened using the mechanical key. (→P. 5 2 4 )
■If the smart entry & start system or the wireless remote control does not operate prop-
erly
Use the mechanical key to unlock the trunk. (→P. 5 2 4 )
Replace the key battery with a new one if it is depleted. (→P. 4 4 2 )
■When leaving a key to the vehicle with a parking attendant
→P. 1 1 4
■Customization
The trunk unlocking operation can be changed. (Customizable features: →P. 551)
2
1
2

1283-2. Opening, closing and locking the doors and trunk
IS250_EE(OM53C51E)

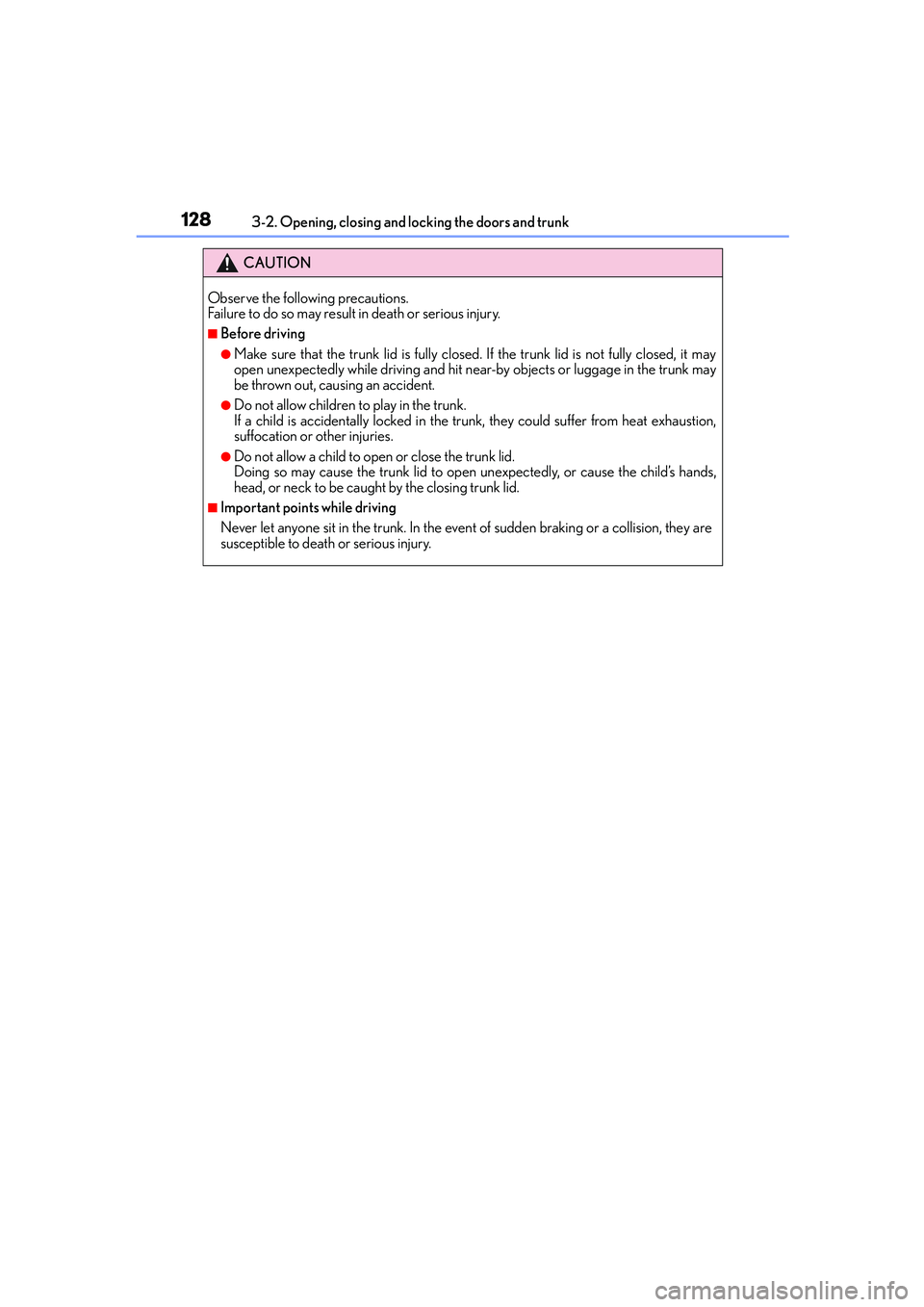

CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Before driving
●Make sure that the trunk lid is fully closed. If the trunk lid is not fully closed, it may
open unexpectedly while driving and hit near-by objects or luggage in the trunk may
be thrown out, causing an accident.
●Do not allow children to play in the trunk.
If a child is accidentally locked in the trunk, they could suffer from heat exhaustion,
suffocation or other injuries.
●Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid to open unexpectedly, or cause the child’s hands,
head, or neck to be caught by the closing trunk lid.
■Important points while driving
Never let anyone sit in the trunk. In the event of sudden braking or a collision, they are
susceptible to death or serious injury.
