2014 Lexus IS250 Navigation Manual

241
3. MEDIA OPERATION
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
1Select .
zEach time is selected, the mode
changes as follows:
•album random → all track random → off
RANDOM ORDER
Tracks or albums can be automatically
and randomly selected.
INFORMATION
●Each time is selected, “RAND”/
“ALB.RAND” appears on the screen.
IS_Navi_EE_53C71E.book 241 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

242
3. MEDIA OPERATION
IS300h/250_Navi_EE

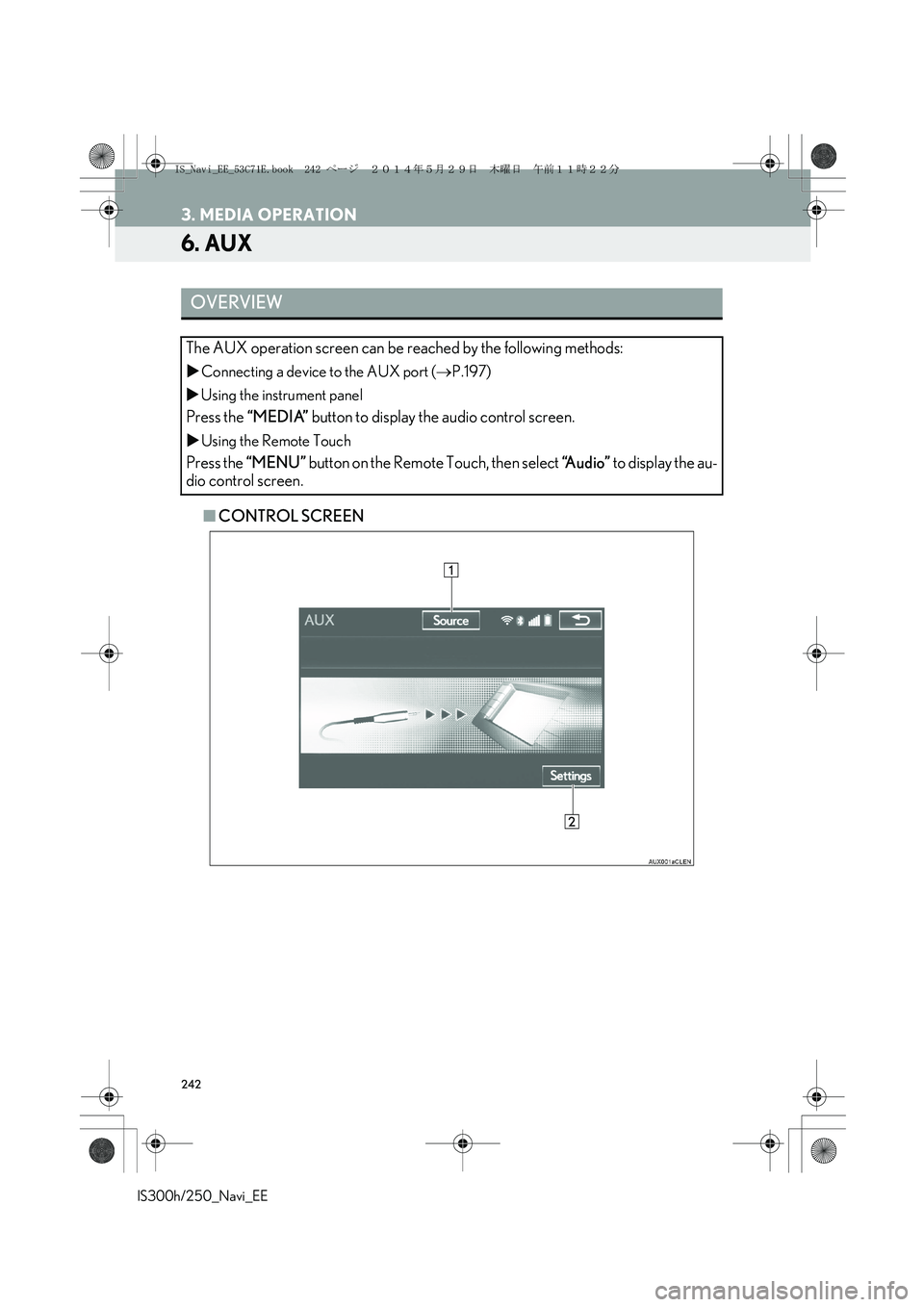

6. AUX
■CONTROL SCREEN
OVERVIEW
The AUX operation screen can be reached by the following methods:
XConnecting a device to the AUX port (→P.197)
XUsing the instrument panel
Press the “MEDIA” button to display the audio control screen.
XUsing the Remote Touch
Press the “MENU” button on the Remote Touch, then select “Audio” to display the au-
dio control screen.
IS_Navi_EE_53C71E.book 242 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

243
3. MEDIA OPERATION
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
■CONTROL PANEL
No.Function
Select to display the audio source selection screen.
Select to display the audio setting screen.
Press to turn mute on/off.
•Press to select a media mode.
•While in a media mode, pressing the “MEDIA” button changes media modes.
Power/Volume knob:
•Turn to adjust volume.
•Press to turn the audio system on/off.
•Press and hold to restart the audio system.
IS_Navi_EE_53C71E.book 243 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

244
3. MEDIA OPERATION
IS300h/250_Navi_EE
CAUTION
●Do not connect portable audio device or operate the controls while driving.
NOTICE
●Depending on the size and shape of the portable audio device that is connected to the sys-
tem, the armrest may not close fully. In this case, do not forcibly close the armrest as this may
damage the portable audio device or the terminal, etc.
●Do not leave portable audio device in the vehicle. The temperature inside the vehicle may
become high, resulting in damage to the player.
●Do not push down on or apply unnecessary pressure to the portable audio device while it is
connected as this may damage the portable audio device or its terminal.
●Do not insert foreign objects into the port as this may damage the portable audio device or
its terminal.
IS_Navi_EE_53C71E.book 244 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

245
3. MEDIA OPERATION
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
7. VTR
■CONTROL SCREEN
OVERVIEW
The VTR operation screen can be reached by the following methods:
XConnecting a device to the AUX port (→P.197)
XUsing the instrument panel
Press the “MEDIA” button to display the audio control screen.
XUsing the Remote Touch
Press the “MENU” button on the Remote Touch, then select “Audio” to display the au-
dio control screen.
IS_Navi_EE_53C71E.book 245 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

246
3. MEDIA OPERATION
IS300h/250_Navi_EE
■CONTROL PANEL
No.Function
Select to display the audio source selection screen.
Select to display the audio setting screen.
Select to display the option screen. (→P.247)
Select to display full screen video.
Press to turn mute on/off.
•Press to select a media mode.
•While in a media mode, pressing the “MEDIA” button changes media modes.
Power/Volume knob:
•Turn to adjust volume.
•Press to turn the audio system on/off.
•Press and hold to restart the audio system.
IS_Navi_EE_53C71E.book 246 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

247
3. MEDIA OPERATION
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
1Select “Options”.
2Select the desired settings to change.
VTR OPTIONS
No.FunctionPage
Select to change the screen
size.200
Select to display the image
quality adjustment screen.200
IS_Navi_EE_53C71E.book 247 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

248
IS300h/250_Navi_EE
4. AUDIO/VISUAL REMOTE CONTROLS
1. STEERING SWITCHES
X“MODE” switch
Some parts of the audio/visual system can be adjusted using the switches on the steer-
ing wheel.
No.Switch
“MODE” switch
“” switch
Volume control switch
ModeOperationFunction
AM/FM
Radio, DAB,
AUX, VTRPressChange audio modes
Press and hold
(0.8 sec. or more)Mute
CD, MP3/
WMA/AAC
disc, DVD,
USB, iPod,
BT audioPressChange audio modes
Press and hold
(0.8 sec. or more)Pause
IS_Navi_EE_53C71E.book 248 ページ ２０１４年５月２９日　木曜日　午前１１時２２分
