2014 Lexus IS250 Navigation Manual

217
3. MEDIA OPERATION
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
No.Function
Select to display the audio source selection screen.
Select to display the password input screen.
Select to display the menu screen.
Select to display the option screen. (→P.219)
Select to display the DVD setting screen.
Shows progress
•During playback: Select to fast forward.
•During a pause: Select to slow forward.
Select to play/pause.
Select to stop the video screen.
Select to rewind.
Select to display the menu control key.
Select to display full screen video.
Tune/Scroll knob:
Turn to select a chapter.
Press to play/pause.
•Press to select a chapter.
•Press and hold to fast forward/rewind.
•Press to select a media mode.
•While in a media mode, pressing the “MEDIA” button changes media modes.
Press to eject a disc.
Power/Volume knob:
•Turn to adjust volume.
•Press to turn the audio system on/off.
•Press and hold to restart the audio system.
Disc slot
IS_Navi_EE_53C71E.book 217 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

218
3. MEDIA OPERATION
IS300h/250_Navi_EE

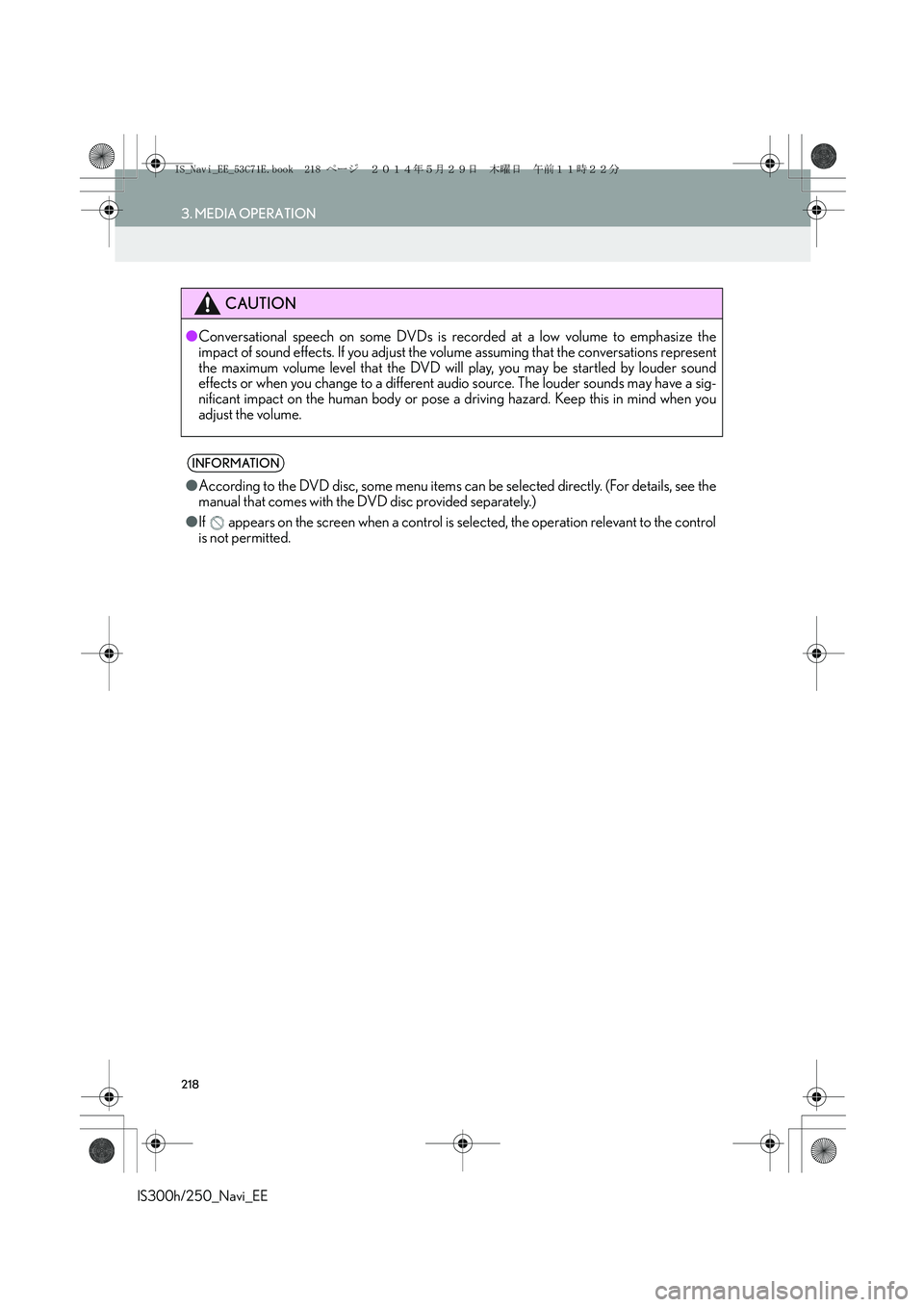

CAUTION
●Conversational speech on some DVDs is recorded at a low volume to emphasize the
impact of sound effects. If you adjust the volume assuming that the conversations represent
the maximum volume level that the DVD will play, you may be startled by louder sound
effects or when you change to a different audio source. The louder sounds may have a sig-
nificant impact on the human body or pose a driving hazard. Keep this in mind when you
adjust the volume.
INFORMATION
●According to the DVD disc, some menu items can be selected directly. (For details, see the
manual that comes with the DVD disc provided separately.)
●If appears on the screen when a control is selected, the operation relevant to the control
is not permitted.
IS_Navi_EE_53C71E.book 218 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

219
3. MEDIA OPERATION
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
1Select “Options”.
2The following screen is displayed.
DVD OPTIONSNo.FunctionPage
Select to display the title
search screen.220
Select to display the prede-
termined scene on the
screen and start playing.
Select to display the audio
selection screen.220
Select to display the subtitle
selection screen.220
Select to display the angle
selection screen.221
Select to change the screen
size.200
Select to display the image
quality adjustment screen.200
IS_Navi_EE_53C71E.book 219 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

220
3. MEDIA OPERATION
IS300h/250_Navi_EE
1Select “Search”.
2Enter the title number and select “OK”.
zThe player starts playing video for that title
number.
1Select “A u d i o ”.
2Each time “Change” is selected, the au-
dio language is changed.
zThe languages available are restricted to
those available on the DVD disc.
1Select “Subtitle”.
2Each time “Change” is selected, the lan-
guage the subtitles are displayed in is
changed.
zThe languages available are restricted to
those available on the DVD disc.
zWhen “Hide” is selected, the subtitles can
be hidden.
SEARCHING BY TITLE
CHANGING THE AUDIO
LANGUAGE
CHANGING THE SUBTITLE
LANGUAGE
IS_Navi_EE_53C71E.book 220 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

221
3. MEDIA OPERATION
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
1Select “A n g l e ”.
2Each time “Change” is selected, the an-
gle is changed.
zThe angles available are restricted to those
available on the DVD disc.
CHANGING THE ANGLE
The angle can be selected for discs that
are multi-angle compatible when the an-
gle mark appears on the screen.
IS_Navi_EE_53C71E.book 221 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

222
3. MEDIA OPERATION
IS300h/250_Navi_EE

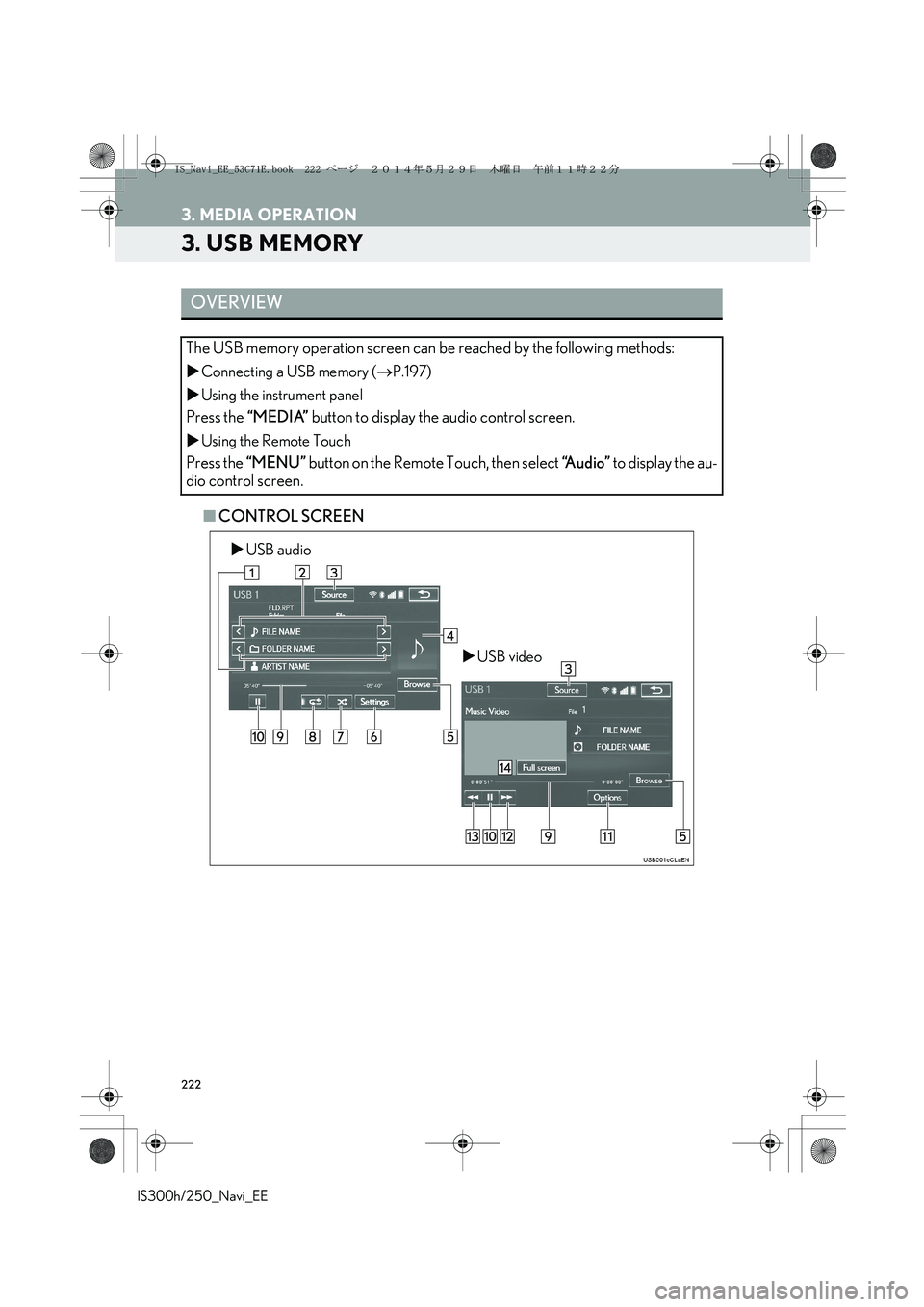

3. USB MEMORY
■CONTROL SCREEN
OVERVIEW
The USB memory operation screen can be reached by the following methods:
XConnecting a USB memory (→P.197)
XUsing the instrument panel
Press the “MEDIA” button to display the audio control screen.
XUsing the Remote Touch
Press the “MENU” button on the Remote Touch, then select “Audio” to display the au-
dio control screen.
XUSB audio
XUSB video
IS_Navi_EE_53C71E.book 222 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

223
3. MEDIA OPERATION
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
■CONTROL PANEL
IS_Navi_EE_53C71E.book 223 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

224
3. MEDIA OPERATION
IS300h/250_Navi_EE
No.Function
AudioVideo
Select to select a folder/album.
Select to select a file/track.
Select to display the audio source selection
screen.Select to display the audio source selection
screen.
•Displays cover art
•Select to display a file/track list.
To return to the top screen, select “Now
playing” on the list screen.

Select to display the play mode selection
screen.
To return to the top screen, select “Now
playing” on the list screen. Select to display the play mode selection
screen.
To return to the top screen, select “Now
playing” on the list screen.
Select to display the audio settings screen.
Select to set random playback.
Select to set repeat playback. 
Shows progressShows progress
Select to play/pause.Select to play/pause.
Select to display the option screen.
(→P.227)
Select to fast forward.
Select to rewind.
Select to display full screen video.
Tune/Scroll knob:
•Turn to select a file/track.
•Turn to move up/down the list.Tune/Scroll knob:
•Turn to select a file.
•Turn to move up/down the list.
Press to play/pause.Press to play/pause.
•Press to select a file/track.
•Press and hold to fast forward/rewind.•Press to select a file.
•Press and hold to fast forward/rewind.
IS_Navi_EE_53C71E.book 224 ページ ２０１４年５月２９日　木曜日　午前１１時２２分
