2014 KIA Sportage Owner's Manual

45
Features of your vehicle

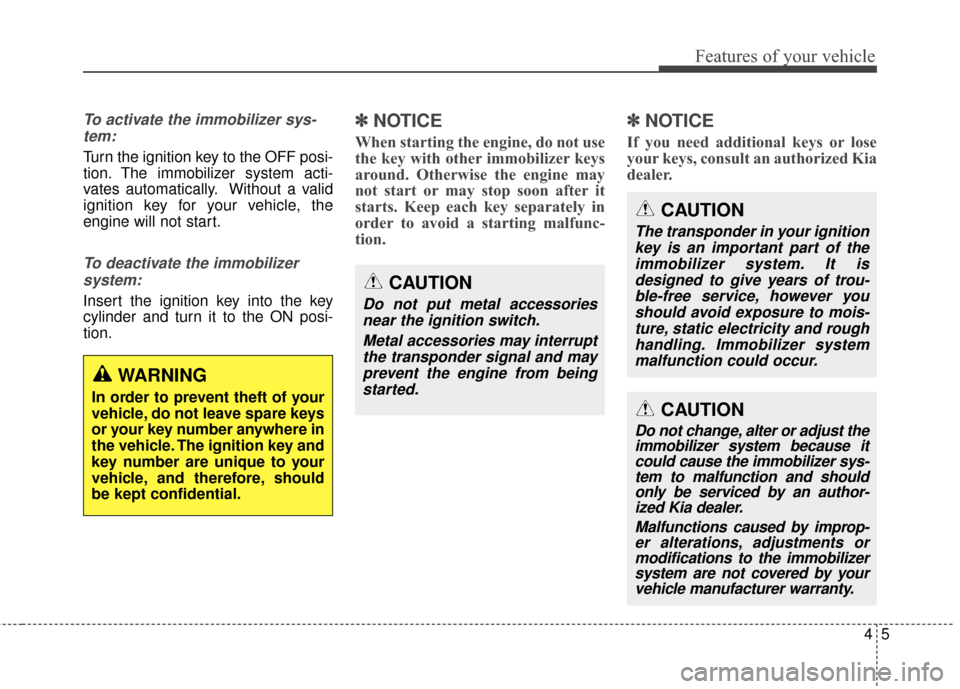

To activate the immobilizer sys-tem:
Turn the ignition key to the OFF posi-
tion. The immobilizer system acti-
vates automatically. Without a valid
ignition key for your vehicle, the
engine will not start.
To deactivate the immobilizersystem:
Insert the ignition key into the key
cylinder and turn it to the ON posi-
tion.
✽ ✽ NOTICE
When starting the engine, do not use
the key with other immobilizer keys
around. Otherwise the engine may
not start or may stop soon after it
starts. Keep each key separately in
order to avoid a starting malfunc-
tion.
✽ ✽NOTICE
If you need additional keys or lose
your keys, consult an authorized Kia
dealer.
CAUTION
The transponder in your ignition
key is an important part of theimmobilizer system. It isdesigned to give years of trou-ble-free service, however youshould avoid exposure to mois-ture, static electricity and roughhandling. Immobilizer systemmalfunction could occur.
CAUTION
Do not change, alter or adjust theimmobilizer system because itcould cause the immobilizer sys-tem to malfunction and shouldonly be serviced by an author-ized Kia dealer.
Malfunctions caused by improp-er alterations, adjustments ormodifications to the immobilizersystem are not covered by yourvehicle manufacturer warranty.
CAUTION
Do not put metal accessories
near the ignition switch.
Metal accessories may interruptthe transponder signal and mayprevent the engine from beingstarted.
WARNING
In order to prevent theft of your
vehicle, do not leave spare keys
or your key number anywhere in
the vehicle. The ignition key and
key number are unique to your
vehicle, and therefore, should
be kept confidential.

Features of your vehicle
64
This device complies with
Industry Canada Standard RSS-
210.
Operation is subject to the following
two conditions:
1.This device may not cause harmfulinterference, and
2.This device must accept any inter- ference received, including inter-
ference that may cause undesired
operation.D010301AUN-EC

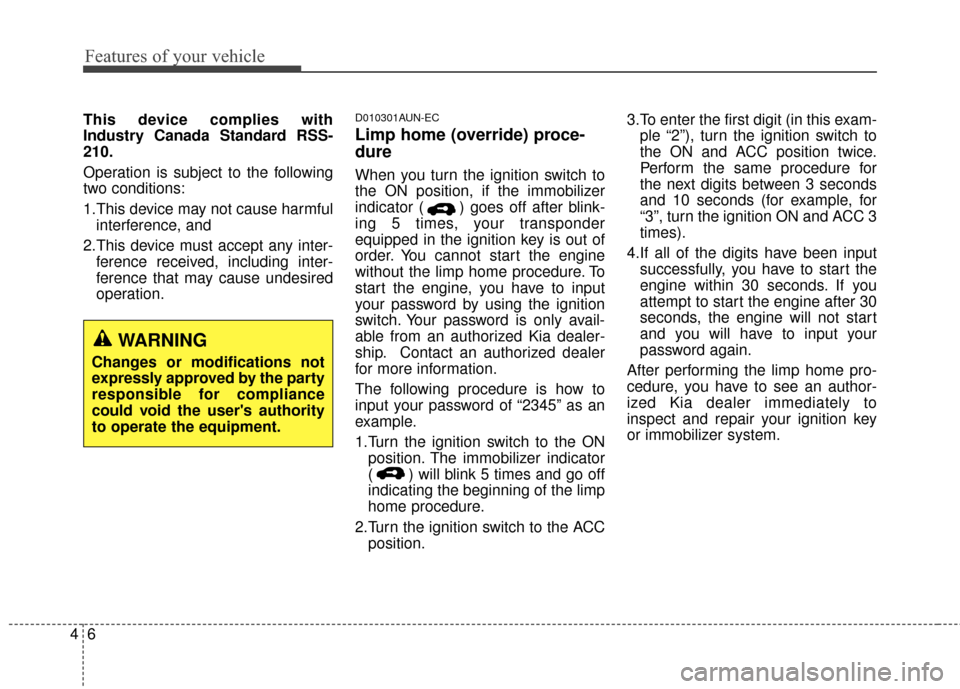

Limp home (override) proce-
dure
When you turn the ignition switch to
the ON position, if the immobilizer
indicator ( ) goes off after blink-
ing 5 times, your transponder
equipped in the ignition key is out of
order. You cannot start the engine
without the limp home procedure. To
start the engine, you have to input
your password by using the ignition
switch. Your password is only avail-
able from an authorized Kia dealer-
ship. Contact an authorized dealer
for more information.
The following procedure is how to
input your password of “2345” as an
example.
1.Turn the ignition switch to the ONposition. The immobilizer indicator
( ) will blink 5 times and go off
indicating the beginning of the limp
home procedure.
2.Turn the ignition switch to the ACC position. 3.To enter the first digit (in this exam-
ple “2”), turn the ignition switch to
the ON and ACC position twice.
Perform the same procedure for
the next digits between 3 seconds
and 10 seconds (for example, for
“3”, turn the ignition ON and ACC 3
times).
4.If all of the digits have been input successfully, you have to start the
engine within 30 seconds. If you
attempt to start the engine after 30
seconds, the engine will not start
and you will have to input your
password again.
After performing the limp home pro-
cedure, you have to see an author-
ized Kia dealer immediately to
inspect and repair your ignition key
or immobilizer system.
WARNING
Changes or modifications not
expressly approved by the party
responsible for compliance
could void the user's authority
to operate the equipment.

47
Features of your vehicle

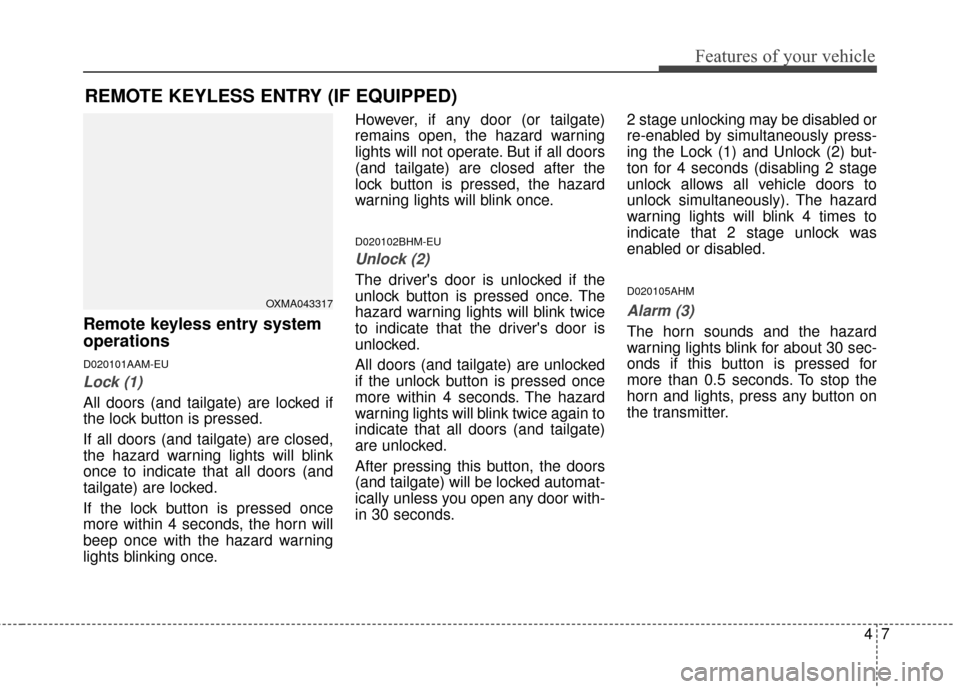

Remote keyless entry system
operations
D020101AAM-EU
Lock (1)
All doors (and tailgate) are locked if
the lock button is pressed.
If all doors (and tailgate) are closed,
the hazard warning lights will blink
once to indicate that all doors (and
tailgate) are locked.
If the lock button is pressed once
more within 4 seconds, the horn will
beep once with the hazard warning
lights blinking once.However, if any door (or tailgate)
remains open, the hazard warning
lights will not operate. But if all doors
(and tailgate) are closed after the
lock button is pressed, the hazard
warning lights will blink once.
D020102BHM-EU
Unlock (2)
The driver's door is unlocked if the
unlock button is pressed once. The
hazard warning lights will blink twice
to indicate that the driver's door is
unlocked.
All doors (and tailgate) are unlocked
if the unlock button is pressed once
more within 4 seconds. The hazard
warning lights will blink twice again to
indicate that all doors (and tailgate)
are unlocked.
After pressing this button, the doors
(and tailgate) will be locked automat-
ically unless you open any door with-
in 30 seconds.
2 stage unlocking may be disabled or
re-enabled by simultaneously press-
ing the Lock (1) and Unlock (2) but-
ton for 4 seconds (disabling 2 stage
unlock allows all vehicle doors to
unlock simultaneously). The hazard
warning lights will blink 4 times to
indicate that 2 stage unlock was
enabled or disabled.D020105AHM
Alarm (3)
The horn sounds and the hazard
warning lights blink for about 30 sec-
onds if this button is pressed for
more than 0.5 seconds. To stop the
horn and lights, press any button on
the transmitter.
REMOTE KEYLESS ENTRY (IF EQUIPPED)
OXMA043317

Features of your vehicle
84
D020200AAM-EU

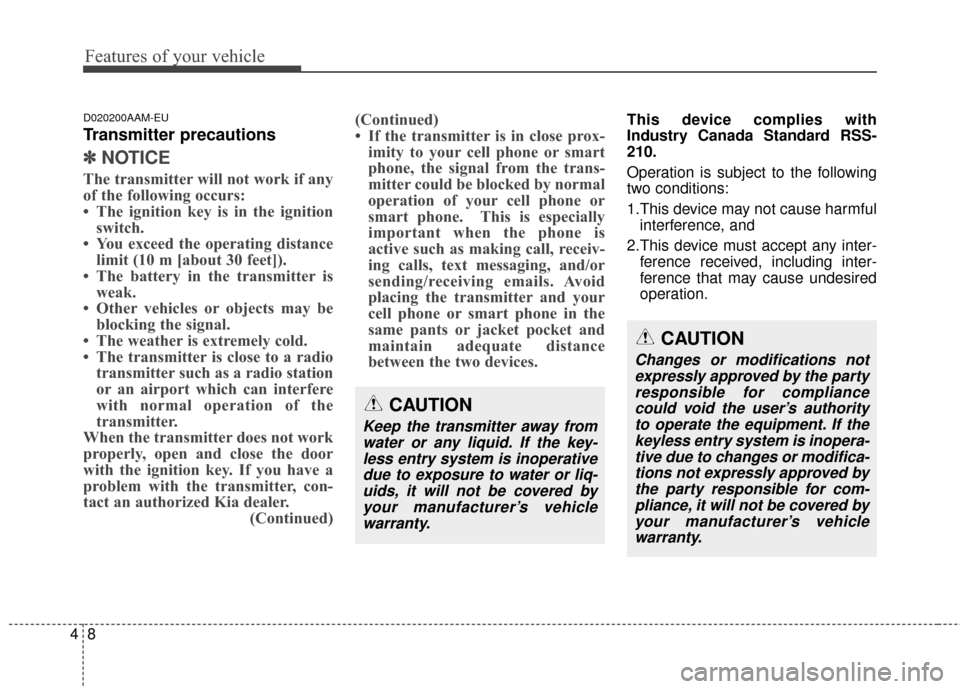

Transmitter precautions
✽
✽NOTICE
The transmitter will not work if any
of the following occurs:
• The ignition key is in the ignition
switch.
• You exceed the operating distance limit (10 m [about 30 feet]).
• The battery in the transmitter is weak.
• Other vehicles or objects may be blocking the signal.
• The weather is extremely cold.
• The transmitter is close to a radio transmitter such as a radio station
or an airport which can interfere
with normal operation of the
transmitter.
When the transmitter does not work
properly, open and close the door
with the ignition key. If you have a
problem with the transmitter, con-
tact an authorized Kia dealer. (Continued)(Continued)
• If the transmitter is in close prox-
imity to your cell phone or smart
phone, the signal from the trans-
mitter could be blocked by normal
operation of your cell phone or
smart phone. This is especially
important when the phone is
active such as making call, receiv-
ing calls, text messaging, and/or
sending/receiving emails. Avoid
placing the transmitter and your
cell phone or smart phone in the
same pants or jacket pocket and
maintain adequate distance
between the two devices.
This device complies with
Industry Canada Standard RSS-
210.
Operation is subject to the following
two conditions:
1.This device may not cause harmful
interference, and
2.This device must accept any inter- ference received, including inter-
ference that may cause undesired
operation.
CAUTION
Changes or modifications notexpressly approved by the partyresponsible for compliancecould void the user’s authorityto operate the equipment. If thekeyless entry system is inopera-tive due to changes or modifica-tions not expressly approved bythe party responsible for com-pliance, it will not be covered byyour manufacturer’s vehiclewarranty.
CAUTION
Keep the transmitter away fromwater or any liquid. If the key-less entry system is inoperativedue to exposure to water or liq-uids, it will not be covered byyour manufacturer’s vehiclewarranty.

49
Features of your vehicle
D020300AHM

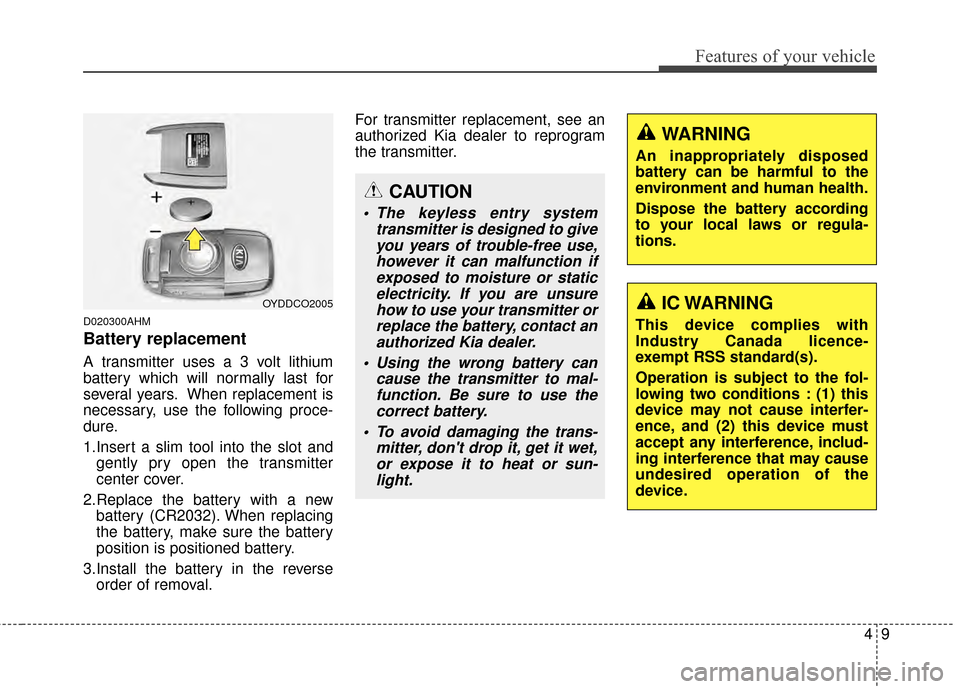

Battery replacement
A transmitter uses a 3 volt lithium
battery which will normally last for
several years. When replacement is
necessary, use the following proce-
dure.
1.Insert a slim tool into the slot andgently pry open the transmitter
center cover.
2.Replace the battery with a new battery (CR2032). When replacing
the battery, make sure the battery
position is positioned battery.
3.Install the battery in the reverse order of removal. For transmitter replacement, see an
authorized Kia dealer to reprogram
the transmitter.
CAUTION
The keyless entry system
transmitter is designed to giveyou years of trouble-free use,however it can malfunction ifexposed to moisture or staticelectricity. If you are unsurehow to use your transmitter orreplace the battery, contact anauthorized Kia dealer.
Using the wrong battery can cause the transmitter to mal-function. Be sure to use thecorrect battery.
To avoid damaging the trans- mitter, don't drop it, get it wet,or expose it to heat or sun-light.
WARNING
An inappropriately disposed
battery can be harmful to the
environment and human health.
Dispose the battery according
to your local laws or regula-
tions.
IC WARNING
This device complies with
Industry Canada licence-
exempt RSS standard(s).
Operation is subject to the fol-
lowing two conditions : (1) this
device may not cause interfer-
ence, and (2) this device must
accept any interference, includ-
ing interference that may cause
undesired operation of the
device.
OYDDCO2005

Features of your vehicle
10
4
D040000AHM
With a smart key, you can lock or
unlock a door (and tailgate) and even
start the engine without inserting the
key.
The functions of the buttons on a
smart key are similar to the remote
keyless entry.
Lock (1)
All doors (and tailgate) are locked if
the lock button is pressed.
If all doors (and tailgate) are closed,
the hazard warning lights will blink
and chime sounds once to indicate
that all doors (and tailgate) are
locked.
However, if any door (or tailgate)
remains open, the hazard warning
lights will not operate. But if all doors
(and tailgate) are closed after the
lock button is pressed, the hazard
warning lights will blink once.
D020102BHM-EU
Unlock (2)
The driver's door is unlocked if the
unlock button is pressed once. The
hazard warning lights will blink and
chime sounds twice to indicate that
the driver's door is unlocked.
All doors (and tailgate) are unlocked
if the unlock button is pressed once
more within 4 seconds. The hazard
warning lights will blink and chime
sounds twice again to indicate that
all doors (and tailgate) are unlocked.
After pressing this button, the doors
(and tailgate) will be locked automat-
ically unless you open any door with-
in 30 seconds.
2 stage unlocking may be disabled or
re-enabled by simultaneously press-
ing the Lock (1) and Unlock (2) but-
ton for 4 seconds (disabling 2 stage
unlock allows all vehicle doors to
unlock simultaneously). The hazard
warning lights will blink 4 times to
indicate that 2 stage unlock was
enabled or disabled.
SMART KEY (IF EQUIPPED)
OXMA043316/Q

411
Features of your vehicle
D020104AHM
Tailgate unlock (3)
The tailgate is unlocked if the button
is pressed for more than 1 second.
The hazard warning lights will blink
twice to indicate that the tailgate is
unlocked.
However, after pressing this button,
the tailgate will lock automatically
unless you open the tailgate within
30 seconds.
Also, once the tailgate is opened and
then closed, the tailgate will lock
automatically.
D020105AHM
Alarm (4)
The horn sounds and the hazard
warning lights blink for about 30 sec-
onds if this button is pressed for
more than 0.5 seconds. To stop the
horn and lights, press any button on
the transmitter.
D040100AHM
Smart key functions
Carrying the smart key, you may lock
and unlock the vehicle doors (and
tailgate). Also, you may start the
engine. Refer to the following, for
more details.
D040101BHM
Locking
Pressing the button of the front out-
side door handles with all doors (and
tailgate) closed and any door
unlocked, locks all the doors (and
tailgate). The hazard warning lights
blink and the chime sounds once to
indicate that all doors (and tailgate)
are locked.
The button will only operate when
the smart key is within 0.7~1 m
(28~40 in.) from the outside door
handle. If you want to make sure that
a door has locked or not, you should
check the door lock button inside the
vehicle or pull the outside door han-
dle.
Even though you press the button,
the doors will not lock and the chime
sounds for 3 seconds if any of the fol-
lowing occurs:
The smart key is in the vehicle.
The ENGINE START/STOP buttonis in the ACC or ON position.
Any door except the tailgate is opened.
OSL040006

Features of your vehicle
12
4
D040102AEN-EU
Unlocking
Pressing the button of the driver’s
outside door handle with all doors
(and tailgate) closed and locked,
unlocks the driver’s door. The hazard
warning lights blink and the chime
sounds twice to indicate that the dri-
ver’s door is unlocked. All doors (and
tailgate) are unlocked if the button is
pressed once more within 4 sec-
onds. The hazard warning lights will
blink and the chime will sound twice
to indicate that all the doors (and tail-
gate) are unlocked.
Pressing the button of the front pas-
senger’s outside door handle with all
doors (and tailgate) closed and
locked, unlocks all the doors (and
tailgate). The hazard warning lights
blink and the chime sounds twice to
indicate that all doors (and tailgate)
are unlocked.
The button will only operate when
the smart key is within 0.7~1 m
(28~40 in.) from the outside door
handle. When the smart key is recognized in
the area of 0.7~1 m (28~40 in.) from
the front outside door handle, other
people can also open the door with-
out possession of the smart key.
D040103AHM
Tailgate unlocking
If you are within 0.7~1 m (28~40 in.)
from the outside tailgate handle, with
your smart key in possession, the
tailgate will unlock and open when
you press the tailgate handle switch.
The hazard warning lights will blink
twice to indicate that the tailgate is
unlocked.
Also, once the tailgate is opened and
then closed, the tailgate will lock
automatically.
D040104AHM
Start-up
You can start the engine without
inserting the key. For detailed infor-
mation refer to “Starting the engine
with a smart key” in section 5.
D040300AHM
Smart key precautions
✽ ✽
NOTICE
• If, for some reason, you happen to
lose your smart key, you will not
be able to start the engine. Tow the
vehicle, if necessary, and contact
an authorized Kia dealer.
• A maximum of 2 smart keys can be registered to a single vehicle. If
you lose a smart key, you should
immediately take the vehicle and
key to your authorized Kia dealer
to protect it from potential theft.
• The smart key will not work if any of the following occurs:
- The smart key is close to a radiotransmitter such as a radio sta-
tion or an airport which can
interfere with normal operation
of the smart key.
- The smart key is near a mobile two-way radio system or a cellu-
lar phone.
- Another vehicle’s smart key is being operated close to your
vehicle. (Continued)
