2014 KIA Sportage Owner's Manual

Page 409 of 457

KIA Sportage 2014 SL / 3.G Owners Manual Maintenance
36
7

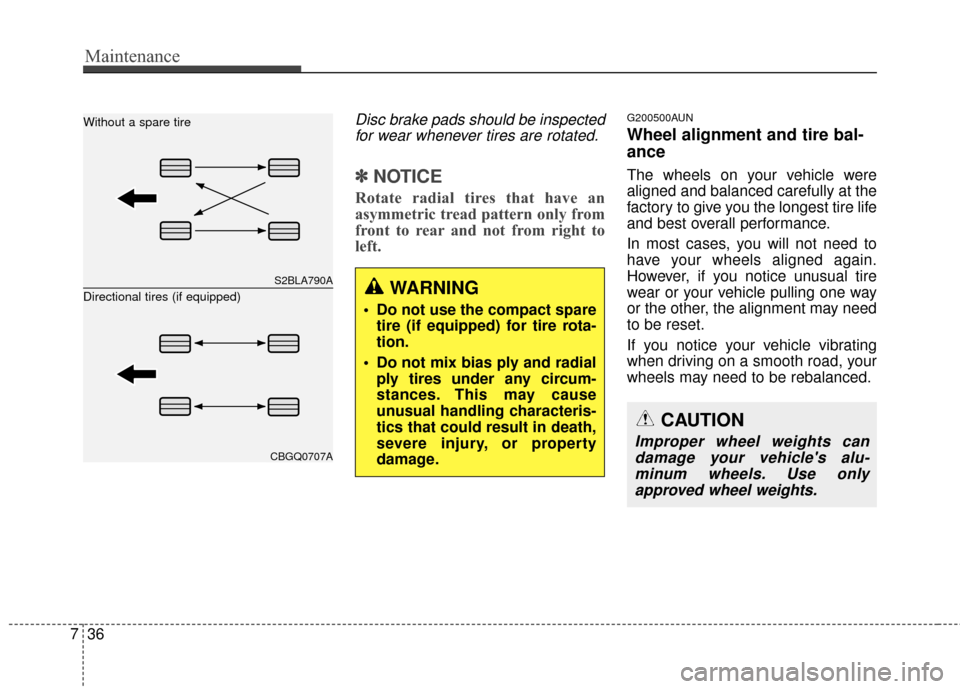

Disc brake pads should be inspected
for wear whenever tires are rotated.
✽
✽ NOTICE
Rotate radial tires that have an
asymmetric tread pattern only from
front to rear and not from

Page 410 of 457

KIA Sportage 2014 SL / 3.G Owners Manual 737
Maintenance
G200600AHM-EU

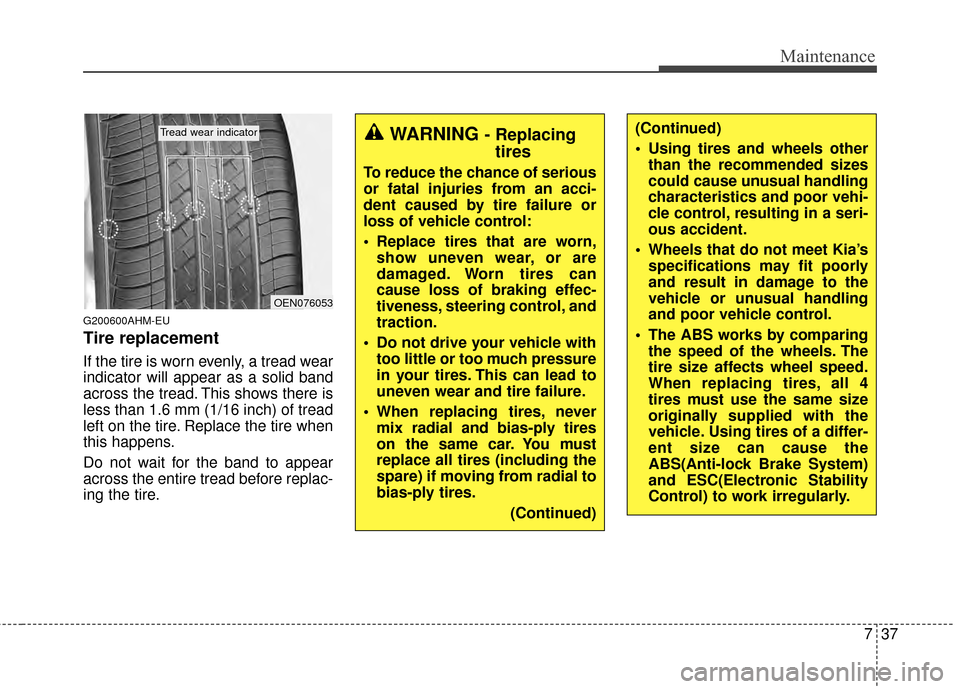

Tire replacement
If the tire is worn evenly, a tread wear
indicator will appear as a solid band
across the tread. This shows there is
less than 1.6 mm (1/16 inch) of trea

Page 411 of 457

KIA Sportage 2014 SL / 3.G Owners Manual Maintenance
38
7
G200601AUN

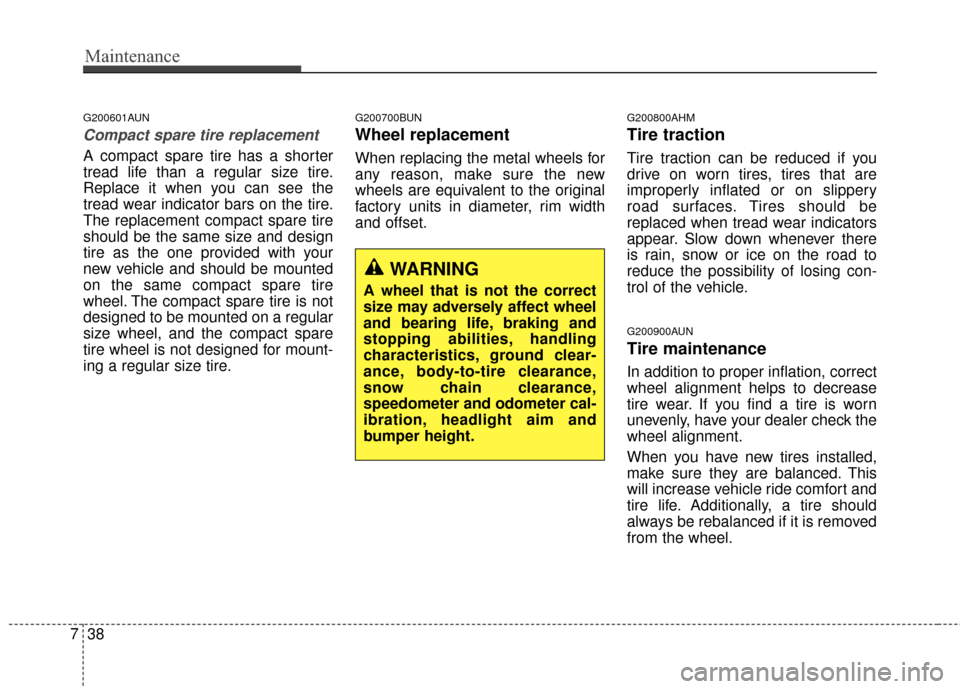

Compact spare tire replacement
A compact spare tire has a shorter
tread life than a regular size tire.
Replace it when you can see the
tread wear indicator bars on the tir

Page 412 of 457

KIA Sportage 2014 SL / 3.G Owners Manual 739
Maintenance
G201000AUN
Tire sidewall labeling
This information identifies and
describes the fundamental charac-
teristics of the tire and also provides
the tire identification number (TIN)
for saf

Page 413 of 457

KIA Sportage 2014 SL / 3.G Owners Manual Maintenance
40
7

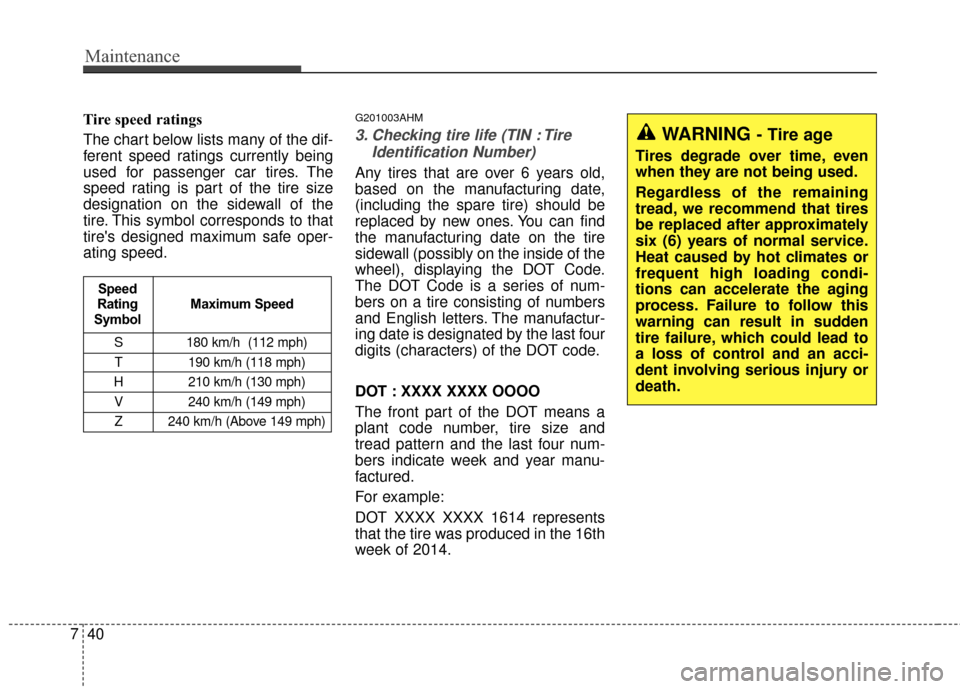

Tire speed ratings
The chart below lists many of the dif-
ferent speed ratings currently being
used for passenger car tires. The
speed rating is part of the tire size
designation on

Page 414 of 457

KIA Sportage 2014 SL / 3.G Owners Manual 741
Maintenance
G201004AEN

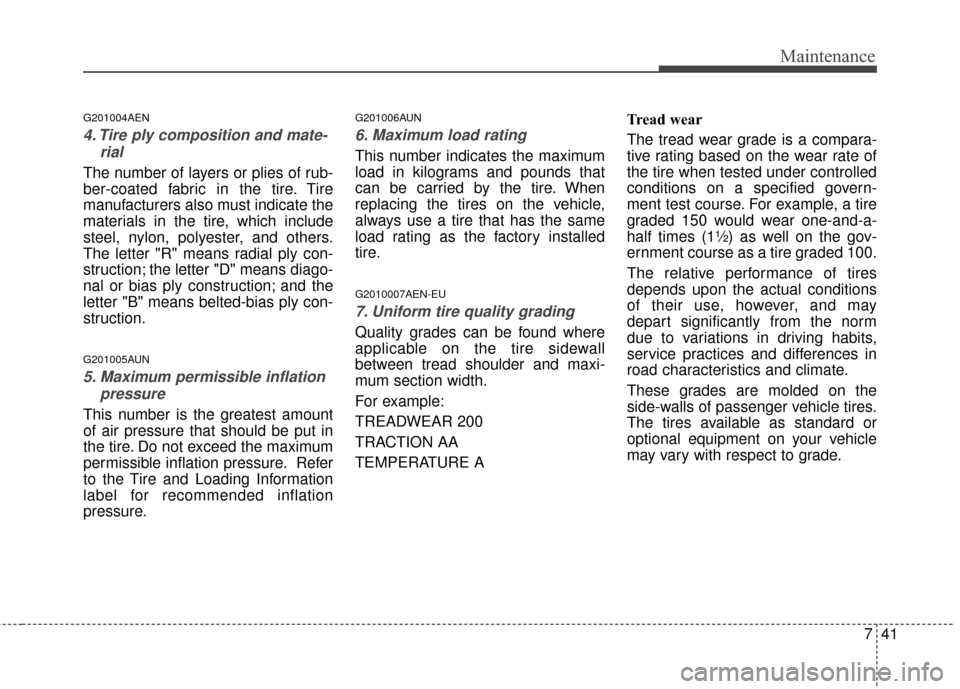

4. Tire ply composition and mate-rial
The number of layers or plies of rub-
ber-coated fabric in the tire. Tire
manufacturers also must indicate the
materials in the tire, w

Page 415 of 457

KIA Sportage 2014 SL / 3.G Owners Manual Maintenance
42
7

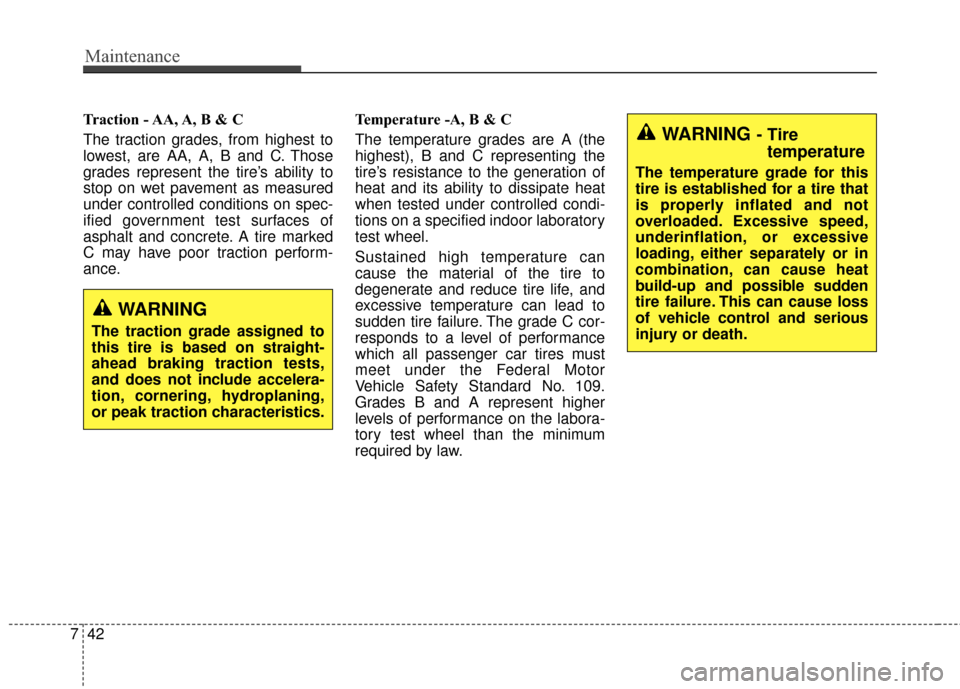

Traction - AA, A, B & C
The traction grades, from highest to
lowest, are AA, A, B and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under control

Page 416 of 457

KIA Sportage 2014 SL / 3.G Owners Manual 743
Maintenance
G201100AAM

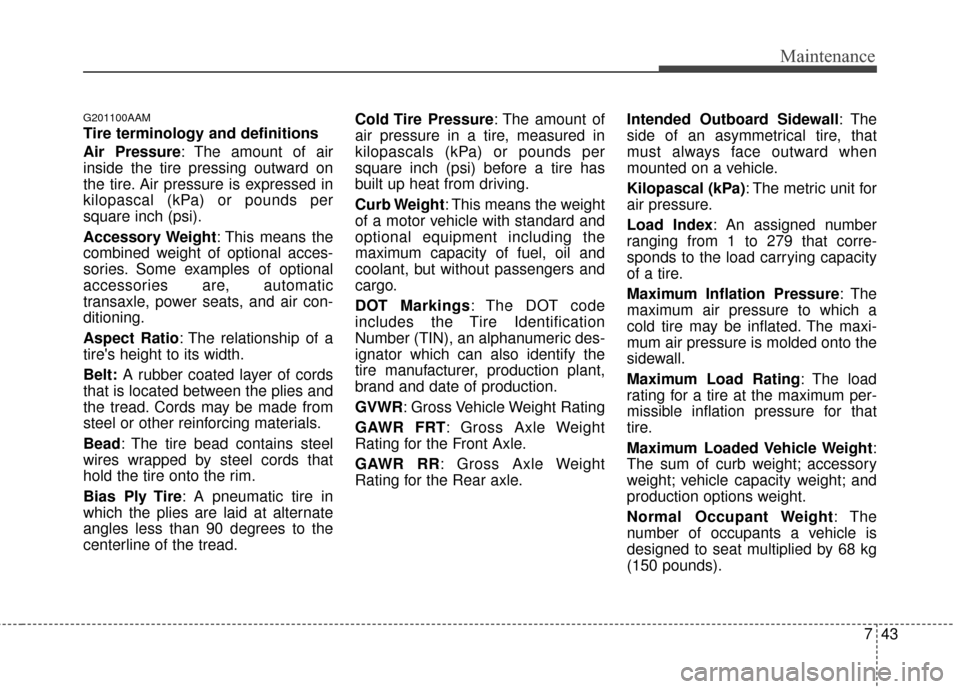

Tire terminology and definitions
Air Pressure: The amount of air
inside the tire pressing outward on
the tire. Air pressure is expressed in
kilopascal (kPa) or pounds per
sq
