2014 HONDA CROSSTOUR Owners Manual

544Handling the Unexpected
When You Cannot Open the TailgateIf you cannot open the tailgate, use the following procedure.
1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
uWrap the flat-tip screwdriver with a cloth
to prevent scratches.
2.To open the tailgate, push the tailgate
while sliding the lever to the side using a
flat-tip screwdriver.■What to Do When Unable to Open the Tailgate
1What to Do When Unable to Open the Tailgate
What to do-Following up
After taking these steps, contact a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
CoverLever

545
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 546
Identification Numbers
Vehicle Identification Number (VIN) ... 550Engine Number and Transmission
Number...................................... 550Devices that Emit Radio Waves....... 551
Reporting Safety Defects................. 552Emissions Testing
Testing of Readiness Codes.............. 553
Warranty Coverages........................ 555
Authorized Manuals......................... 557
Customer Service Information......... 558

546Information
Specifications■Vehicle SpecificationsModel
Crosstour
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating
U.S.: 4,784 lbs (2,170 kg)
Canada: 2,170 kg
Gross Axle Weight
Rating (Front)
U.S.: 2,469 lbs (1,120 kg)
Canada: 1,120 kg
Gross Axle Weight
Rating (Rear)
U.S.: 2,381 lbs (1,080 kg)
Canada: 1,080 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.1 – 15.9 oz (400 – 450 g)
Lubricant Type ND-OIL 8
4-cylinder models
■Engine Specifications
■Fuel
■Washer FluidDisplacement
144 cu-in (2,354 cm
3)
Spark PlugsNGK ILZKR7B11S
DENSO SXU22HCR11S
Fuel:
Type
Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Tank Capacity
5.3 US qt (5.0 ℓ)
■Light BulbsHeadlights (Low Beam)
55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights
55W (H11)
Front Side Marker Lights 5W
Front Turn Signal/Parking Lights
24/2.2CP (Amber)
Brake/Taillights 21/5W
Rear Side Marker Lights
3CP
Back-Up Lights 21W
Rear Turn Signal Lights
21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights
5W
Cargo Area Light 5W
Interior Lights
Map Lights
8W
Ceiling Light
8W
Vanity Mirror Lights
1.4W
Glove Box Light
1.4W
Ambient Light
LED
Courtesy Lights
2CP

547
uuSpecificationsu
Continued
Information
■Brake Fluid
■Automatic Transmission Fluid
■Power Steering FluidSpecified
Honda Heavy Duty Brake Fluid DOT 3
Specified
Honda ATF DW-1
(automatic transmission fluid)
Capacity Change 2.6 US qt (2.5 ℓ)
Specified
Honda Power Steering Fluid
■Engine Oil
■Engine CoolantRecommended
·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
CapacityChange 4.0 US qt (3.8 ℓ)
Change
including
filter4.2 US qt (4.0 ℓ)
Specified
Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.66 US gal (6.3 ℓ)
(change including the remaining 0.18 US gal
(0.68 ℓ) in the reserve tank)
■TireRegular
Size
225/65R17 102T
Pressure
psi (kPa [kgf/cm
2])
Front
32 (220 [2.2])
Rear
32 (220 [2.2])
Compact
SpareSize T155/90D16 110M
Pressure
psi (kPa [kgf/cm
2])60 (420 [4.2])
Wheel Size
Regular
17 x 6 1/2J
Compact Spare
16 x 4T

548
uuSpecificationsu
Information
■Vehicle Specifications*1: 2WD models
*2: 4WD modelsModel
Crosstour
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating
U.S.: 4,938 lbs (2,240 kg)
*1
5,115 lbs (2,320 kg)
*2
Canada: 2,240 kg
*1
2,320 kg
*2
Gross Axle Weight
Rating (Front)
U.S.: 2,623 lbs (1,190 kg)
*1
2,668 lbs (1,210 kg)
*2
Canada: 1,190 kg
*1
1,210 kg
*2
Gross Axle Weight
Rating (Rear)
U.S.: 2,381 lbs (1,080 kg)
*1
2,513 lbs (1,140 kg)
*2
Canada: 1,080 kg
*1
1,140 kg
*2
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.1 – 15.9 oz (400 – 450 g)
Lubricant Type ND-OIL 86-cylinder models
■Engine Specifications
■Fuel
■Washer FluidDisplacement
212 cu-in (3,471 cm
3)
Spark PlugsNGK ILZKR7B11
DENSO SXU22HCR11
Fuel:
Type
Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Tank Capacity
5.3 US qt (5.0 ℓ)
■Light BulbsHeadlights (Low Beam)
55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights
55W (H11)
Front Side Marker Lights 5W
Front Turn Signal/Parking Lights
24/2.2CP (Amber)
Brake/Taillights 21/5W
Rear Side Marker Lights
3CP
Back-Up Lights 21W
Rear Turn Signal Lights
21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights
5W
Cargo Area Light 5W
Interior Lights
Map Lights
8W
Ceiling Light
8W
Vanity Mirror Lights
1.4W
Glove Box Light
1.4W
Ambient Light
LED
Courtesy Lights
2CP

549
uuSpecificationsu
Information
■Brake Fluid
■Automatic Transmission Fluid
■Rear Differential Fluid
■Transfer Assembly FluidSpecified
Honda Heavy Duty Brake Fluid DOT 3
Specified
Honda ATF DW-1
(automatic transmission fluid)
Capacity Change 3.28 US qt (3.1 ℓ)
Specified
Honda Dual Pump Fluid II
Capacity Change 1.3 US qt (1.2 ℓ)
Specified
·SAE 90 Viscosity Hypoid Gear Oil
·API Service Classified GL4 or GL5 only
Capacity Change 0.43 US qt (0.41 ℓ)
■Engine Oil
■Engine CoolantRecommended
·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
CapacityChange 4.2 US qt (4.0 ℓ)
Change
including
filter4.5 US qt (4.3 ℓ)
Specified
Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.92 US gal (7.3 ℓ)
(change including the remaining 0.17 US gal
(0.64 ℓ) in the reserve tank)
■Tire*1: 2WD models
*2: 4WD modelsRegular
Size
225/60R18 100H
Pressure
psi (kPa [kgf/cm
2])
33 (230 [2.3])
FrontRear
33 (230 [2.3])
Compact
SpareSizeT155/90D16 110M
*1
T155/90D17 101M
*2
Pressure
psi (kPa [kgf/cm
2])60 (420 [4.2])
Wheel Size
Regular
18 x 7J
Compact Spare
16 x 4T
*1
17 x 4T
*2

550Information

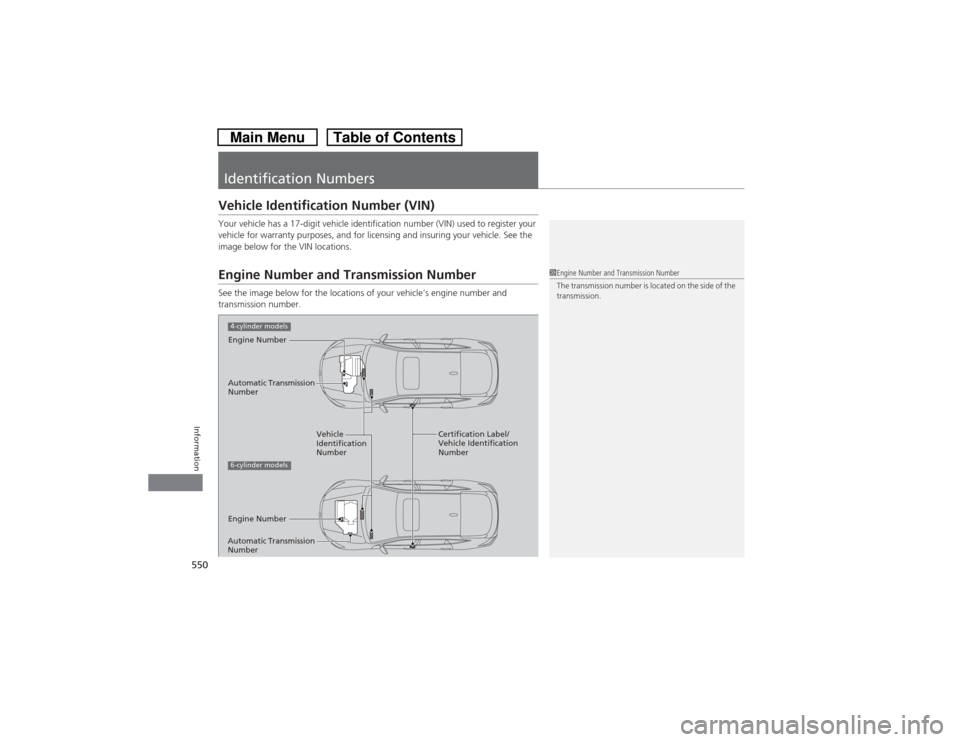

Identification NumbersVehicle Identification Number (VIN)Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle. See the
image below for the VIN locations.Engine Number and Transmission NumberSee the image below for the locations of your vehicle’s engine number and
transmission number.
1Engine Number and Transmission Number
The transmission number is located on the side of the
transmission.
Vehicle
Identification
Number Engine Number
Certification Label/
Vehicle Identification
Number Automatic Transmission
Number
6-cylinder models4-cylinder modelsEngine Number
Automatic Transmission
Number

551Information
Devices that Emit Radio WavesThe following products and systems on your vehicle emit radio waves when in operation.Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.Audio SystemBluetooth® AudioBluetooth® HandsFreeLink®HomeLink® Universal TransceiverImmobilizer SystemSmart Entry SystemRemote TransmitterTire Pressure Monitoring System (TPMS)
