uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Controls
Interior Convenience Items
Pull the handle to open the glove box. You
can lock the glove box with the master key or
the built-in key.
■Glove Box
1Glove Box
3
WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
To Lock

145
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Continued
Controls

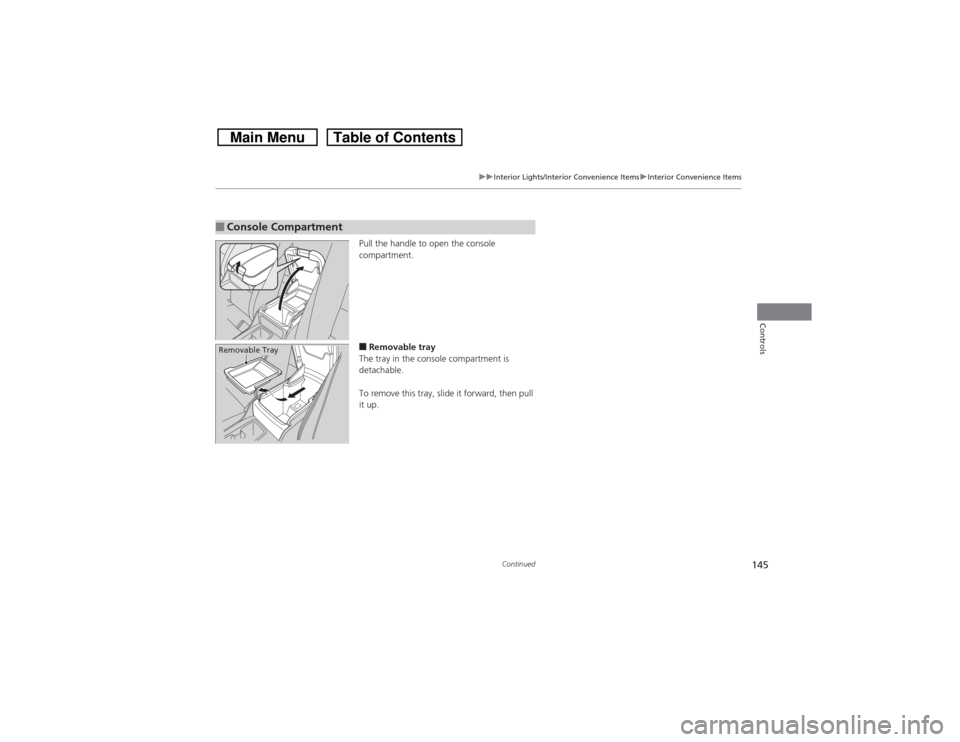

Pull the handle to open the console
compartment.■Removable tray
The tray in the console compartment is
detachable.
To remove this tray, slide it forward, then pull
it up.
■Console CompartmentRemovable Tray

uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
146Controls

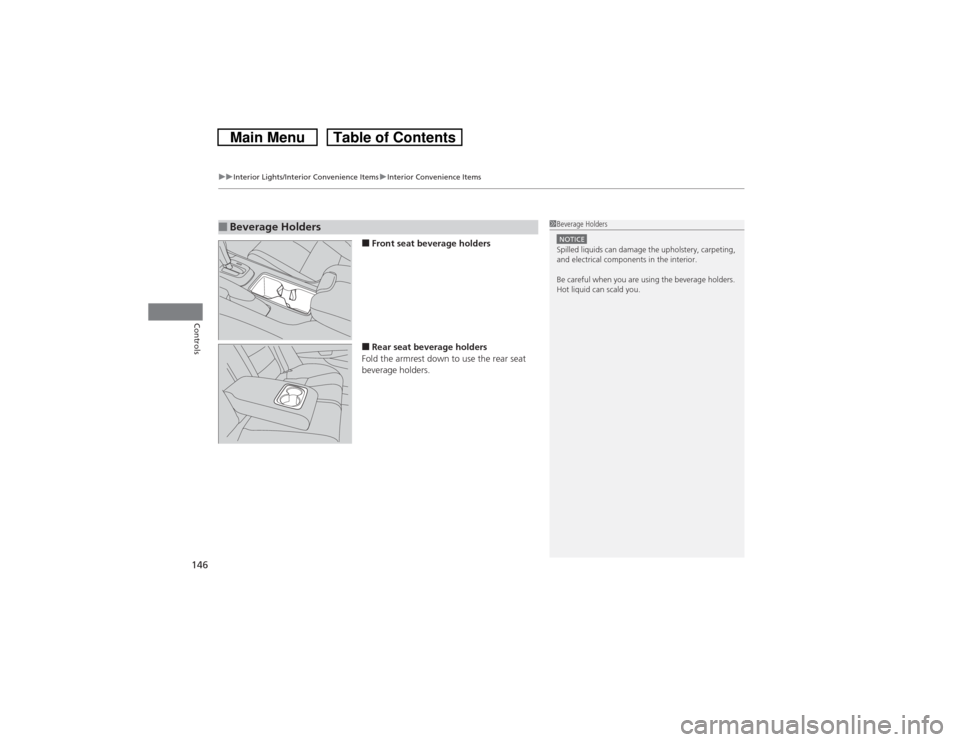

■Front seat beverage holders■Rear seat beverage holders
Fold the armrest down to use the rear seat
beverage holders.
■Beverage Holders
1Beverage HoldersNOTICESpilled liquids can damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are using the beverage holders.
Hot liquid can scald you.

Continued
147
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Controls
The accessory power sockets can be used when the ignition switch is in ACCESSORY (q or ON
(w*1.
■Accessory power socket (console panel)
Open the cover to use it.■Accessory power socket (console
compartment)
Open the console lid and the cover to use it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.■Accessory Power Sockets
1Accessory Power SocketsNOTICEDo not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket is designed to supply
power for 12 volt DC accessories that are rated 120
watts or less (10 amps).
To prevent battery drain, only use the power socket
with the engine running.
When each sockets is being used simultaneously, the
combined power rating of the accessories should not
exceed 120 watts (10 amps).

uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
148Controls
■Accessory power socket (cargo area)
Open the cover to use it.
There is a coat hook on the rear left grab
handle. Pull it down to use it.
■Coat Hook
1Coat Hook
The coat hook is not designed for large or heavy
items.

Continued
149
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Controls
Use floor cargo hooks to secure luggage in the
cargo area.
There are also hooks on both sides of the
cargo area.
■Cargo Hooks
1Cargo Hooks
Each hook is designed to hold up to 56.2 lbs (25.5 kg)
of weight.
Hooks Hooks

uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
150Controls
Pull the handle to open the cargo floor lid.
The reverse side of the cargo floor lid is water-
proofed. Flip the lid to use the water-proofed
side.■To keep the lid open:
1.Remove the hook from the back of the
cargo floor lid.
2.Pull the hook to the hole on the side panel.■Removable box
The removable box is under the cargo floor.
To remove the box, lift it up with the straps on
both sides.
■Under-floor Storage Area
1Under-floor Storage AreaNOTICEDo not put objects that weigh more than 22.1 lbs (10
kg) in the removable box. Exceeding the maximum
load may damage the box.
Do not leave water, soil, sand, or perishable foods in
the removable box. Rotting food and dirt on the floor
may cause the breakdown of electrical equipment.
Strap

151
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Continued
Controls
Pull the strap to raise the lid.
The reverse side of each lid is water-proofed.
Flip the lids, then replace each other side.
■Side Storage Compartments
Strap
