uuIndicator, Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
•The brake fluid is low.
•There is a malfunction in the brake system.■What to do when the indicator comes on while driving
Press the brake pedal lightly to check pedal pressure.
•If normal, check the brake fluid level the next time you stop.
•If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steering (EPS) System Indicator Comes On
■Reasons for the indicator to come on
•Comes on when there is a problem with EPS system.
•If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.■What to do when the indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1If the Brake System Indicator (Red) Comes On
Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the electronic brake distribution
system is not working. This can result in vehicle
instability under sudden braking.
Have your vehicle inspected by a dealer immediately.
U.S.
Canada
6-cylinder models

537
uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure Indicator Comes On
Handling the Unexpected
If the Low Tire Pressure Indicator Comes On
■Reasons for the indicator to come on
A tire pressure is significantly low. If the compact spare tire is installed,
the indicator stays on for a while, then goes off after driving a few miles
(kilometers).■What to do when the indicator comes on
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.
If the TPMS Indicator Comes On
■Reasons for the indicator to come on
•Comes on when there is a problem with the TPMS.
•If the compact spare is installed, the indicator comes on after driving
for a few miles (kilometers).■What to do when the indicator comes on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to comes on, change the tire to a full-size
tire. The indicator goes off after driving for a few miles (kilometers).
1If the Low Tire Pressure Indicator Comes OnNOTICEDriving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

538Handling the Unexpected
FusesFuse LocationsIf any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any applicable fuse is blown.
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
■Circuit protected and fuse rating
Circuit Protected
Amps
1
Battery
120 A
*3
Battery
100 A
*2
Passenger’s Fuse Box
40 A
2
ESP MTR
70 A
VSA SFR
40 A
VSA Motor
30 A
AS F/B OP
40 A
Headlight washer
*
30 A
−
−
3
IG Main
50 A
−
−
Passenger Side Light Main
30 A
DR F/B STD
60 A
Driver Side Light Main
30 A
Main Fan
30 A
Wiper Motor
30 A
Sub Fan
30 A
4 Fan Relay 7.5 A
5
Rear Defroster
40 A
6 Sub Fan Motor
*2
20 A
*1:
Models with the smart entry system have an
ENGINE START/STOP button instead of an
ignition switch.
*2:4-cylinder models
*3:6-cylinder models7
Hazard
15 A
8 Horn, STOP 20 A
9
−
−
10 Trailer 15 A
11
IG Coil
15 A
12 FI Sub 15 A
13
IGI Main 1
*3
30 A
14 IGI Main 2
*3
30 A
15
Back up
10 A
16 Interior Lights 7.5 A
17
FI Main
15 A
18 DBW 15 A
19
ACM
*3
20 A
20 Heater Motor 40 A
21
MG Clutch
7.5 A
Circuit Protected
Amps
* Not available on all models

539
uuFusesuFuse Locations
Continued
Handling the Unexpected
Locate the fuse in question by the fuse
number and label number.
Located under the dashboard.
Fuse locations are shown on the label under
the dashboard.■Interior Fuse Box
Fuse Label
Fuse BoxDriver side
Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the fuse box
cover.Passenger side
■Circuit protected and fuse rating
Circuit Protected
Amps
1
−
−
2
Seat Memory
*
7.5 A
3
Washer
15 A
4
Wiper
10 A
5
ODS
7.5 A
6
ABS/VSA
7.5 A
7
−
−
8
−
−
9
Fuel Pump
20 A
10
VB SOL 2
10 A
11
Meter
7.5 A
12
ACG
15 A
13
SRS
10 A
14
−
−
15
Daytime Running Lights
7.5 A
16
A/C
7.5 A
Driver side
* Not available on all models

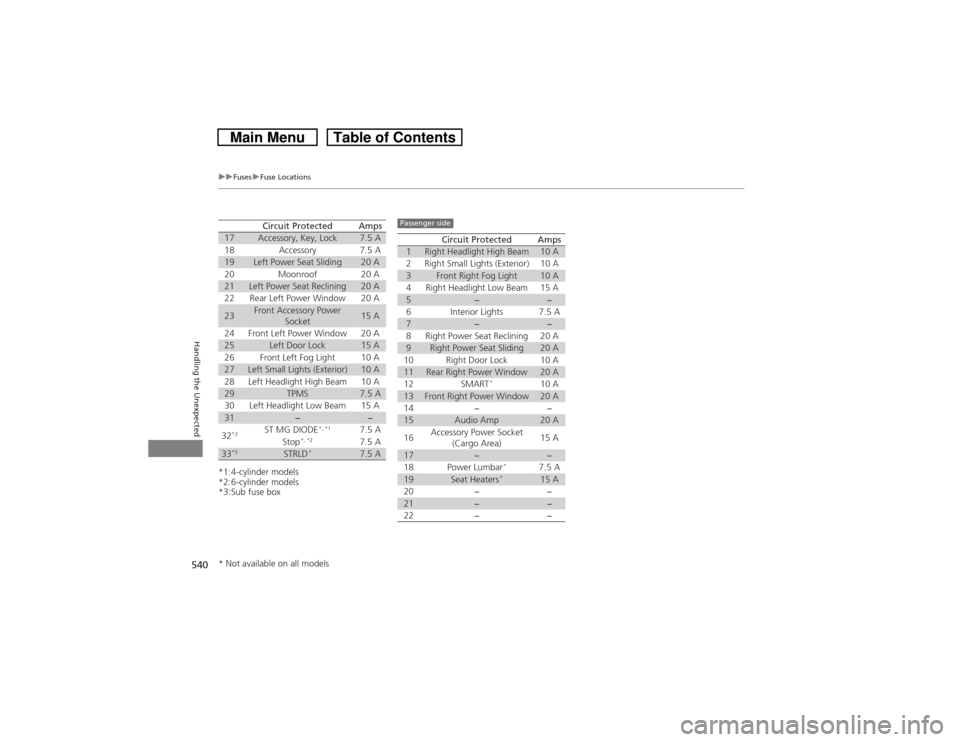

540
uuFusesuFuse Locations
Handling the Unexpected
*1:4-cylinder models
*2:6-cylinder models
*3:Sub fuse box17
Accessory, Key, Lock
7.5 A
18
Accessory
7.5 A
19
Left Power Seat Sliding
20 A
20
Moonroof
20 A
21
Left Power Seat Reclining
20 A
22
Rear Left Power Window
20 A
23
Front Accessory Power
Socket
15 A
24
Front Left Power Window
20 A
25
Left Door Lock
15 A
26
Front Left Fog Light
10 A
27
Left Small Lights (Exterior)
10 A
28
Left Headlight High Beam
10 A
29
TPMS
7.5 A
30
Left Headlight Low Beam
15 A
31
−
−
32*3
ST MG DIODE
*, *1
7.5 A
Stop
*, *2
7.5 A
33*3
STRLD
*
7.5 A
Circuit Protected
Amps
Circuit Protected
Amps
1
Right Headlight High Beam
10 A
2
Right Small Lights (Exterior)
10 A
3
Front Right Fog Light
10 A
4
Right Headlight Low Beam
15 A
5
−
−
6
Interior Lights
7.5 A
7
−
−
8
Right Power Seat Reclining
20 A
9
Right Power Seat Sliding
20 A
10
Right Door Lock
10 A
11
Rear Right Power Window
20 A
12
SMART
*
10 A
13
Front Right Power Window
20 A
14
−
−
15
Audio Amp
20 A
16
Accessory Power Socket
(Cargo Area)
15 A
17
−
−
18
Power Lumbar
*
7.5 A
19
Seat Heaters
*
15 A
20
−
−
21
−
−
22
−
−
Passenger side
* Not available on all models

541
uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Turn the ignition switch to LOCK
(0*1. Turn
headlights and all accessories off.
2.Remove the fuse box cover.
3.Check the large fuse in the engine
compartment.
uIf the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4.Inspect the small fuses in the engine
compartment and the vehicle interior.
uIf there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Inspecting and Changing FusesNOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 538 to 540.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined FuseBlown FuseFuse Puller

542Handling the Unexpected
Emergency TowingCall a professional towing service if you need to tow your vehicle.■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.■Wheel lift equipment
The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1Emergency TowingNOTICETrying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.NOTICEImproper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
All models2WD models

543Handling the Unexpected
When You Cannot Unlock the Fuel Fill DoorIf you cannot unlock the fuel fill door, use the following procedure.
1.Open the tailgate.
2.Pry on the front edge of the cover using a
flat-tip screwdriver to remove the cover.
uWrap the flat-tip screwdriver with a cloth
to prevent scratches.
3.Pull the release lever towards you.
uThe release lever unlocks and opens the
fuel fill door when it is pulled.■What to Do When Unable to Unlock the Fuel Fill Door
1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, contact a dealer to have the
vehicle checked.
CoverRelease Lever
