2014 HONDA CIVIC HYBRID Owners Manual

16
Quick Reference Guide

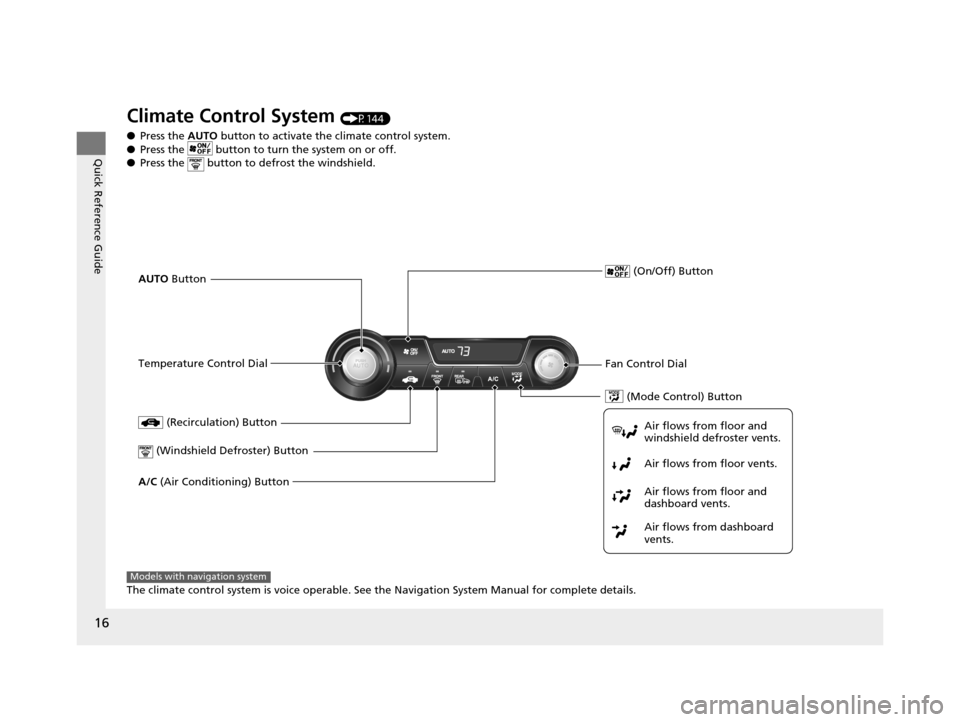

Climate Control System (P144)
● Press the AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operable. See the Navigation System Manual for complete details.
(Mode Control) Button
(Windshield Defroster) Button
A/C (Air Conditioning) Button Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
Temperature Control Dial
AUTO Button (On/Off) Button
Fan Control Dial
Models with navigation system
14 CIVIC IMA-31TR26200.book 16 ページ ２０１３年１２月２３日　月曜日　午後４時９分

17
Quick Reference Guide

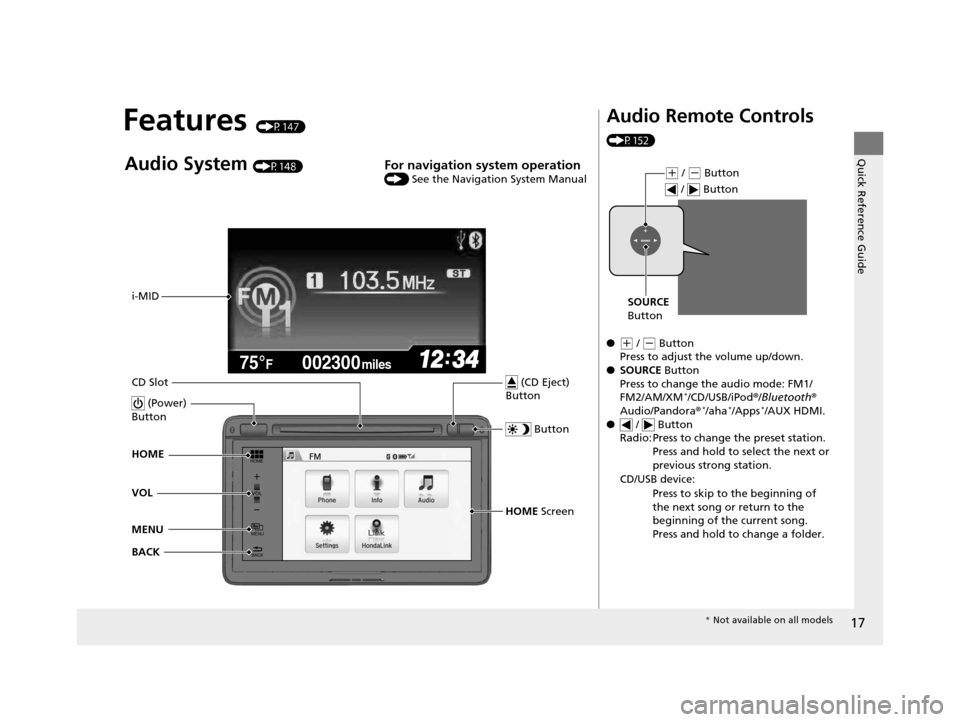

Features (P147)
002300
75°F miles
Audio System (P148)For navigation system operation () See the Navigation System Manual
MENU VOL HOME
BACK i-MID
CD Slot HOME Screen
(Power)
Button
(CD Eject)
Button
Button
Audio Remote Controls
(P152)
●
( + / (- Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM1/
FM2/AM/XM
*/CD/USB/iPod ®/Bluetooth ®
Audio/Pandora ®*/aha*/Apps*/AUX HDMI.
● / Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
CD/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
(+ / (- Button
SOURCE
Button / Button
*
Not available on all models
14 CIVIC IMA-31TR26200.book 17 ページ ２０１３年１２月２３日　月曜日　午後４時９分

18
Quick Reference Guide

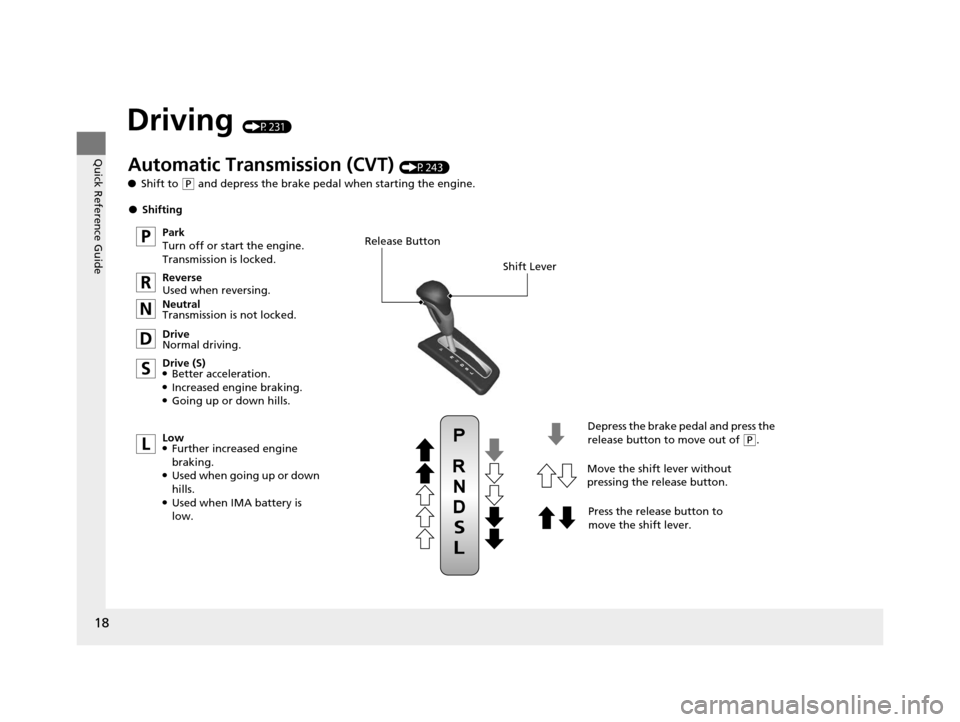

Driving (P231)
Release ButtonShift Lever
Depress the brake pedal and press the
release button to move out of
(P.
Move the shift lever without
pressing the release button.
Press the release button to
move the shift lever.
Automatic Transmission (CVT) (P243)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
Drive (S)
●Better acceleration.●Increased engine braking.●Going up or down hills.
Low
●Further increased engine
braking.
●Used when going up or down
hills.
●Used when IMA battery is
low.
14 CIVIC IMA-31TR26200.book 18 ページ ２０１３年１２月２３日　月曜日　午後４時９分

19
Quick Reference Guide

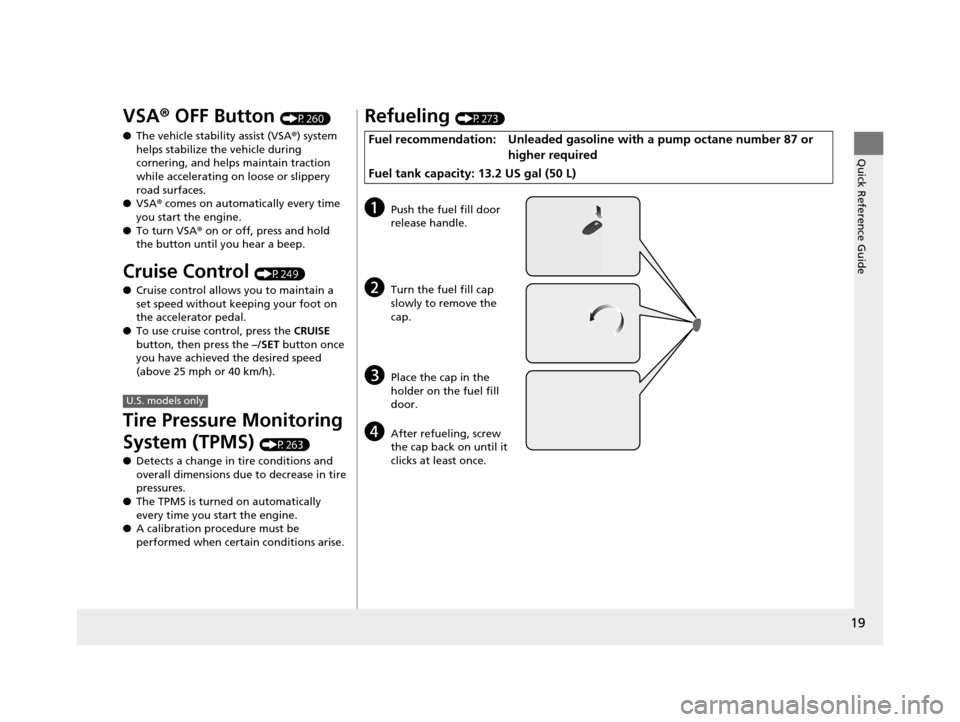

VSA® OFF Button (P260)
● The vehicle stability assist (VSA ®) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
Cruise Control (P249)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press the –/SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).
Tire Pressure Monitoring
System (TPMS)
(P263)
● Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
● The TPMS is turned on automatically
every time you start the engine.
● A calibration procedure must be
performed when certain conditions arise.
U.S. models only
Refueling (P273)
Fuel recommendation: Unleaded gasoline with a pump octane number 87 or
higher required
Fuel tank capacity: 13.2 US gal (50 L)
aPush the fuel fill door
release handle.
bTurn the fuel fill cap
slowly to remove the
cap.
cPlace the cap in the
holder on the fuel fill
door.
dAfter refueling, screw
the cap back on until it
clicks at least once.
14 CIVIC IMA-31TR26200.book 19 ページ ２０１３年１２月２３日　月曜日　午後４時９分

20
Quick Reference Guide

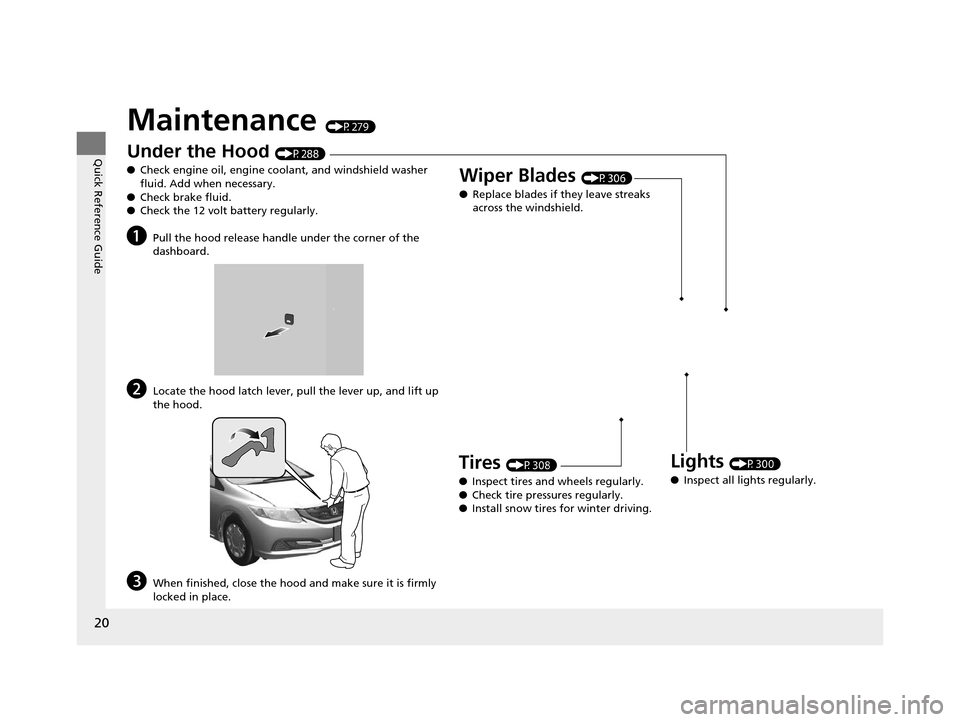

Maintenance (P279)
Under the Hood (P288)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the 12 volt battery regularly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull the lever up, and lift up
the hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P300)
● Inspect all lights regularly.
Wiper Blades (P306)
● Replace blades if they leave streaks
across the windshield.
Tires (P308)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
14 CIVIC IMA-31TR26200.book 20 ページ ２０１３年１２月２３日　月曜日　午後４時９分

Quick Reference Guide
21

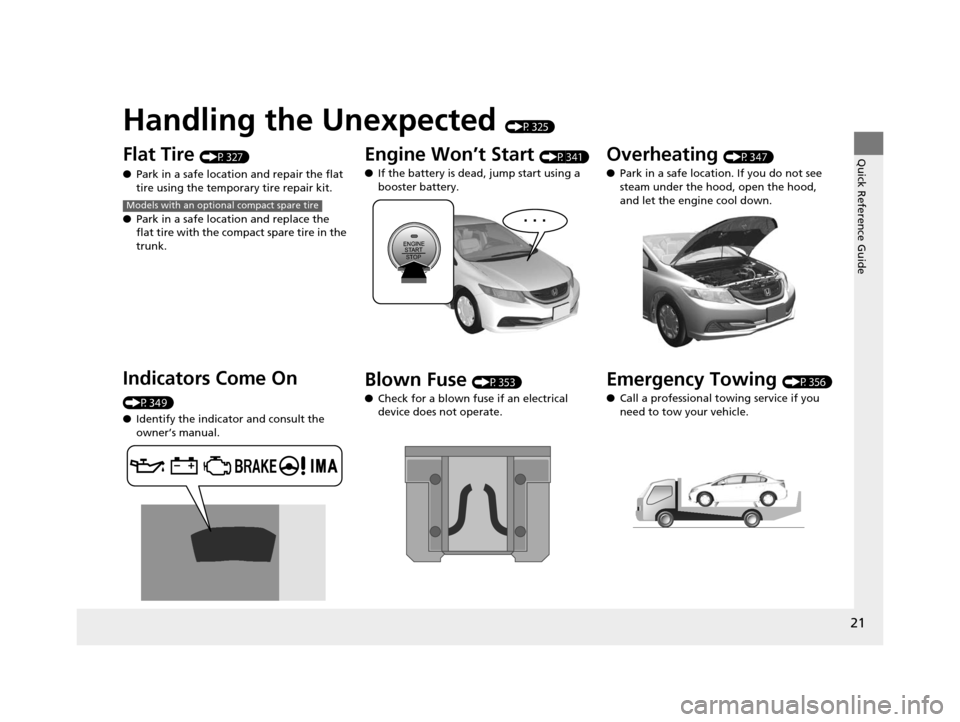

Handling the Unexpected (P325)
Flat Tire (P327)
● Park in a safe location and repair the flat
tire using the temporary tire repair kit.
● Park in a safe location and replace the
flat tire with the comp act spare tire in the
trunk.
Indicators Come On
(P349)
● Identify the indica tor and consult the
owner’s manual.
Models with an optional compact spare tire
Engine Won’t Start (P341)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P353)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P347)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P356)
● Call a professional towing service if you
need to tow your vehicle.
14 CIVIC IMA-31TR26200.book 21 ページ ２０１３年１２月２３日　月曜日　午後４時９分

22
Quick Reference Guide
What to Do If
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
●The steering wheel may be locked.
●Move the steering wheel left and right while
pressing the ENGINE START/STOP button at
the same time.
The power mode does not
change from ON to
VEHICLE OFF (LOCK). Why?The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
lock position. If so, open the rear
door with the outside door handle.
To cancel this function, push the lever
to the unlock position.
Canadian models
14 CIVIC IMA-31TR26200.book 22 ページ ２０１３年１２月２３日　月曜日　午後４時９分

23
Quick Reference Guide

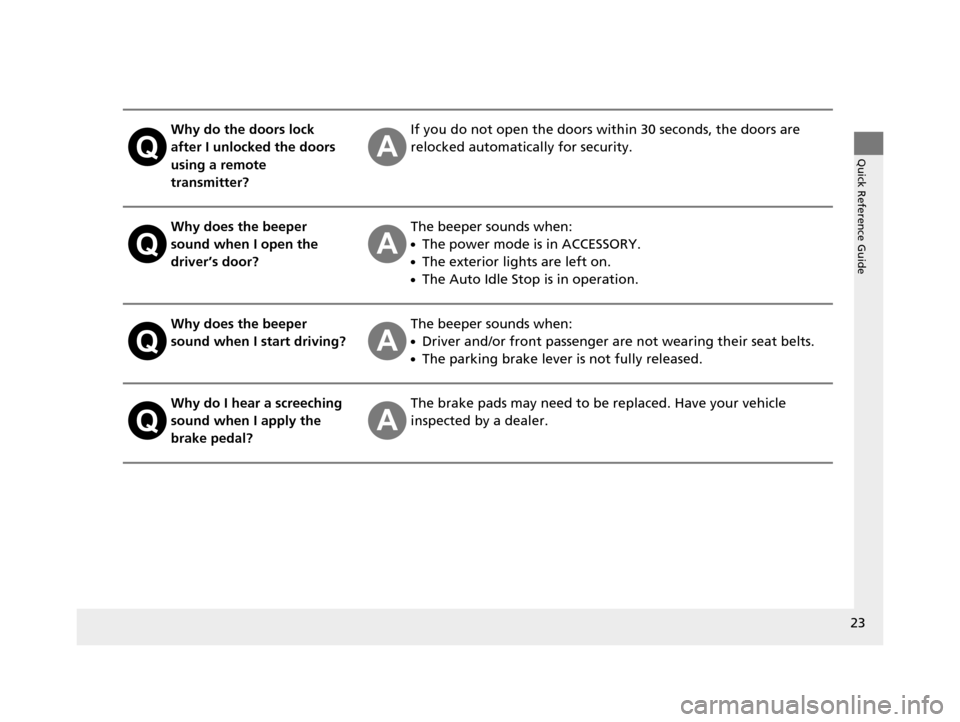

Why do the doors lock
after I unlocked the doors
using a remote
transmitter?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
●The Auto Idle Stop is in operation.
Why does the beeper
sound when I start driving?The beeper sounds when:
●Driver and/or front passenger are not wearing their seat belts.
●The parking brake lever is not fully released.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
