2014 HONDA CIVIC HYBRID Owners Manual

160
uuAudio System Basic Operation uDisplay Setup
Features

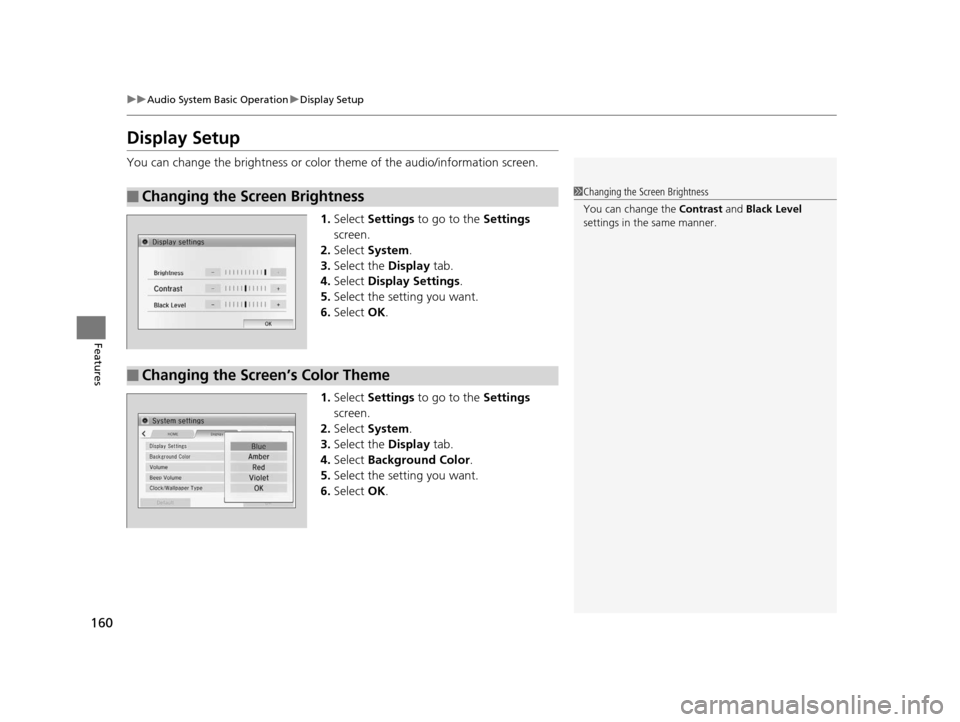

Display Setup
You can change the brightness or color theme of the audio/information screen.
1.Select Settings to go to the Settings
screen.
2. Select System .
3. Select the Display tab.
4. Select Display Settings .
5. Select the setting you want.
6. Select OK.
1. Select Settings to go to the Settings
screen.
2. Select System .
3. Select the Display tab.
4. Select Background Color .
5. Select the setting you want.
6. Select OK.
■Changing the Screen Brightness1Changing the Screen Brightness
You can change the Contrast and Black Level
settings in the same manner.
■Changing the Screen’s Color Theme
14 CIVIC IMA-31TR26200.book 160 ページ ２０１３年１２月２３日　月曜日　午後４時９分

161
uuAudio System Basic Operation uPlaying AM/FM Radio
Continued
Features

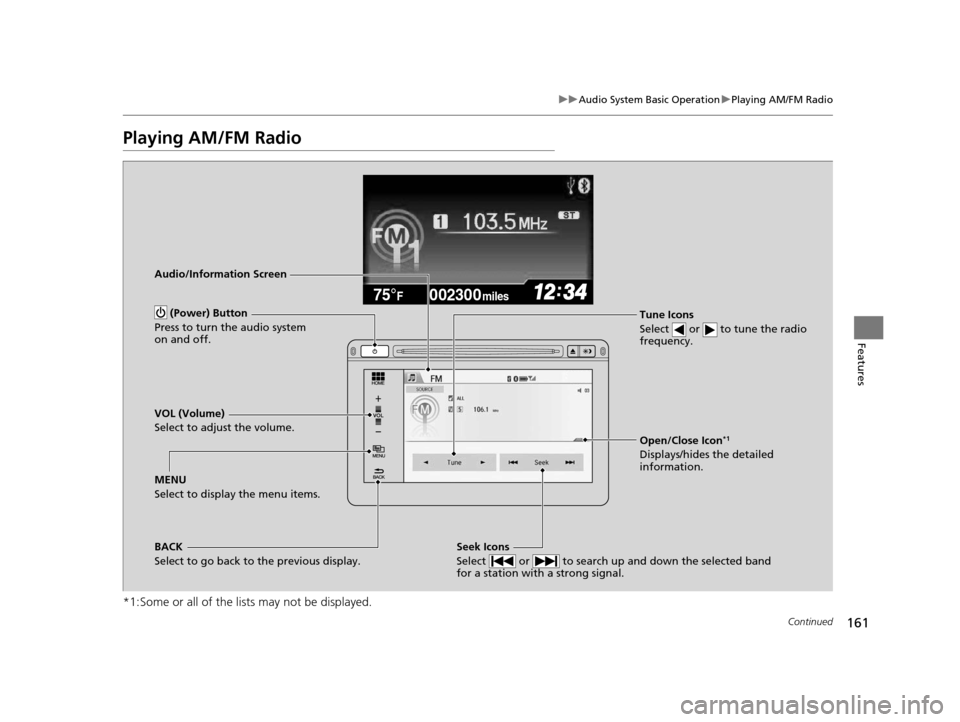

Playing AM/FM Radio
*1:Some or all of the lists may not be displayed.
002300
75°F miles
Audio/Information Screen
Tune Icons
Select or to tune the radio
frequency.
BACK
Select to go back to the previous display. (Power) Button
Press to turn the audio system
on and off.Seek Icons
Select or to search up and down the selected band
for a station with a strong signal.
MENU
Select to display the menu items. VOL (Volume)
Select to adjust the volume.
Open/Close Icon*1
Displays/hides the detailed
information.
14 CIVIC IMA-31TR26200.book 161 ページ ２０１３年１２月２３日　月曜日　午後４時９分

uuAudio System Basic Operation uPlaying AM/FM Radio
162
Features

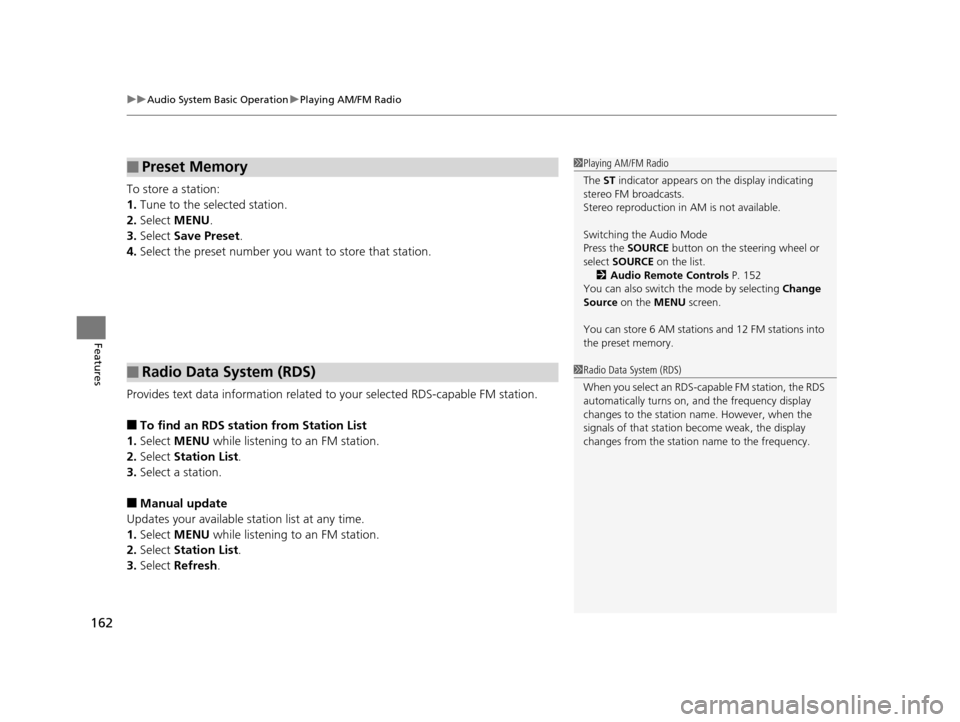

To store a station:
1. Tune to the selected station.
2. Select MENU .
3. Select Save Preset .
4. Select the preset number you want to store that station.
Provides text data information related to your selected RDS-capable FM station.
■To find an RDS station from Station List
1. Select MENU while listening to an FM station.
2. Select Station List .
3. Select a station.
■Manual update
Updates your available station list at any time.
1. Select MENU while listening to an FM station.
2. Select Station List .
3. Select Refresh .
■Preset Memory
■Radio Data System (RDS)
1Playing AM/FM Radio
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
Switching the Audio Mode
Press the SOURCE button on the steering wheel or
select SOURCE on the list.
2 Audio Remote Controls P. 152
You can also switch the mode by selecting Change
Source on the MENU screen.
You can store 6 AM stations and 12 FM stations into
the preset memory.
1 Radio Data System (RDS)
When you select an RDS-capable FM station, the RDS
automatically turns on, and the frequency display
changes to the station name. However, when the
signals of that station become weak, the display
changes from the statio n name to the frequency.
14 CIVIC IMA-31TR26200.book 162 ページ ２０１３年１２月２３日　月曜日　午後４時９分

163
uuAudio System Basic Operation uPlaying AM/FM Radio
Features

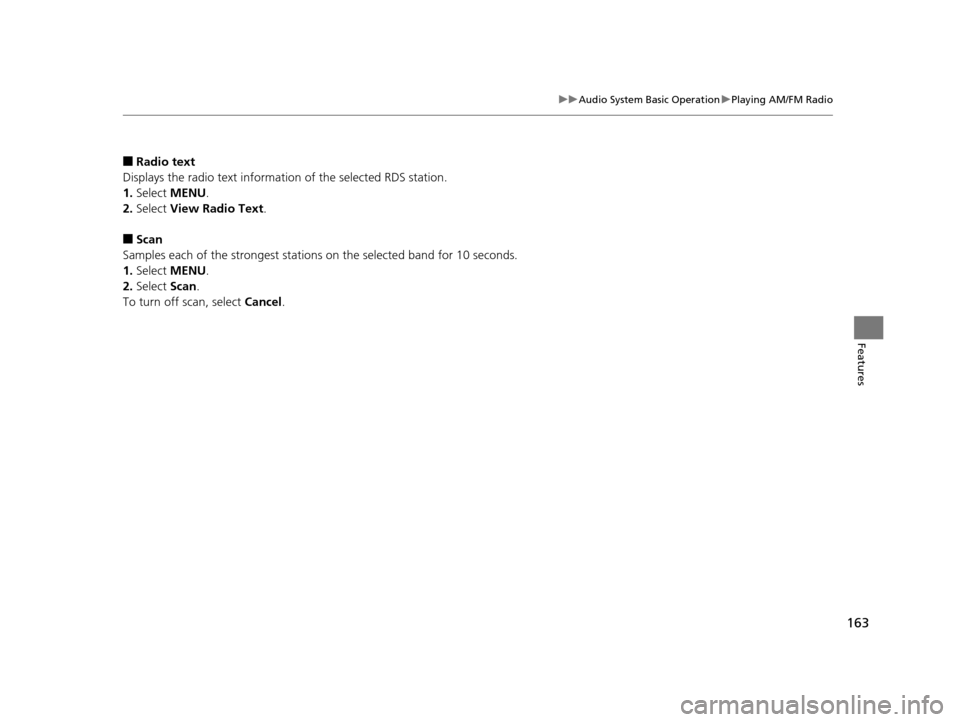

■Radio text
Displays the radio text information of the selected RDS station.
1. Select MENU .
2. Select View Radio Text .
■Scan
Samples each of the strongest stations on the selected band for 10 seconds.
1. Select MENU .
2. Select Scan.
To turn off scan, select Cancel.
14 CIVIC IMA-31TR26200.book 163 ページ ２０１３年１２月２３日　月曜日　午後４時９分

164
uuAudio System Basic Operation uPlaying XM ® Radio*
Features

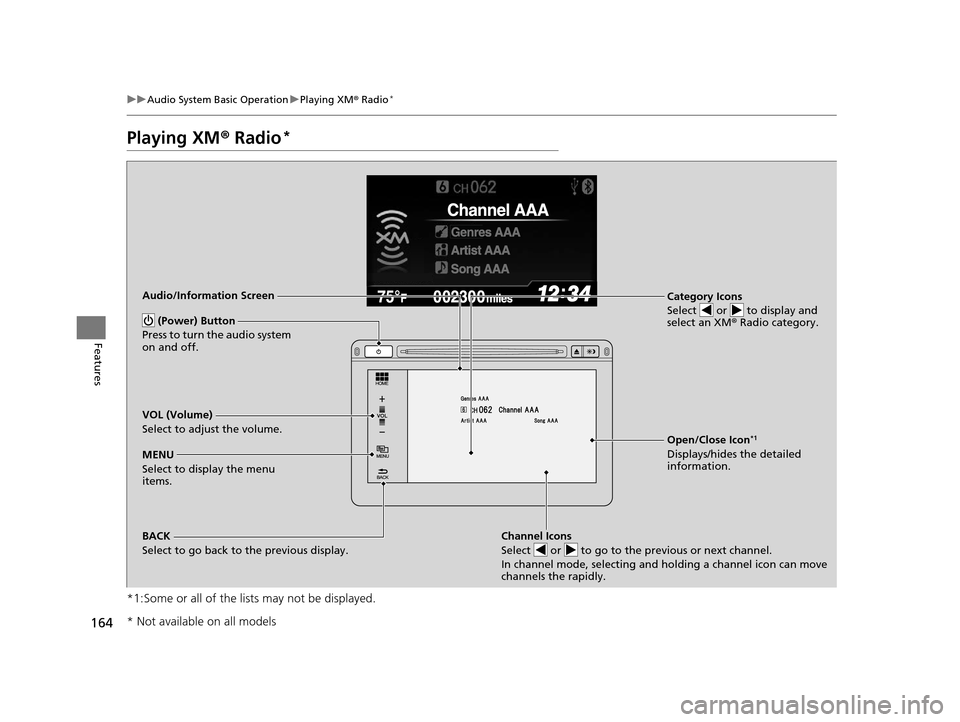

Playing XM ® Radio*
*1:Some or all of the lists may not be displayed.
(Power) Button
Press to turn the audio system
on and off.
MENU
Select to display the menu
items.
BACK
Select to go back to the previous display. Audio/Information Screen
Channel Icons
Select or to go to the previous or next channel.
In channel mode, selecting and holding a channel icon can move
channels the rapidly.
VOL (Volume)
Select to adjust the volume. Category Icons
Select or to display and
select an XM
® Radio category.
Open/Close Icon*1
Displays/hides the detailed
information.
* Not available on all models
14 CIVIC IMA-31TR26200.book 164 ページ ２０１３年１２月２３日　月曜日　午後４時９分

Continued165
uuAudio System Basic Operation uPlaying XM ® Radio*
Features
1. Select XM ® mode.
2Audio Remote Controls P. 152
2 Audio/Information Screen P. 155
From the Status Mode screen:
2.Select a channel using the or icon.
To select a preset station:
2. Select open/close ic on to display a preset channel list.
3. Select a channel from the list.
To switch between channel and category modes:
1. Select XM ® mode.
2. Select MENU .
3. Select XM Tune Mode .
4. Select Channel Mode or Category Mode .
■To Play XM® Radio1 Playing XM ® Radio*
In channel mode, all available channels are selectable.
In category mode, you can select a channel within a
category (Jazz, Rock, Classical, etc.).
There may be instances when XM ® Radio does not
broadcast all the data fields (artist name, title). This
does not indicate a problem with your audio system.
* Not available on all models
14 CIVIC IMA-31TR26200.book 165 ページ ２０１３年１２月２３日　月曜日　午後４時９分

uuAudio System Basic Operation uPlaying XM ® Radio*
166
Features

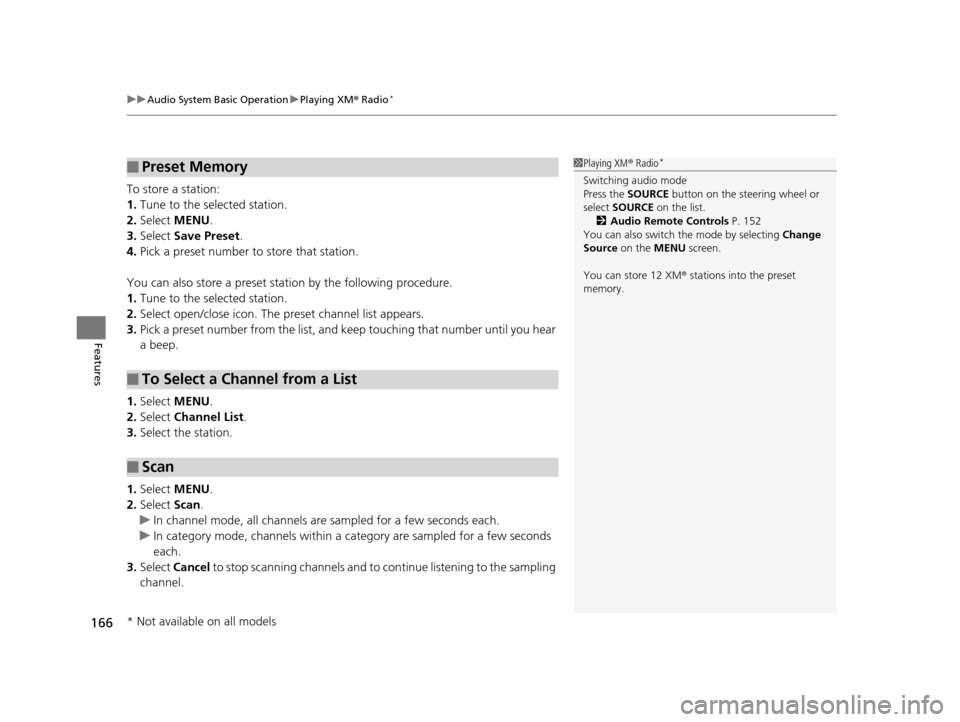

To store a station:
1. Tune to the selected station.
2. Select MENU .
3. Select Save Preset .
4. Pick a preset number to store that station.
You can also store a preset station by the following procedure.
1. Tune to the selected station.
2. Select open/close ic on. The preset channel list appears.
3. Pick a preset number from the list, and keep touching that number until you hear
a beep.
1. Select MENU .
2. Select Channel List.
3. Select the station.
1. Select MENU .
2. Select Scan.
u In channel mode, all channels ar e sampled for a few seconds each.
u In category mode, channels within a category are sampled for a few seconds
each.
3. Select Cancel to stop scanning channels and to continue listening to the sampling
channel.
■Preset Memory
■To Select a Channel from a List
■Scan
1 Playing XM ® Radio*
Switching audio mode
Press the SOURCE button on the steering wheel or
select SOURCE on the list.
2 Audio Remote Controls P. 152
You can also switch the mode by selecting Change
Source on the MENU screen.
You can store 12 XM ® stations into the preset
memory.
* Not available on all models
14 CIVIC IMA-31TR26200.book 166 ページ ２０１３年１２月２３日　月曜日　午後４時９分

167
uuAudio System Basic Operation uPlaying a CD
Continued
Features

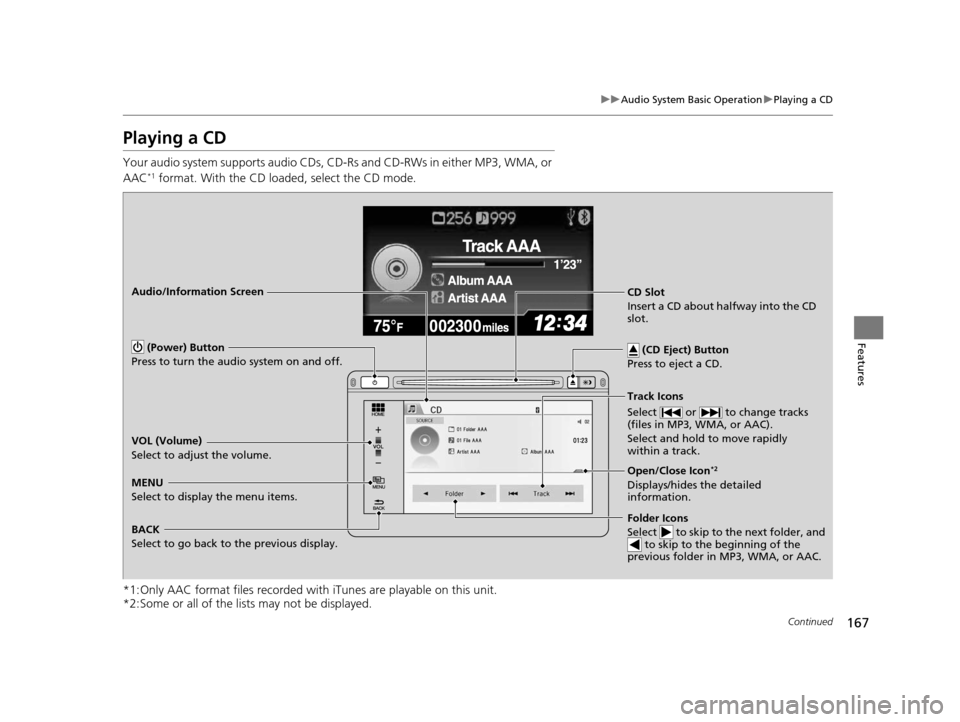

Playing a CD
Your audio system supports audio CDs, CD-Rs and CD-RWs in either MP3, WMA, or
AAC*1 format. With the CD load ed, select the CD mode.
*1:Only AAC format files recorded with iTunes are playable on this unit.
*2:Some or all of the lists may not be displayed.
NO>d‡Šƒ>___
_ _Š€“‹>___ NO>d
Audio/Information Screen
BACK
Select to go back to the previous display. (Power) Button
Press to turn the audio system on and off.
Track Icons
Select or to change tracks
(files in MP3, WMA, or AAC).
Select and hold to move rapidly
within a track.
MENU
Select to display the menu items. CD Slot
Insert a CD about halfway into the CD
slot.
(CD Eject) Button
Press to eject a CD.
VOL (Volume)
Select to adjust the volume.
Folder Icons
Select to skip to the next folder, and to skip to the beginning of the
previous folder in MP3, WMA, or AAC.
Open/Close Icon*2
Displays/hides the detailed
information.
14 CIVIC IMA-31TR26200.book 167 ページ ２０１３年１２月２３日　月曜日　午後４時９分
