2014 FORD F150 Raptor Supplement Manual

EL3J 19A285 AA | September 2013 | First Printing | Supplement | F-150 SVT Raptor | Litho in U.S.A.
fordowner.com ford.ca
2014 F-150 SVT Raptor Supplement

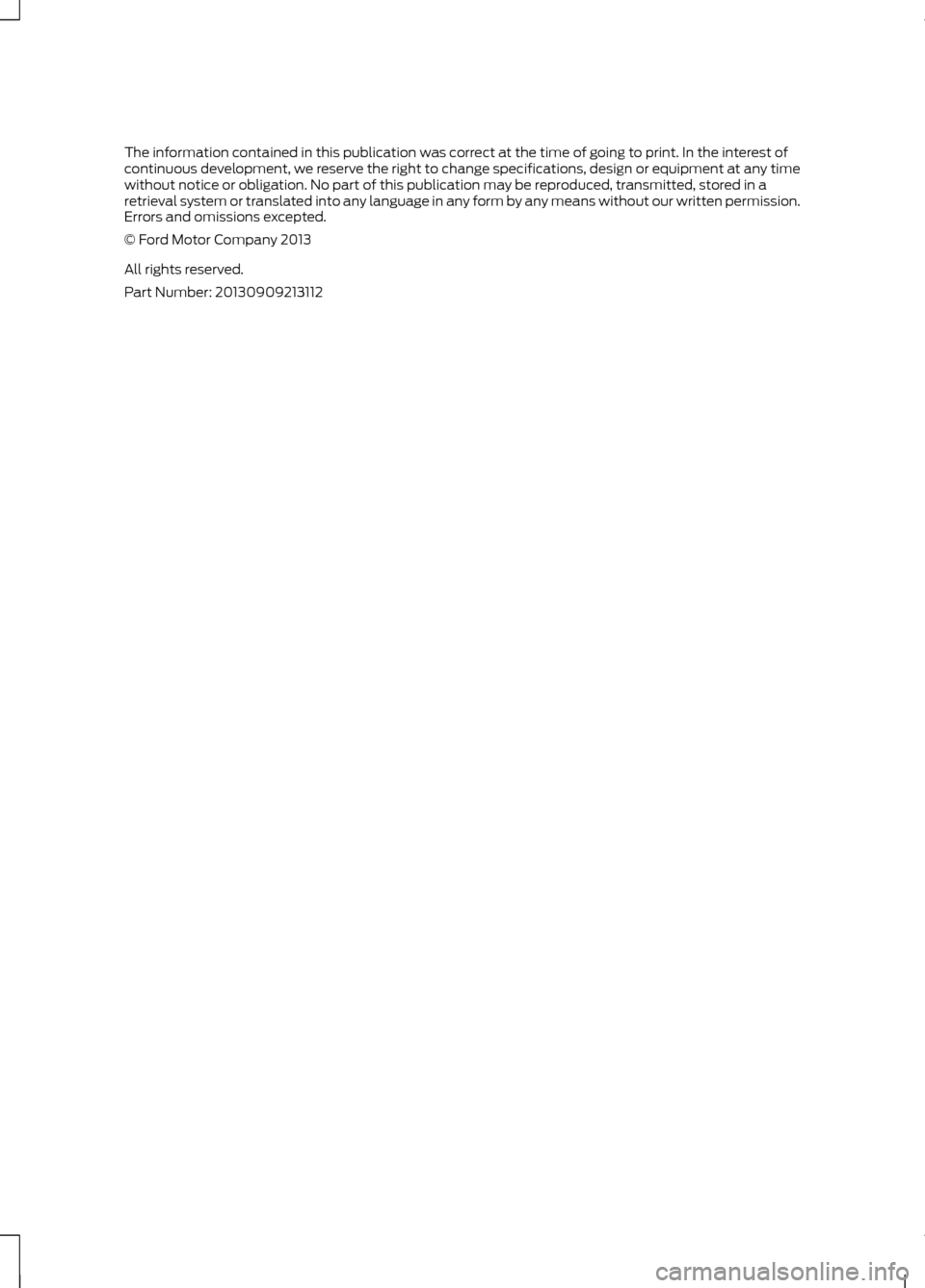

The information contained in this publication was correct at the time of going to print. In the interest ofcontinuous development, we reserve the right to change specifications, design or equipment at any timewithout notice or obligation. No part of this publication may be reproduced, transmitted, stored in aretrieval system or translated into any language in any form by any means without our written permission.Errors and omissions excepted.© Ford Motor Company 2013
All rights reserved.Part Number: 20130909213112

Introduction
About This Supplement.................................3
Product History..................................................3
At a Glance
At a Glance..........................................................4
Fuel and Refueling
Fuel Quality.........................................................7
Terrain Response
Principle of Operation.....................................8
Using Hill Descent Control............................8
Driving Aids
Front View Camera..........................................9
Towing
Towing a Trailer................................................12
Transporting the Vehicle...............................12
Towing the Vehicle on Four Wheels.........13
Driving Hints
Off-Road Driving.............................................15
Vehicle Care
Cleaning the Exterior.....................................25
Wheels and Tires
General Information......................................26
Tire Care............................................................26
Using Snow Chains........................................27
Wheels................................................................27
Capacities and Specific-ations
Engine Specifications...................................29
Motorcraft Parts.............................................30
Technical Specifications...............................31
Accessories
Auxiliary Switches..........................................33
Warranty Terms andConditions
Base Warranty.................................................35
1F150 (TF6)Table of Contents

2F150 (TF6)

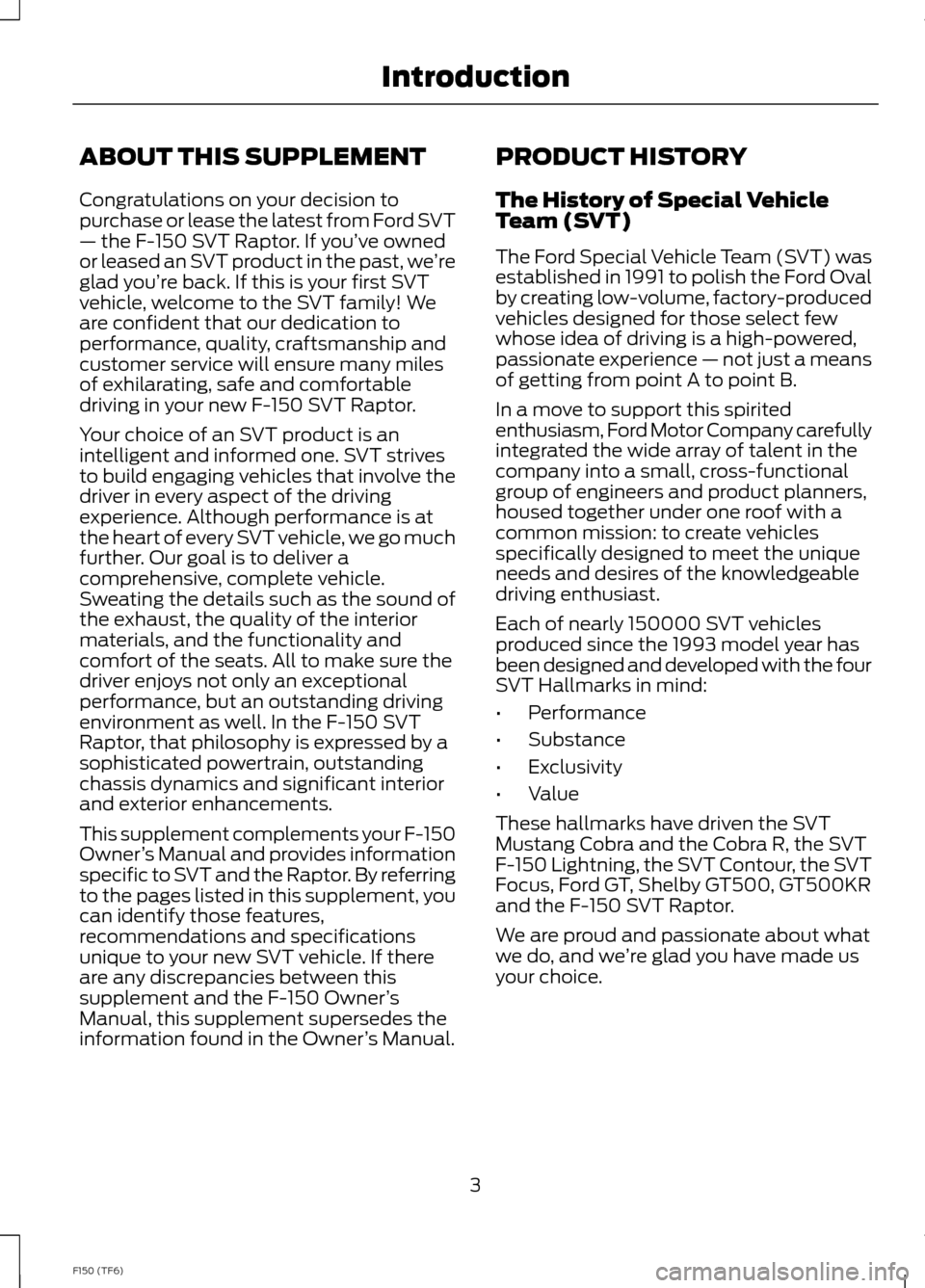

ABOUT THIS SUPPLEMENT
Congratulations on your decision topurchase or lease the latest from Ford SVT— the F-150 SVT Raptor. If you’ve ownedor leased an SVT product in the past, we’reglad you’re back. If this is your first SVTvehicle, welcome to the SVT family! Weare confident that our dedication toperformance, quality, craftsmanship andcustomer service will ensure many milesof exhilarating, safe and comfortabledriving in your new F-150 SVT Raptor.
Your choice of an SVT product is anintelligent and informed one. SVT strivesto build engaging vehicles that involve thedriver in every aspect of the drivingexperience. Although performance is atthe heart of every SVT vehicle, we go muchfurther. Our goal is to deliver acomprehensive, complete vehicle.Sweating the details such as the sound ofthe exhaust, the quality of the interiormaterials, and the functionality andcomfort of the seats. All to make sure thedriver enjoys not only an exceptionalperformance, but an outstanding drivingenvironment as well. In the F-150 SVTRaptor, that philosophy is expressed by asophisticated powertrain, outstandingchassis dynamics and significant interiorand exterior enhancements.
This supplement complements your F-150Owner’s Manual and provides informationspecific to SVT and the Raptor. By referringto the pages listed in this supplement, youcan identify those features,recommendations and specificationsunique to your new SVT vehicle. If thereare any discrepancies between thissupplement and the F-150 Owner’sManual, this supplement supersedes theinformation found in the Owner’s Manual.
PRODUCT HISTORY
The History of Special VehicleTeam (SVT)
The Ford Special Vehicle Team (SVT) wasestablished in 1991 to polish the Ford Ovalby creating low-volume, factory-producedvehicles designed for those select fewwhose idea of driving is a high-powered,passionate experience — not just a meansof getting from point A to point B.
In a move to support this spiritedenthusiasm, Ford Motor Company carefullyintegrated the wide array of talent in thecompany into a small, cross-functionalgroup of engineers and product planners,housed together under one roof with acommon mission: to create vehiclesspecifically designed to meet the uniqueneeds and desires of the knowledgeabledriving enthusiast.
Each of nearly 150000 SVT vehiclesproduced since the 1993 model year hasbeen designed and developed with the fourSVT Hallmarks in mind:
•Performance
•Substance
•Exclusivity
•Value
These hallmarks have driven the SVTMustang Cobra and the Cobra R, the SVTF-150 Lightning, the SVT Contour, the SVTFocus, Ford GT, Shelby GT500, GT500KRand the F-150 SVT Raptor.
We are proud and passionate about whatwe do, and we’re glad you have made usyour choice.
3F150 (TF6)Introduction

F-150 SVT Raptor-Specific ExteriorFeatures
•6.2L Boss V8 engine
•6R80 6-speed automatic transmission
•4x4 electronic shift-on-the-fly transfercase
•Modified rear differential capable oflocking in 2H, 4H and 4L
•Torsen helical front differential forincreased capability
•4.10 front and rear axle ratios
•35 tooth spline rear axle shafts forincreased capability
•Super Cab or Crew Cab – 5.5 foot boxwith unique outer box
•Box graphics
•Hood with functional air extractors
•Hood graphics
•Unique grille
•Front off-road camera
•Front camera washer
•Dual exhaust, 3.5 inch exhaust tips
•Modified rear bumper with integratedrear tow hooks
•Heavy duty front skid plate and engineskid plate, and front tow hooks
•Cast aluminum running board/sillprotector with Durabed protection
•Front fenders with functional airextractors
•Seats with increased bolstering andunique covers
•Front and rear LED marker lamps
•Switch pack with off-road mode andhill descent buttons, and four auxiliaryswitches
4F150 (TF6)At a GlanceE167331

•Longer, cast aluminum lower controlarms
•Longer, forged steel upper control arms
•Front coil springs and rear leaf springs
•Fox Racing 1.8 inch piston internalbypass front shocks
•Fox Racing 1.8 inch, internal bypass,remote reservoir rear shocks
•Micro-cellular urethane jouncebumpers (front and rear)
•Raptor navigation welcome screen
•Full-size all-terrain spare tire
•Off-road specific calibrations forengine, transmission and AdvanceTracsystem
•Standard 17 inch Cast AluminumWheels
•Optional 17 inch forged aluminumbeadlock compatible wheels
•LT 315/70-17 BF Goodrich all-terraintires
Note:Your F-150 SVT Raptor is equippedwith unique front and rear high-performanceFox shock absorbers designed for severeoff-road use. Due to the hydraulic motionof the shock fluid in the unique internalbypass system, you can expect some noiseduring on-road driving, including boom,chirp, or clunk noises. This is a normalcharacteristic of the shock absorbers andyou should not attempt repair.
F-150 SVT Raptor-Specific Interior Features
•Instrument panel cluster graphics
•High line LCD cluster with unique SVToff-road screen
•Steering wheel - unique wrap withon-center marker, thumb pads andimproved grip contour
•Door trim inserts and center stack trim
•Off-road style floor mats with SVT logo
5F150 (TF6)At a GlanceE167332

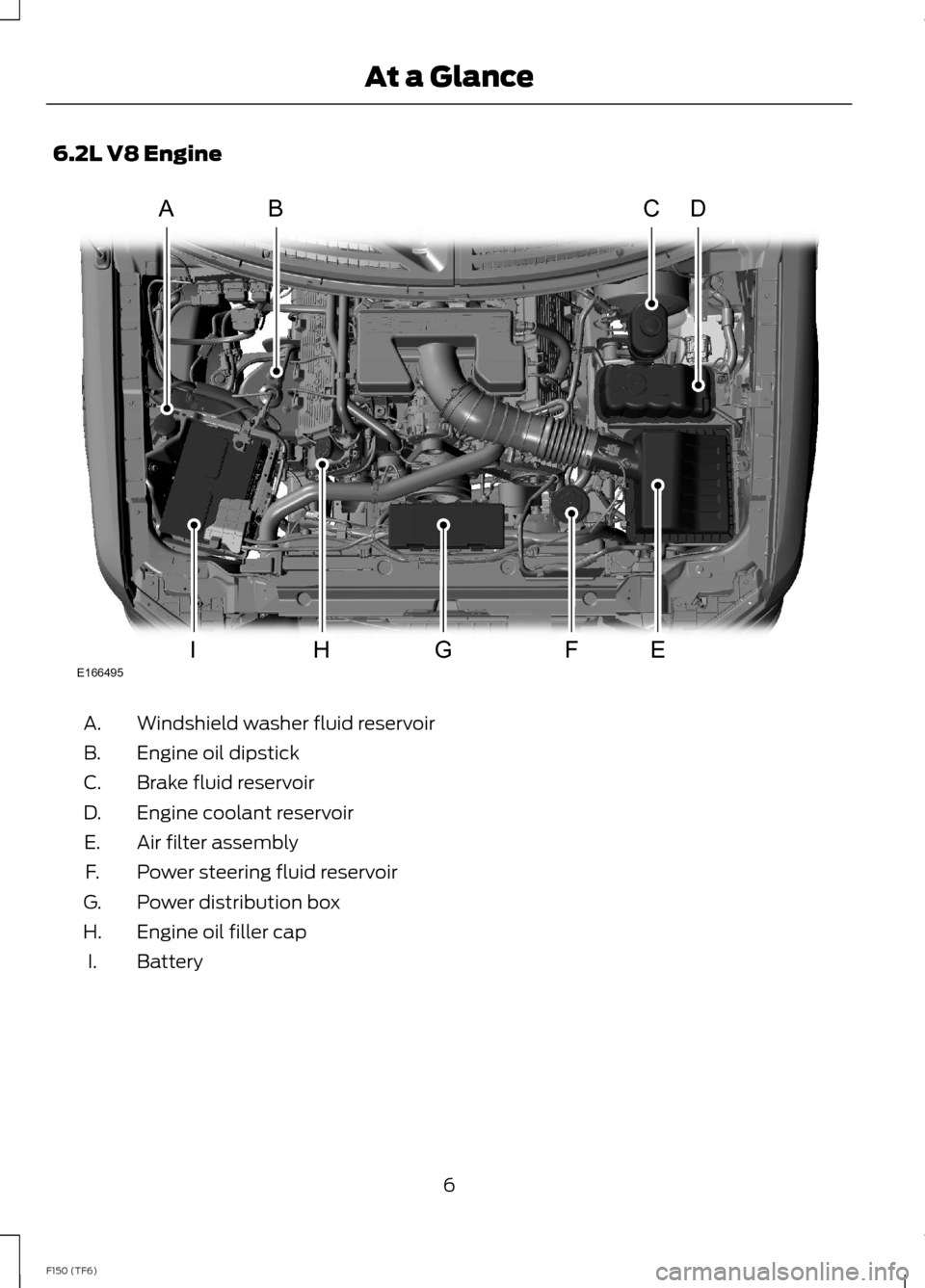

6.2L V8 Engine
Windshield washer fluid reservoirA.
Engine oil dipstickB.
Brake fluid reservoirC.
Engine coolant reservoirD.
Air filter assemblyE.
Power steering fluid reservoirF.
Power distribution boxG.
Engine oil filler capH.
BatteryI.
6F150 (TF6)At a GlanceAAABAAACAAADAAAEAAAFAAAIAAAGAAAHE166495
