2014 FORD F SERIES MOTORHOME AND COMMERCIAL CHASSIS Owners Manual

EU9J 19A321 AC | June 2014 | Third Printing | Owner’s Manual | Motorhome | Litho in U.S.A.
2014 F-Series Super Duty Class A Motorhome
and Commercial Chassis Owner’s Manual
ford.cafordowner.com

The information contained in this publication was correct at the time of going to print. In the interest ofcontinuous development, we reserve the right to change specifications, design or equipment at any timewithout notice or obligation. No part of this publication may be reproduced, transmitted, stored in aretrieval system or translated into any language in any form by any means without our written permission.Errors and omissions excepted.© Ford Motor Company 2014
All rights reserved.Part Number: 20140521215744

Introduction
About This Manual...........................................3
Symbols Glossary.............................................3
California Proposition 65...............................5
Perchlorate..........................................................5
Ford Credit...........................................................5
Replacement PartsRecommendation........................................6
Special Notices.................................................6

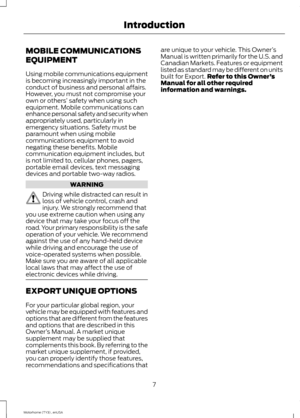

Mobile CommunicationsEquipment.......................................................7
Export Unique Options...................................7
Steering Wheel

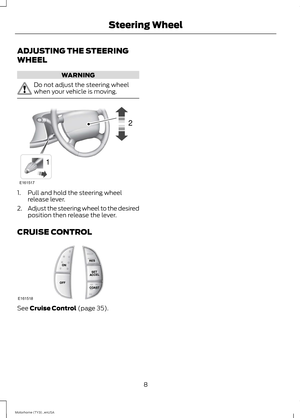

Adjusting the Steering Wheel......................8
Cruise Control....................................................8
Wipers and Washers

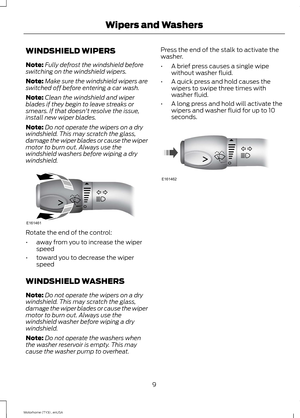

Windshield Wipers...........................................9
Windshield Washers........................................9
Lighting

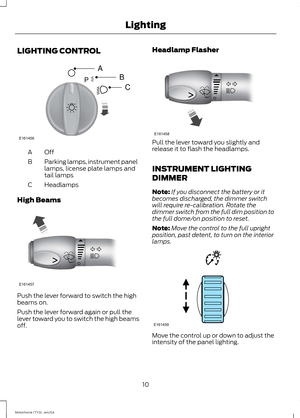

Lighting Control...............................................10
Instrument Lighting Dimmer......................10
Daytime Running Lamps...............................11
Direction Indicators..........................................11
Instrument Cluster

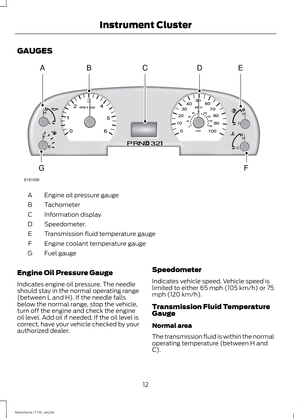

Gauges.................................................................12

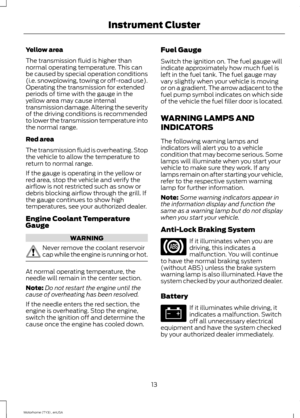

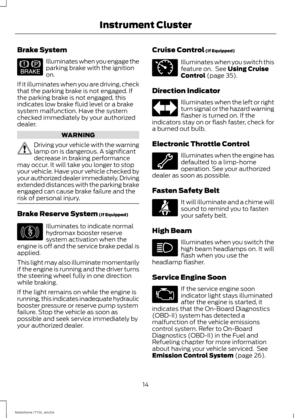

Warning Lamps and Indicators..................13

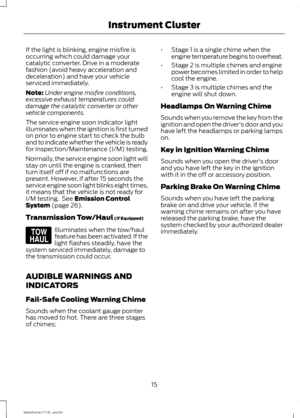

Audible Warnings and Indicators..............15
Information Displays

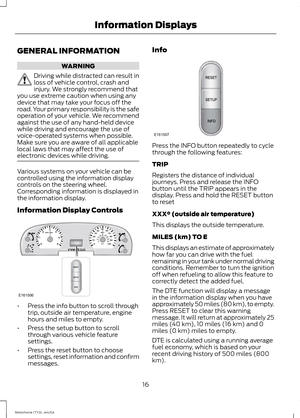

General Information.......................................16

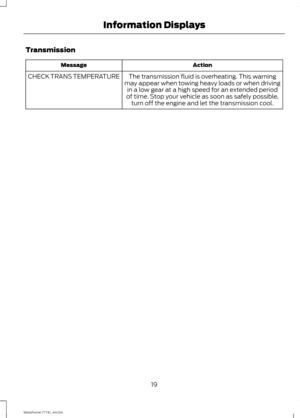

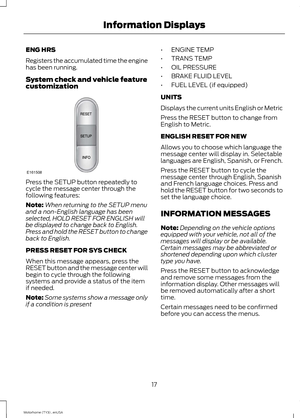

Information Messages...................................17
Starting and Stopping theEngine
General Information......................................20

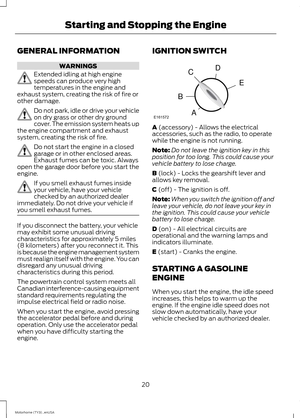

Ignition Switch................................................20
Starting a Gasoline Engine.........................20
Fuel and Refueling

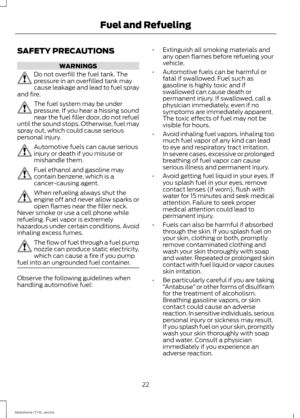

Safety Precautions.........................................22

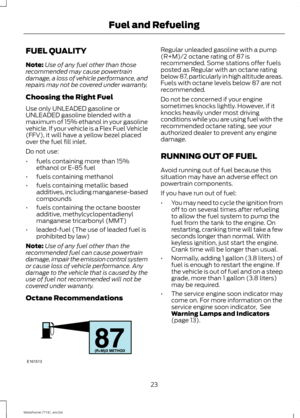

Fuel Quality......................................................23
Running Out of Fuel......................................23
Refueling...........................................................24

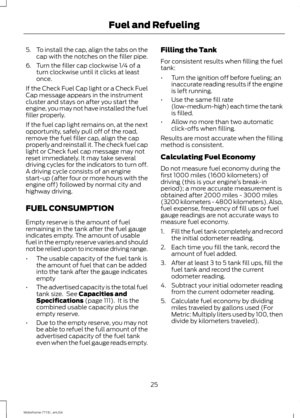

Fuel Consumption.........................................25

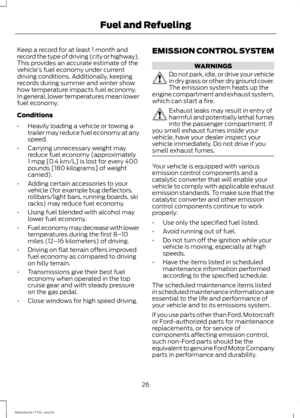

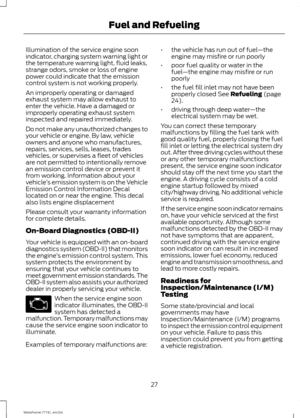

Emission Control System............................26
Transmission

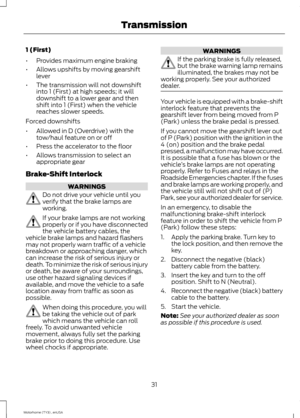

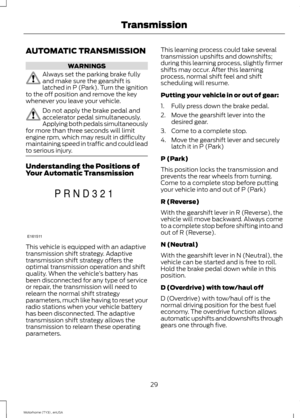

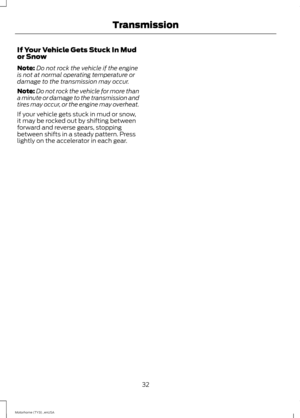

Automatic Transmission.............................29
Brakes

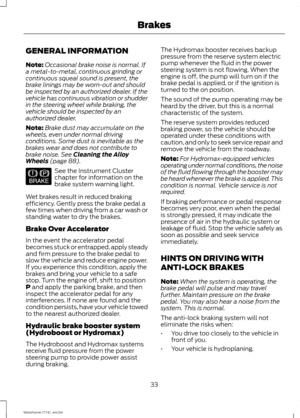

General Information......................................33
Hints on Driving With Anti-LockBrakes.............................................................33

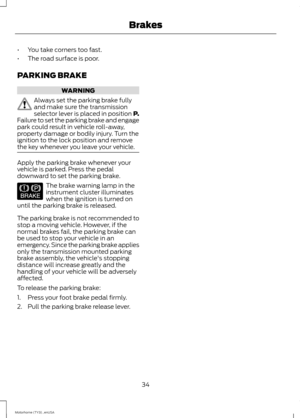

Parking Brake...................................................34
Cruise Control

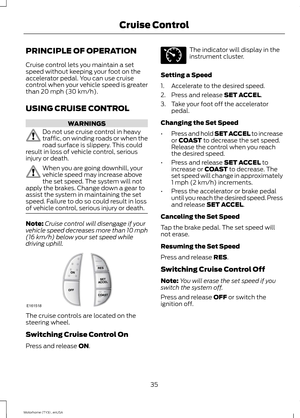

Principle of Operation..................................35
Using Cruise Control.....................................35
Load Carrying

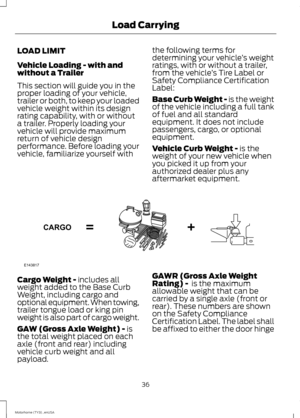

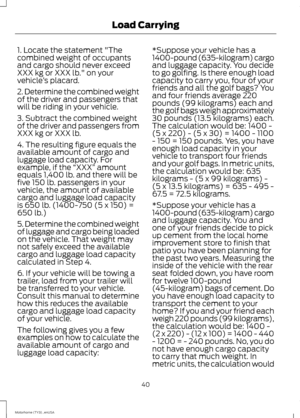

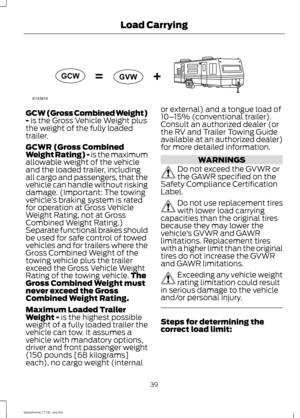

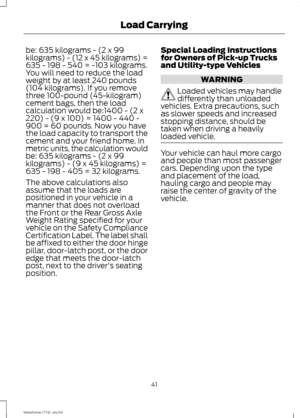

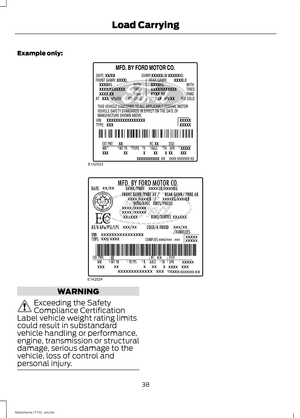

Load Limit.........................................................36
Towing

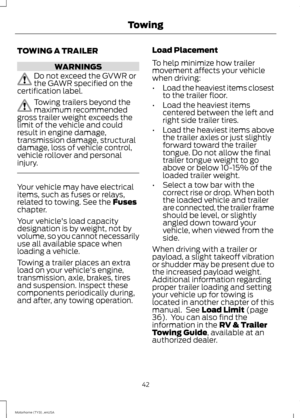

Towing a Trailer...............................................42

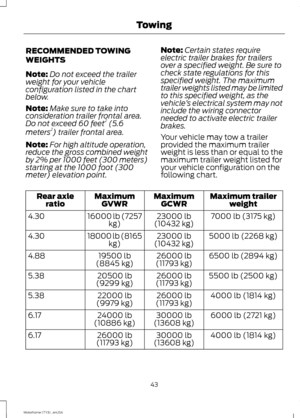

Recommended Towing Weights..............43

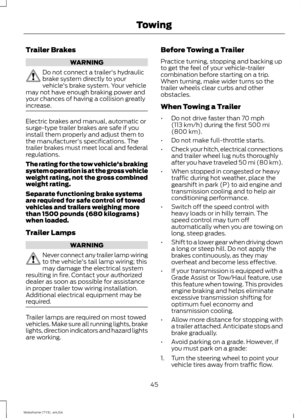

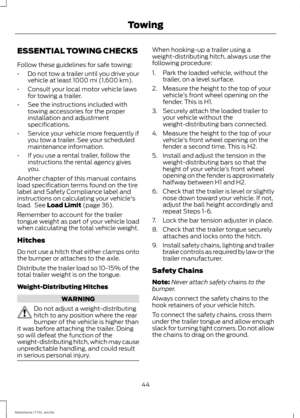

Essential Towing Checks............................44

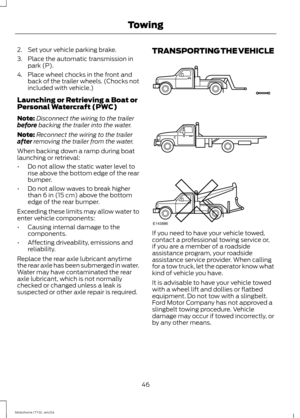

Transporting the Vehicle.............................46

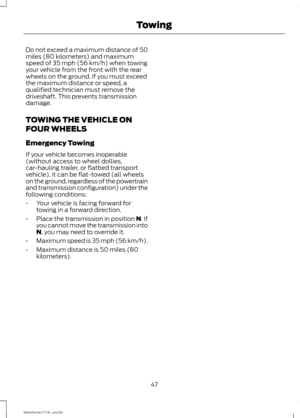

Towing the Vehicle on Four Wheels........47
Driving Hints

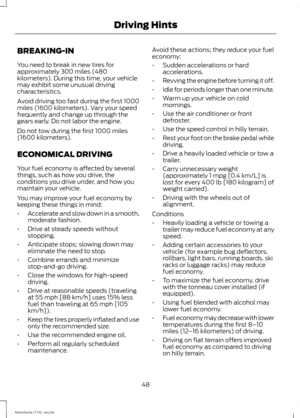

Breaking-In.......................................................48
Economical Driving.......................................48

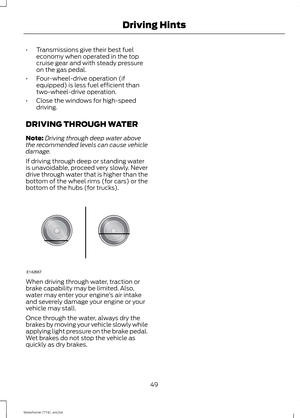

Driving Through Water.................................49
Roadside Emergencies

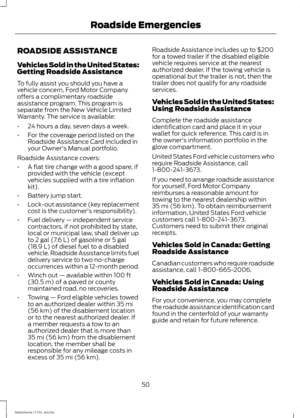

Roadside Assistance....................................50
1Motorhome (TY3) , enUSATable of Contents

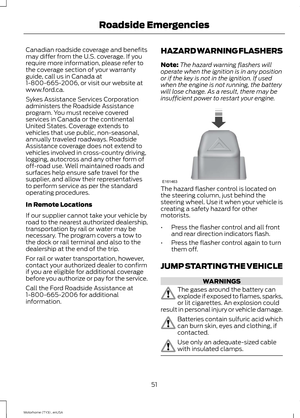

Hazard Warning Flashers.............................51
Jump Starting the Vehicle............................51
Customer Assistance

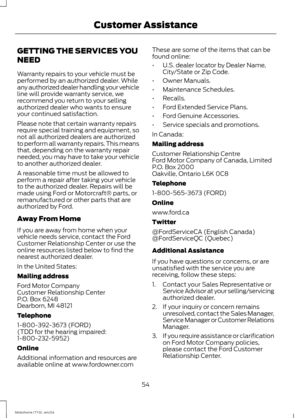

Getting the Services You Need.................54

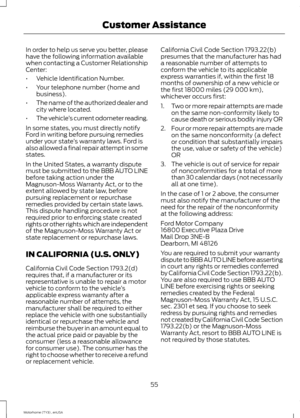

In California (U.S. Only)...............................55
The Better Business Bureau (BBB) AutoLine Program (U.S. Only)........................56
Utilizing the Mediation/ArbitrationProgram (Canada Only).........................56

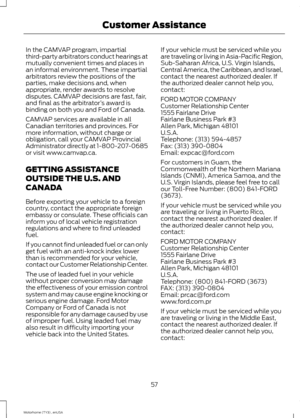

Getting Assistance Outside the U.S. andCanada...........................................................57

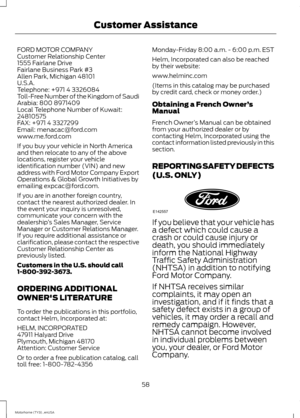

Ordering Additional Owner'sLiterature.......................................................58
Reporting Safety Defects (U.S.Only)...............................................................58
Reporting Safety Defects (CanadaOnly)...............................................................59
Fuses

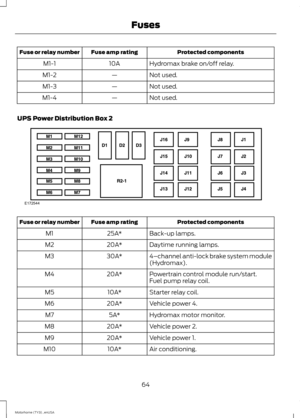

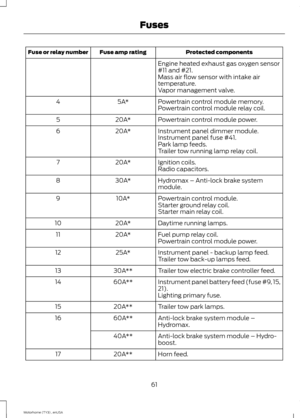

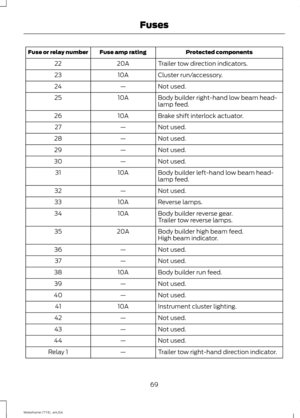

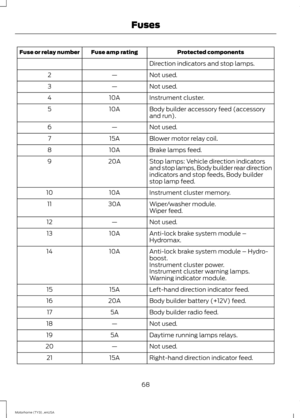

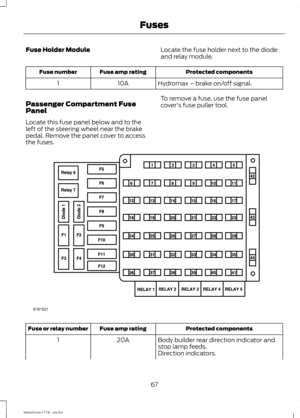

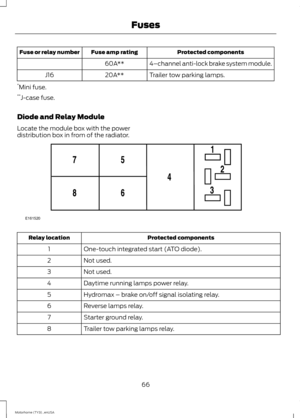

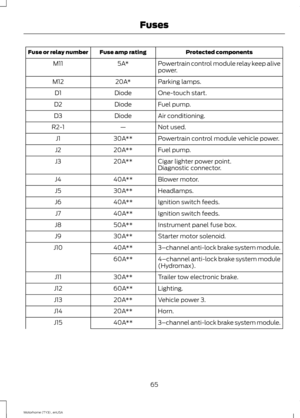

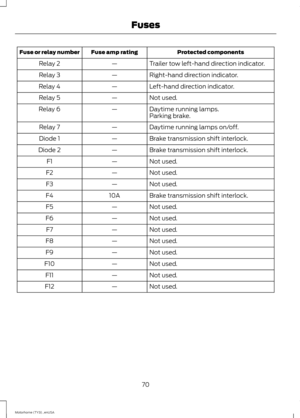

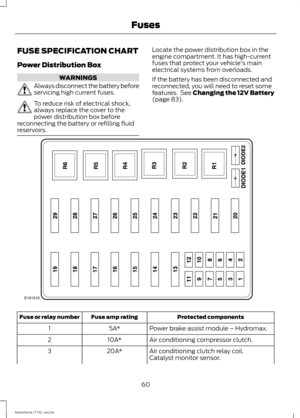

Fuse Specification Chart............................60

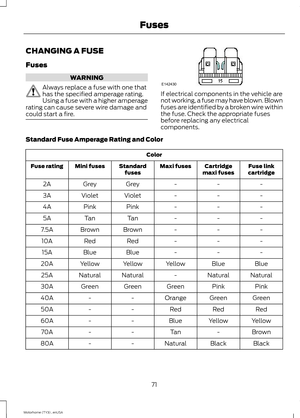

Changing a Fuse...............................................71
Maintenance

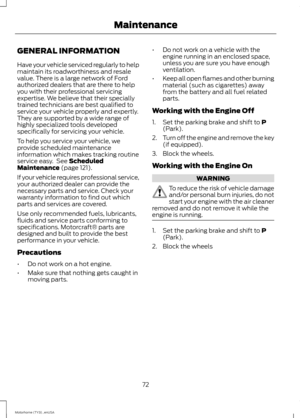

General Information......................................72

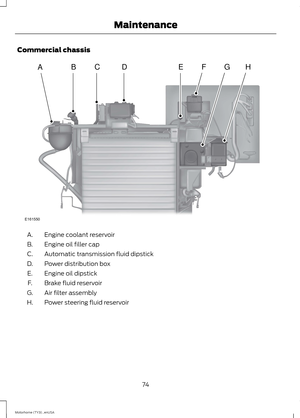

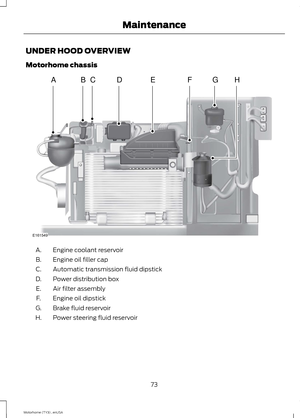

Under Hood Overview..................................73

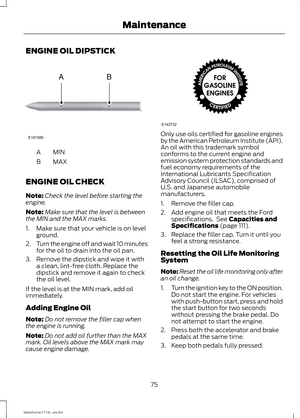

Engine Oil Dipstick.........................................75
Engine Oil Check.............................................75

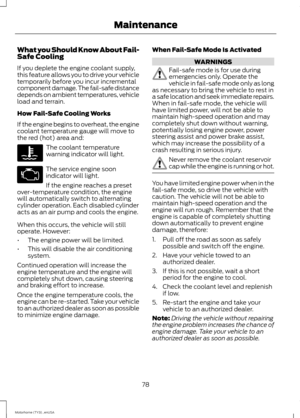

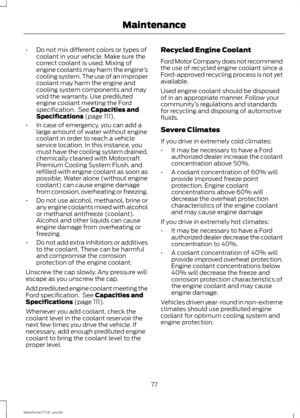

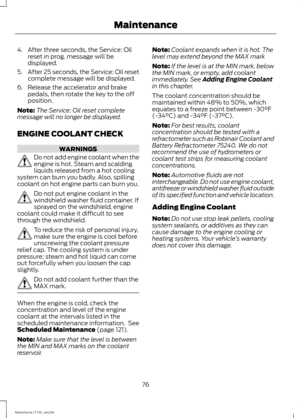

Engine Coolant Check..................................76

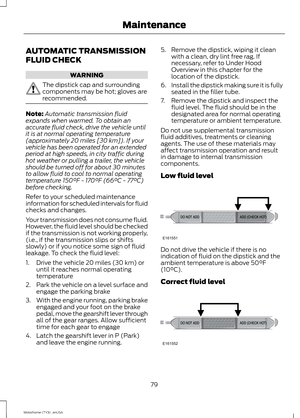

Automatic Transmission FluidCheck..............................................................79

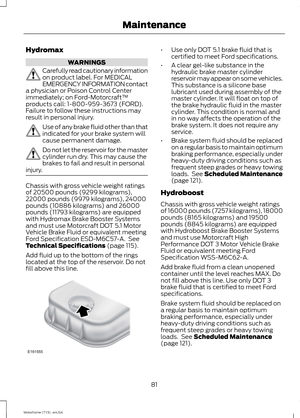

Brake Fluid Check..........................................80

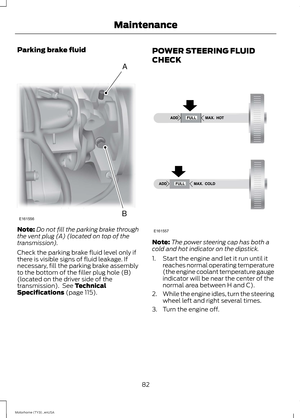

Power Steering Fluid Check.......................82

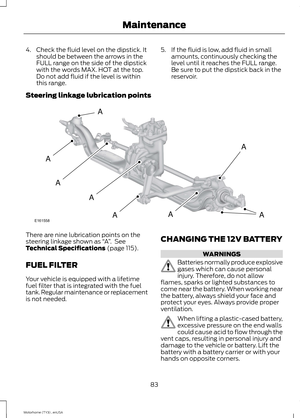

Fuel Filter...........................................................83

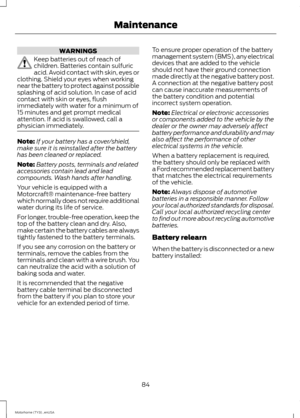

Changing the 12V Battery...........................83

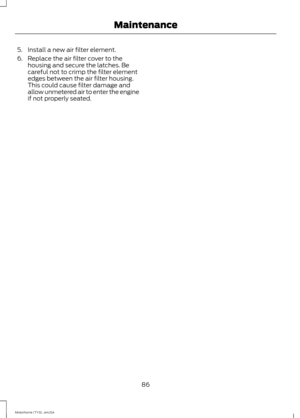

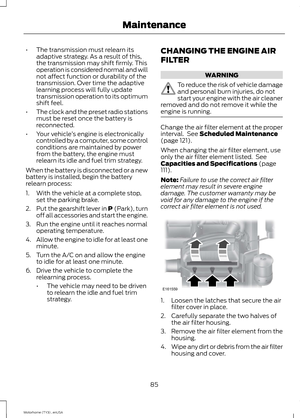

Changing the Engine Air Filter...................85
Vehicle Care
General Information......................................87
Cleaning the Exterior.....................................87
Cleaning the Engine......................................87

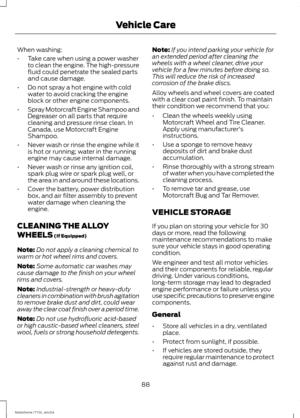

Cleaning the Alloy Wheels.........................88

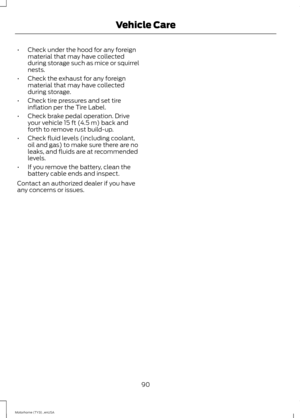

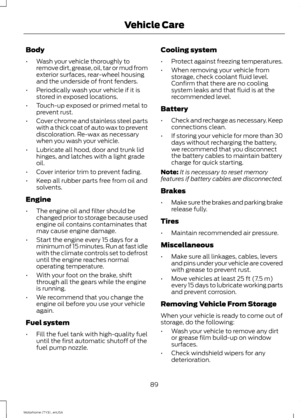

Vehicle Storage..............................................88
Wheels and Tires

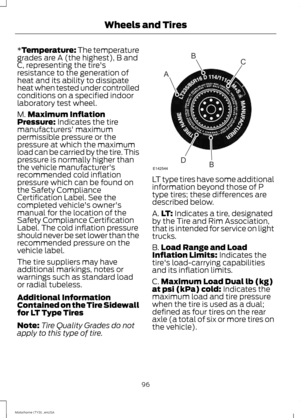

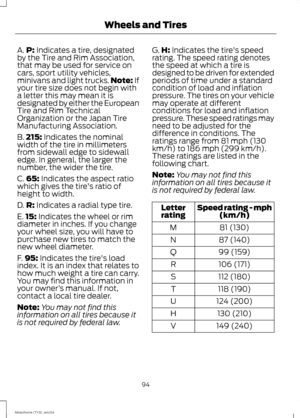

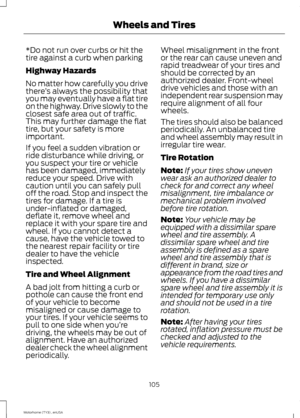

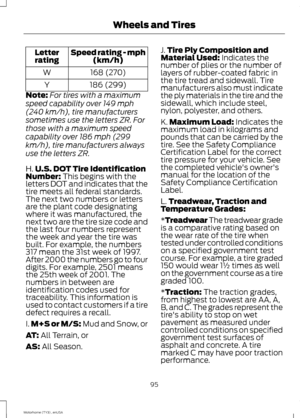

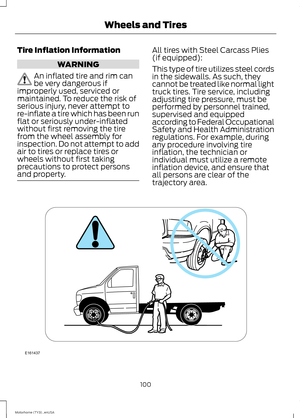

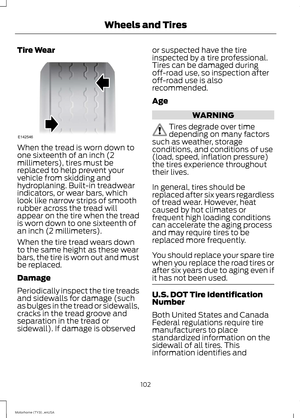

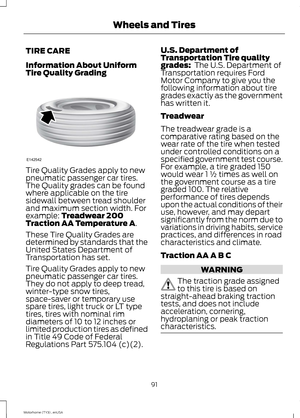

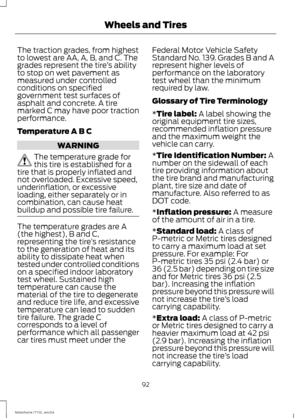

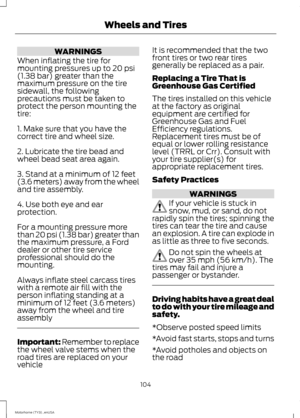

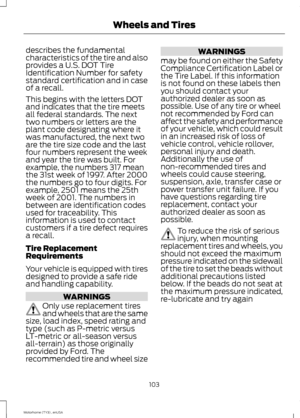

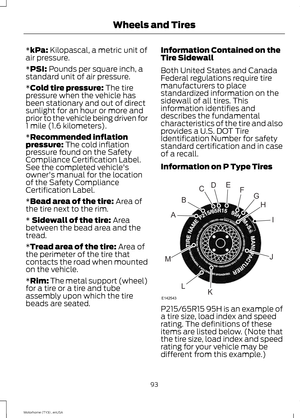

Tire Care.............................................................91

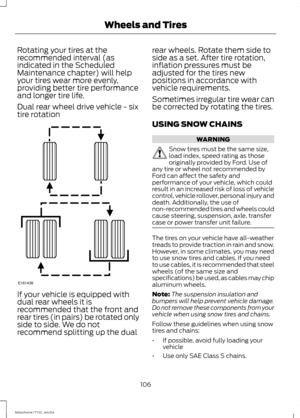

Using Snow Chains.....................................106

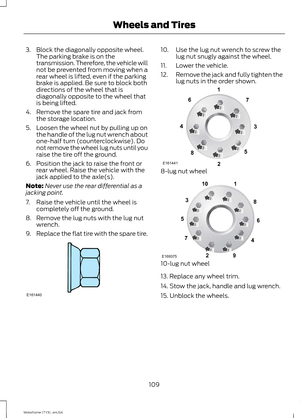

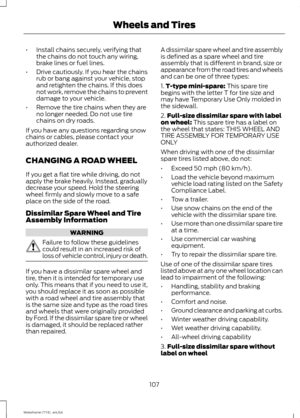

Changing a Road Wheel............................107

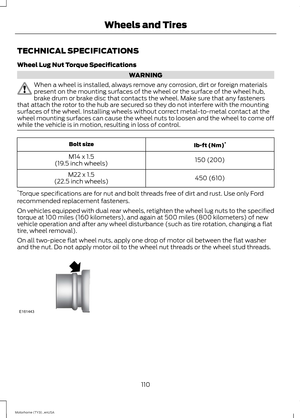

Technical Specifications.............................110
Capacities and Specific-ations

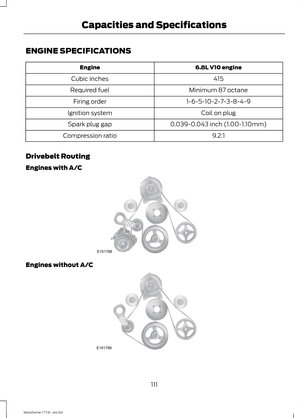

Engine Specifications....................................111

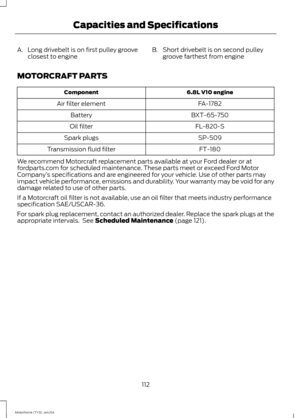

Motorcraft Parts.............................................112

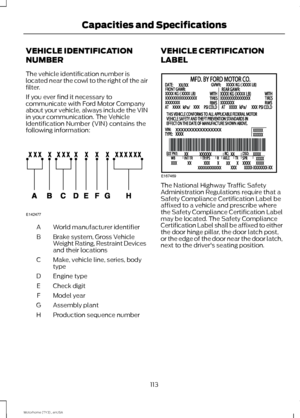

Vehicle Identification Number..................113
Vehicle Certification Label.........................113

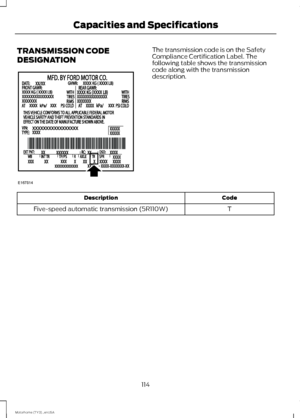

Transmission Code Designation..............114

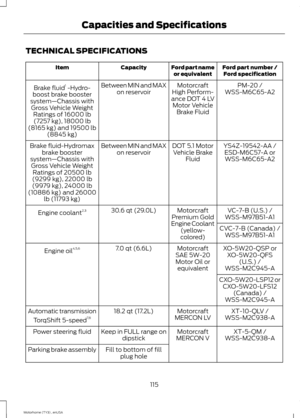

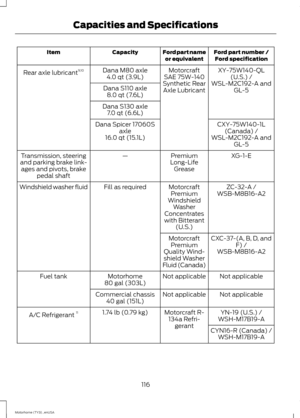

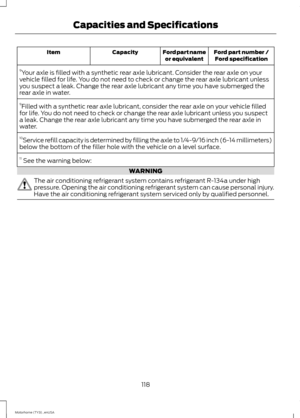

Technical Specifications.............................115
Extended Service Plan(ESP)

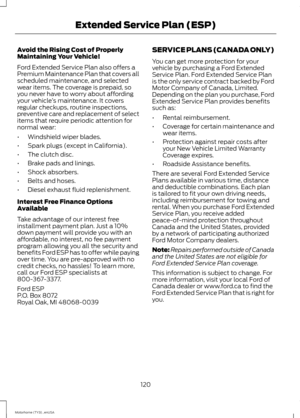

Extended Service Plan (ESP)...................119
Scheduled Maintenance

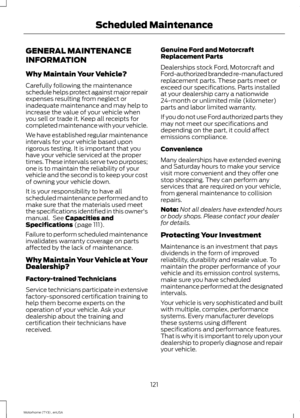

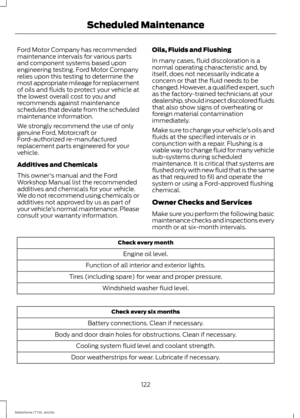

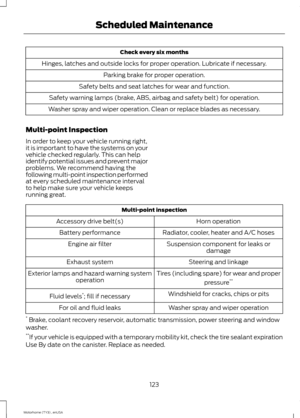

General Maintenance Information..........121

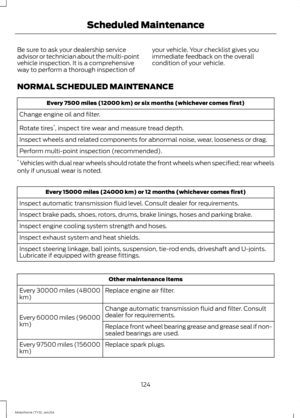

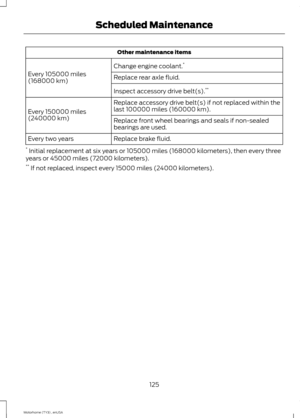

Normal Scheduled Maintenance...........124

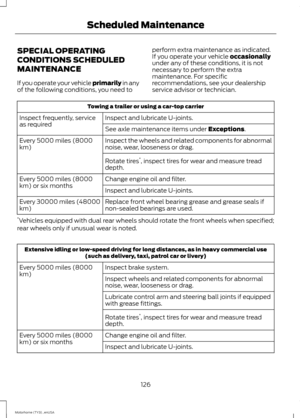

Special Operating Conditions ScheduledMaintenance..............................................126

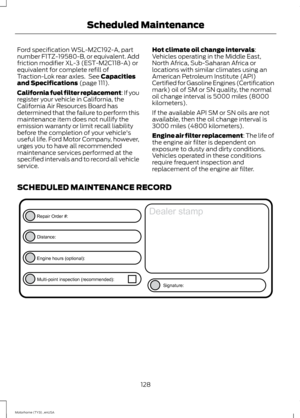

Scheduled Maintenance Record............128
2Motorhome (TY3) , enUSATable of Contents

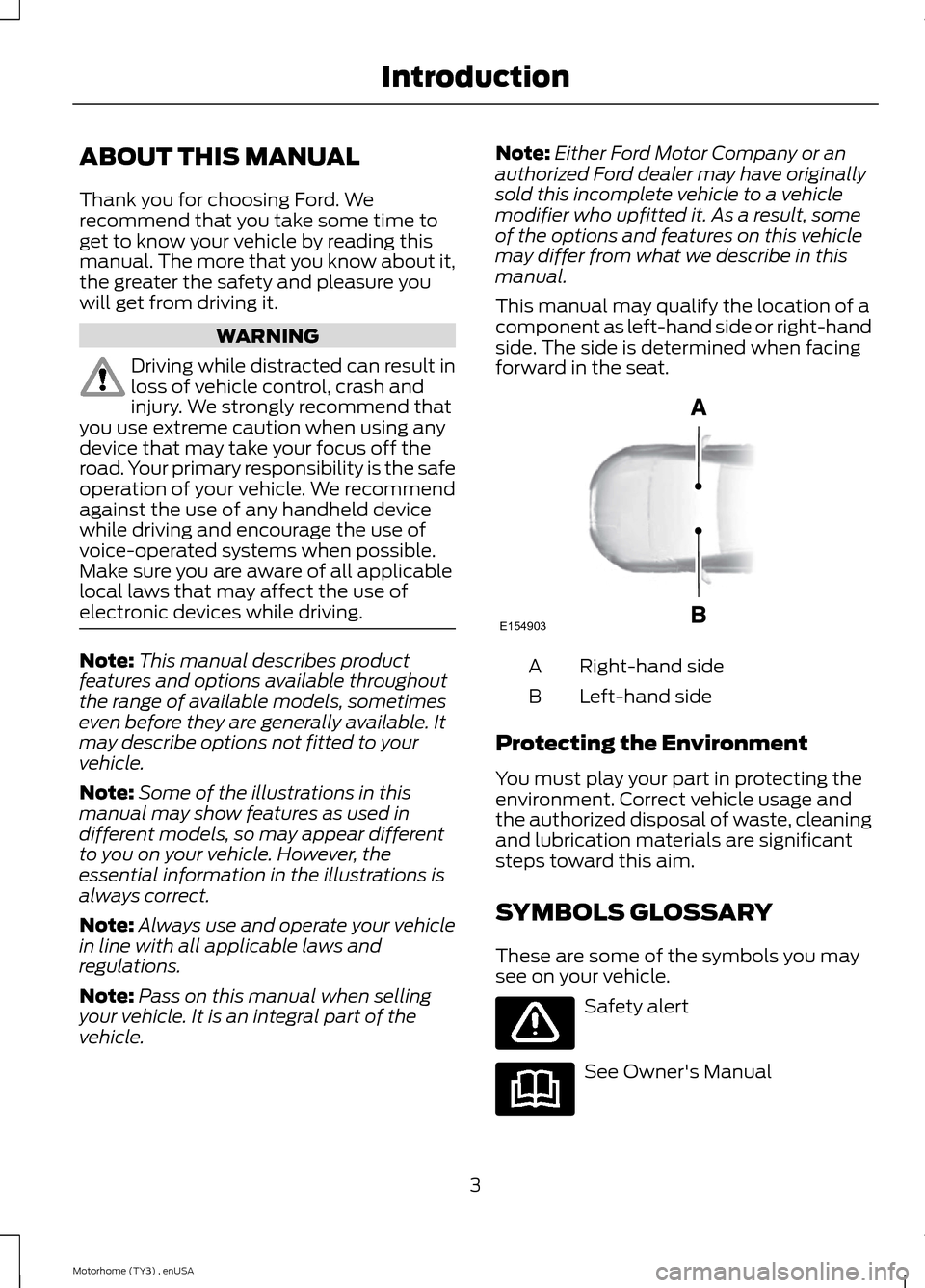

ABOUT THIS MANUAL
Thank you for choosing Ford. Werecommend that you take some time toget to know your vehicle by reading thismanual. The more that you know about it,the greater the safety and pleasure youwill get from driving it.
WARNING
Driving while distracted can result inloss of vehicle control, crash andinjury. We strongly recommend thatyou use extreme caution when using anydevice that may take your focus off theroad. Your primary responsibility is the safeoperation of your vehicle. We recommendagainst the use of any handheld devicewhile driving and encourage the use ofvoice-operated systems when possible.Make sure you are aware of all applicablelocal laws that may affect the use ofelectronic devices while driving.
Note:This manual describes productfeatures and options available throughoutthe range of available models, sometimeseven before they are generally available. Itmay describe options not fitted to yourvehicle.
Note:Some of the illustrations in thismanual may show features as used indifferent models, so may appear differentto you on your vehicle. However, theessential information in the illustrations isalways correct.
Note:Always use and operate your vehiclein line with all applicable laws andregulations.
Note:Pass on this manual when sellingyour vehicle. It is an integral part of thevehicle.
Note:Either Ford Motor Company or anauthorized Ford dealer may have originallysold this incomplete vehicle to a vehiclemodifier who upfitted it. As a result, someof the options and features on this vehiclemay differ from what we describe in thismanual.
This manual may qualify the location of acomponent as left-hand side or right-handside. The side is determined when facingforward in the seat.
Right-hand sideA
Left-hand sideB
Protecting the Environment
You must play your part in protecting theenvironment. Correct vehicle usage andthe authorized disposal of waste, cleaningand lubrication materials are significantsteps toward this aim.
SYMBOLS GLOSSARY

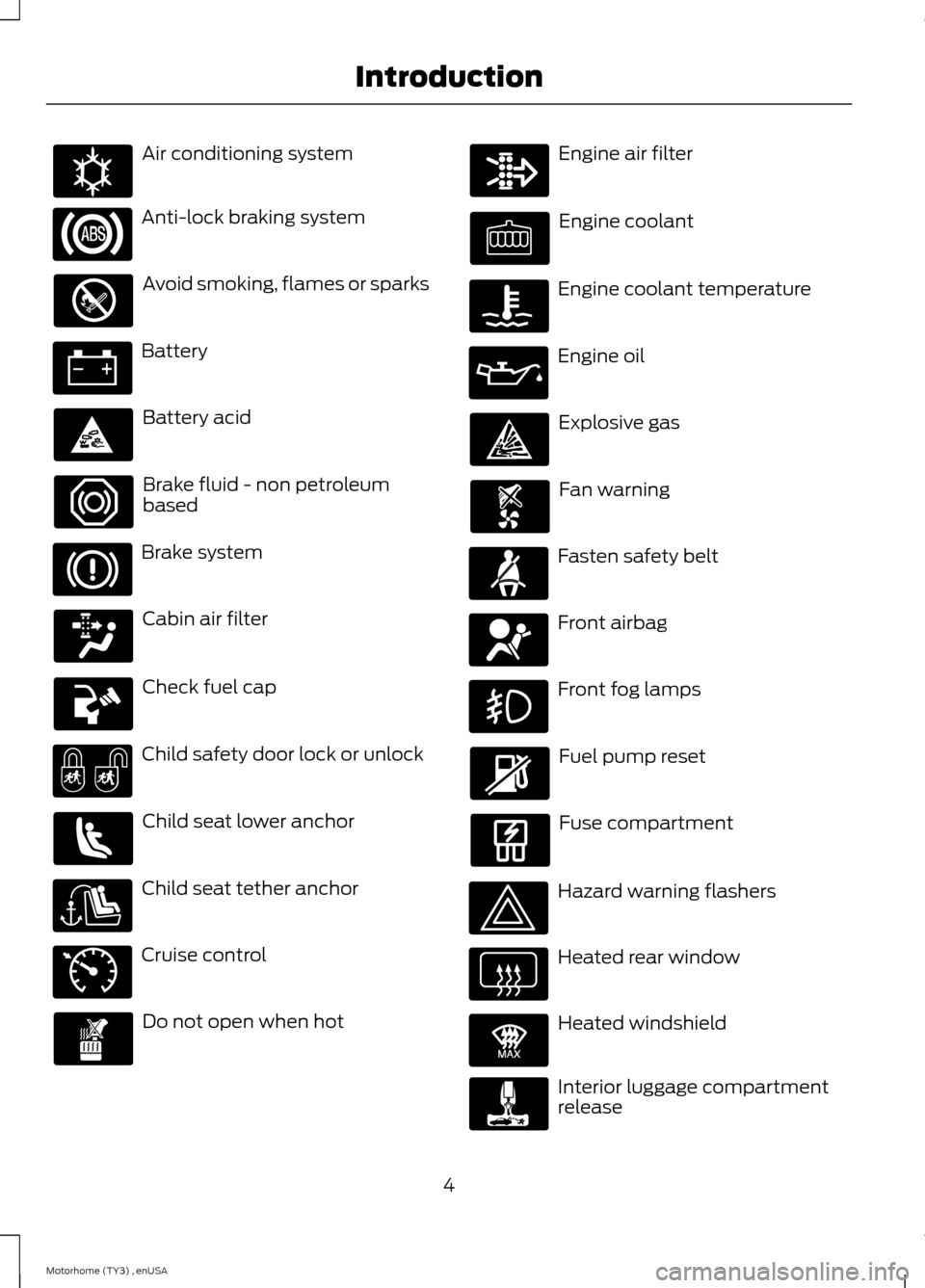

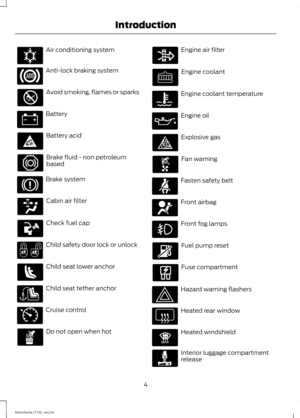

These are some of the symbols you maysee on your vehicle.
Safety alert
See Owner's Manual
3Motorhome (TY3) , enUSAIntroductionE154903

Air conditioning system
Anti-lock braking system
Avoid smoking, flames or sparks
Battery
Battery acid
Brake fluid - non petroleumbased
Brake system
Cabin air filter
Check fuel cap
Child safety door lock or unlock
Child seat lower anchor
Child seat tether anchor
Cruise control
Do not open when hot
Engine air filter
Engine coolant
Engine coolant temperature
Engine oil
Explosive gas
Fan warning
Fasten safety belt
Front airbag
Front fog lamps
Fuel pump reset
Fuse compartment
Hazard warning flashers
Heated rear window
Heated windshield
Interior luggage compartmentrelease
4Motorhome (TY3) , enUSAIntroductionE162384 E71340 E91392

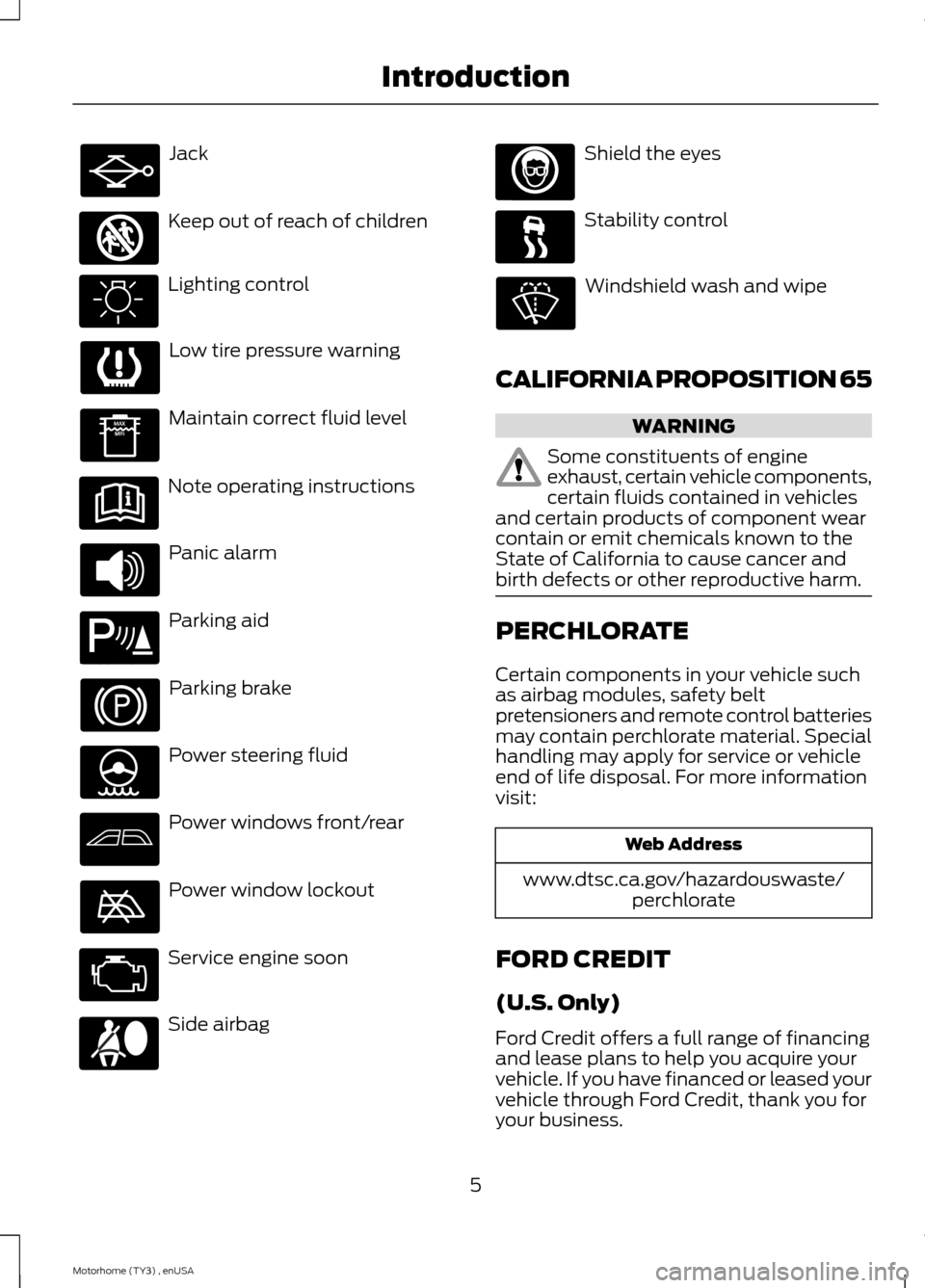

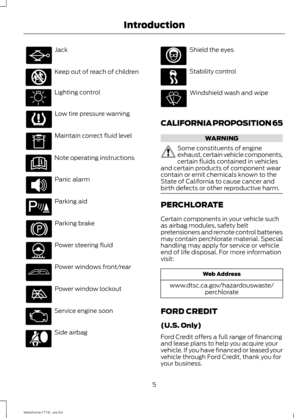

Jack
Keep out of reach of children
Lighting control
Low tire pressure warning
Maintain correct fluid level
Note operating instructions
Panic alarm
Parking aid
Parking brake
Power steering fluid
Power windows front/rear
Power window lockout
Service engine soon
Side airbag
Shield the eyes
Stability control
Windshield wash and wipe
