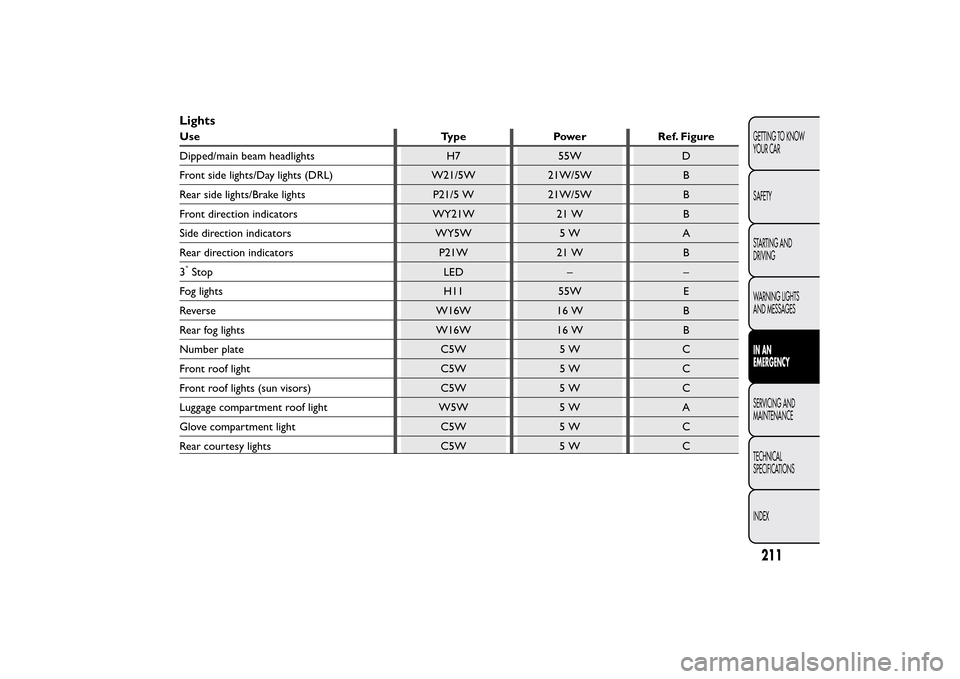

2014 FIAT 500L LIVING Warning lights

LightsUse Type Power Ref. Figure
Dipped/main beam headlights H7 55W D
Front side lights/Day lights (DRL) W21/5W 21W/5W B
Rear side lights/Brake lights P21/5 W 21W/5W B
Front direction indicators WY21W 21 W B
Side direction indicators WY5W 5 W A
Rear direction indicators P21W 21 W B
3°Stop LED – –
Fog lights H11 55W E
Reverse W16W 16 W B
Rear fog lights W16W 16 W B
Number plate C5W 5 W C
Front roof light C5W 5 W C
Front roof lights (sun visors) C5W 5 W C
Luggage compartment roof light W5W 5 W A
Glove compartment light C5W 5 W C
Rear courtesy lights C5W 5 W C
211GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

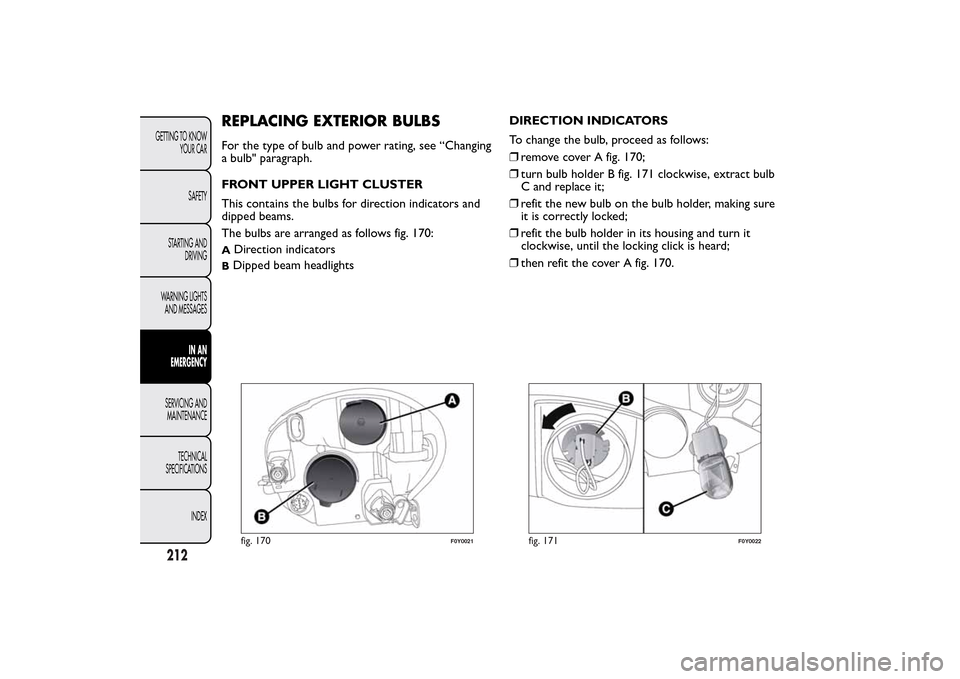

REPLACING EXTERIOR BULBSFor the type of bulb and power rating, see “Changing
a bulb" paragraph.
FRONT UPPER LIGHT CLUSTER
This contains the bulbs for direction indicators and
dipped beams.
The bulbs are arranged as follows fig. 170:A
Direction indicators
BDipped beam headlightsDIRECTION INDICATORS
To change the bulb, proceed as follows:
❒remove cover A fig. 170;
❒turn bulb holder B fig. 171 clockwise, extract bulb
C and replace it;
❒refit the new bulb on the bulb holder, making sure
it is correctly locked;
❒refit the bulb holder in its housing and turn it
clockwise, until the locking click is heard;
❒then refit the cover A fig. 170.fig. 170
F0Y0021
fig. 171
F0Y0022
212GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

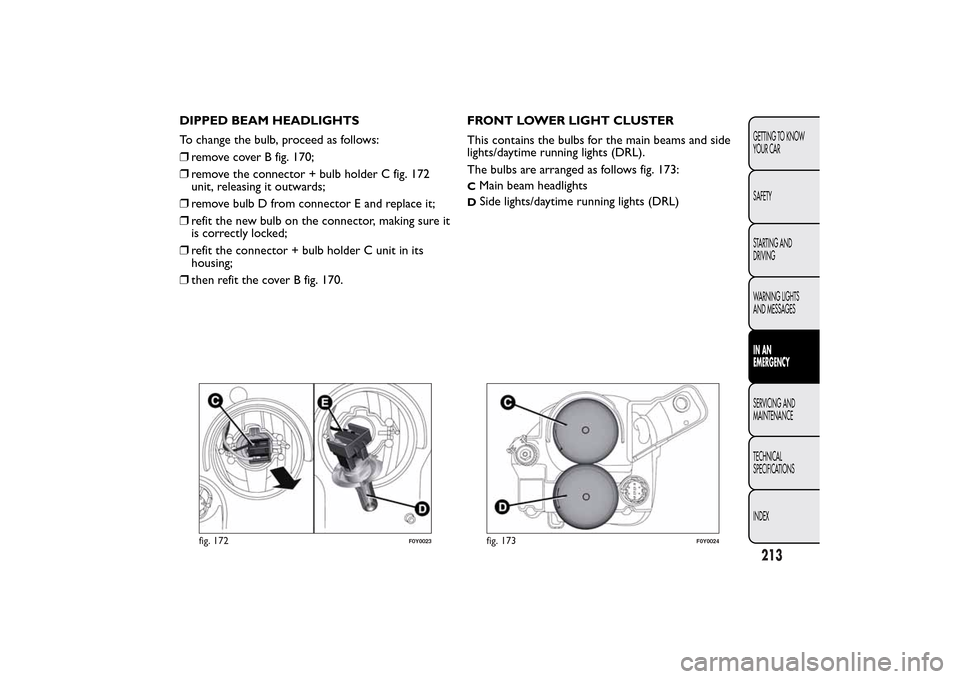

DIPPED BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❒remove cover B fig. 170;
❒remove the connector + bulb holder C fig. 172
unit, releasing it outwards;
❒remove bulb D from connector E and replace it;
❒refit the new bulb on the connector, making sure it
is correctly locked;
❒refit the connector + bulb holder C unit in its
housing;
❒then refit the cover B fig. 170.FRONT LOWER LIGHT CLUSTER
This contains the bulbs for the main beams and side
lights/daytime running lights (DRL).
The bulbs are arranged as follows fig. 173:
C
Main beam headlights
D
Side lights/daytime running lights (DRL)
fig. 172
F0Y0023
fig. 173
F0Y0024
213GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

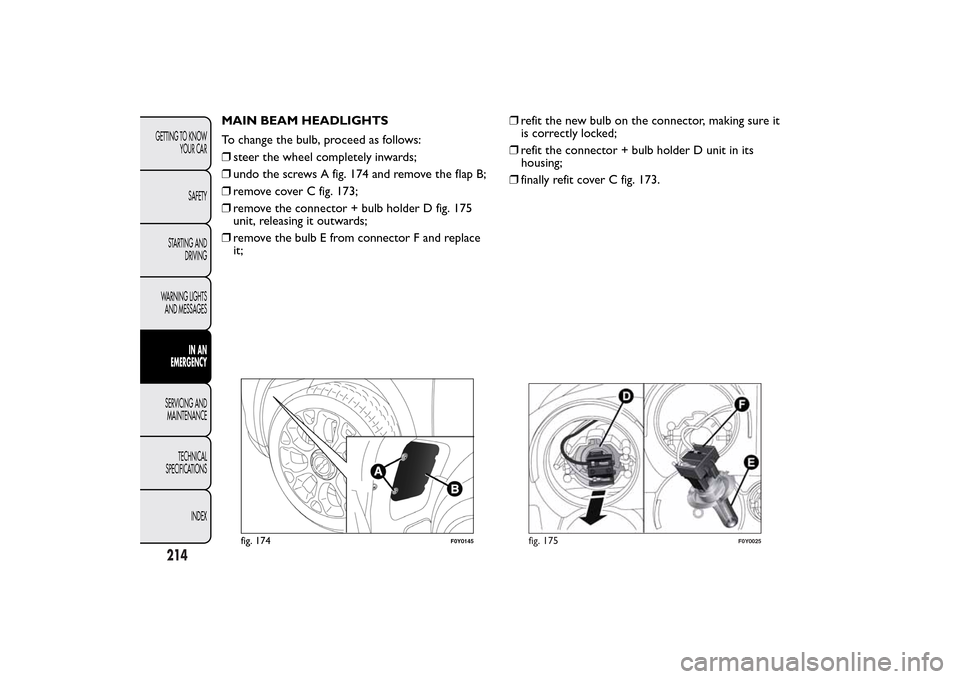

MAIN BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❒steer the wheel completely inwards;
❒undo the screws A fig. 174 and remove the flap B;
❒remove cover C fig. 173;
❒remove the connector + bulb holder D fig. 175
unit, releasing it outwards;
❒remove the bulb E from connector F and replace
it;❒refit the new bulb on the connector, making sure it
is correctly locked;
❒refit the connector + bulb holder D unit in its
housing;
❒finally refit cover C fig. 173.
fig. 174
F0Y0145
fig. 175
F0Y0025
214GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

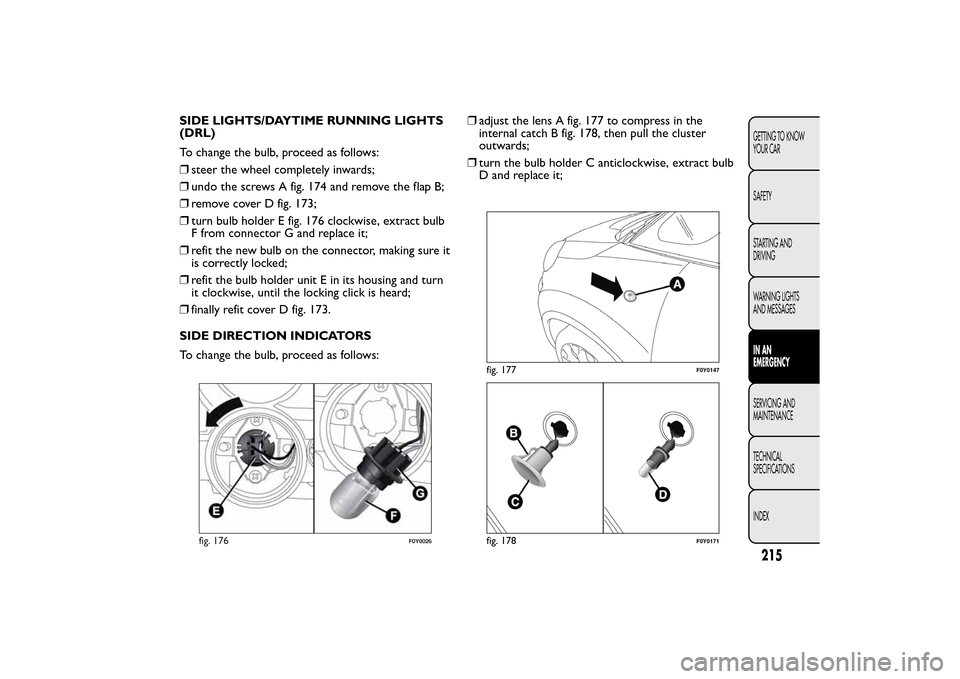

SIDE LIGHTS/DAYTIME RUNNING LIGHTS
(DRL)
To change the bulb, proceed as follows:
❒steer the wheel completely inwards;
❒undo the screws A fig. 174 and remove the flap B;
❒remove cover D fig. 173;
❒turn bulb holder E fig. 176 clockwise, extract bulb
F from connector G and replace it;
❒refit the new bulb on the connector, making sure it
is correctly locked;
❒refit the bulb holder unit E in its housing and turn
it clockwise, until the locking click is heard;
❒finally refit cover D fig. 173.
SIDE DIRECTION INDICATORS
To change the bulb, proceed as follows:❒adjust the lens A fig. 177 to compress in the
internal catch B fig. 178, then pull the cluster
outwards;
❒turn the bulb holder C anticlockwise, extract bulb
D and replace it;
fig. 176
F0Y0026
fig. 177
F0Y0147
fig. 178
F0Y0171
215GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

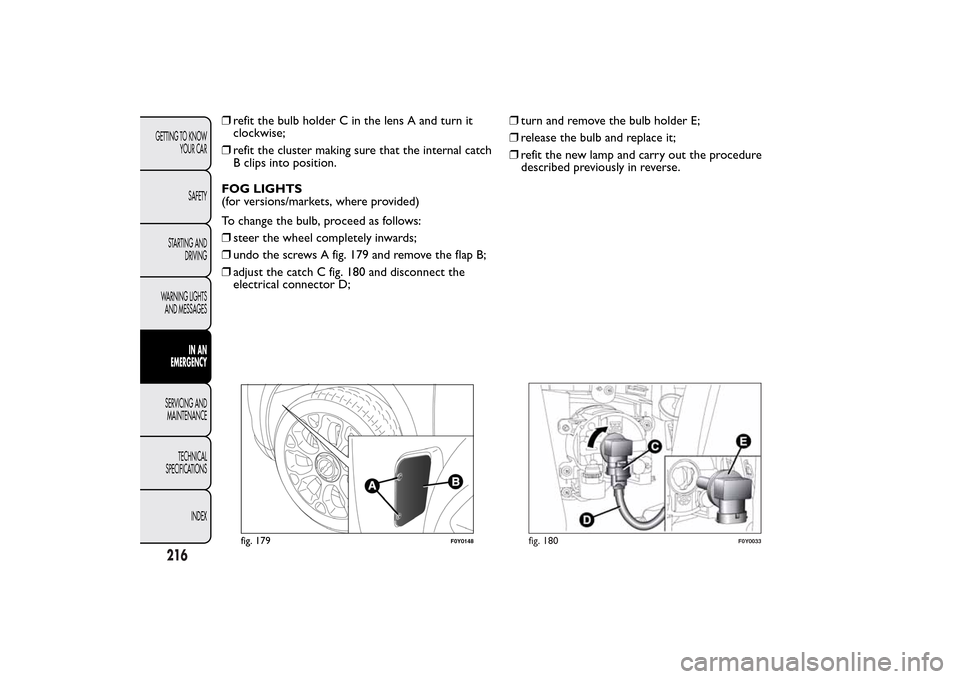

❒refit the bulb holder C in the lens A and turn it
clockwise;
❒refit the cluster making sure that the internal catch
B clips into position.
FOG LIGHTS
(for versions/markets, where provided)
To change the bulb, proceed as follows:
❒steer the wheel completely inwards;
❒undo the screws A fig. 179 and remove the flap B;
❒adjust the catch C fig. 180 and disconnect the
electrical connector D;❒turn and remove the bulb holder E;
❒release the bulb and replace it;
❒refit the new lamp and carry out the procedure
described previously in reverse.
fig. 179
F0Y0148
fig. 180
F0Y0033
216GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

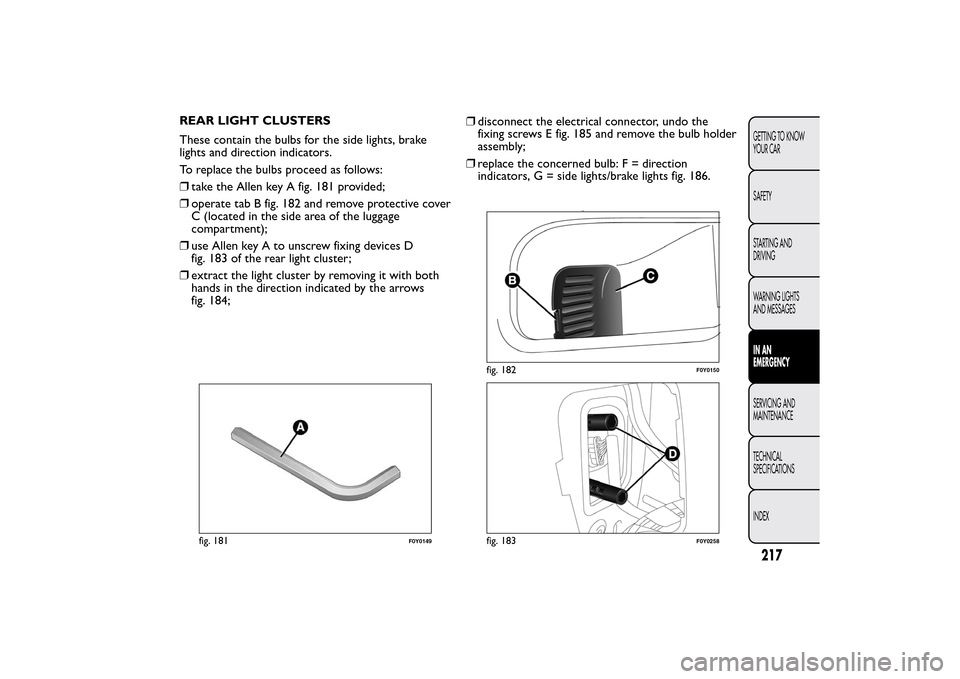

REAR LIGHT CLUSTERS
These contain the bulbs for the side lights, brake
lights and direction indicators.
To replace the bulbs proceed as follows:
❒take the Allen key A fig. 181 provided;
❒operate tab B fig. 182 and remove protective cover
C (located in the side area of the luggage
compartment);
❒use Allen key A to unscrew fixing devices D
fig. 183 of the rear light cluster;
❒extract the light cluster by removing it with both
hands in the direction indicated by the arrows
fig. 184;❒disconnect the electrical connector, undo the
fixing screws E fig. 185 and remove the bulb holder
assembly;
❒replace the concerned bulb: F = direction
indicators, G = side lights/brake lights fig. 186.
fig. 181
F0Y0149
fig. 182
F0Y0150
fig. 183
F0Y0258
217GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

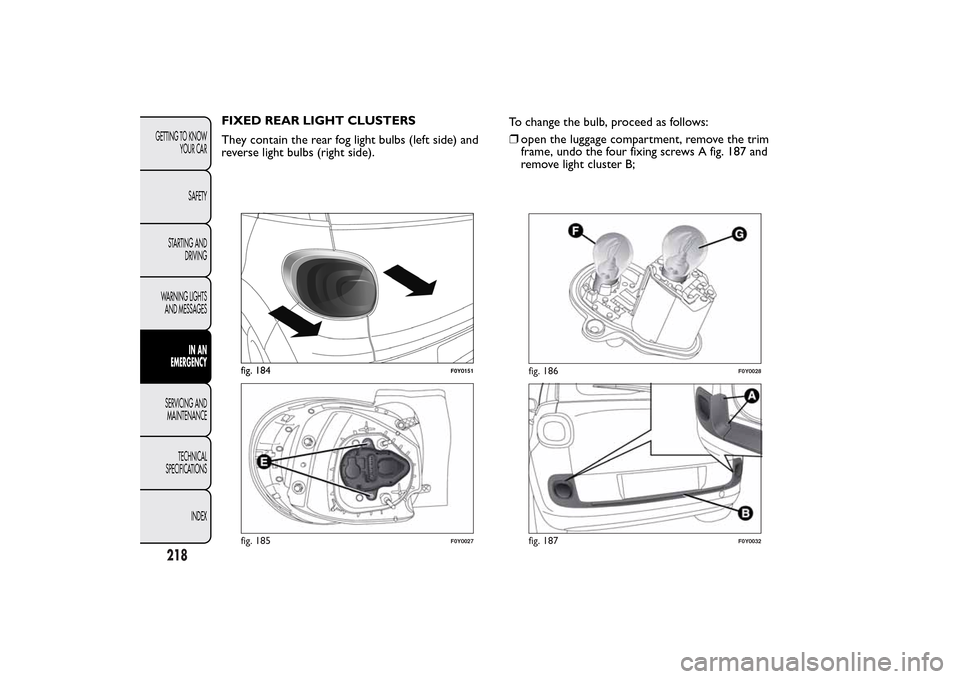

FIXED REAR LIGHT CLUSTERS
They contain the rear fog light bulbs (left side) and
reverse light bulbs (right side).To change the bulb, proceed as follows:
❒open the luggage compartment, remove the trim
frame, undo the four fixing screws A fig. 187 and
remove light cluster B;
fig. 184
F0Y0151
fig. 185
F0Y0027
fig. 186
F0Y0028
fig. 187
F0Y0032
