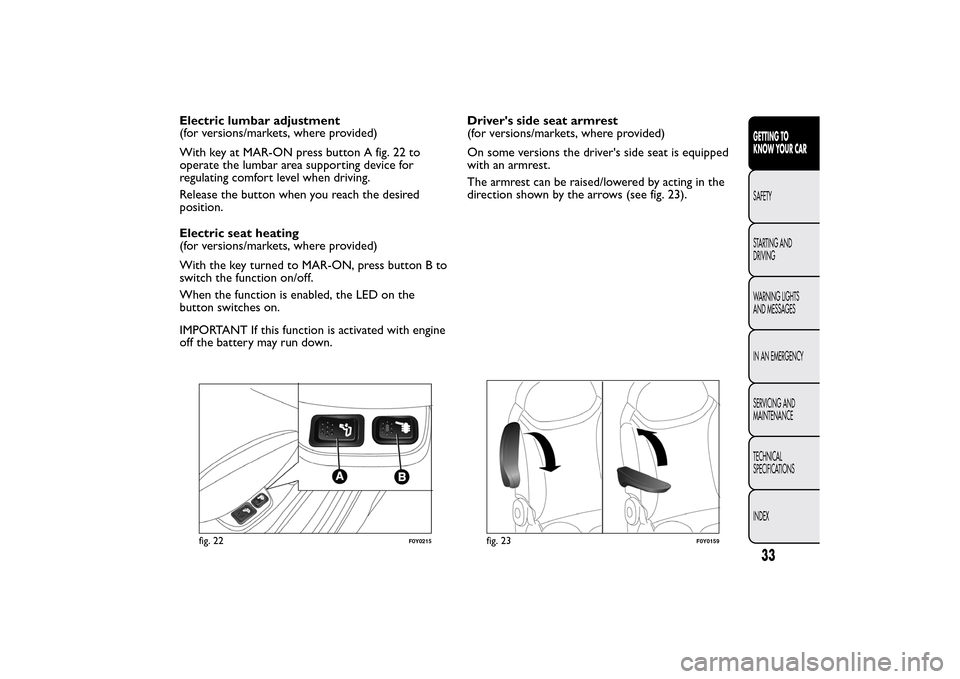

Electric lumbar adjustment
(for versions/markets, where provided)
With key at MAR-ON press button A fig. 22 to
operate the lumbar area supporting device for
regulating comfort level when driving.
Release the button when you reach the desired
position.
Electric seat heating
(for versions/markets, where provided)
With the key turned to MAR-ON, press button B to
switch the function on/off.
When the function is enabled, the LED on the
button switches on.
IMPORTANT If this function is activated with engine
off the battery may run down.Driver's side seat armrest
(for versions/markets, where provided)
On some versions the driver's side seat is equipped
with an armrest.
The armrest can be raised/lowered by acting in the
direction shown by the arrows (see fig. 23).
fig. 22
F0Y0215
fig. 23
F0Y0159
