2014 CHRYSLER TOWN AND COUNTRY Owners Manual

Page 73 of 703

CHRYSLER TOWN AND COUNTRY 2014 5.G Owners Manual Pull the strap down and secure the small latch plate of
the lap belt into the small buckle until you hear a “click”.
Position the shoulder belt on your chest so that it is
comfortable and not rest

Page 74 of 703

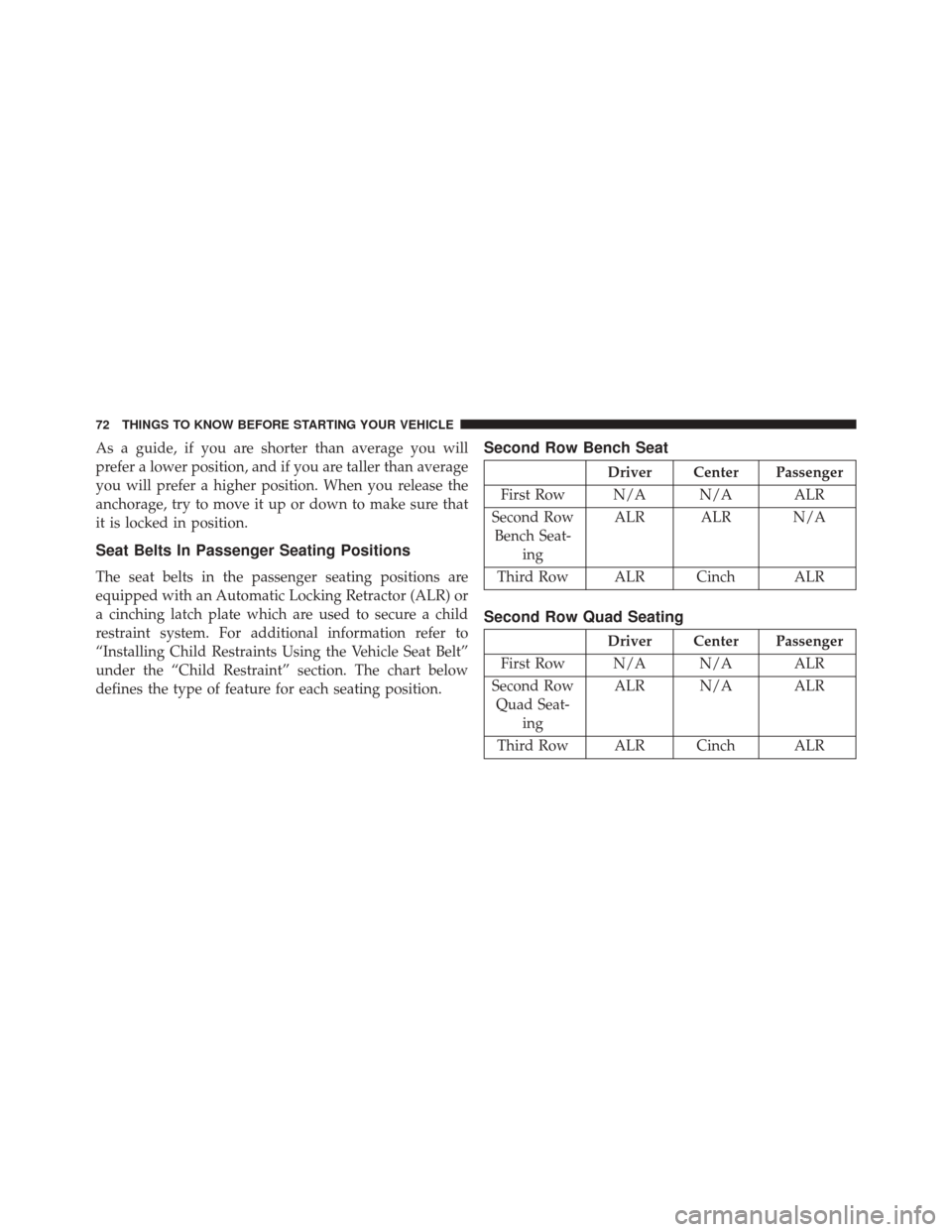

CHRYSLER TOWN AND COUNTRY 2014 5.G Owners Manual As a guide, if you are shorter than average you will
prefer a lower position, and if you are taller than average
you will prefer a higher position. When you release the
anchorage, try to move it up or

Page 75 of 703

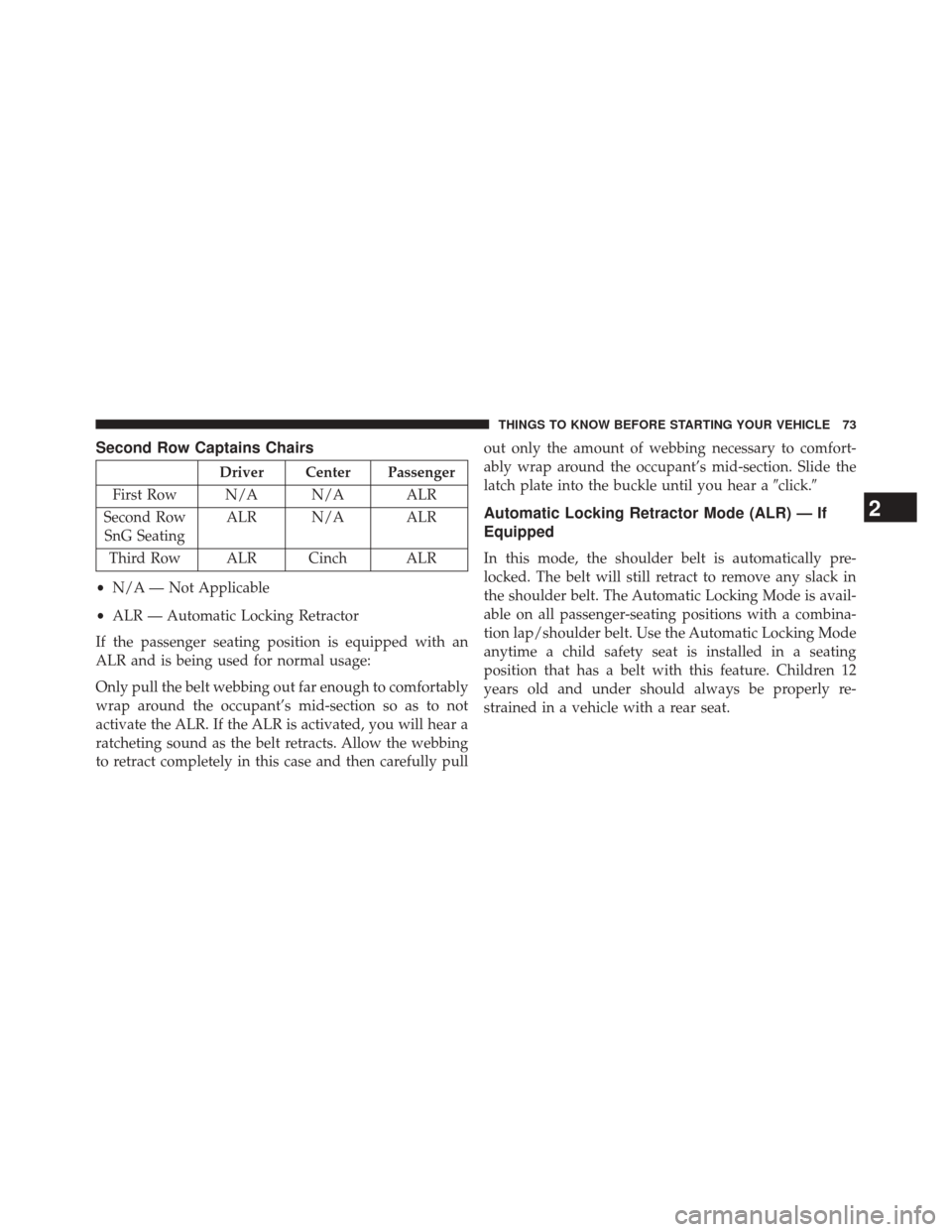

CHRYSLER TOWN AND COUNTRY 2014 5.G Owners Manual Second Row Captains Chairs
Driver Center Passenger
First Row N/A N/A ALR
Second Row SnG Seating ALR N/A ALR
Third Row ALR Cinch ALR
• N/A — Not Applicable
• ALR — Automatic Locking Retractor
I

Page 76 of 703

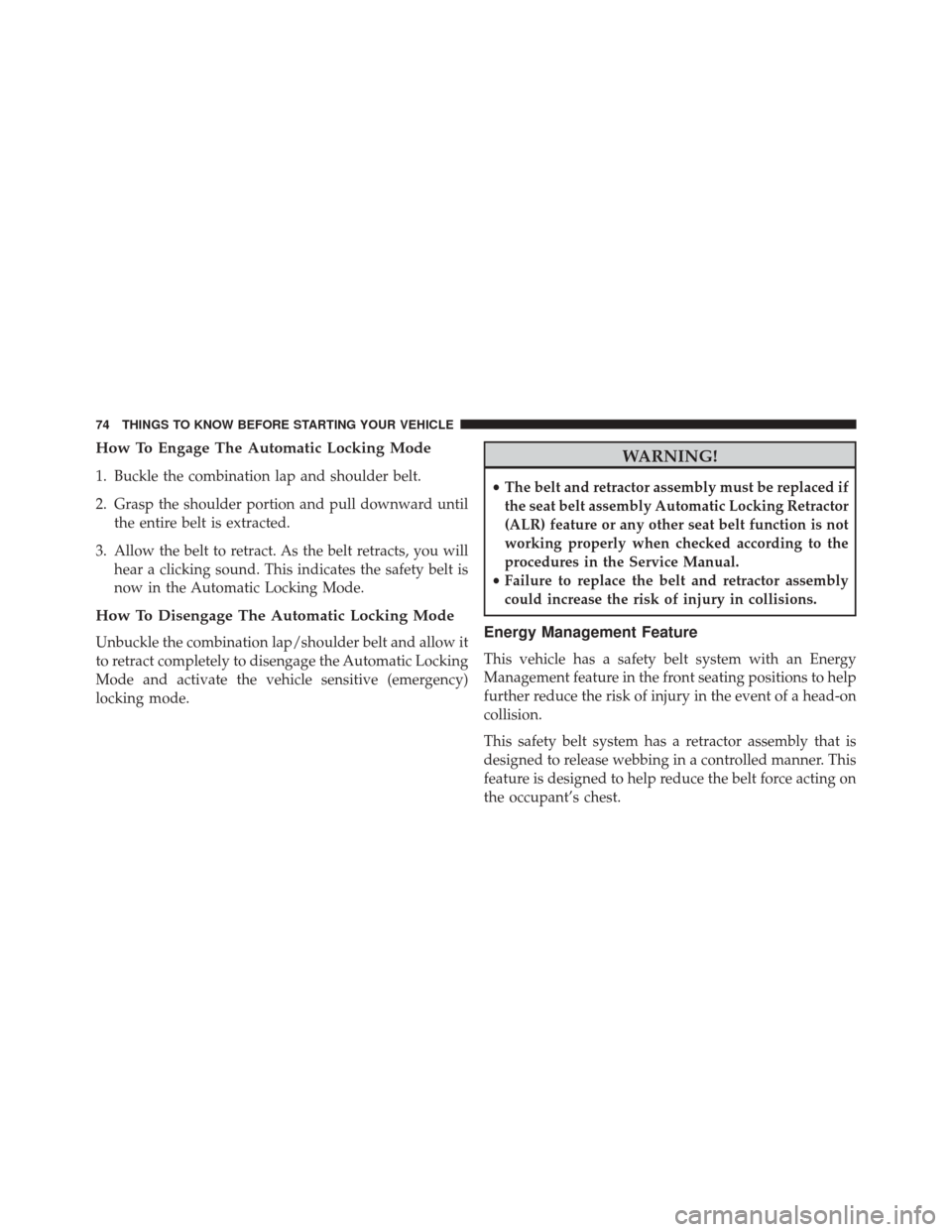

CHRYSLER TOWN AND COUNTRY 2014 5.G Owners Manual How To Engage The Automatic Locking Mode
1. Buckle the combination lap and shoulder belt.
2. Grasp the shoulder portion and pull downward untilthe entire belt is extracted.
3. Allow the belt to retrac

Page 77 of 703

CHRYSLER TOWN AND COUNTRY 2014 5.G Owners Manual Seat Belt Pretensioners
The seat belts for both front seating positions are
equipped with pretensioning devices that are designed to
remove slack from the seat belt in the event of a collision.
These

Page 78 of 703

CHRYSLER TOWN AND COUNTRY 2014 5.G Owners Manual This system is designed to help prevent or reduce the
extent of injuries to the driver and front passenger in
certain types of rear impacts.
NOTE:The Active Head Restraints (AHR) may or may
not deploy

Page 79 of 703

CHRYSLER TOWN AND COUNTRY 2014 5.G Owners Manual CAUTION!
All occupants, including the driver, should not oper-
ate a vehicle or sit in a vehicle’s seat until the head
restraints are placed in their proper positions in order
to minimize the risk o

Page 80 of 703

CHRYSLER TOWN AND COUNTRY 2014 5.G Owners Manual 3. Pulldownthenrearward towards the rear of the
vehicle then downto engage the locking mechanism.
4. The AHR front soft foam and trim half should lockinto the back decorative plastic half.
1 — Downw
