CHRYSLER TOWN AND COUNTRY 2014 5.G Owners Manual Spare Tire Removal Instructions
The spare tire is located under the vehicle beneath the
center console area.
1. Assemble the spare tire tools into a T-handle and placethe square end over the spare tir

Page 586 of 703

CHRYSLER TOWN AND COUNTRY 2014 5.G Owners Manual 2. Rotate the nut to the left until the winch mechanismstops turning freely. This will allow enough slack in
the cable to allow you to pull the spare tire out from
underneath the vehicle.
CAUTION!
The

Page 587 of 703

CHRYSLER TOWN AND COUNTRY 2014 5.G Owners Manual 4. Stand the tire/cover assembly upright and remove thewheel spacer by squeezing the winch retaining tabs
together. Push the retainer through the spare tire to
release it from the wheel.Preparations F

Page 588 of 703

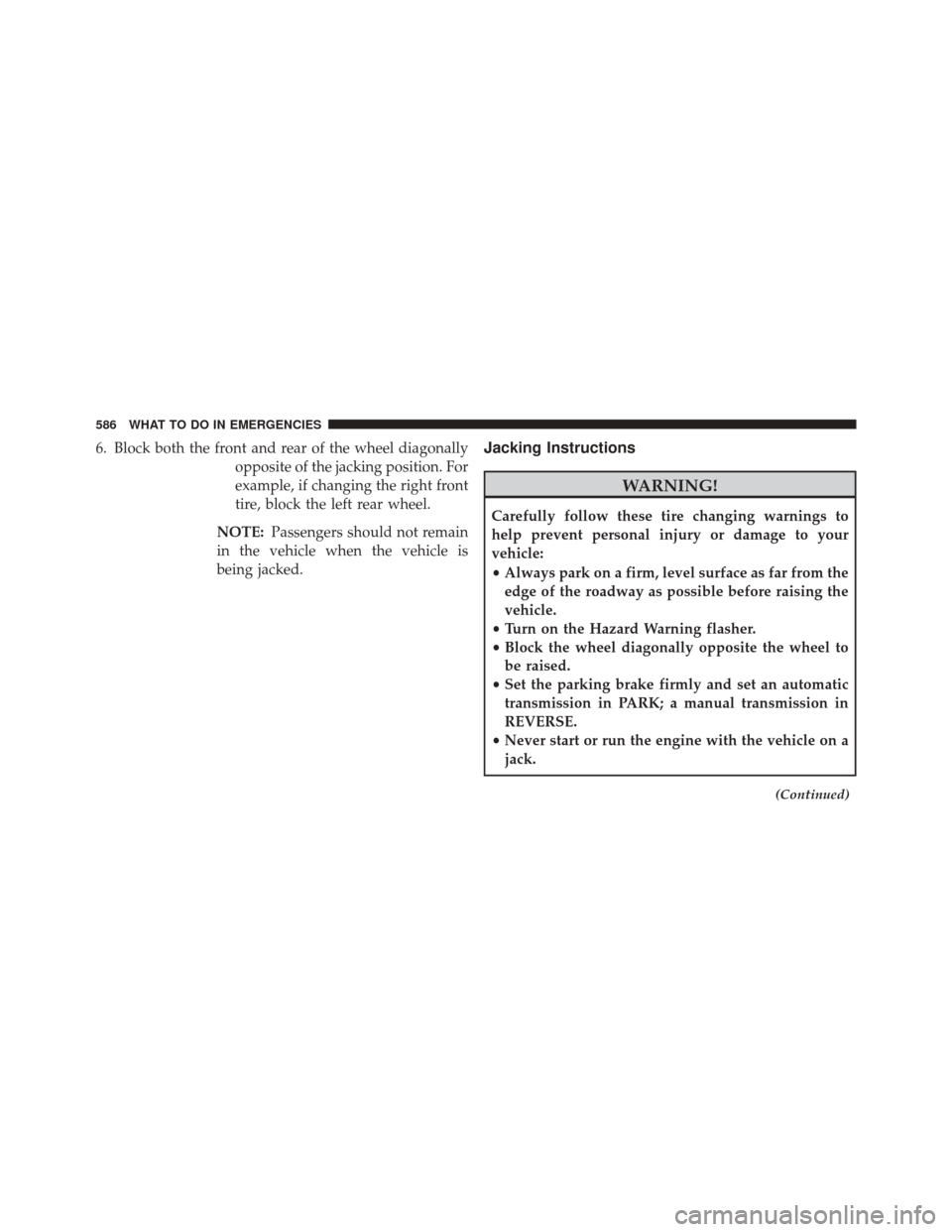

CHRYSLER TOWN AND COUNTRY 2014 5.G Owners Manual 6. Block both the front and rear of the wheel diagonallyopposite of the jacking position. For
example, if changing the right front
tire, block the left rear wheel.
NOTE: Passengers should not remain
i

Page 589 of 703

CHRYSLER TOWN AND COUNTRY 2014 5.G Owners Manual WARNING!(Continued)
•Do not let anyone sit in the vehicle when it is on a
jack.
• Do not get under the vehicle when it is on a jack. If
you need to get under a raised vehicle, take it to a
service

Page 590 of 703

CHRYSLER TOWN AND COUNTRY 2014 5.G Owners Manual 2. There are two jack engagement locations on each sideof the vehicle body. These locations are on the sill
flange of the vehicle body.
CAUTION!
Do not attempt to raise the vehicle by jacking on
locat

Page 591 of 703

CHRYSLER TOWN AND COUNTRY 2014 5.G Owners Manual Front jack location is on the sill flange of the vehicle body
and is located 6 in (150 mm) from door edge.
Rear Jack EngagedFront Jack Locations6
WHAT TO DO IN EMERGENCIES 589

Page 592 of 703

CHRYSLER TOWN AND COUNTRY 2014 5.G Owners Manual NOTE:In some situations the jack may need to be
placed on its side in order to be pushed under the vehicle.
Return the jack to its correct orientation once it is under
the vehicle.
WARNING!
Being unde
