2013 YAMAHA TMAX Owners Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-18
234
5
6
7
8
9
EAU13221
Fuel Make sure there is sufficient gasoline in
the tank.
WARNING
EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, followthese instructions.1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank. 3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10071]

4. Be sure to securely close the fuel tank cap.
WARNING
EWA15151
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in your eyes, see your doctor immedi-
ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU49741
NOTICE
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
1. Fuel tank filler tube
2. Maximum fuel level2
1
Recommended fuel:
Regular unleaded gasoline (Gasohol
(E10) acceptable)
Fuel tank capacity: 15.0 L (3.96 US gal, 3.30 Imp.gal)
Fuel reserve amount:
3.0 L (0.79 US gal, 0.66 Imp.gal)
59C-9-E1.book 18 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-19
1
23
4
5
6
7
8
9leaded fuel will extend spark plug life
and reduce maintenance costs.
Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that contain-
ing methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system
or vehicle performance problems.
EAU13433
Catalytic converter This model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10862
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:
Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.

Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.

Make sure that the exhaust sys-
tem has cooled down before do-
ing any maintenance work.

Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up ofheat.
NOTICE
ECA10701
Use only unleaded gasoline. The use
of leaded gasoline will cause unre-
pairable damage to the catalytic
converter.
59C-9-E1.book 19 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-20
234
5
6
7
8
9
EAU13932
Seat To open the seat1. Place the scooter on the center- stand.
2. Insert the key into the main switch, and then turn it counterclockwise
to “OPEN”.TIPDo not push inward when turning thekey.
3. Fold the seat up. To close the seat
1. Fold the seat down, and then push it down to lock it in place.
2. Remove the key from the main switch if the scooter will be left un-
attended.
TIPMake sure that the seat is properly se-cured before riding.
EAU14270
Adjusting the rider backrest The rider backrest can be adjusted to
the three different positions shown.
Adjust the backrest as follows.1. Open the seat. (See page 3-20.)
2. Remove the backrest bolts.
1. Open.
1
1. Rider backrest
1
59C-9-E1.book 20 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-21
1
23
4
5
6
7
8
93. Slide the backrest forward or back-
ward to the desired position.
4. Install and securely tighten the backrest bolts.
5. Close the seat.
EAU46300
Helmet holder The helmet holder is located under the
seat. A helmet holding cable is provid-
ed beside the owner’s tool kit to secure
a helmet to the helmet holder.
To secure a helmet to the helmet
holder 1. Open the seat. (See page 3-20.)
2. Pass the helmet holding cable through the buckle on the helmet
strap as shown, and then hook the
cable loop over the helmet holder.
3. Make sure the helmet holding ca- ble is not touching the shaded pro- jection, and securely close the
seat.
WARNING! Never ride with
a helmet attached to the helmet
holder, since the helmet may hit
objects, causing loss of control
and possibly an accident.
[EWA10161]

To release the helmet from the hel-
met holder
Open the seat, remove the helmet
holding cable from the helmet holder
and the helmet, and then close the
seat.
1. Rider backrest
2. Bolt
1
2
1. Shaded projection
2. Helmet holding cable
3. Helmet holder
3
1
2
59C-9-E1.book 21 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-22
234
5
6
7
8
9
EAU52221
Storage compartments Front storage compartment A
To open the storage compartment, pull
the lid as shown. WARNING! Do not
store heavy items in this compart-
ment.
[EWA11161]

To close the storage compartment,
push the lid into the original position. Front storage compartment B
To open the storage compartment
when it is locked, insert the key in the
lock, turn it clockwise, and then pull on
the lever while pushing the lever up.To open the storage compartment
when it is unlocked, simply pull on the
lever while pushing the lever up.
To close the storage compartment,
push the lid into the original position.
To lock the storage compartment, push
the lid into the original position, insert
the key in the lock, turn it counterclock-
wise, and then remove it.
Rear storage compartment
A helmet can be stored in the rear stor-
age compartment under the seat. (See
page 3-20.) To store a helmet in the
rear storage compartment, place the
helmet upside down with the front fac-
ing the left side.
NOTICE: Keep the
following points in mind when using
the storage compartment. Since the
1. Front storage compartment A
1
1. Unlock.
2. Front storage compartment B
3. Storage compartment opening lever
1 2
3
59C-9-E1.book 22 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-23
1
23
4
5
6
7
8
9storage compartment accumulates
heat when exposed to the sun and/
or the engine heat, do not store any-
thing susceptible to heat, consum-
ables or flammable items inside it.
To avoid humidity from spreading
through the storage compartment,
wrap wet articles in a plastic bag be-
fore storing them in the compart-
ment. Since the storage
compartment may get wet while the
scooter is being washed, wrap any
articles stored in the compartment
in a plastic bag. Do not keep any-
thing valuable or breakable in the
storage compartment. Do not leave
the seat open for an extended period
of time, otherwise the light may
cause the battery to discharge.
[ECA16082]
NOTICE:
The shaded area is not a
storage compartment. To prevent
damaging the seat hinges, do not
place any items in this area.
[ECA16091]

TIP
Some helmets cannot be stored in
the rear storage compartment be-
cause of their size or shape.

Do not leave your scooter unat-tended with the seat open.
NOTICE
ECA11100
Do not leave the rider seat open for
an extended period of time, other-
wise the light may cause the batteryto discharge.
WARNING
EWA16120
Do not exceed the following loading limits:

Front storage compartment A:
0.15 kg (0.3 lb)

Front storage compartment B:
1kg (2 lb)

Rear storage compartment: 5 kg
(11 lb)

Maximum load for the vehicle:
XP500 198 kg (437 lb)XP500A 194 kg (428 lb)
1. Rear storage compartment
2. Shaded area
1
2
59C-9-E1.book 23 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-24
234
5
6
7
8
9
EAU52211

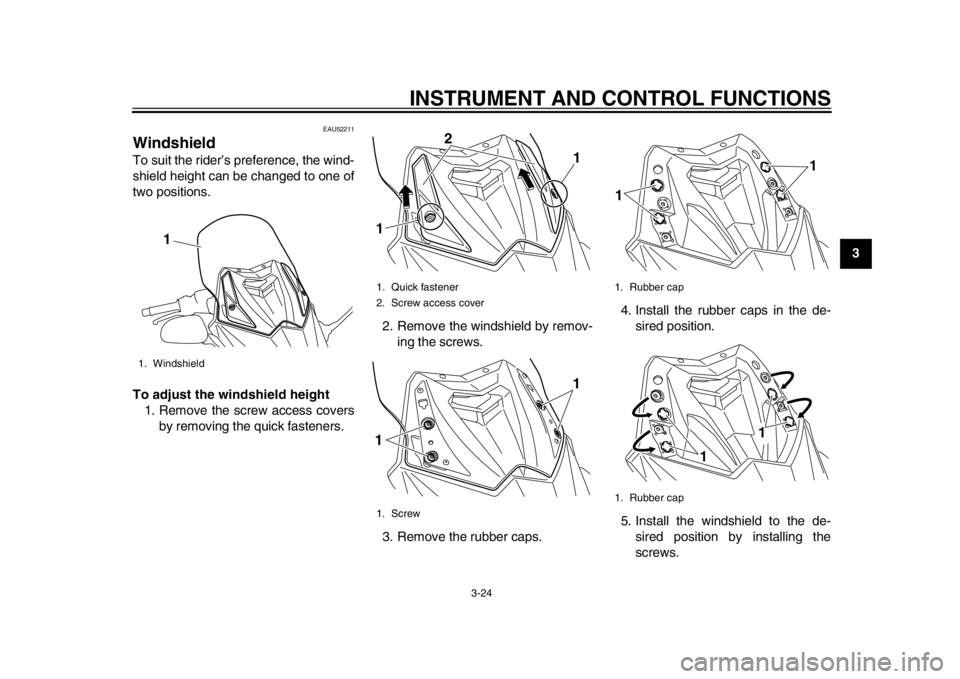

Windshield To suit the rider’s preference, the wind-
shield height can be changed to one of
two positions.
To adjust the windshield height1. Remove the screw access covers by removing the quick fasteners. 2. Remove the windshield by remov-
ing the screws.
3. Remove the rubber caps. 4. Install the rubber caps in the de-
sired position.
5. Install the windshield to the de- sired position by installing the
screws.1. Windshield
1
1. Quick fastener
2. Screw access cover
1. Screw1
2
11
1
1. Rubber cap
1. Rubber cap
1
1
1
1
59C-9-E1.book 24 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-25
1
23
4
5
6
7
8
96. Tighten the screws to the specified
torque. WARNING! A loose wind-
shield could cause an accident.
Be sure to tighten the screws to
the specified torque.
[EWA15510]

7. Place the screw access covers, and then install the quick fasten-
ers.
EAU39671
Rear view mirrors The rear view mirrors of this vehicle can
be folded forward or backward for park-
ing in narrow spaces. Fold the mirrors
back to their original position before
riding.
WARNING
EWA14371
Be sure to fold the rear view mirrors
back to their original position beforeriding.
1. ScrewTightening torque:Windshield screw:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
1
1. Screw access cover
1
1. Parking position
2. Riding position
1
1 2
2 1
1
