2013 YAMAHA TMAX Owners Manual

7-1
2
3
4
5
678
9
SCOOTER CARE AND STORAGE
EAU37833
Matte color caution NOTICE
ECA15192
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
advice on what products to use be-
fore cleaning the vehicle. Using a
brush, harsh chemical products or
cleaning compounds when cleaning
these parts will scratch or damage
their surface. Wax also should not
be applied to any matte colored fin-ished parts.
EAU26104
Care While the open design of a scooter re-
veals the attractiveness of the technol-
ogy, it also makes it more vulnerable.
Rust and corrosion can develop even if
high-quality components are used. A
rusty exhaust pipe may go unnoticed
on a car, however, it detracts from the
overall appearance of a scooter. Fre-
quent and proper care does not only
comply with the terms of the warranty,
but it will also keep your scooter looking
good, extend its life and optimize its
performance.
Before cleaning1. Cover the muffler outlet with a plastic bag after the engine has
cooled down.
2. Make sure that all caps and covers as well as all el ectrical couplers
and connectors, including the
spark plug cap, are tightly in-
stalled.
3. Remove extremely stubborn dirt, like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod- ucts onto seals, gaskets and wheel
axles. Always rinse the dirt and de-
greaser off with water.
Cleaning
NOTICE
ECA10783

Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the af-
fected area any longer than in-
structed. Also, thoroughly rinse
the area off with water, immedi-
ately dry it, and then apply a cor-
rosion protection spray.

Improper cleaning can damage
plastic parts (such as cowlings,
panels, windshields, headlight
lenses, meter lenses, etc.) and
the mufflers. Use only a soft,
clean cloth or sponge with wa-
ter to clean plastic. However, if
the plastic parts cannot be thor-
oughly cleaned with water, di-
luted mild detergent with water
may be used. Be sure to rinse
off any detergent residue using
59C-9-E1.book 1 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

SCOOTER CARE AND STORAGE
7-2
1
2
3
4
5
67
8
9plenty of water, as it is harmful
to plastic parts.

Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
cleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.

Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.

For scooters equipped with a
windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid- den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound after
washing.
After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.TIPSalt sprayed on roads in the winter may
remain well into spring. 1. Clean the scooter with cold water and a mild detergent after the en-
gine has cooled down. NOTICE:
Do not use warm water since it
increases the corrosive action
of the salt.
[ECA10791]

2. Apply a corrosion protection spray on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.
After cleaning 1. Dry the scooter with a chamois or an absorbing cloth.
2. Use a chrome polish to shine chrome, aluminum and stain-
less-steel parts, including the ex-
haust system. (Even the thermally
induced discoloring of stain-
less-steel exhaust systems can be
removed through polishing.)
3. To prevent corrosion, it is recom- mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
4. Use spray oil as a universal clean-
59C-9-E1.book 2 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

SCOOTER CARE AND STORAGE
7-3
2
3
4
5
678
9
er to remove any remaining dirt.
5. Touch up minor paint damage caused by stones, etc.
6. Wax all painted surfaces.
7. Let the scooter dry completely be- fore storing or covering it.
WARNING
EWA10942
Contaminants on the brakes or tires
can cause loss of control.
Make sure that there is no oil or
wax on the brakes or tires. If
necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent.

Before operating the scooter
test its braking performanceand cornering behavior.
NOTICE
ECA10800

Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.

Never apply oil or wax to any
rubber and plastic parts, but treat them with a suitable care
product.

Avoid using abrasive polishing
compounds as they will wearaway the paint.
TIP
Consult a Yamaha dealer for ad-
vice on what products to use.

Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from thelens.
EAU36553
Storage Short-term
Always store your scooter in a cool, dry
place and, if necessary, protect it
against dust with a porous cover. Be
sure the engine and the exhaust sys-
tem are cool before covering the scoot-
er.NOTICE
ECA10820

Storing the scooter in a poorly
ventilated room or covering it
with a tarp, while it is still wet,
will allow water and humidity to
seep in and cause rust.

To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your scooter for several
months: 1. Follow all the instructions in the “Care” section of this chapter.
2. Fill up the fuel tank and add fuel
59C-9-E1.book 3 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

SCOOTER CARE AND STORAGE
7-4
1
2
3
4
5
67
8
9stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to pro- tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps and the spark plugs.
b. Pour a teaspoonful of engine oil into the spark plug bores.
c. Install the spark plug caps onto the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder walls with oil.)
e. Remove the spark plug caps from the spark plugs, and then
install the spark plugs and the
spark plug caps. WARNING!
To prevent damage or injury
from sparking, make sure to
ground the spark plug elec-
trodes while turning the en-
gine over.
[EWA10951]

4. Lubricate all control cables and the pivoting points of all levers and
pedals as well as of the sidestand/
centerstand.
5. Check and, if necessary, correct the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0  C (30 F) or more than 30
 C (90 F)]. For more information
on storing the battery, see page
6-28.
TIPMake any necessary repairs beforestoring the scooter.
59C-9-E1.book 4 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

8-1
2
3
4
5
6
789
SPECIFICATIONS
EAU50916
Dimensions:Overall length: 2200 mm (86.6 in)
Overall width: 775 mm (30.5 in)
Overall height: 1420/1475 mm (55.9/58.1 in)
Seat height:
800 mm (31.5 in)
Wheelbase: 1580 mm (62.2 in)
Ground clearance: 125 mm (4.92 in)
Minimum turning radius:
2800 mm (110.2 in)Weight:Curb weight: XP500 217 kg (478 lb)
XP500A 221 kg (487 lb)Engine:Engine type: Liquid cooled 4-stroke, DOHC
Cylinder arrangement: Inline 2-cylinder
Displacement: 530 cm
3
Bore  stroke:
68.0  73.0 mm (2.68  2.87 in)
Compression ratio: 10.90 : 1
Starting system: Electric starter
Lubrication system:
Dry sump
Engine oil:Recommended brand: YAMALUBE
Type: SAE 10W-30 or 10W-40
Recommended engine oil grade: API service SG type or higher, JASO stan-
dard MA
Engine oil quantity: Without oil filter ca rtridge replacement:
2.70 L (2.85 US qt, 2.38 Imp.qt)
With oil filter cartridge replacement: 2.90 L (3.07 US qt, 2.55 Imp.qt)Cooling system:Coolant reservoir capacity (up to the maxi-
mum level mark): 0.27 L (0.29 US qt, 0.24 Imp.qt)
Radiator capacity (including all routes): 1.50 L (1.59 US qt, 1.32 Imp.qt)Air filter:Air filter element:
Oil-coated paper elementFuel:Recommended fuel: Regular unleaded gasoline (Gasohol (E10)
acceptable)
Fuel tank capacity: 15.0 L (3.96 US gal, 3.30 Imp.gal)
Fuel reserve amount:
3.0 L (0.79 US gal, 0.66 Imp.gal)Fuel injection:Throttle body:ID mark: 59C1 00
Spark plug(s):Manufacturer/model:
NGK/CR7E
Spark plug gap: 0.7–0.8 mm (0.028–0.031 in)Clutch:Clutch type:
Wet, multiple-disc automaticTransmission:Primary reduction ratio: 1.000
Final drive:
Belt
Secondary reduction ratio: 6.034 (52/32 x 36/22 x 59/26)
Transmission type: V-belt automaticChassis:Frame type: Diamond
Caster angle: 25.00 
Trail:
92 mm (3.6 in)Front tire:Type: Tubeless
Size:
120/70R15 M/C 56H
Manufacturer/model: DUNLOP/GPR-100F
Manufacturer/model: BRIDGESTONE/BT011F
59C-9-E1.book 1 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

SPECIFICATIONS
8-2
1
2
3
4
5
6
78
9
Rear tire:Type: Tubeless
Size: 160/60R15 M/C 67H
Manufacturer/model: DUNLOP/GPR-100L
Manufacturer/model:
BRIDGESTONE/BT012RLoading:Maximum load: XP500 198 kg (437 lb)
XP500A 194 kg (428 lb)
* (Total weight of rider, passenger, cargo and accessories)Tire air pressure (measured on cold
tires):Loading condition: 0–90 kg (0–198 lb)
Front: 225 kPa (2.25 kgf/cm
2, 33 psi)
Rear: 250 kPa (2.50 kgf/cm2, 36 psi)
Loading condition: XP500 90–198 kg (198–437 lb)
XP500A 90–194 kg (198–428 lb)
Front: 225 kPa (2.25 kgf/cm2, 33 psi)
Rear:
280 kPa (2.80 kgf/cm2, 41 psi)
Front wheel:Wheel type: Cast wheel Rim size:
15M/C x MT3.50
Rear wheel:Wheel type: Cast wheel
Rim size: 15M/C x MT5.00Front brake:Type: Dual disc brake
Operation: Right hand operation
Specified brake fluid:
DOT 4Rear brake:Type: Single disc brake
Operation:
Left hand operation
Specified brake fluid: DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type: Coil spring/oil damper
Wheel travel: 120.0 mm (4.72 in)Rear suspension:Type: Swingarm
Spring/shock absorber type: Coil spring/gas-oil damper Wheel travel:
116.0 mm (4.57 in)
Electrical system:Ignition system: TCI
Charging system: AC magnetoBattery:Model: YTZ12S
Voltage, capacity: 12 V, 11.0 AhHeadlight:Bulb type: Halogen bulbBulb voltage, wattage  quantity:Headlight:
12 V, 55.0 W  2
Tail/brake light: LED
Front turn signal light: 12 V, 21.0 W  2
Rear turn signal light:
12 V, 21.0 W  2
Auxiliary light: 12 V, 5.0 W  1
License plate light: 12 V, 5.0 W  1
Meter lighting:
LED
High beam indicator light: LED
Turn signal indicator light: LED x 2
59C-9-E1.book 2 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

SPECIFICATIONS
8-3
2
3
4
5
6
789
Engine trouble warning light: LED
ABS warning light:
XP500A LED
Immobilizer system indicator light: LEDFuses:Main fuse:
40.0 A
Headlight fuse: 20.0 A
Signaling system fuse: 15.0 A
Ignition fuse:
7.5 A
Parking lighting fuse: 10.0 A
Radiator fan fuse: 15.0 A
Fuel injection system fuse:
7.5 A
ABS control unit fuse: XP500A 5.0 A
ABS motor fuse: XP500A 30.0 A
ABS solenoid fuse:
XP500A 20.0 A
Backup fuse: 7.5 A
59C-9-E1.book 3 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

9-1
1
2
3
4
5
6
7
89

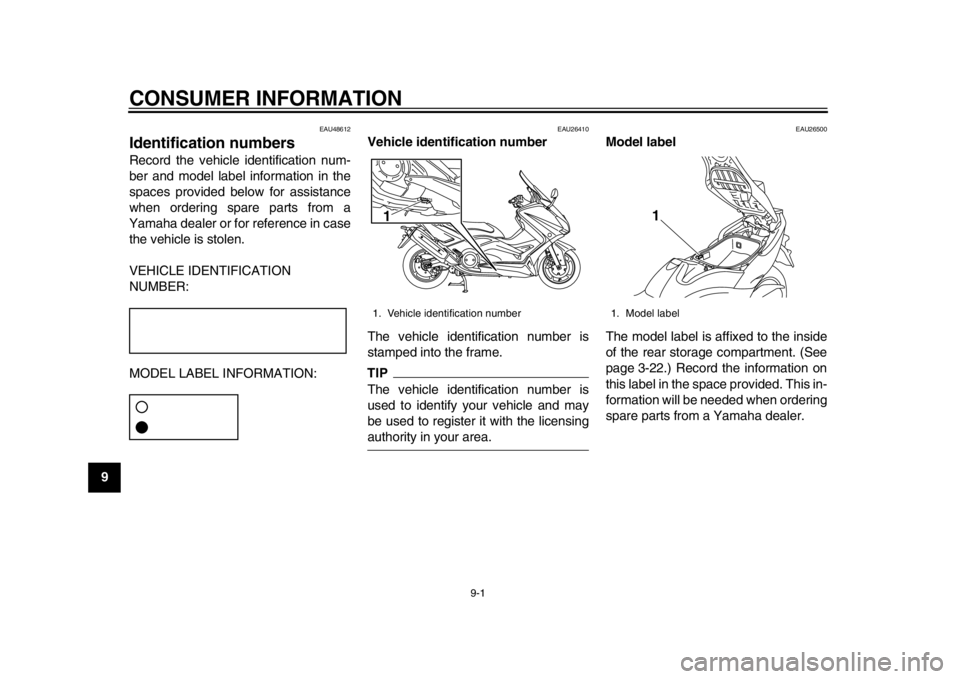

CONSUMER INFORMATION
EAU48612
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26410
Vehicle identification number
The vehicle identification number is
stamped into the frame.TIPThe vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensingauthority in your area.
EAU26500
Model label
The model label is affixed to the inside
of the rear storage compartment. (See
page 3-22.) Record the information on
this label in the space provided. This in-
formation will be needed when ordering
spare parts from a Yamaha dealer.
1. Vehicle identification number1
1. Model label
1
59C-9-E1.book 1 ページ ２０１２年６月２６日　火曜日　午前１１時３３分
