2013 YAMAHA TMAX clock

INSTRUMENT AND CONTROL FUNCTIONS
3-6
234
5
6
7
8
9
The multi-function display is equipped
with the following:

a fuel meter

a coolant temperature meter

an odometer

two tripmeters (which show the
distance traveled since they were
last set to zero)

a fuel reserve tripmeter (which
shows the distance traveled when
the remaining fuel in the fuel tank
reaches approximately 3.0 L (0.79
US gal, 0.66 Imp.gal))

a self-diagnosis device

a clock

an ambient temperature display

a fuel consumption display (aver-
age and instantaneous consump-
tion functions)

an oil change tripmeter (which
shows the distance traveled since
the last engine oil change)

a V-belt replacement tripmeter
(which shows the distance trav-
eled since the last V-belt replace-
ment)
TIP
Be sure to turn the key to “ON” be-
fore using the left and right set but-
tons.

When the key is turned to “ON”, all
of the display segments of the multi-function display will appear
one after the other and then disap-
pear, in order to test the electrical
circuits.
Clock
To set the clock:
1. Push the left set button and right set button together for at least two
seconds.
2. When the hour digits start flashing, push the right set button to set the
hours.
3. Push the left set button, and the minute digits will start flashing.
4. Push the right set button to set the
1. Tripmeter/fuel reserve tripmeter
2. Ambient temperature/average fuel con- sumption/instantaneous fuel consumption
1. Clock
211
1. Clock
1
59C-9-E1.book 6 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-7
1
23
4
5
6
7
8
9minutes.
5. Push the left set button and then release it to start the clock.
Odometer and tripmeter modes
Pushing the left set button switches the
display between the odometer mode
and the tripmeter modes in the follow-
ing order:
Odo  Trip 1  Trip 2  V-Belt Trip 
Oil Trip  Odo
When approximately 3.0 L (0.79 US
gal, 0.66 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “Trip F” and start counting the
distance traveled from that point. In that
case, pushing the left set button switch-
es the display between the various trip-
meter and odometer modes in the
following order:
Odo  Trip 1  Trip 2  Trip F V-Belt Trip
 Oil Trip  Odo
To reset a tripmeter, select it by push-
ing the left set button until “Trip F”, “Trip
1” or “Trip 2” is displayed. While “Trip
F”, “Trip 1” or “Trip 2” is displayed, push
the left set button for at least one sec-
ond. If you do not reset the fuel reserve
tripmeter manually, it will reset itself au-
tomatically and the display will return to
the prior mode after refueling and trav-
eling 5 km (3 mi).
TIPThe display cannot be changed back to“Trip F” after pushing the left set button.
Fuel meter
With the key in the “ON” position, the
1. Odometer/tripmeters/fuel reserve tripme- ter
1. Oil change tripmeter
1
1
1. V-belt replacement tripmeter1
1. Fuel reserve tripmeter
1
59C-9-E1.book 7 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-17
1
23
4
5
6
7
8
9
EAU13175

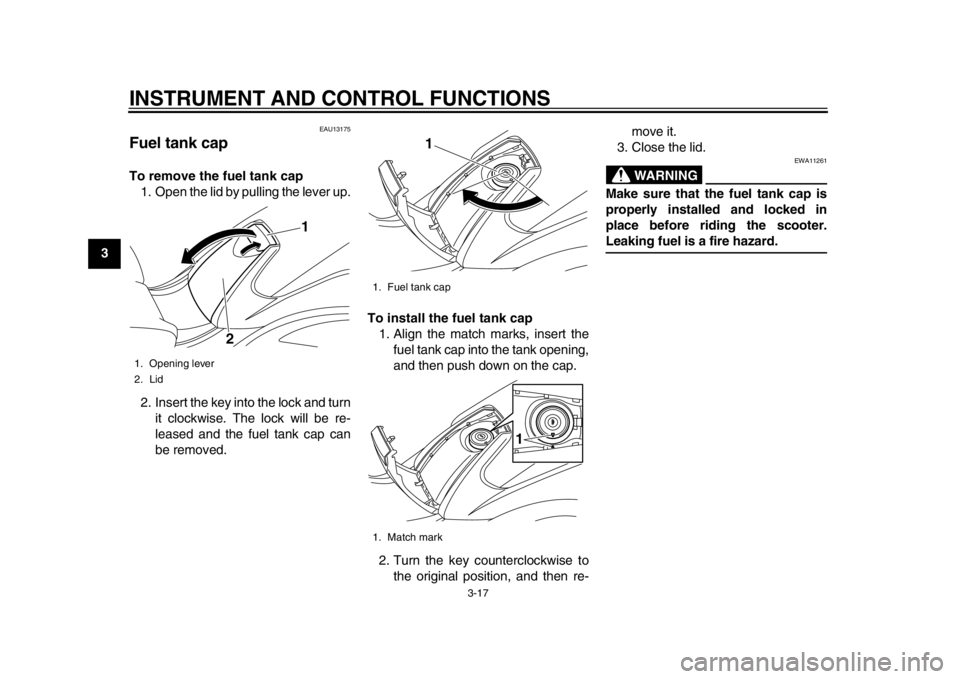

Fuel tank cap To remove the fuel tank cap1. Open the lid by pulling the lever up.
2. Insert the key into the lock and turn it clockwise. The lock will be re-
leased and the fuel tank cap can
be removed. To install the fuel tank cap
1. Align the match marks, insert the fuel tank cap into the tank opening,
and then push down on the cap.
2. Turn the key counterclockwise to the original position, and then re- move it.
3. Close the lid.
WARNING
EWA11261
Make sure that the fuel tank cap is
properly installed and locked in
place before riding the scooter.Leaking fuel is a fire hazard.
1. Opening lever
2. Lid
1
2
1. Fuel tank cap
1. Match mark
1
1
59C-9-E1.book 17 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-20
234
5
6
7
8
9
EAU13932

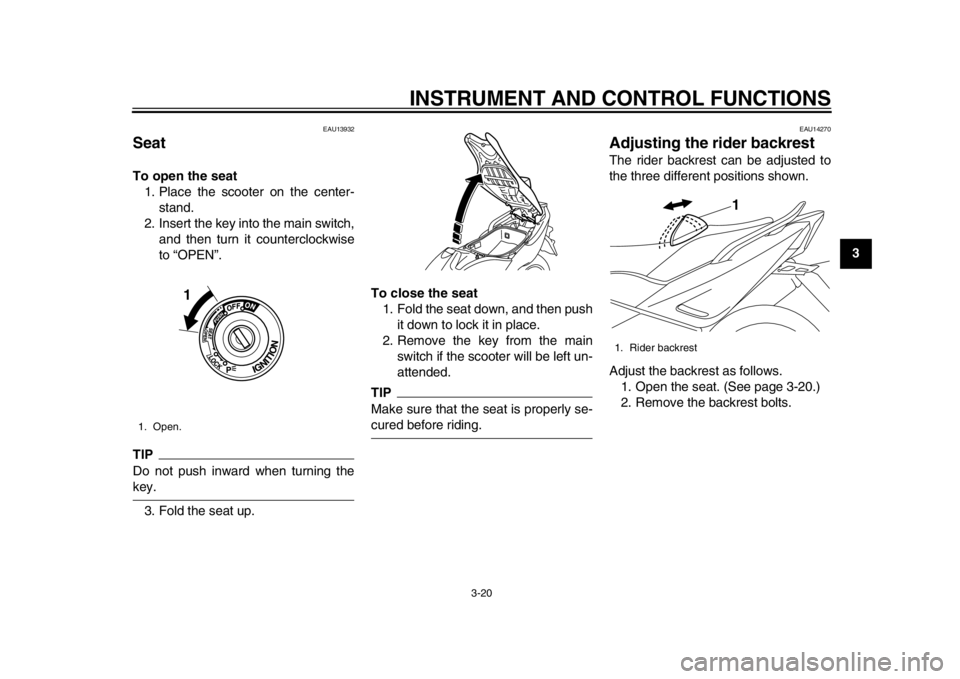

Seat To open the seat1. Place the scooter on the center- stand.
2. Insert the key into the main switch, and then turn it counterclockwise
to “OPEN”.TIPDo not push inward when turning thekey.
3. Fold the seat up. To close the seat
1. Fold the seat down, and then push it down to lock it in place.
2. Remove the key from the main switch if the scooter will be left un-
attended.
TIPMake sure that the seat is properly se-cured before riding.
EAU14270
Adjusting the rider backrest The rider backrest can be adjusted to
the three different positions shown.
Adjust the backrest as follows.1. Open the seat. (See page 3-20.)
2. Remove the backrest bolts.
1. Open.
1
1. Rider backrest
1
59C-9-E1.book 20 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-22
234
5
6
7
8
9
EAU52221
Storage compartments Front storage compartment A
To open the storage compartment, pull
the lid as shown. WARNING! Do not
store heavy items in this compart-
ment.
[EWA11161]

To close the storage compartment,
push the lid into the original position. Front storage compartment B
To open the storage compartment
when it is locked, insert the key in the
lock, turn it clockwise, and then pull on
the lever while pushing the lever up.To open the storage compartment
when it is unlocked, simply pull on the
lever while pushing the lever up.
To close the storage compartment,
push the lid into the original position.
To lock the storage compartment, push
the lid into the original position, insert
the key in the lock, turn it counterclock-
wise, and then remove it.
Rear storage compartment
A helmet can be stored in the rear stor-
age compartment under the seat. (See
page 3-20.) To store a helmet in the
rear storage compartment, place the
helmet upside down with the front fac-
ing the left side.
NOTICE: Keep the
following points in mind when using
the storage compartment. Since the
1. Front storage compartment A
1
1. Unlock.
2. Front storage compartment B
3. Storage compartment opening lever
1 2
3
59C-9-E1.book 22 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
1
2
3
4
56
7
8
9
EAU52231
Replacing the headlight bulb This model is equipped with a halogen
bulb headlights. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.

Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified. 1. Remove panel A. (See page 6-8.)
2. Remove the headlight bulb cover.
3. Disconnect the headlight coupler,
and then remove the burnt-out
bulb by turning it counterclock-
wise. 4. Install a new bulb by turning it
clockwise.
5. Connect the headlight coupler.
6. Install the headlight bulb cover.
7. Install the panel.
8. Have a Yamaha dealer adjust the headlight beam if necessary.
1. Do not touch the glass part of the bulb.
1. Headlight bulb cover
1
1
1. Headlight coupler
2. Headlight bulb
1
2
59C-9-E1.book 32 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
2
3
4
567
8
9
EAU24181
Tail/brake light This model is equipped with an
LED-type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU52320
Replacing a front turn signal
light bulb 1. Place the scooter on the center-
stand.
2. Remove the socket (together with the bulb) by turning it counter-
clockwise.
3. Remove the burnt-out bulb by pushing it in and turning it counter-
clockwise. 4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the socket (together with the bulb) by turning it clockwise.1. Turn signal light bulb socket
1
1. Turn signal light bulb
2. Turn signal light bulb socket
1 2
59C-9-E1.book 33 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-38
1
2
3
4
56
7
8
9Engine overheating
WARNING
EWAT1040

Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.

Place a thick rag, like a towel, over the radiator cap, and then slowly rotate the cap counterclockwise to the de-
tent to allow any residual pressure to escape. When the hissing sound has stopped, press down on the capwhile turning it counterclockwise, and then remove the cap.
TIPIf coolant is not available, tap water can be temporarily us
ed instead, provided that it is changed to the recommended coolantas soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
