2013 VOLKSWAGEN TOUAREG instrument cluster


One or more driving lights not working or
cornering light malfunction.
Replace burned out bulb or
if all light bulbs are OK, visit an authorized
Volkswagen dealer or authorized Volkswagen
Service Facility.
Adaptive Front Lighting System
malfunction.
8 One or more brake lights burned out.
Replace the light bulb that isn't working. If all
light bulbs are OK, see an authorized
Volkswagen dealer or an authorized
Volkswagen Service Facility.

Adaptive Front Lighting System (AFS)
malfunction.
See an authorized Volkswagen dealer or an
authorized Volkswagen Service Facility.
 Headlight range adjustment malfunction. See an authorized Volkswagen dealer or an
authorized Volkswagen Service Facility.
 Parking lights switched on.
; All license plate lights not working.
Replace the light bulbs that aren't working. If
all light bulbs are OK, see an authorized
Volkswagen dealer or an authorized
Volkswagen Service Facility.
Fog lights switched on.



Left or right turn signal.
If necessary check the vehicle and trailer
lighting. The indicator light blinks twice as fast if a
turn signal is not working on the vehicle
or the trailer.
 Daytime running lights (DRL) on.
$2,
 High beams switched on or headlight
flashers in use.

When the ignition is switched on, several warning and indicator lights come on briefly for a function
check. They go out after a few seconds.
.WARNING
Failure to heed warning lights and instrument cluster text messages can cause the vehicle to
break down in traffic and result in a collision and serious personal injury.
x Never ignore warning lights or text WARNINGS.
x Always stop the vehicle as soon as it is safe to do so.
x Whenever stalled or stopped for repair, move the vehicle a safe distance off the road, stop
the engine, turn on the emergency flashers, and use other warning devices to warn
approaching traffic.
x Never park the vehicle in areas where the hot catalytic converter and exhaust system can
come into contact with dry grass, brush, spilled fuel, oil, or other material that can catch fire.
x A broken down vehicle presents a high accident risk for itself and others. Switch on
emergency flashers and set up a warning triangle to warn oncoming traffic.

The lights stay on for about 10 seconds (lighting delay period). The “Coming home” and
“Leaving home” functions can be enabled and disabled in the Infotainment System.
If the “Coming home” feature is switched on and the driver door is opened, no acoustic warning
will sound to alert that the light is still on.
Instrument panel lighting , headlight range adjustment

Fig. 85 Next to the steering wheel: Control for instrument cluster lighting.

x Briefly press the  button on the multi-function steering wheel.
x Say the voice command in the language set in the Infotainment System.

Language: voice command
German: Hilfe Sprachbedienung
English: Voice operation help
French: Aide Système de commande vocale
Spanish: Ayuda Manejo por voz
Italian: Aiuto sistema di comando vocale
Portugese: Ajuda do comando por voz
Dutch: Help spraakbediening
Russian: Сijа\dа ih kиklеfе ]hehkh\h]h mijа\eеgия

x Follow the subsequent explanations and instructions in the voice dialog.
Control during voice dialog
While voice guidance is being provided by the Infotainment System, the microphone symbol “not
active” (without the 3 lines) is shown on the instrument cluster display and on the Infotainment System
screen.
x Briefly press the  button on the multi-function steering wheel to interrupt voice guidance from the
Infotainment System and immediately say the next voice command.
You can only say a voice command when the  symbol “active” is displayed.
If a voice command is spoken incorrectly or incompletely and no action has been started as a result,
the voice command can be repeated. The  symbol remains “active”.
x Briefly press the  button on the multi-function steering wheel to repeat the voice command.
Recording name tags
A name tag can be recorded as a voice command in some menus via the voice operation. Follow the
instructions from the voice dialog. Avoid loud noises in the background when recording voice inputs.
.Some voice commands are only available if the unit is in the right operating area.
.Display of the help menus for the individual operating areas can be disabled.
.If a voice command has been misunderstood several times, it may be sensible to terminate
voice operation manually by pressing the  button longer and to then start again.
Notes on voice operation

Function key: Effect
OR: Set the date
Units: Set units for displays in the vehicle.
OR: Set units for displays in the vehicle
Service/inspection: Settings for the Service reminder display and the service position of the windshield
wipers. Display of current oil level and service messages.
OR: Service menu
Exterior lighting: Settings for the exterior lighting.
Footwell light: Set brightness of foot well light.
Instrument cluster: Settings for the instrument cluster
Seat settings: Settings for the front seats
Central locking: Settings for the central locking system
Garage door opener: Settings for the garage door opener
Vehicle ID/Number of keys: Display of vehicle chassis number and number of authorized remote control
vehicle keys
Tire pressure monitoring: Settings for the Tire Pressure Monitoring System

Changes made in settings menus are automatically applied once the menu is closed.
Service menu

On road : the start point for the route guidance will be reached using public roads as far as
possible.
Off-road : the start point for route guidance will be reached in off-road mode and any available
roads will not be used.

When route guidance starts, the system will switch to the map view.
An audible signal is given when the starting point of the waypoint tour has been reached.
During route guidance
Characteristics of the terrain are ignored during route guidance. A driving recommendation will be
given about 55 yards (50 meters) before reaching a turning point. You should therefore drive slowly
and follow recommendations for turning as far as possible!
Changes in the direction of travel will be given in relation to the current direction of travel, such as
.“Please travel in direction 9 o'clock!”.
The tendency of the direction of travel will be shown in the instrument cluster display using arrows.
Stopping route guidance
x Press the Infotainment button .NAV in the map display to open the Waypoint navigation
menu.
x Press the Stop function key.
Stopping waypoint navigation

Fig. 205 Waypoint navigation menu.
.

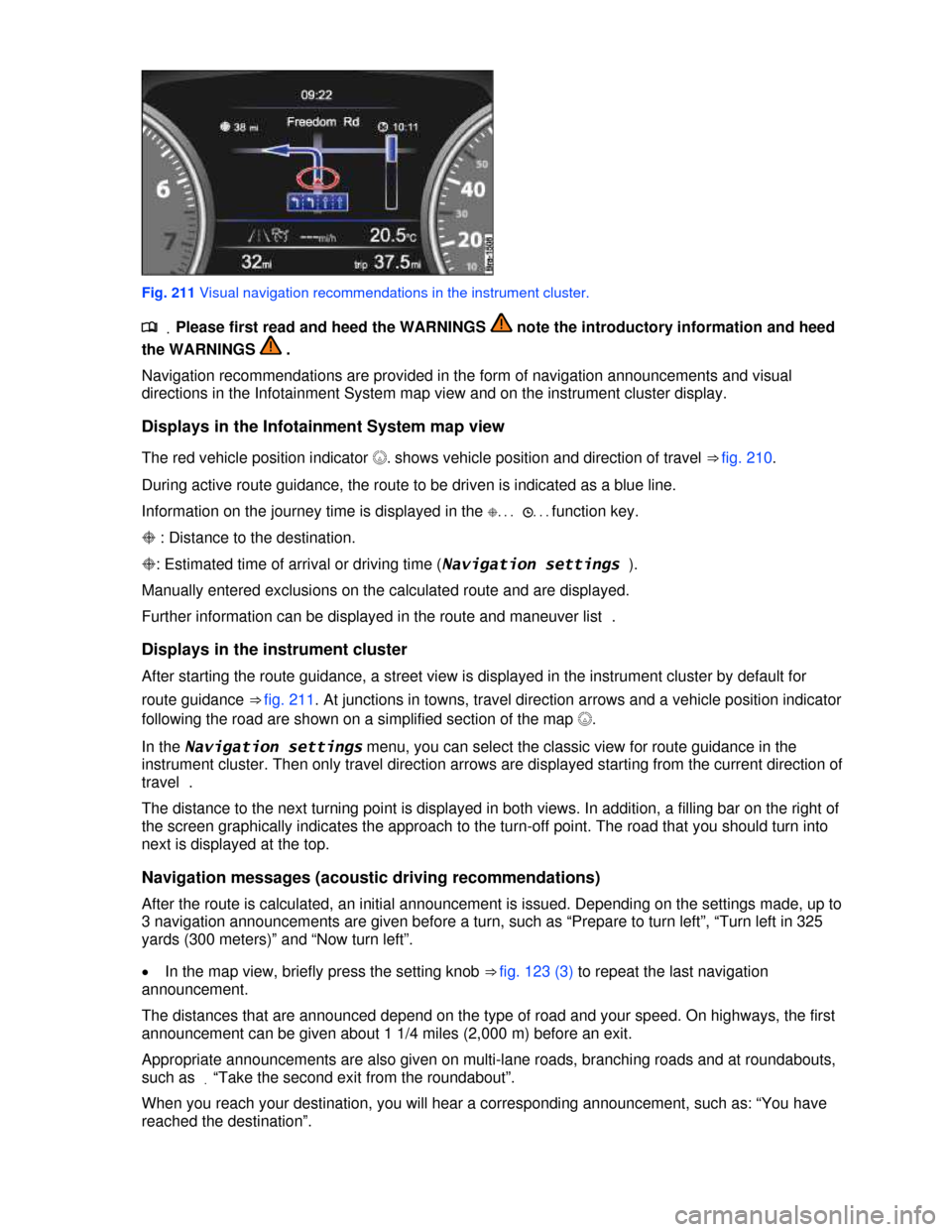

Fig. 211 Visual navigation recommendations in the instrument cluster.
.

Function key: Effect
Complete : Detailed driving recommendations with lane recommendation and additional
information.
Compact : Some additional navigation recommendations and information are left out.
Off : no spoken navigation recommendations.
Time display : Display  during route guidance.
Arrival time : the estimated time of arrival at the destination is displayed.
Driving time : the estimated driving time until reaching the destination is displayed.
Instrument cluster guidance : Visual navigation recommendations for guidance in the instrument
cluster .
Arrow view : Travel direction arrows show the direction of travel and the distance to the next
turn-off point.
Street view : Road and route view corresponding with the map display in the Infotainment
System.
= Voice guidance during phone call: Spoken navigation recommendations are also given during a
telephone call.
Advanced navigation settings : Allows settings for demo mode.
SIRIUS traffic ID : The Sirius traffic ID and the Internet address and the telephone number of the
Sirius activation hotline are displayed in the pop-up window .

Advanced navigation settings: Demo mode and manual location
x In the Advanced navigation settings menu, check the check box in the Demo mode
function key by pressing it ] to start virtual route guidance to the entered destination.
x Press the Enter current position manually function key to select a manual location in the same way
you entered a destination .
If demo mode is enabled , an additional pop-up window opens when you start route guidance.
x Pressing the Demo mode function key starts a “virtual route guidance” to the destination you have
entered.
x If you press the Normal mode function key, a “real route guidance” starts.
The sequence of events and the operations in virtual route guidance are similar to those in real route
guidance. Once a manual location has been entered, the virtual route guidance starts from that
position.
Virtual route guidance is repeated when you reach the fictitious destination and always starts again
from the starting point if it is interrupted.
When real route guidance is started following route guidance in demo mode, the unit first has to
reorient itself. Depending on the number of currently received satellites, this orientation may take
some time. Vehicle movement can reduce the re-orientation time
.If the vehicle is moved and the unit can determine its current location by GPS, any manually
entered location will be overwritten with the current vehicle location.
.Disable demo mode after use, otherwise you will be prompted to choose between virtual and
normal route guidance each time you start route guidance.

x Infotainment System with touchscreen
x Multi-function steering wheel Instrument cluster display shows telephone functions x
3 button module in the roof ⇒ fig. 222
.NOTICE
To operate the telephone control, a light press of the button or light pressure on the feature
keys on the screen is sufficient.
“Bluetooth audio” wireless communication interface
.
