fig. 37 Function Action
(1) Move the front seat backward or
forward.
Pull the lever up and move the front seat. The front
seat must lock in place after the lever is released!
(2)
Fold the backrest forward and
back into the upright position (only
in 2-door vehicles).
Folding forward: Pull the handle and fold the
backrest forward while pushing the seat forward.
Folding back into the upright position: Push the seat
all the way back, and fold the backrest back into the
upright position. The backrest must lock in place!
(3) Lumbar support control. Pull the lever up or push it down.
(4) Adjust the backrest angle. Lean forward and turn the adjuster wheel forward or
backward.
(5) Adjust the seat height. Move the lever several times up or down.

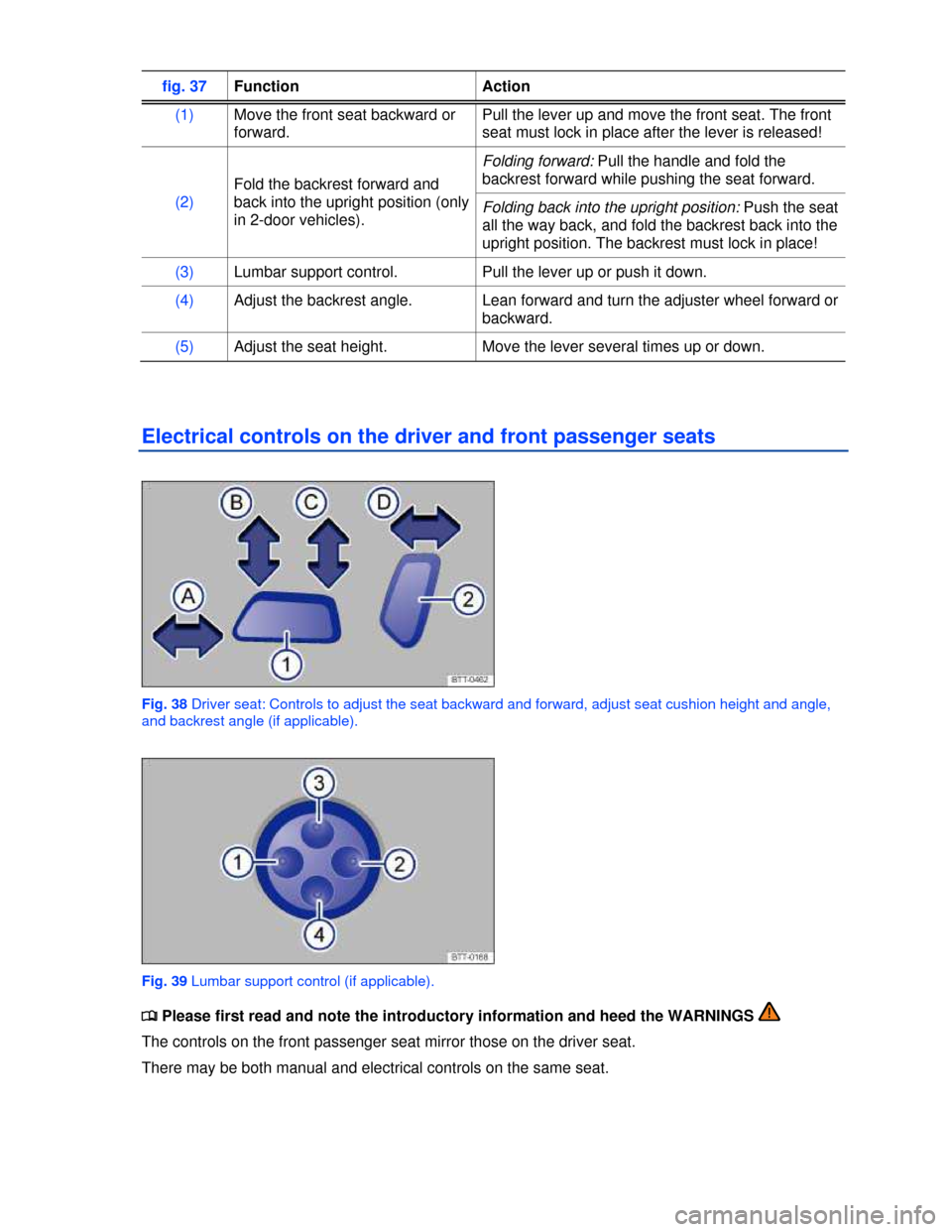

Electrical controls on the driver and front passenger seats
Fig. 38 Driver seat: Controls to adjust the seat backward and forward, adjust seat cushion height and angle,
and backrest angle (if applicable).
Fig. 39 Lumbar support control (if applicable).
WARNING
Improper folding and improper latching of the rear seat backrest can cause serious personal
injury.
x Always make sure there are no people or animals in the area around the rear seat backrest
when folding it forward.
x Never fold the rear seat backrest forward or back while the vehicle is moving.
x When folding the rear seat backrest back up, make sure that the safety belt does not get
caught or damaged.
x Keep hands, fingers, feet and other body parts out of the way when folding the rear seat
backrest forward or back.
x Each rear seat backrest must be securely latched in the upright position so that the safety
belts on the rear seats can provide protection. This is particularly the case for the middle seat
on the rear seat bench.
x If a seat is used with an unsecured backrest, the passenger will move forward together
with the rear seat backrest during sudden braking, driving maneuvers, or in a collision.
x If the red marking on the button (2) is visible, this indicates that the backrest is not latched
into place. Always check to make sure that the red marking is not visible whenever the rear
seat backrest is in the upright position.
x No one, including children, may ride on the rear seats if the rear seat backrest is folded
down or not correctly latched.
NOTICE
Before folding the rear seat backrest forward, adjust the front seats so that the rear seat's head
restraint or backrest cushion will not touch the front seats.
Luggage compartment cover
Fig. 98 In the luggage compartment: Installing and removing the luggage compartment cover.
