NOTICE
■Replacing tire pressure warning valves and transmitters
●Because tire repair or replacement may affect the tire pressure warn-
ing valves and transmitters, make sure to have tires serviced by your
Toyota dealer or other qualified service shop. In addition, make sure to
purchase your tire pressure warning valves and transmitters at your
Toyota dealer.
●Ensure that only genuine Toyota wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly
with non-genuine wheels.

577 4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60F57U_(U)■Passenger’s side instrument panel
FuseAmpereCircuit
1RSF LH30 A No circuit
2B/DR CLSR RH30 A No circuit
3B/DR CLSR LH30 A No circuit
4RSF RH30 A No circuit
5DOOR DL15 A No circuit
6AHC-B20 A No circuit
7TEL5 A Multimedia
8TOW BK/UP7.5 A Towing
9AHC-B NO.210 A No circuit
10ECU-IG NO.45 A Tire pressure warning system
11SEAT-A/C FAN10 A Ventilators
12SEAT-HTR20 A Seat heater
13AFS5 A No circuit
14ECU-IG NO.35 A Cruise control system
15STRG HTR10 A Heated steering system
16TV10 A Multi-display assembly

When trouble arises5
597
LC200_OM_OM60F57U_(U)
5-1. Essential information
Emergency flashers ......... 598
If your vehicle needs
to be towed .................... 599
If you think something
is wrong ......................... 604
Fuel pump shut off
system ........................... 6055-2. Steps to take in
an emergency
If a warning light turns
on or a warning
buzzer sounds... ........... 606
If a warning message
is displayed .................... 617
If you have a flat tire......... 633
If the engine will not
start ................................ 647
If the shift lever cannot be
shifted from P ................. 649
If you lose your keys ........ 650
If the electronic key
does not operate
properly .......................... 651
If the battery is
discharged ..................... 654
If your vehicle
overheats ....................... 658
If the vehicle
becomes stuck ............... 661
If your vehicle has to be
stopped in an
emergency ..................... 663

606
LC200_OM_OM60F57U_(U)
5-2. Steps to take in an emergency
If a war ning light tur ns on or a war ning buzzer sounds...
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.
The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
*:Parking brake engaged warning buzzer:
A buzzer will sound if the vehicle is driven at a speed of approximately 3 mph
(5 km/h) or more.
Warning lightWarning light/Details
Brake system warning light (warning buzzer)
*
• Low brake fluid
• Malfunction in the brake system
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is
fully released, the system is operating normally.
Calmly perform the following actions if any of the warning lights turn
on or flash. If a light turns on or flashes, but then turns off, this does
not necessarily indicate a malfunction in the system.
However, if this continues to occur, have the vehicle inspected by
your Toyota dealer.

5
When trouble arises
607 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Toyota dealer.
Have the vehicle inspected by your Toyota dealer immediately.
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.

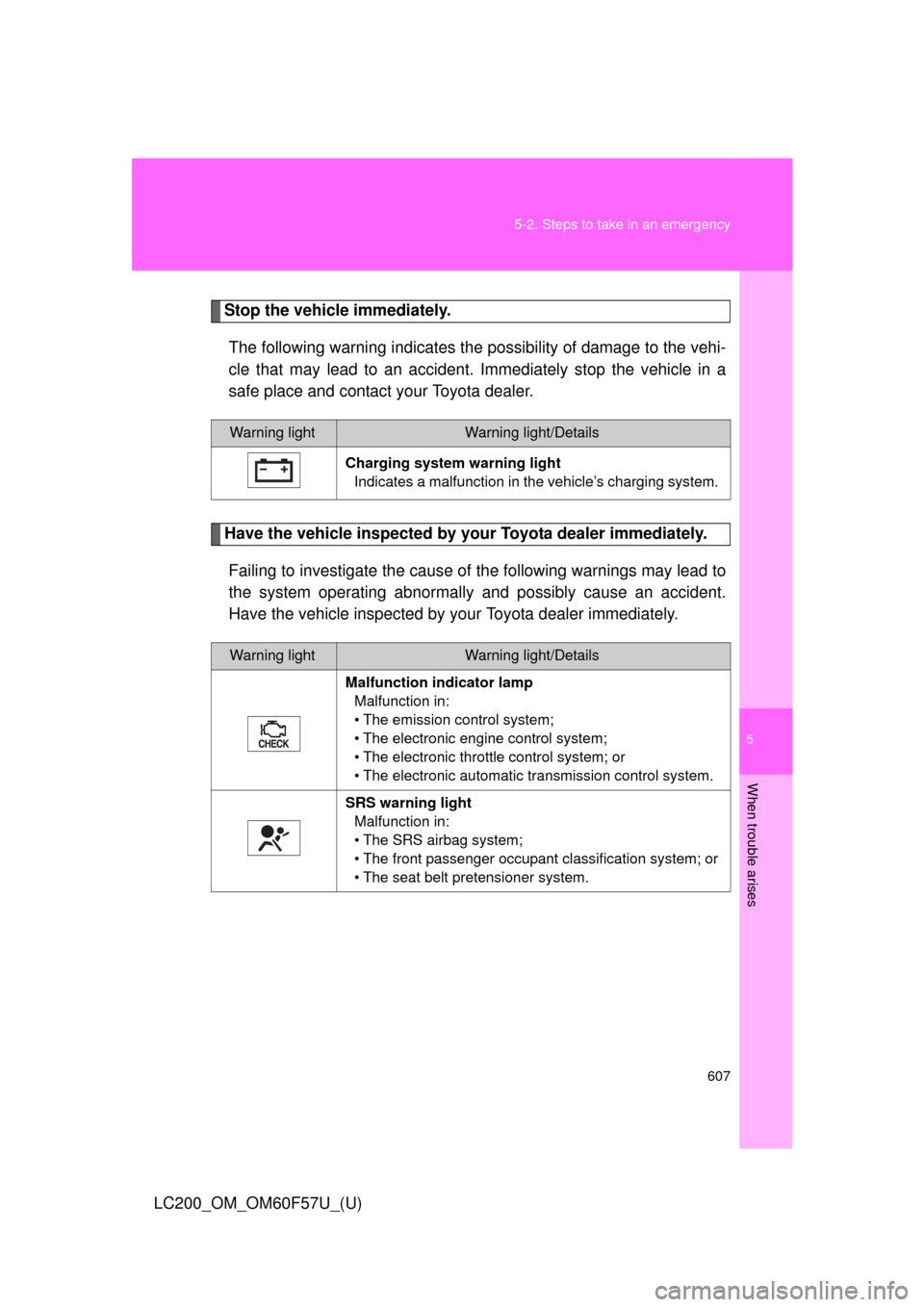

Warning lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system.
Warning lightWarning light/Details
Malfunction indicator lamp
Malfunction in:
• The emission control system;
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system.
SRS warning light
Malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system.

608 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
Have the malfunction repaired immediately.
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Warning lightWarning light/Details
ABS warning light
Malfunction in:
• The Multi Terrain ABS; or
• The brake assist system.
(Comes on or
flashes)Pre-collision system warning light (if equipped)
Indicates:
• Malfunction in the pre-collision system if the light comes
on.
• The system cannot temporarily be used if the light
flashes. (P. 624)
Slip indicator light
Indicates a malfunction in:
• Vehicle stability control;
• Trailer Sway Control;
• Active Traction Control;
• The hill-start assist control system;
• Crawl Control system; or
• Multi-terrain Select.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
A door is not fully closed.Check that all doors are
closed.

5
When trouble arises
609 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
Warning lightWarning light/DetailsCorrection procedure
Driver’s seat belt
reminder light (warning
buzzer)
*2
Warns the driver to fasten
his/her seat belt.Fasten the seat belt.
(On the cen-
ter cluster)Front passenger’s seat
belt reminder light (warn-
ing buzzer)
*2
Warns the front passen-
ger to fasten his/her seat
belt.Fasten the seat belt.
Tire pressure warning
light
When the light comes on:
Low tire inflation pressure
such as
• Natural causes (P. 612)
• Flat tire (P. 633)Adjust the tire inflation
pressure (including the
spare tire) to the specified
level.
The light will turn off after
a few minutes. In case
the light does not turn off
even if the tire inflation
pressure is adjusted,
have the system checked
by your Toyota dealer.
When the light comes on
after blinking for 1 minute:
Malfunction in the tire
pressure warning system.
(P. 614)Have the system checked
by your Toyota dealer.
Unengaged “Park” warn-
ing light
The transmission “Park”
mechanism is not
engaged.Shift four-wheel drive con-
trol to “H4” or “L4”.
(P. 240)
*3
*4

610 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
*1: Open door warning buzzer:
The open door warning buzzer sounds to alert one or more of the doors is
not fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]).
*2: Driver’s seat belt buzzer:
The driver’s seat belt buzzer sounds to alert the driver that his or her seat
belt is not fastened. Once the engine switch is turned to IGNITION ON
mode, the buzzer sounds for 6 seconds. If the vehicle reaches a speed of
12 mph (20 km/h), the buzzer sounds once. If the seat belt is still unfastened
after 30 seconds, the buzzer will sound intermittently for 10 seconds. Then,
if the seat belt is still unfastened, the buzzer will sound in a different tone for
20 more seconds.
Front passenger’s seat belt buzzer:
The front passenger’s seat belt buzzer sounds to alert the front passenger
that his or her seat belt is not fastened. The buzzer sounds once if the vehi-
cle reaches a speed of 12 mph (20 km/h). If the seat belt is still unfastened
after 30 seconds, the buzzer will sound intermittently for 10 seconds. Then,
if the seat belt is still unfastened, the buzzer will sound in a different tone for
20 more seconds.
*3: Vehicles with navigation system
*4: Vehicles without navigation system
Warning lightWarning light/DetailsCorrection procedure
Low fuel level warning
light
Indicates that remaining
fuel is about 4.0 gal. (15.0
L, 3.3 Imp. gal.) or less.Refuel the vehicle.
Master warning light
A buzzer sounds and the
warning light comes on
and flashes to indicate that
the master warning system
has detected a malfunc-
tion.P. 617
