2013 TOYOTA LAND CRUISER fuel type

101
1
Before driving
LC200_OM_OM60F57U_(U)

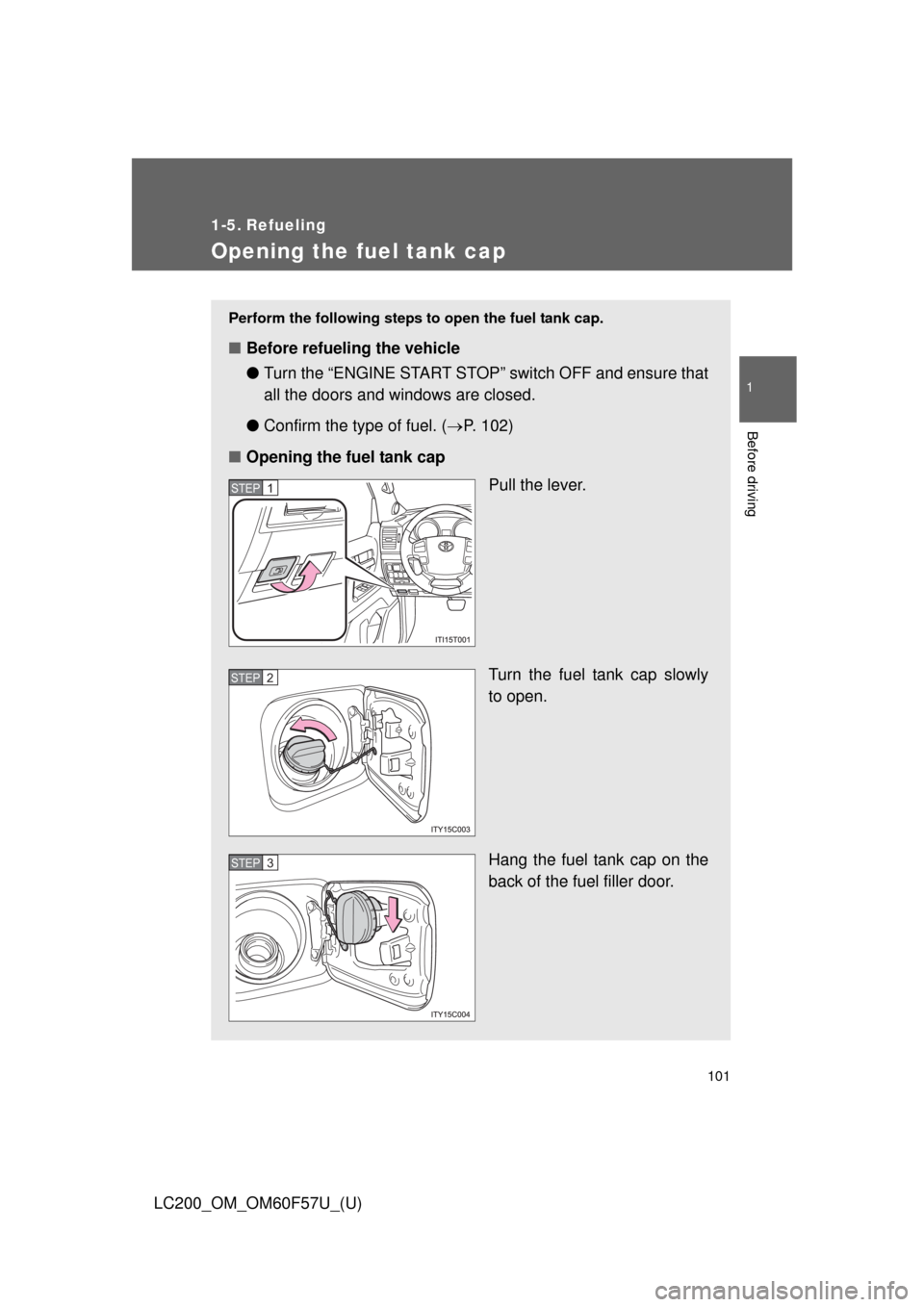

1-5. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
■Before refueling the vehicle
●Turn the “ENGINE START STOP” switch OFF and ensure that
all the doors and windows are closed.
●Confirm the type of fuel. (P. 102)
■Opening the fuel tank cap
Pull the lever.
Turn the fuel tank cap slowly
to open.
Hang the fuel tank cap on the
back of the fuel filler door.
STEP1
STEP2
STEP3

102 1-5. Refueling
LC200_OM_OM60F57U_(U)
Closing the fuel tank cap
When replacing the fuel tank
cap, turn it until a clicking sound
is heard.
After releasing your hand, the cap
will turn slightly to the opposite
direction.
■Fuel types
Use unleaded gasoline. (Octane Rating 87 [Research Octane Number 91] or
higher)

156 2-1. Driving procedures
LC200_OM_OM60F57U_(U)
■Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system.
This type of brake system needs bedding-down of the brake shoes periodi-
cally or whenever the parking brake shoes and/or drums are replaced.
Have your Toyota dealer perform the bedding-down.
■Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. (P. 668)
■Eco Driving Indicator
Eco Driving Indicator Light
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light
will turn on.
Eco Driving Indicator Zone Display
Suggests Zone of Eco driving with
current Eco driving ratio based on
acceleration.
Zone of Eco driving
Eco driving ratio based on accelera-
tion
If the vehicle exceeds Zone of Eco
driving, the right side of Eco Driving
Indicator Zone Display will blink and
Eco Driving Indicator Light will turn off.
Eco Driving Indicator Light will not oper-
ate in the following conditions:
●The shift lever is in anything other than
“D”.
●The vehicle is set to second start mode
or power mode. (P. 172)
●The vehicle speed is approximately
81 mph (130 km/h) or higher.
●The Crawl Control is operating.
(P. 245)

668 6-1. Specifications
LC200_OM_OM60F57U_(U)
Engine
Fuel
Model5.7L V8 (3UR-FE)
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  4.02 in. (94.0  102.0 mm)
Displacement345.6 cu.in. (5663 cm3)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating87 (Research octane number 91) or higher
Fuel tank capacity
(Reference)24.5 gal. (93 L, 20.4 Imp.gal)

677 6-1. Specifications
6
Vehicle specifications
LC200_OM_OM60F57U_(U)
■Gasoline quality standards
●Automotive manufacturers in the US, Europe and Japan have developed
a specification for fuel quality called World-Wide Fuel Charter (WWFC)
that is expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emis-
sion levels. In the US, category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets,
and customer satisfaction through better performance.
■Toyota recommends the use of gasoline containing detergent additives
●Toyota recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
●All gasoline sold in the US contains minimum detergent additives to
clean and/or keep clean intake systems, EPA’s lowest additives concen-
tration program.
●Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
■Toyota recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.

679 6-1. Specifications
6
Vehicle specifications
LC200_OM_OM60F57U_(U)
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used the engine will be
damaged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
●Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance
problems.
●Using unleaded gasoline with an octane number or rating lower than that
stated here will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor
hot starting, vaporization, engine knocking, etc.), discontinue the use of that
type of fuel.
■When refueling with gasohole
Take care not to spill gasohol. It can damage your vehicle’s paint.

712 Alphabetical index
LC200_OM_OM60F57U_(U)
Front turn signal lights
Replacing light bulbs ............. 581
Wattage .................................675
Fuel
Capacity ................................668
Fuel gauge ............................ 179
Fuel pump shut off system ....605
Gas station information .........720
Information ............................ 676
Refueling ............................... 101
Type ......................................676
Fuel door...................................101
Fuel filler door .......................... 101
Fuel pump shut off
system .................................... 605
Fuses......................................... 566
Garage door opener.................497
Gas station information...........720
Gauges ......................................179
Glove box.................................. 467
Glove box light .........................467
Hands-free system
(for cellular phone)*............... 423
Hazard lights
Switch.................................... 598
Head restraints
Adjusting ................................. 72
Headlight cleaner ..................... 209
Headlights
Replacing light bulbs ............. 581
Switch.................................... 196
Wattage .................................675
Heaters
Heated steering ..................... 487
Seat heaters .......................... 489
Side mirror............................. 351
Hill-start assist control ............282
Hood .......................................... 527Hooks
Cargo hook ........................... 495
Tie-down hooks..................... 495
Horn .......................................... 178
I/M test ...................................... 523
Identification
Engine ................................... 667
Vehicle .................................. 667
Ignition
Engine switch ........................ 166
Keys ........................................ 30
Ignition switch ....................... 166
Ignition switch.......................... 166
Illuminated entry system......... 465
Indicator lights ......................... 184
Initialization
Items to initialize ................... 701
Inside rear view mirror .............. 88
Instrument panel light
control .................................... 182
Interior lights
Interior lights ......................... 462
Switch ................................... 463
Wattage................................. 675
Intuitive parking assist ............ 229
Jack
Vehicle-equipped jack ........... 633
Jack handle .............................. 633
KDSS ......................................... 282
Keyless entry ............................. 32
G
H
I
J
K

720
LC200_OM_OM60F57U_(U)
GAS STATION INFORMATION
Auxiliary catch lever
P. 5 2 7Fuel filler door
P. 101
Hood lock release lever
P. 527
Fuel filler door opener
P. 1 0 1
Tire inflation pressure
P. 674
Fuel tank capacity
(Reference)24.5 gal. (93 L, 20.4 Imp.gal.)
Fuel typeUnleaded gasoline only P. 102, 668
Cold tire inflation
pressureP. 6 7 4
Engine oil capacity
(Drain and refill —
reference)qt. (L, Imp.qt.)
With filter 7.9 (7.5, 6.6)
Without filter 7.5 (7.1, 6.2)
Engine oil typeP. 6 6 9
