2013 TOYOTA AURIS TOURING SPORTS stop start

4416-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care
16WIPER NO.125 AWindshield wipers
17CIG15 APower outlet
18ACC7.5 A
Outside rear view mirrors, audio system,
main body ECU, clock, charging system,
power outlet, Stop & Start system, audio
system
19SFT LOCK-ACC5 AShift lock control system
20TA I L10 AFront position lights, tail lights, license
plate lights, front fog lights, rear fog light
21PA N E L7.5 ASwitch illumination, instrument cluster
lights, glove box light, main body ECU
22WIPER-S5 ACharging system
23ECU-IG NO.17.5 AElectric cooling fan, AFS, charging sys-
tem, ABS, VSC
24ECU-IG NO.27.5 A
Back-up lights, multiport fuel injection
system/sequential multiport fuel injection
system, audio system, AFS, Toyota park-
ing assist-sensor
25ECU-IG NO.37.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, inside rear
view mirror, shift lock control system,
headlight cleaner, audio system, AFS,
panoramic roof shade, windshield
washer
26HTR-IG7.5 AAir conditioning system, rear window
defogger, Stop & Start system
27ECU-IG NO.47.5 A
Main body ECU, front passenger seat
belt reminder light, airbag manual on-off
system, outside rear view mirrors, Toyota
parking assist-sensor
28ECU-IG NO.55 AElectric power steering, Stop & Start sys-
tem
29IGN7.5 A
Smart entry & start system, multiport fuel
injection system/sequential multiport fuel
injection system, steering lock system
FuseAmpereCircuit

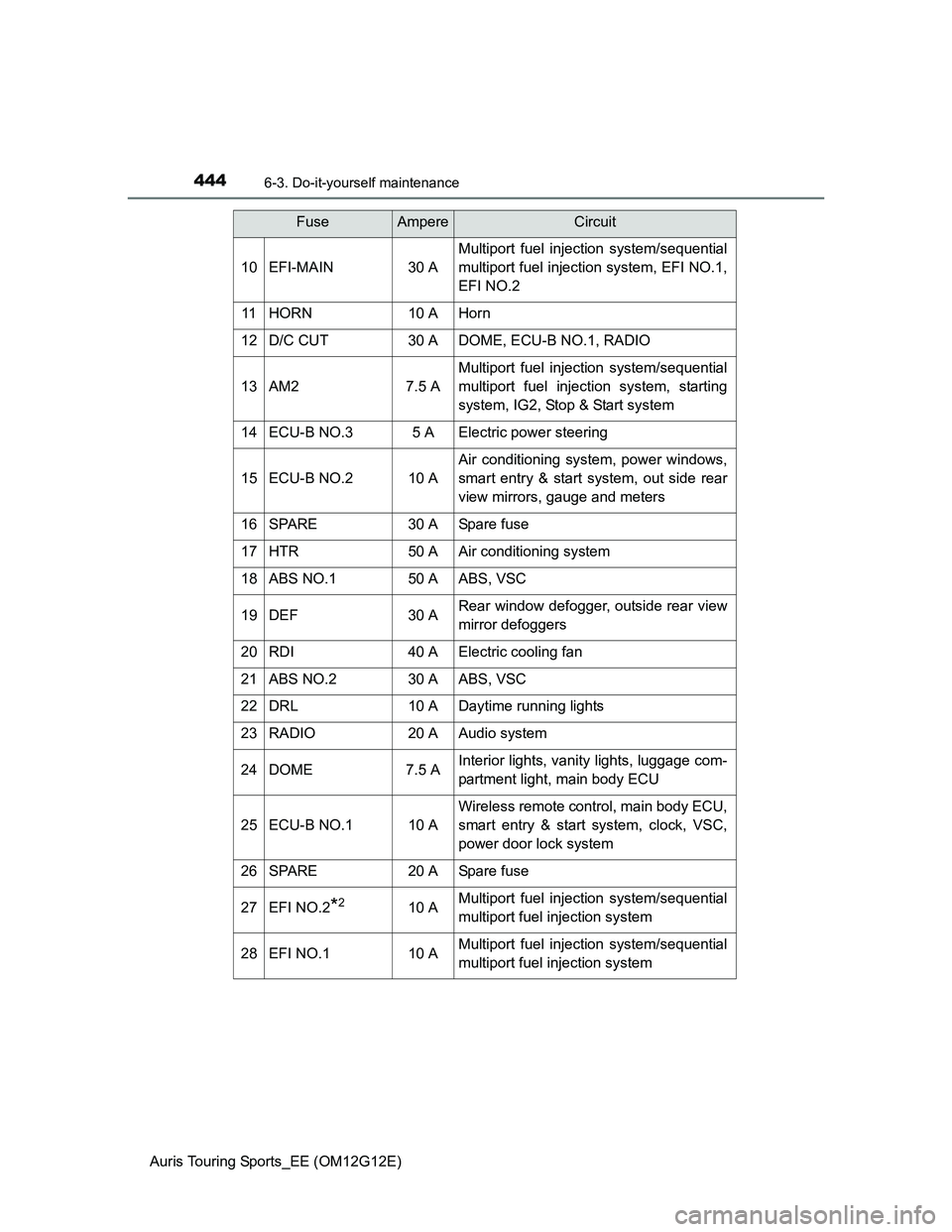

4446-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
10EFI-MAIN30 A
Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.1,
EFI NO.2
11HORN10 AHorn
12D/C CUT30 ADOME, ECU-B NO.1, RADIO
13AM27.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, starting
system, IG2, Stop & Start system
14ECU-B NO.35 AElectric power steering
15ECU-B NO.210 A
Air conditioning system, power windows,
smart entry & start system, out side rear
view mirrors, gauge and meters
16SPARE30 ASpare fuse
17HTR50 AAir conditioning system
18ABS NO.150 AABS, VSC
19DEF30 ARear window defogger, outside rear view
mirror defoggers
20RDI40 AElectric cooling fan
21ABS NO.230 AABS, VSC
22DRL10 ADaytime running lights
23RADIO20 AAudio system
24DOME7.5 AInterior lights, vanity lights, luggage com-
partment light, main body ECU
25ECU-B NO.110 A
Wireless remote control, main body ECU,
smart entry & start system, clock, VSC,
power door lock system
26SPARE20 ASpare fuse
27EFI NO.2*210 AMultiport fuel injection system/sequential
multiport fuel injection system
28EFI NO.110 AMultiport fuel injection system/sequential
multiport fuel injection system
FuseAmpereCircuit

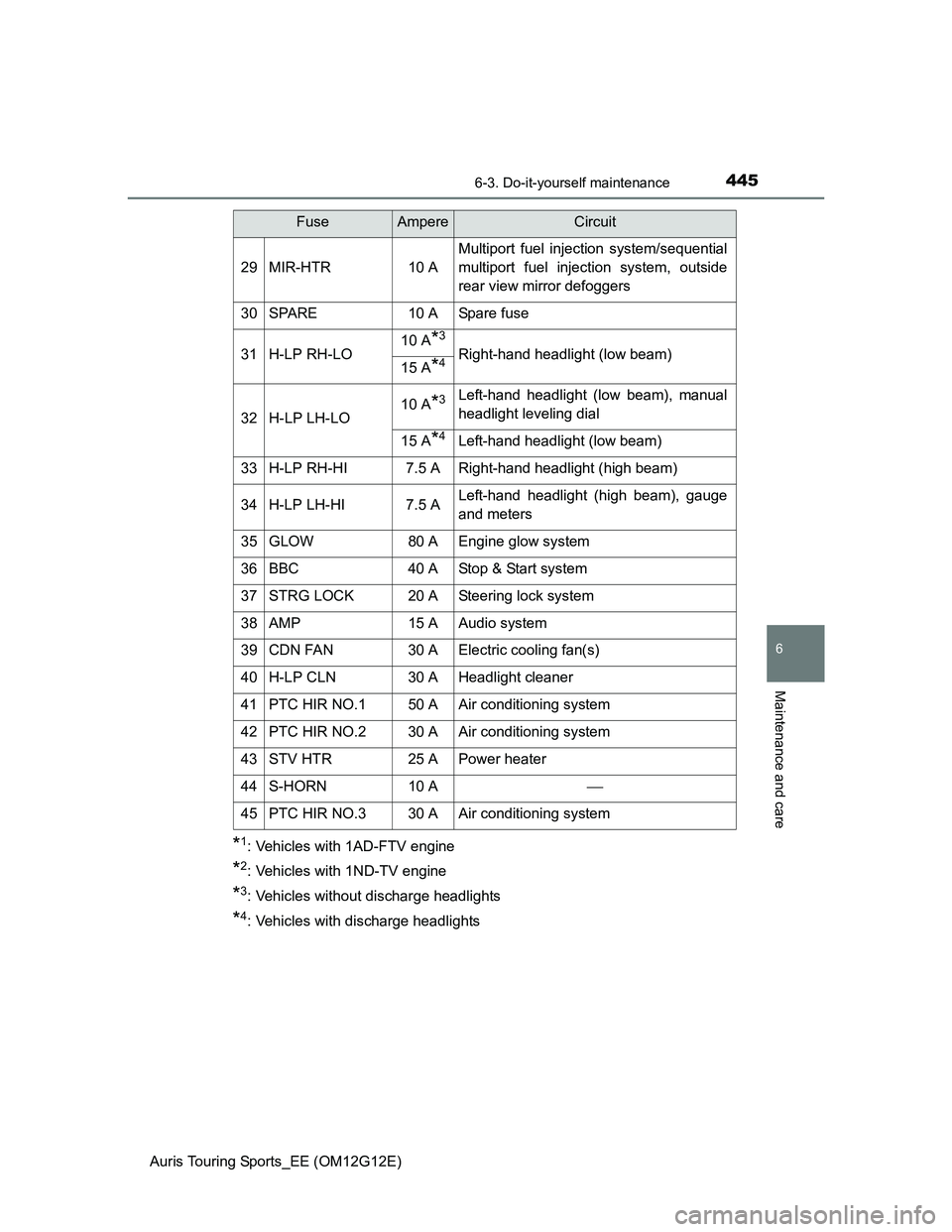

4456-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care
*1: Vehicles with 1AD-FTV engine
*2: Vehicles with 1ND-TV engine
*3: Vehicles without discharge headlights
*4: Vehicles with discharge headlights
29MIR-HTR10 A
Multiport fuel injection system/sequential
multiport fuel injection system, outside
rear view mirror defoggers
30SPARE10 ASpare fuse
31H-LP RH-LO10 A*3
Right-hand headlight (low beam)15 A*4
32H-LP LH-LO10 A*3Left-hand headlight (low beam), manual
headlight leveling dial
15 A*4Left-hand headlight (low beam)
33H-LP RH-HI7.5 ARight-hand headlight (high beam)
34H-LP LH-HI7.5 ALeft-hand headlight (high beam), gauge
and meters
35GLOW80 AEngine glow system
36BBC40 AStop & Start system
37STRG LOCK20 ASteering lock system
38AMP15 AAudio system
39CDN FAN30 AElectric cooling fan(s)
40H-LP CLN30 AHeadlight cleaner
41PTC HIR NO.150 AAir conditioning system
42PTC HIR NO.230 AAir conditioning system
43STV HTR25 APower heater
44S-HORN10 A
45PTC HIR NO.330 AAir conditioning system
FuseAmpereCircuit

4476-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care
16WIPER NO.125 AWindshield wipers
17CIG15 APower outlet
18ACC7.5 A
Outside rear view mirrors, audio system,
main body ECU, clock, charging system,
power outlet, Stop & Start system
19SFT LOCK-ACC5 AShift lock control system
20TA I L10 AFront position lights, tail lights, license
plate lights, front fog lights, rear fog light
21PA N E L7.5 ASwitch illumination, instrument cluster
lights, glove box light, main body ECU
22WIPER-S5 ACharging system
23ECU-IG NO.17.5 AElectric cooling fan, AFS, charging sys-
tem, ABS, VSC
24ECU-IG NO.27.5 A
Back-up lights, multiport fuel injection
system/sequential multiport fuel injection
system, audio system, AFS, Toyota park-
ing assist-sensor
25ECU-IG NO.37.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, inside rear
view mirror, shift lock control system,
panoramic roof shade, headlight cleaner,
audio system, AFS, windshield wipers
26HTR-IG7.5 A
Air conditioning system, rear window
defogger, power heater, Stop & Start sys-
tem
27ECU-IG NO.47.5 A
Front passenger seat belt reminder light,
airbag manual on-off system, outside
rear view mirrors, main body ECU,
Toyota parking assist-sensor
28ECU-IG NO.55 AElectric power steering, Stop & Start sys-
tem
29IGN7.5 A
Smart entry & start system, multiport fuel
injection system/sequential multiport fuel
injection system, steering lock system
30S/HTR15 ASeat heaters
FuseAmpereCircuit

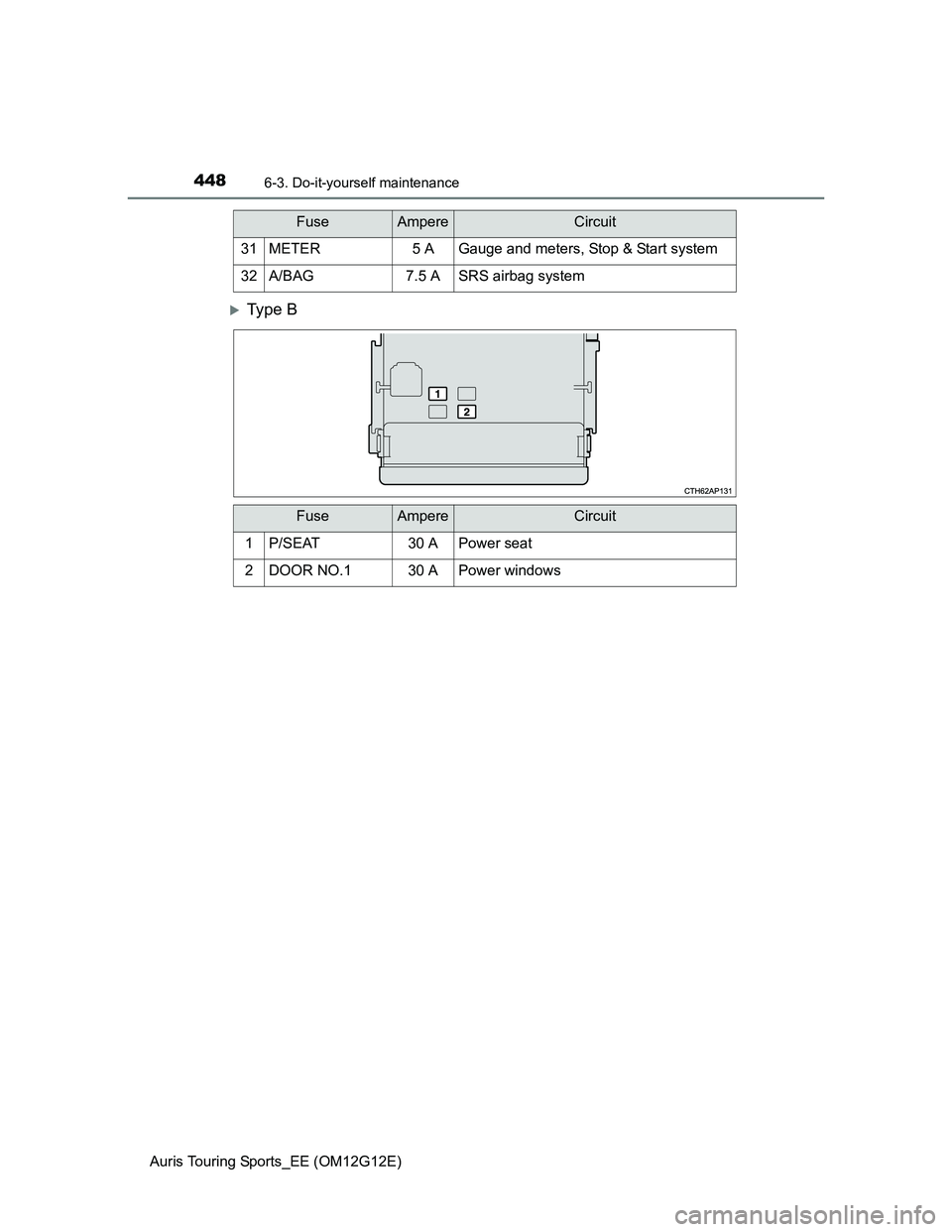

4486-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
Ty p e B
31METER5 AGauge and meters, Stop & Start system
32A/BAG7.5 ASRS airbag system
FuseAmpereCircuit
FuseAmpereCircuit
1P/SEAT30 APower seat
2DOOR NO.130 APower windows

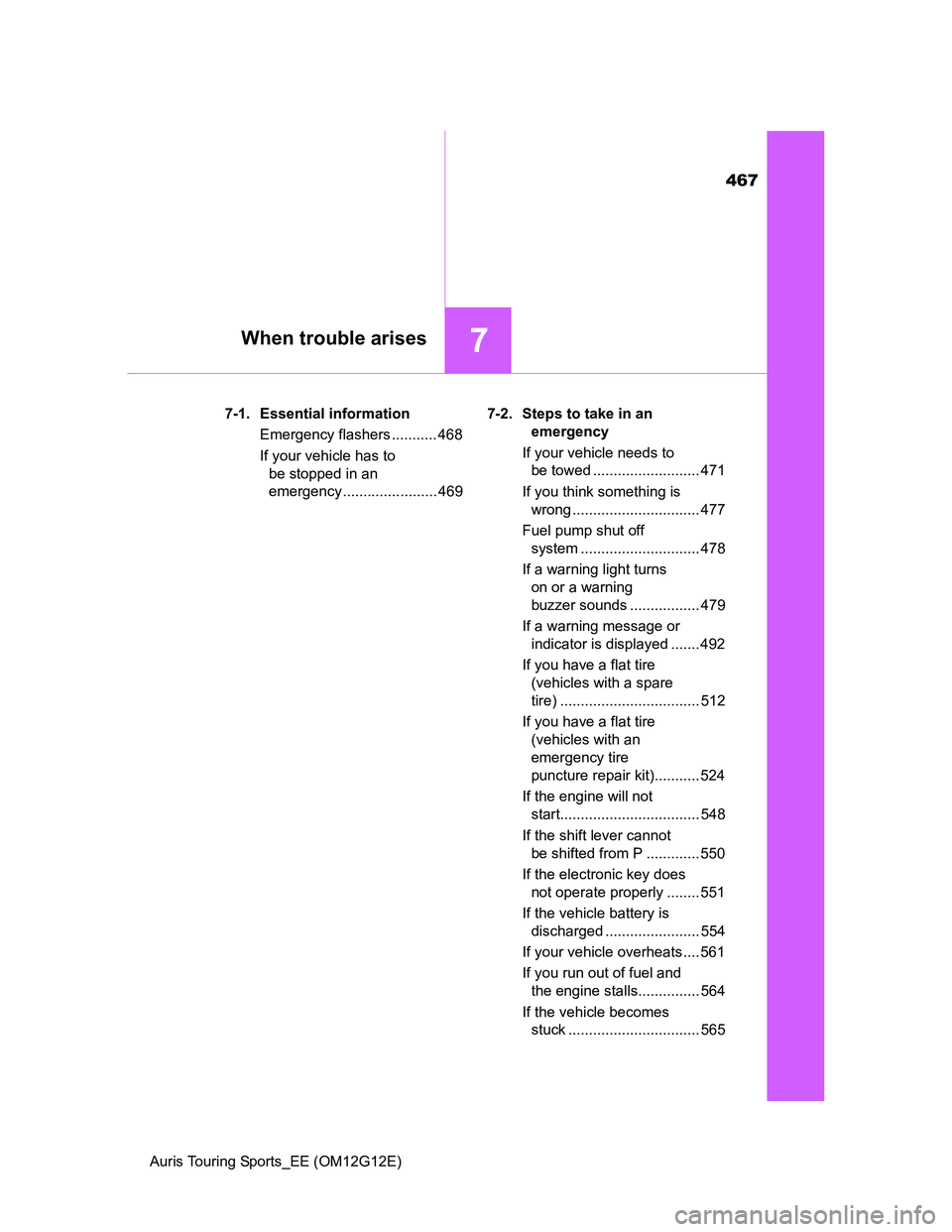

467
7When trouble arises
Auris Touring Sports_EE (OM12G12E)7-1. Essential information
Emergency flashers ........... 468
If your vehicle has to
be stopped in an
emergency ....................... 4697-2. Steps to take in an
emergency
If your vehicle needs to
be towed .......................... 471
If you think something is
wrong ............................... 477
Fuel pump shut off
system ............................. 478
If a warning light turns
on or a warning
buzzer sounds ................. 479
If a warning message or
indicator is displayed ....... 492
If you have a flat tire
(vehicles with a spare
tire) .................................. 512
If you have a flat tire
(vehicles with an
emergency tire
puncture repair kit)........... 524
If the engine will not
start.................................. 548
If the shift lever cannot
be shifted from P ............. 550
If the electronic key does
not operate properly ........ 551
If the vehicle battery is
discharged ....................... 554
If your vehicle overheats .... 561
If you run out of fuel and
the engine stalls............... 564
If the vehicle becomes
stuck ................................ 565

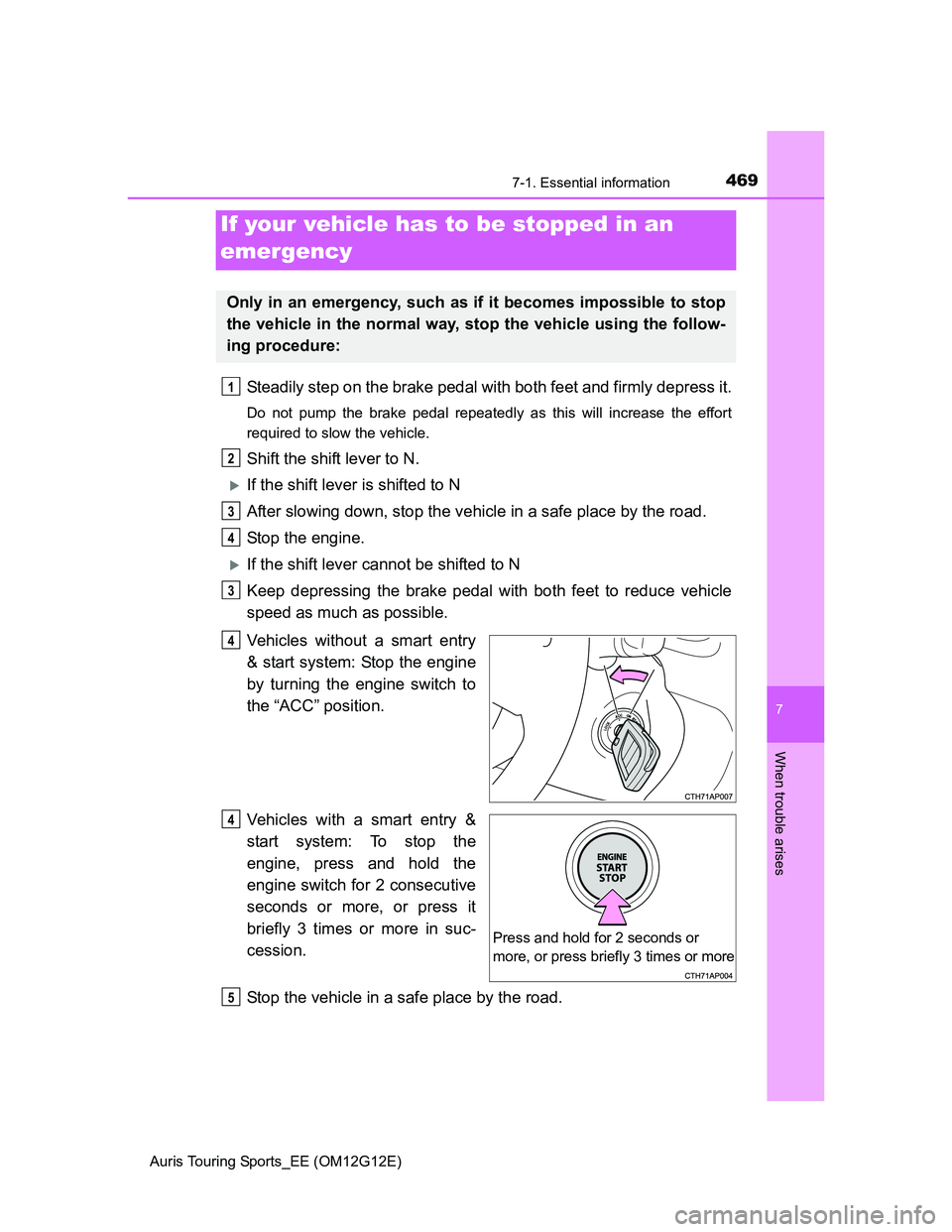

4697-1. Essential information
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without a smart entry
& start system: Stop the engine
by turning the engine switch to
the “ACC” position.
Vehicles with a smart entry &
start system: To stop the
engine, press and hold the
engine switch for 2 consecutive
seconds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
If your vehicle has to be stopped in an
emergency
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:
1
2
3
4
3
4
Press and hold for 2 seconds or
more, or press briefly 3 times or more
4
5

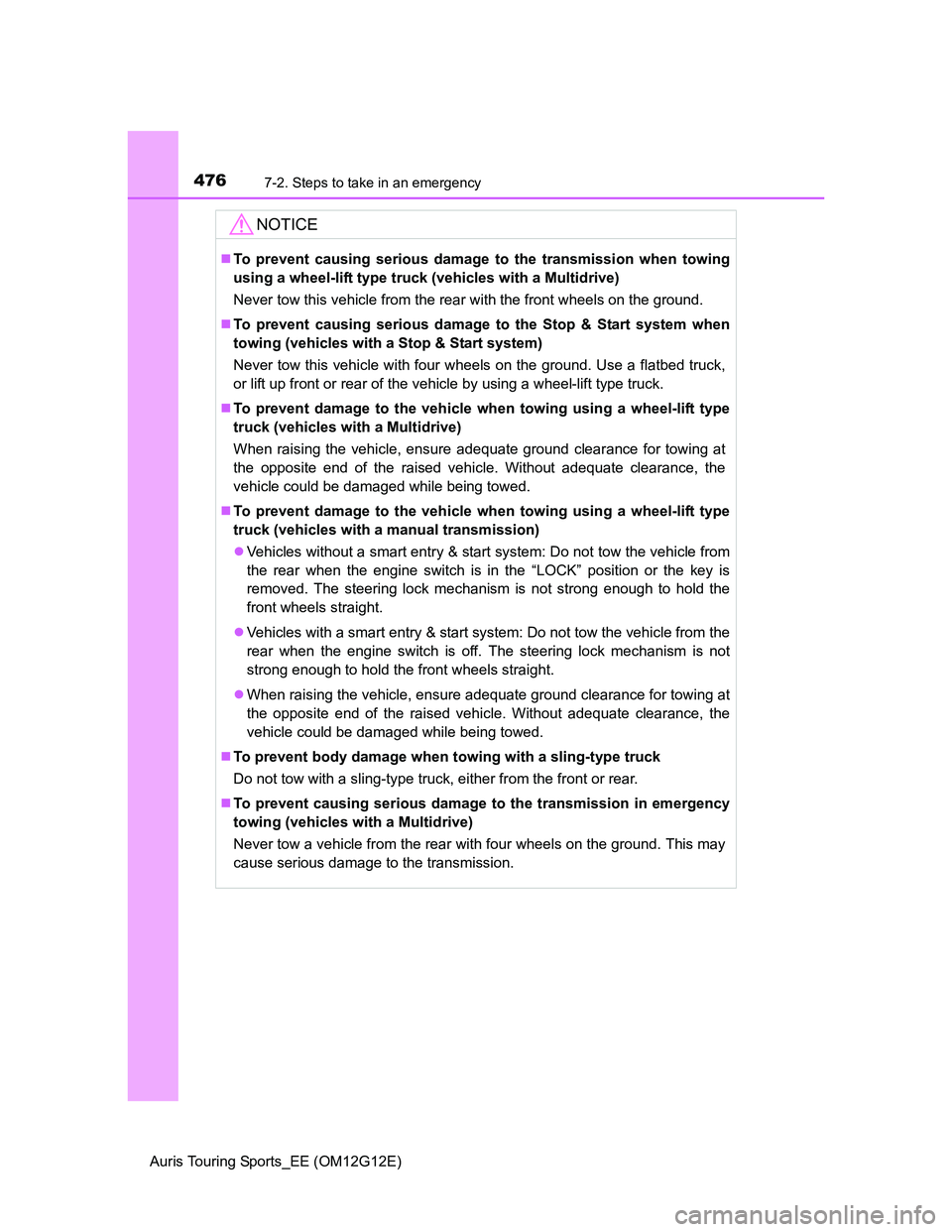

4767-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
NOTICE
To prevent causing serious damage to the transmission when towing
using a wheel-lift type truck (vehicles with a Multidrive)
Never tow this vehicle from the rear with the front wheels on the ground.
To prevent causing serious damage to the Stop & Start system when
towing (vehicles with a Stop & Start system)
Never tow this vehicle with four wheels on the ground. Use a flatbed truck,
or lift up front or rear of the vehicle by using a wheel-lift type truck.
To prevent damage to the vehicle when towing using a wheel-lift type
truck (vehicles with a Multidrive)
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
To prevent damage to the vehicle when towing using a wheel-lift type
truck (vehicles with a manual transmission)
Vehicles without a smart entry & start system: Do not tow the vehicle from
the rear when the engine switch is in the “LOCK” position or the key is
removed. The steering lock mechanism is not strong enough to hold the
front wheels straight.
Vehicles with a smart entry & start system: Do not tow the vehicle from the
rear when the engine switch is off. The steering lock mechanism is not
strong enough to hold the front wheels straight.
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
To prevent causing serious damage to the transmission in emergency
towing (vehicles with a Multidrive)
Never tow a vehicle from the rear with four wheels on the ground. This may
cause serious damage to the transmission.
