4787-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)

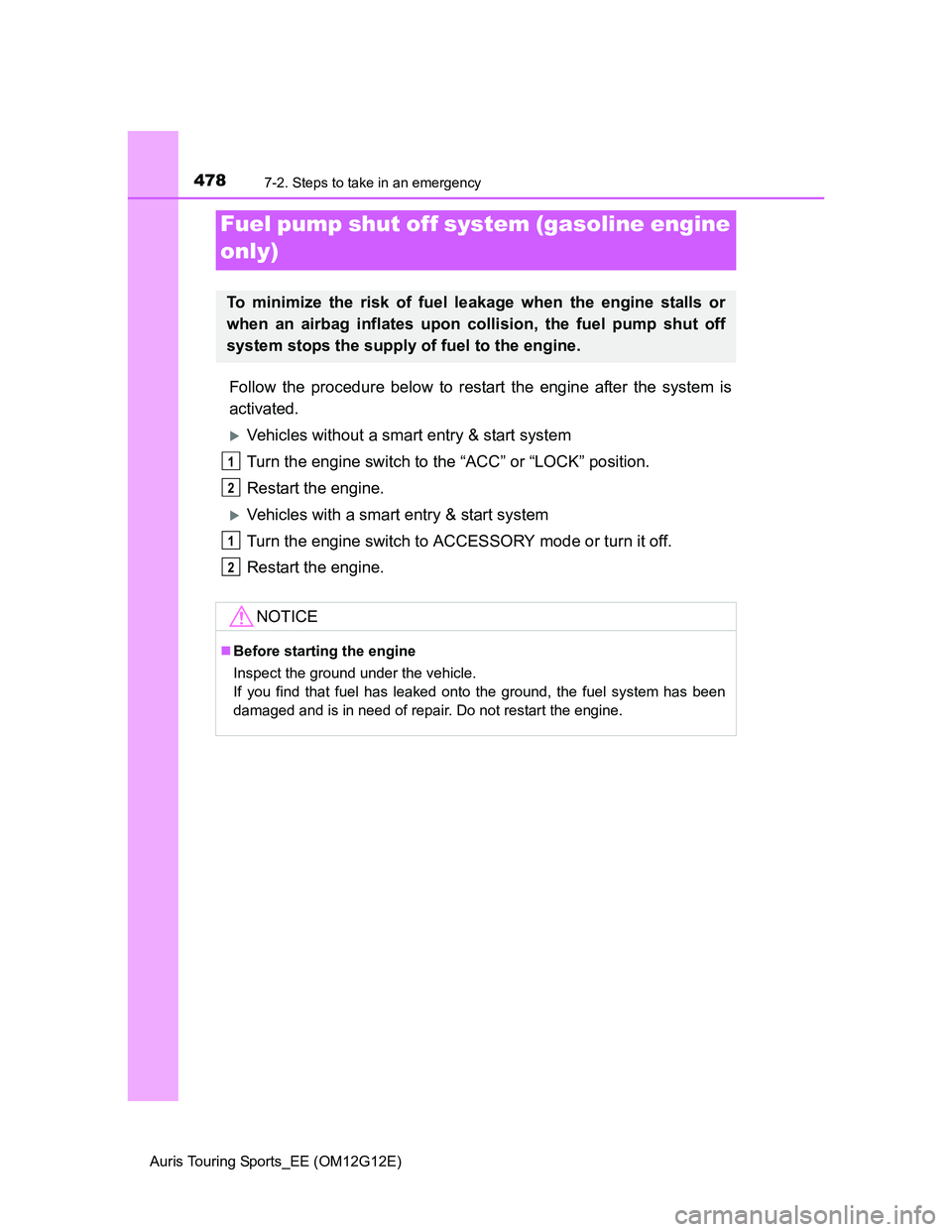

Follow the procedure below to restart the engine after the system is
activated.
Vehicles without a smart entry & start system
Turn the engine switch to the “ACC” or “LOCK” position.
Restart the engine.
Vehicles with a smart entry & start system
Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.
Fuel pump shut off system (gasoline engine
only)
To minimize the risk of fuel leakage when the engine stalls or
when an airbag inflates upon collision, the fuel pump shut off
system stops the supply of fuel to the engine.
NOTICE
Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
1
2
1
2

4817-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
(Flashes)
Stop & Start cancel indicator (if equipped)
Indicates a malfunction in the Stop & Start system
(Comes on)
Slip indicator (if equipped)
Indicates a malfunction in:
• The VSC system;
• The TRC system; or
• The hill-start assist control system
The light will flash when the VSC, the TRC or the hill-start
assist control system is operating.
(Comes on in
yellow)
Automatic High Beam indicator light (if equipped)
Indicates a malfunction in the Automatic High Beam sys-
tem.
(Flashes)
“AFS OFF” indicator (if equipped)
Indicates a malfunction in the adaptive front-lighting sys-
tem
Warning lightWarning light/Details

5537-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises

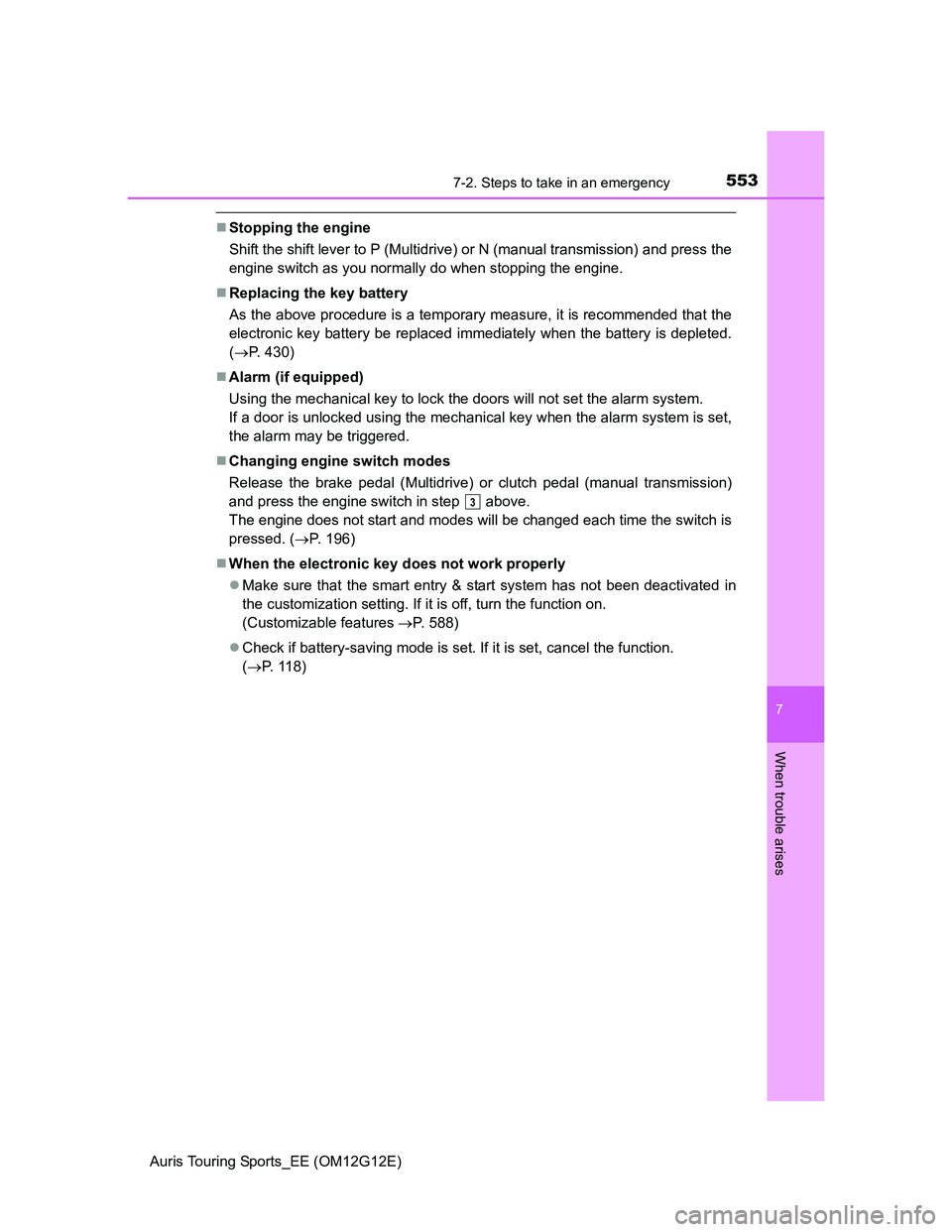

Stopping the engine
Shift the shift lever to P (Multidrive) or N (manual transmission) and press the
engine switch as you normally do when stopping the engine.
Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(P. 430)
Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered.
Changing engine switch modes
Release the brake pedal (Multidrive) or clutch pedal (manual transmission)
and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is
pressed. (P. 196)
When the electronic key does not work properly
Make sure that the smart entry & start system has not been deactivated in
the customization setting. If it is off, turn the function on.
(Customizable features P. 588)
Check if battery-saving mode is set. If it is set, cancel the function.
(P. 118)
3

5657-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises

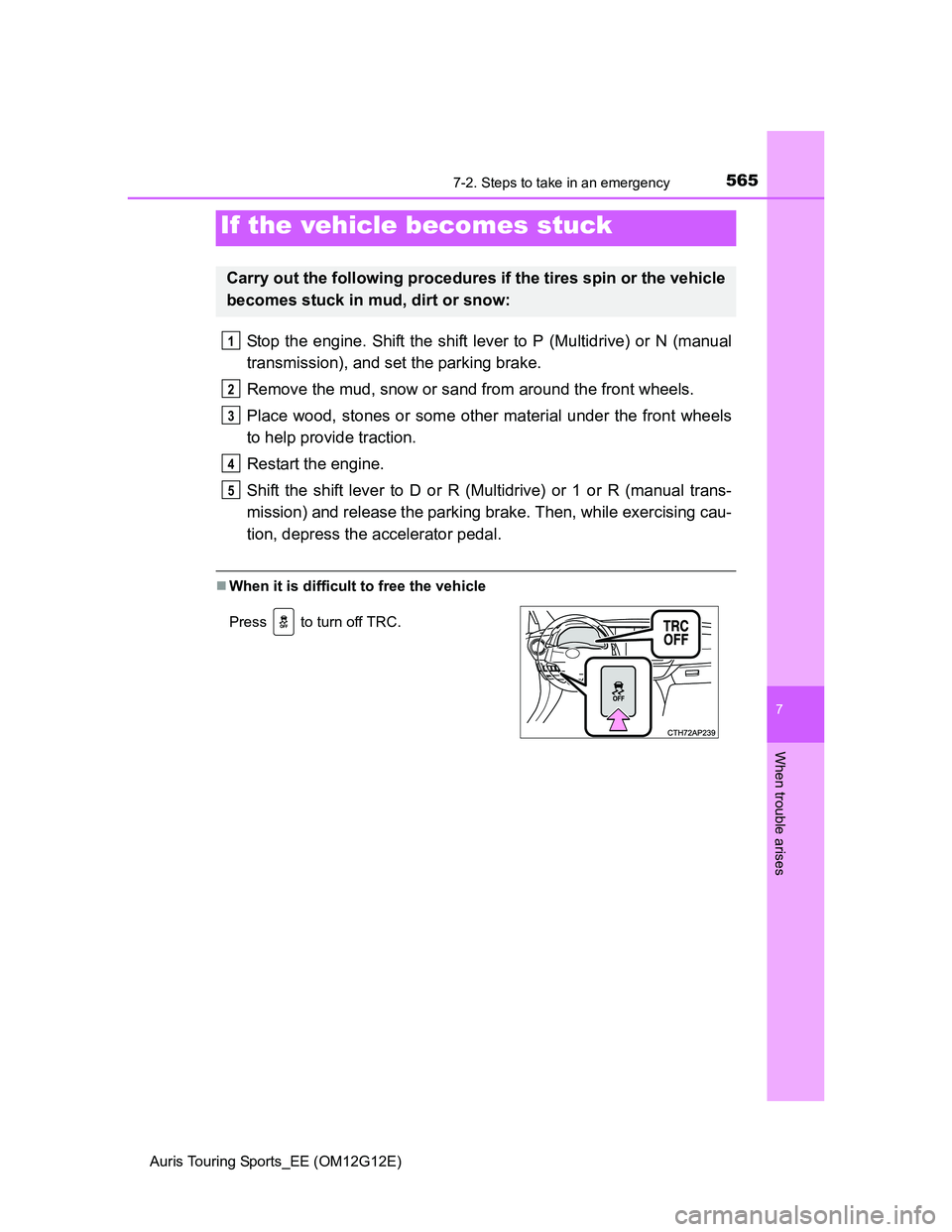

Stop the engine. Shift the shift lever to P (Multidrive) or N (manual
transmission), and set the parking brake.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels
to help provide traction.
Restart the engine.
Shift the shift lever to D or R (Multidrive) or 1 or R (manual trans-
mission) and release the parking brake. Then, while exercising cau-
tion, depress the accelerator pedal.
When it is difficult to free the vehicle
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRC.
1
2
3
4
5

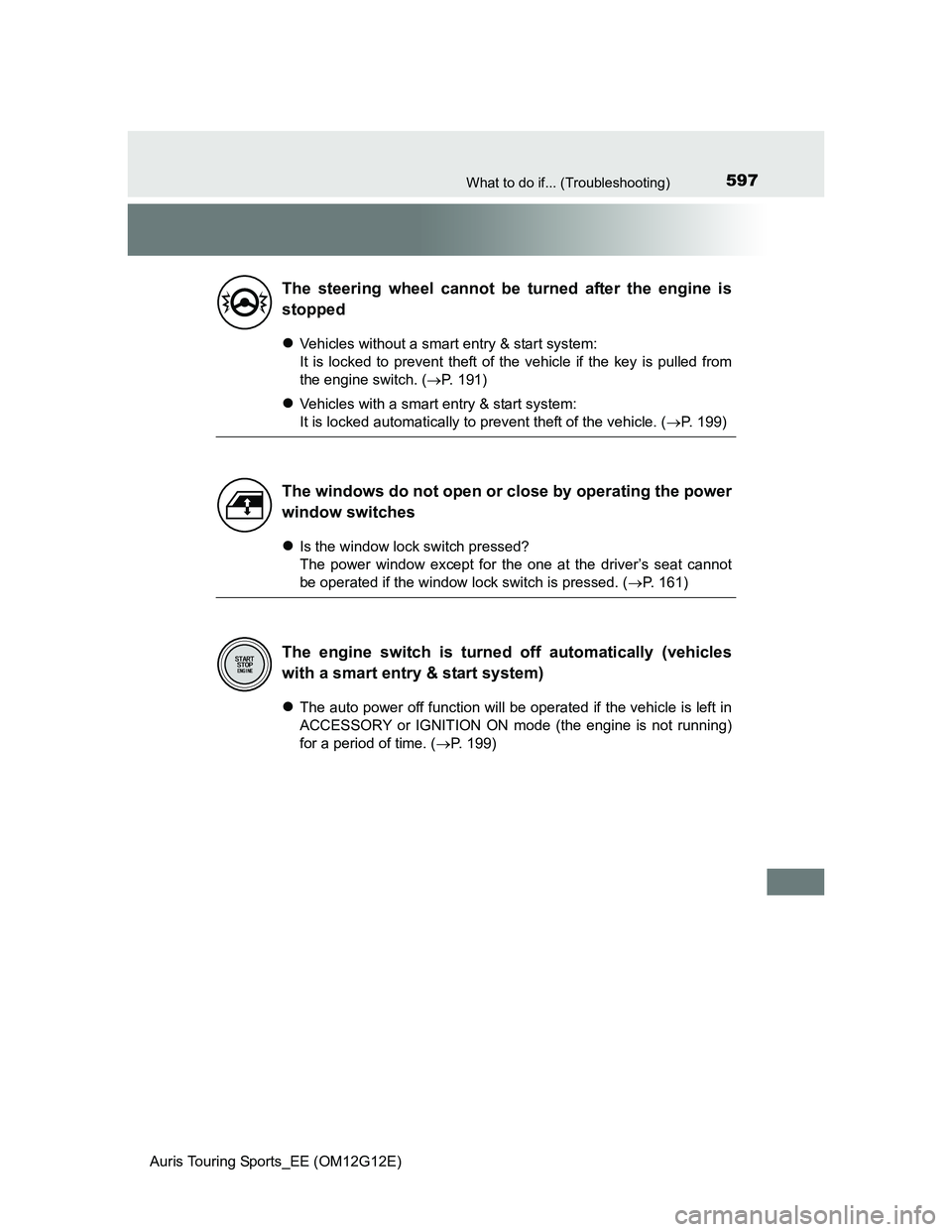

597What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G12E)
Vehicles without a smart entry & start system:
It is locked to prevent theft of the vehicle if the key is pulled from
the engine switch. (P. 191)
Vehicles with a smart entry & start system:
It is locked automatically to prevent theft of the vehicle. (P. 199)
Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot
be operated if the window lock switch is pressed. (P. 161)
The auto power off function will be operated if the vehicle is left in
ACCESSORY or IGNITION ON mode (the engine is not running)
for a period of time. (P. 199)
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches
The engine switch is turned off automatically (vehicles
with a smart entry & start system)

598What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G12E)
The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(P. 483)
The brake system warning light is on
Is the parking brake released? (P. 212)
Depending on the situation, other types of warning buzzer may also
sound. (P. 479, 492)

Did anyone inside the vehicle open a door during setting the
alarm?
The sensor detects it and the alarm sounds. (P. 79)
Vehicles without a smart entry & start system
To stop the alarm, turn the engine switch to the “ON” position or start
the engine.
Vehicles with a smart entry & start system
To stop the alarm, turn the engine switch to IGNITION ON mode or start
the engine.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with an alarm)

604Alphabetical index
Auris Touring Sports_EE (OM12G12E)
Eco Driving Indicator............... 106
Electric Power Steering
(EPS) ....................................... 270
Function ................................ 270
Warning light ......................... 481
Electronic key .......................... 110
Battery-saving function ......... 118
If the electronic key does not
operate properly ................. 551
Replacing the battery ............ 430
Emergency, in case of
If a warning buzzer
sounds ................................ 479
If a warning light turns on ...... 479
If a warning message is
displayed ............................ 492
If the battery is discharged .... 554
If the electronic key does
not operate properly ........... 551
If the engine will not start ...... 548
If the shift lever cannot be
shifted from P ..................... 550
If you have a flat tire...... 512, 524
If you run out of fuel and
the engine stalls.................. 564
If you think something is
wrong .................................. 477
If your vehicle becomes
stuck ................................... 565
If your vehicle has to be
stopped in an emergency ... 469
If your vehicle needs to be
towed .................................. 471
If your vehicle
overheats ............................ 561Emergency brake signal ......... 270
Emergency flashers ................ 468
Emergency tire puncture
repair kit ................................. 524
Engine....................................... 572
Accessory mode ................... 196
Compartment ........................ 405
Engine switch................ 189, 193
Hood ..................................... 401
How to start the
engine......................... 189, 193
Identification number ............ 571
If the engine will not start ...... 548
Ignition switch
(engine switch) ........... 189, 193
Overheating .......................... 561
Engine coolant ......................... 414
Capacity ................................ 579
Checking ............................... 414
Preparing and checking
before winter....................... 279
E

611Alphabetical index
Auris Touring Sports_EE (OM12G12E)
Sensor
Automatic headlight
system ................................ 218
Automatic High Beam
system ................................ 223
Inside rear view mirror .......... 157
Rain-sensing windshield
wipers ................................. 227
Toyota parking
assist-sensor ...................... 244
Shift lever ......................... 203, 208
If the shift lever cannot
be shifted from P ................ 550
Manual transmission ............. 208
Multidrive............................... 203
Shift lock system ..................... 550
Side airbags ............................... 38
Side mirrors.............................. 158
Adjusting and folding............. 158
Side turn signal lights ............. 211
Replacing light bulbs ............. 450
Turn signal lever ................... 211
Wattage................................. 585
Simple-IPA ................................ 250
Smart entry & start system ..... 113
Antenna location ................... 115
Entry functions ...................... 113
Starting the engine ................ 193
Warning message ................. 495Snow tires ................................ 282
Spare tire .................................. 512
Inflation pressure .................. 584
Storage location .................... 513
Spark plug ................................ 579
Specifications .......................... 568
Speech command system*
Speed limiter ............................ 241
Speedometer ........................ 90, 95
Sport mode............................... 204
Steering lock
Column lock release ..... 191, 200
Steering lock system
warning message ............... 509
Steering wheel ......................... 155
Adjustment ............................ 155
Audio switches ...................... 348
Stop & Start cancel switch ..... 265
Stop & Start system ................ 264
Stop & Start system
operation time ................... 92, 97
Stop & Start system total
operation time ................... 92, 97
Stop lights
Emergency brake signal ....... 270
Replacing light bulbs............. 450
Wattage ................................ 585
Storage feature ........................ 355
Stuck
If the vehicle becomes
stuck ................................... 565
Sun visors ................................ 373
Sunshade
Panoramic roof ..................... 385
*: Refer to ““touch screen” Owner’s manual”
