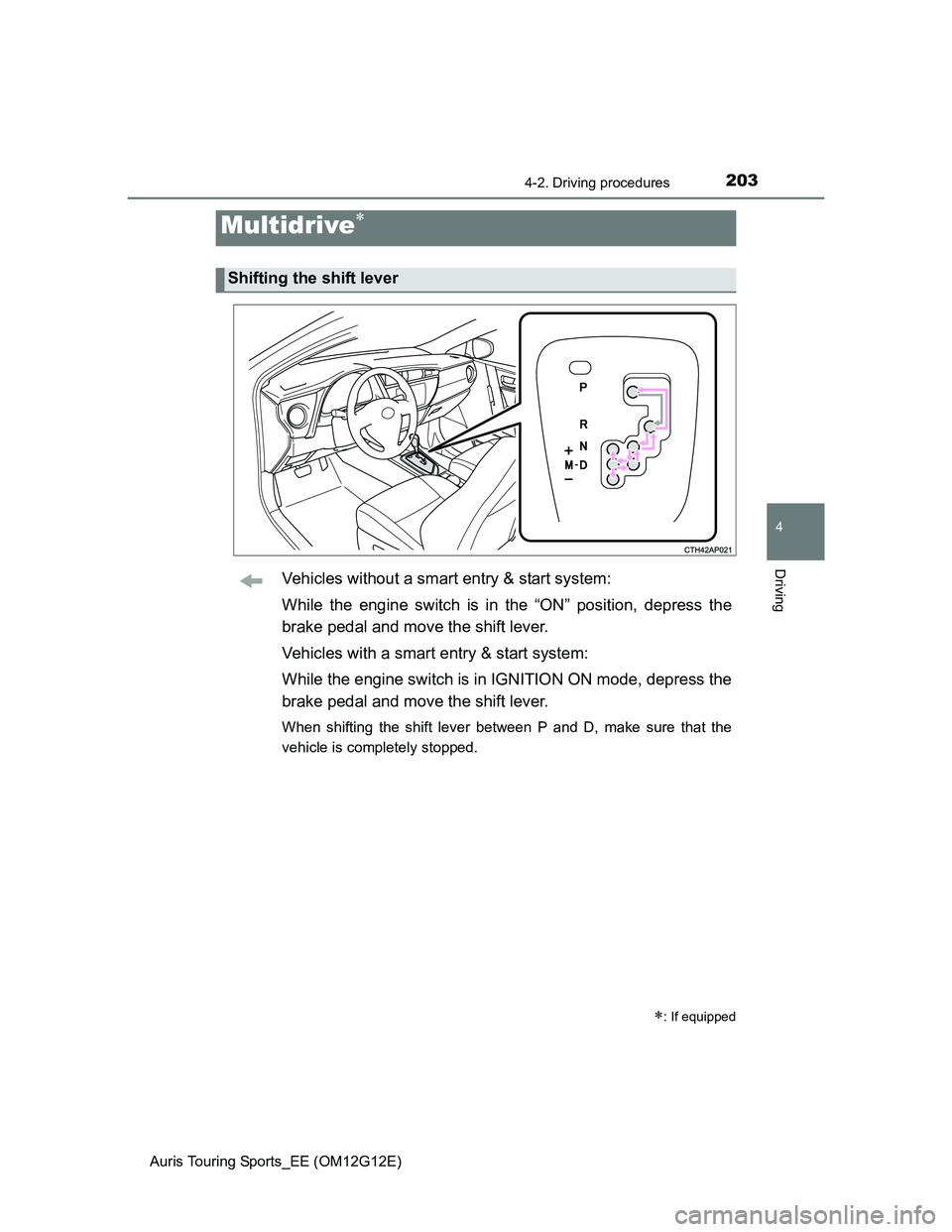

2034-2. Driving procedures
Auris Touring Sports_EE (OM12G12E)
4
DrivingVehicles without a smart entry & start system:
While the engine switch is in the “ON” position, depress the
brake pedal and move the shift lever.
Vehicles with a smart entry & start system:
While the engine switch is in IGNITION ON mode, depress the
brake pedal and move the shift lever.
When shifting the shift lever between P and D, make sure that the
vehicle is completely stopped.
Multidrive
: If equipped
Shifting the shift lever

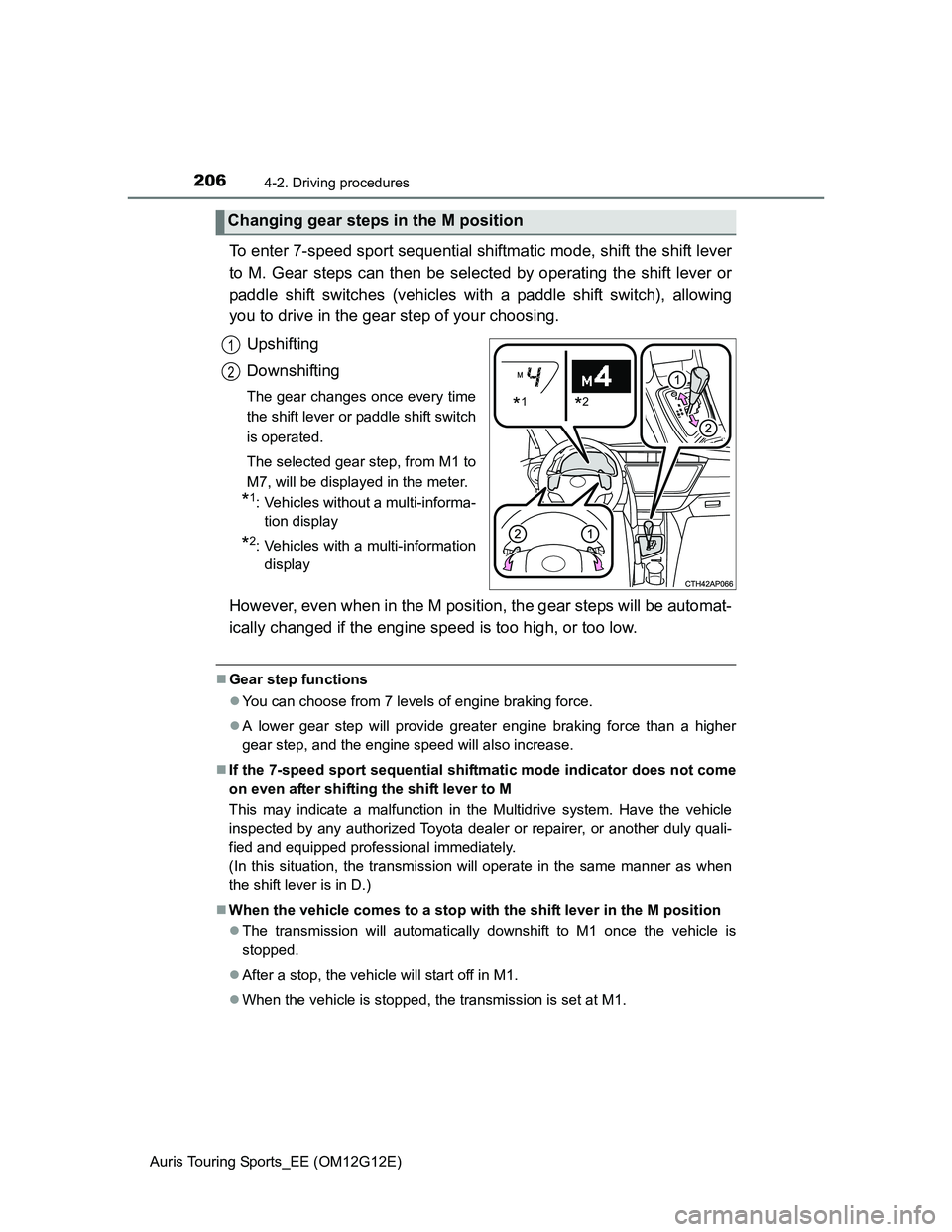

2064-2. Driving procedures
Auris Touring Sports_EE (OM12G12E)
To enter 7-speed sport sequential shiftmatic mode, shift the shift lever
to M. Gear steps can then be selected by operating the shift lever or
paddle shift switches (vehicles with a paddle shift switch), allowing
you to drive in the gear step of your choosing.
Upshifting
Downshifting
The gear changes once every time
the shift lever or paddle shift switch
is operated.
The selected gear step, from M1 to
M7, will be displayed in the meter.
*1: Vehicles without a multi-informa-
tion display
*2: Vehicles with a multi-information
display
However, even when in the M position, the gear steps will be automat-
ically changed if the engine speed is too high, or too low.
Gear step functions
You can choose from 7 levels of engine braking force.
A lower gear step will provide greater engine braking force than a higher
gear step, and the engine speed will also increase.
If the 7-speed sport sequential shiftmatic mode indicator does not come
on even after shifting the shift lever to M
This may indicate a malfunction in the Multidrive system. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately.
(In this situation, the transmission will operate in the same manner as when
the shift lever is in D.)
When the vehicle comes to a stop with the shift lever in the M position
The transmission will automatically downshift to M1 once the vehicle is
stopped.
After a stop, the vehicle will start off in M1.
When the vehicle is stopped, the transmission is set at M1.
Changing gear steps in the M position
*1*2
1
2

2544-5. Using the driving support systems
Auris Touring Sports_EE (OM12G12E)
When the rear Toyota parking
assist-sensor’s warning buzzer
sounds continuously, com-
pletely stop the vehicle immedi-
ately.
The multi-information display will
change when the warning buzzer
starts sounding continuously.
Shift the shift lever to D (Multidrive) or 1 (manual transmission).
While the steering wheel is turning, keep the vehicle at a complete stop.
When the steering wheel stops turning, move the vehicle forward slowly
while checking the safety of the area in front of the vehicle.
When the front Toyota parking
assist-sensor’s warning buzzer
sounds continuously, com-
pletely stop the vehicle immedi-
ately.
The multi-information display will
change when the warning buzzer
starts sounding continuously.
7
8
9

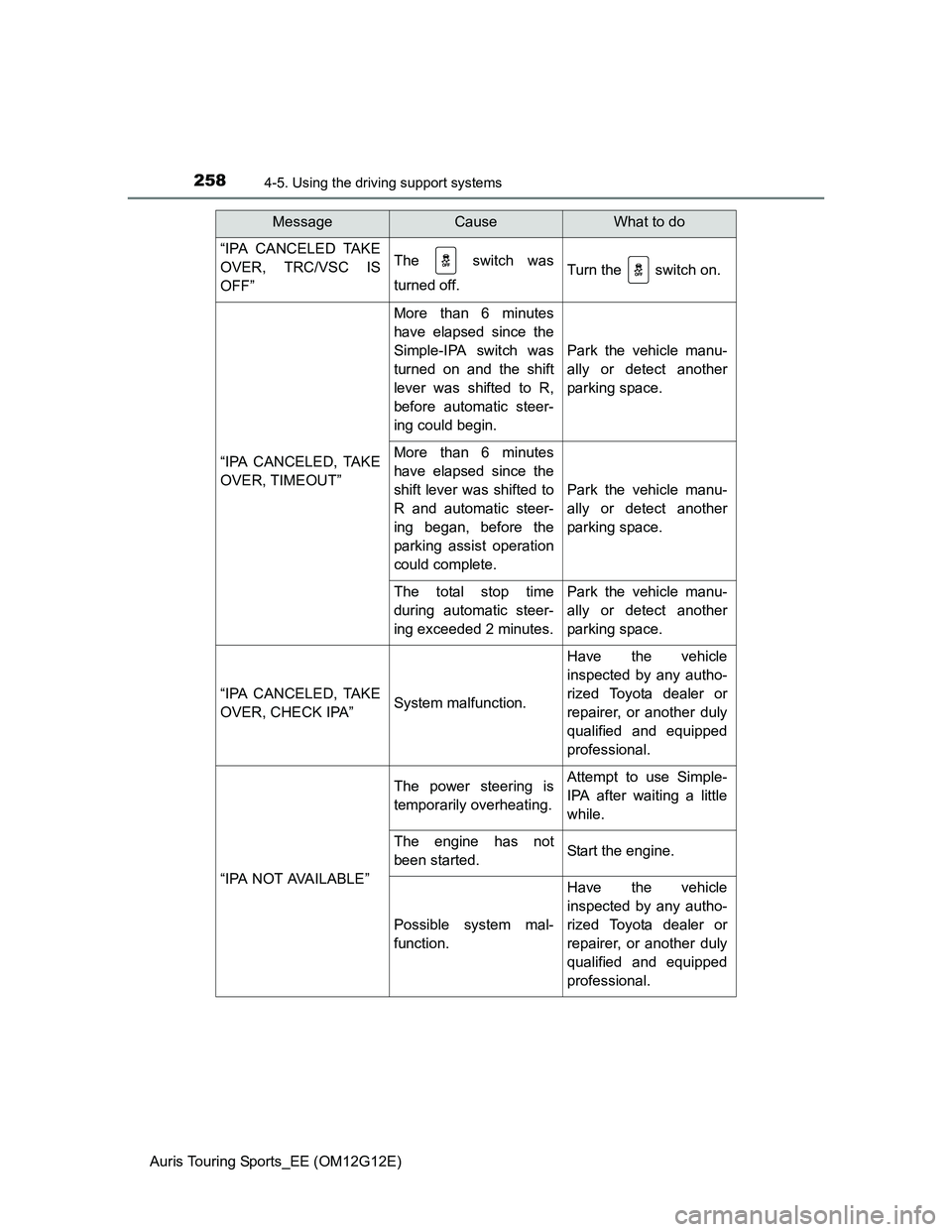

2584-5. Using the driving support systems
Auris Touring Sports_EE (OM12G12E)
“IPA CANCELED TAKE
OVER, TRC/VSC IS
OFF”The switch was
turned off.Turn the switch on.
“IPA CANCELED, TAKE
OVER, TIMEOUT”
More than 6 minutes
have elapsed since the
Simple-IPA switch was
turned on and the shift
lever was shifted to R,
before automatic steer-
ing could begin.
Park the vehicle manu-
ally or detect another
parking space.
More than 6 minutes
have elapsed since the
shift lever was shifted to
R and automatic steer-
ing began, before the
parking assist operation
could complete.
Park the vehicle manu-
ally or detect another
parking space.
The total stop time
during automatic steer-
ing exceeded 2 minutes.Park the vehicle manu-
ally or detect another
parking space.
“IPA CANCELED, TAKE
OVER, CHECK IPA”System malfunction.
Have the vehicle
inspected by any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional.
“IPA NOT AVAILABLE”
The power steering is
temporarily overheating.Attempt to use Simple-
IPA after waiting a little
while.
The engine has not
been started.Start the engine.
Possible system mal-
function.
Have the vehicle
inspected by any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional.
MessageCauseWhat to do

2604-5. Using the driving support systems
Auris Touring Sports_EE (OM12G12E)
Operation conditions of Simple-IPA
The engine is started.
The switch is on.
The vehicle speed is 30 km/h (18 mph) or less. (During automatic steering,
the vehicle speed is 6 km/h [3 mph] or less.)
Canceling of the Simple-IPA operation
Simple-IPA operation will be canceled when:
The Simple-IPA switch is turned off.
The ABS, VSC or TRC is operating.
The shift lever is shifted to R during detection of a parking space.
The shift lever is shifted to R and the vehicle is reversed 1 m (3 ft.) or more
after a parking space has been detected and before the buzzer sounds.
The steering wheel is operated manually during automatic steering.
It takes more than 6 minutes for automatic steering to begin after the Sim-
ple-IPA switch is turned on and the shift lever is shifted to R.
The shift lever is shifted to a position other than R after the automatic steer-
ing began and before the vehicle enters a parking space.
It takes more than 6 minutes to complete parking after the shift lever was
shifted to R and automatic steering began.
The total stop time during automatic steering exceeds 2 minutes.
Resume function of Simple-IPA
If Simple-IPA is canceled due to one of the following operations, Simple-IPA
operation may be able to be resumed by pressing the Simple-IPA switch
depending on conditions such as the vehicle stopped position and steering
wheel angle.
The steering wheel is operated manually during automatic steering.
The vehicle speed exceeds 6 km/h (3 mph) during automatic steering.
The shift lever is moved to a position other than R after the automatic steer-
ing began and before the vehicle enters a parking space.
If operation is not resumed, park the vehicle manually or detect another park-
ing space.

2614-5. Using the driving support systems
Auris Touring Sports_EE (OM12G12E)
4
Driving
When using Simple-IPA repeatedly
When Simple-IPA is used repeatedly, the power steering may overheat tem-
porarily. It may deactivate or cancel Simple-IPA operation. In this case, wait a
few minutes before using Simple-IPA again.
Toyota parking assist-sensor operation during Simple-IPA operation
Even if the Toyota parking assist-sensor switch is turned off while Simple-IPA
is activated, the Toyota parking assist-sensor will keep operating. In this case,
when Simple-IPA operation is complete or canceled, the Toyota parking
assist-sensor will be deactivated.
Stop & Start system operation during Simple-IPA operation (vehicles
with a Stop & Start system)
The Stop & Start system does not operate during Simple-IPA operation. If the
Simple-IPA switch is turned on during Stop & Start system operation, Stop &
Start system operation will be canceled.
When the cabin temperature is high
The sensors may not work properly when the cabin temperature is high due
to parking the vehicle in the sun. Use Simple-IPA after the cabin cools down.
Sensors used by Simple-IPA
P. 244
Initializing Simple-IPA
Within 15 seconds of turning the Simple-IPA switch on, turn the steering
wheel all the way to the left or right and then to the opposite side.
When the parking space detection screen is displayed, the initialization is
complete.
If pressing the Simple-IPA switch again still shows “IPA NOT AVAILABLE,
STOP THE VEHICLE, TURN WHEEL FROM LEFT END TO RIGHT END” on
the multi-information display, the initialization has failed. Have the vehicle
inspected at any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
CAUTION
Cautions regarding the use of Simple-IPA
Never depend on the Simple-IPA entirely when parking. The driver is
responsible for safety. Use caution, just as you would when parking any
vehicle.
Back up slowly, using the brake pedal to control the vehicle's speed.
If it seems likely to hit nearby vehicles, obstacles, or people, depress the
brake pedal to stop the vehicle, and the disable the system.

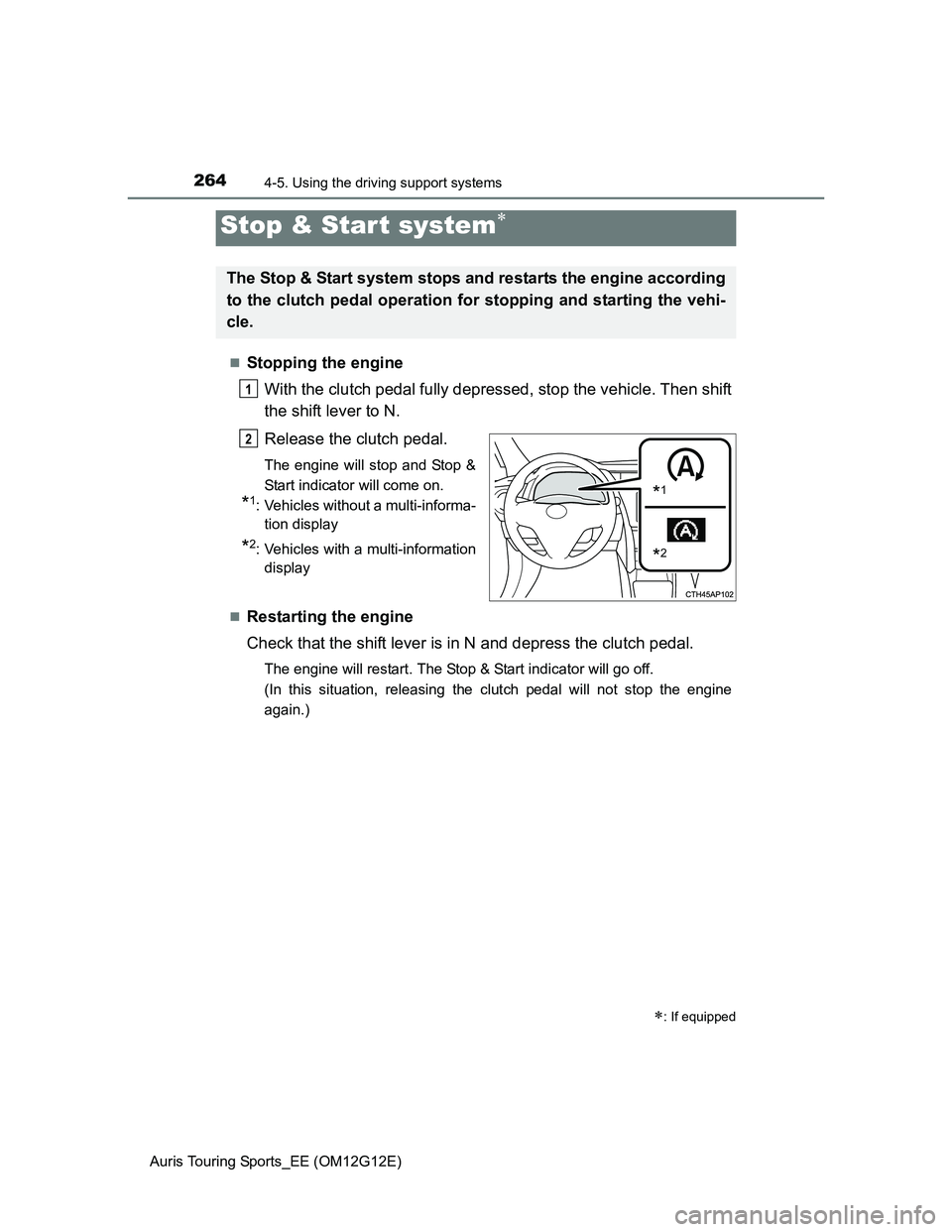

2644-5. Using the driving support systems
Auris Touring Sports_EE (OM12G12E)
Stopping the engine
With the clutch pedal fully depressed, stop the vehicle. Then shift
the shift lever to N.
Release the clutch pedal.
The engine will stop and Stop &
Start indicator will come on.
*1: Vehicles without a multi-informa-
tion display
*2: Vehicles with a multi-information
display

Restarting the engine
Check that the shift lever is in N and depress the clutch pedal.
The engine will restart. The Stop & Start indicator will go off.
(In this situation, releasing the clutch pedal will not stop the engine
again.)
Stop & Star t system
: If equipped
The Stop & Start system stops and restarts the engine according
to the clutch pedal operation for stopping and starting the vehi-
cle.
1
*1
*2
2

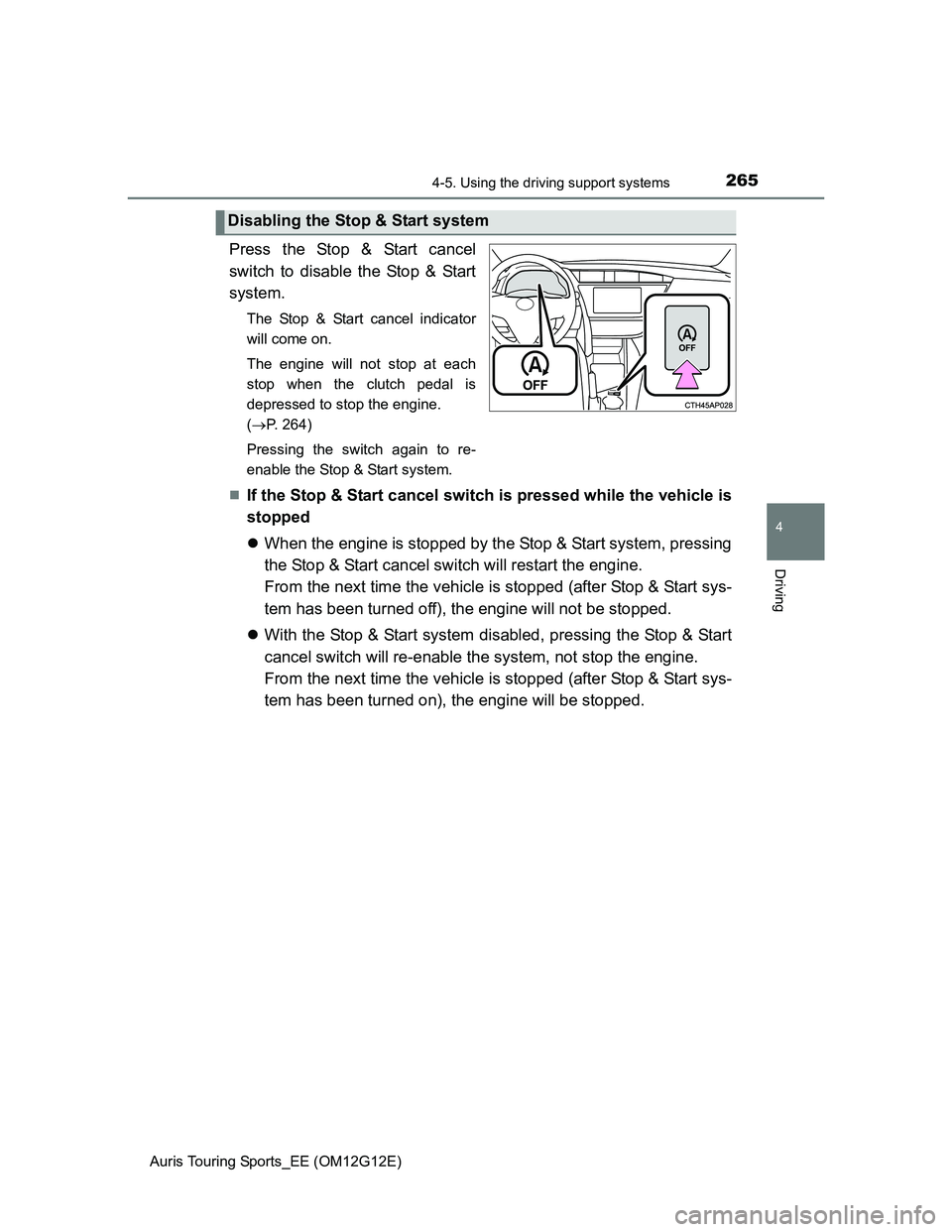

2654-5. Using the driving support systems
Auris Touring Sports_EE (OM12G12E)
4
Driving
Press the Stop & Start cancel
switch to disable the Stop & Start
system.
The Stop & Start cancel indicator
will come on.
The engine will not stop at each
stop when the clutch pedal is
depressed to stop the engine.
(P. 264)
Pressing the switch again to re-
enable the Stop & Start system.

If the Stop & Start cancel switch is pressed while the vehicle is
stopped
When the engine is stopped by the Stop & Start system, pressing
the Stop & Start cancel switch will restart the engine.
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned off), the engine will not be stopped.
With the Stop & Start system disabled, pressing the Stop & Start
cancel switch will re-enable the system, not stop the engine.
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned on), the engine will be stopped.
Disabling the Stop & Start system
