2013 TOYOTA AURIS TOURING SPORTS stop start

71
1
For safety and security
Auris Touring Sports_EE (OM12G12E)
1-2. Theft deterrent system
Vehicles without a smart entry &
start system:
The indicator light flashes after
the key has been removed from
the engine switch to indicate that
the system is operating.
The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with a smart entry & start
system:
The indicator light flashes after
the engine switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the engine switch has been
turned to ACCESSORY or IGNI-
TION ON mode to indicate that
the system has been canceled.

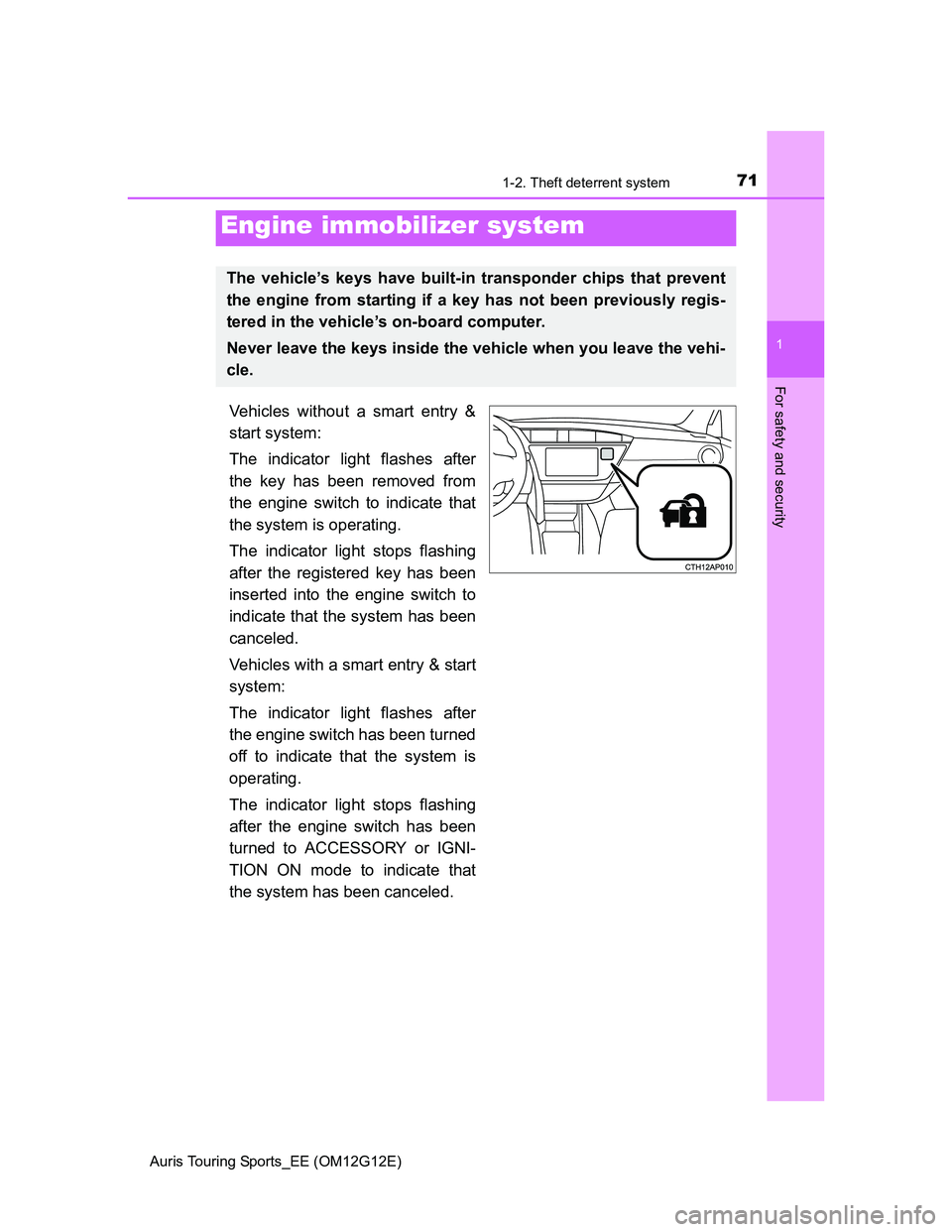

Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.

801-2. Theft deterrent system
Auris Touring Sports_EE (OM12G12E)
Do one of the following to deactivate or stop the alarm:
Unlock the doors using the entry function (if equipped) or wireless
remote control.
Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
System maintenance
The vehicle has a maintenance-free type alarm system.
Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
Nobody is in the vehicle.
The windows are closed before the alarm is set.
No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm

862. Instrument cluster
Auris Touring Sports_EE (OM12G12E)
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
Brake system warning
light (P. 479)*2, 4
(Yellow)
Automatic High Beam
indicator light (P. 481)
*1, 2Charging system warn-
ing light (P. 480)*1, 2, 3 “AFS OFF” indicator
(P. 481)
*1, 2Low engine oil pressure
warning light (P. 480)*1, 2Fuel filter warning light
(diesel engine)
(P. 482)
*1, 2High engine coolant
temperature warning
light (P. 480)*2, 4
(Yellow)
Cruise control indicator
light (P. 482)
*1
Malfunction indicator
lamp (P. 480)*2, 4
(Yellow)
Speed limiter indicator
light (P. 482)
*1
SRS warning light
(P. 481)*2, 5
(Yellow)
Smart entry & start sys-
tem indicator light
(P. 482)
*1ABS warning light
(P. 481)*2Open door warning light
(P. 482)
*1Electric power steering
system warning light
(P. 481)Low fuel level warning
light (P. 482)
*2, 3Stop & Start cancel indi-
cator (P. 481)Driver’s and front pas-
senger’s seat belt
reminder light (P. 483)
*1
Slip indicator (P. 481)
Rear passengers’ seat
belt reminder lights
(P. 483)

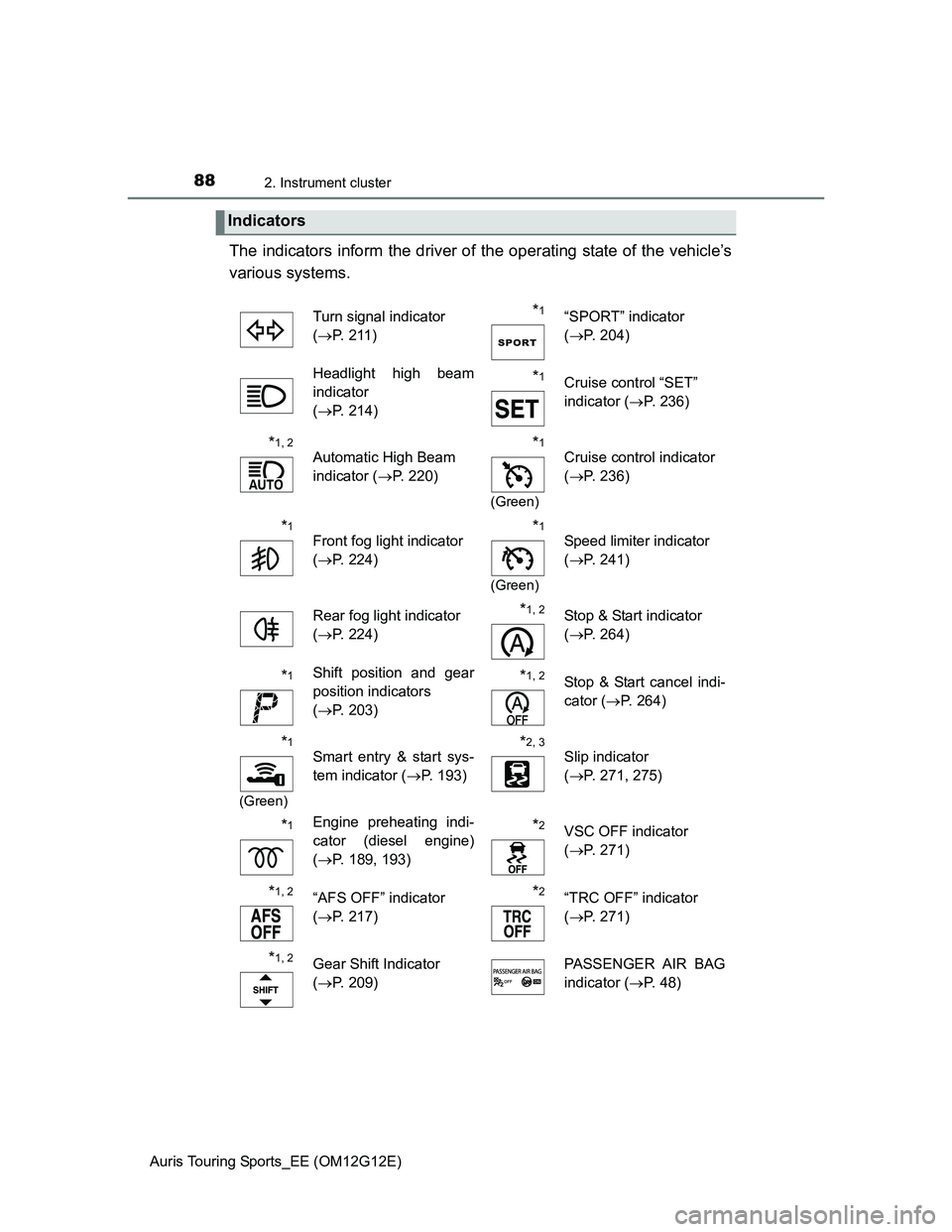

882. Instrument cluster
Auris Touring Sports_EE (OM12G12E)
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(P. 211)*1“SPORT” indicator
(P. 204)
Headlight high beam
indicator
(P. 214)
*1Cruise control “SET”
indicator (P. 236)
*1, 2
Automatic High Beam
indicator (P. 220)*1
(Green)
Cruise control indicator
(P. 236)
*1
Front fog light indicator
(P. 224)*1
(Green)
Speed limiter indicator
(P. 241)
Rear fog light indicator
(P. 224)
*1, 2Stop & Start indicator
(P. 264)
*1Shift position and gear
position indicators
(P. 203)*1, 2Stop & Start cancel indi-
cator (P. 264)
*1
(Green)
Smart entry & start sys-
tem indicator (P. 193) *2, 3 Slip indicator
(P. 271, 275)
*1Engine preheating indi-
cator (diesel engine)
(P. 189, 193) *2VSC OFF indicator
(P. 271)
*1, 2“AFS OFF” indicator
(P. 217)*2 “TRC OFF” indicator
(P. 271)
*1, 2Gear Shift Indicator
(P. 209)PASSENGER AIR BAG
indicator (P. 48)

922. Instrument cluster
Auris Touring Sports_EE (OM12G12E)
Displays the driving range, average fuel consumption and other cruis-
ing related information. The display can be switched by pressing the
display change button/“DISP” switch.
Odometer
Trip meter A/trip meter B
Stop & Start system operation time (if equipped)
Stop & Start system total operation time (if equipped)
Trip information
Displays the total distance the vehicle has
been driven.
Press and hold the display change button/“DISP”
switch switches the display to Eco Driving Indi-
cator Light customization screen. (P. 108)
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and dis-
play different distances independently.
Press and hold the display change button/“DISP”
switch to reset.
Displays the amount of time the engine was
stopped due to the operation of the Stop &
Start system during the current trip (from when
the engine was started until it is turned off).
Displays the total amount of time that the
engine has been stopped due to the operation
of the Stop & Start system since the system
was last reset.
Press and hold the display change button/“DISP”
switch to reset.

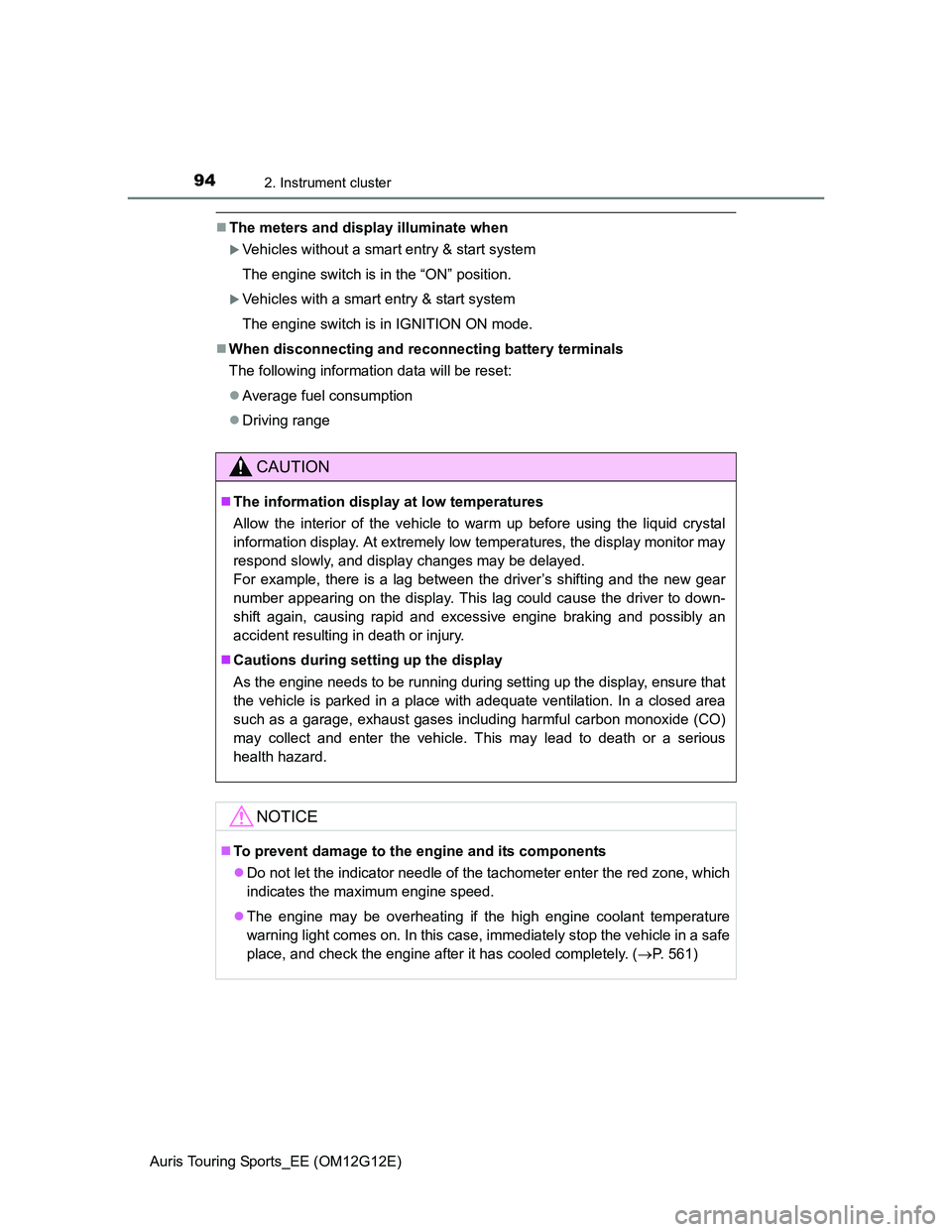

942. Instrument cluster
Auris Touring Sports_EE (OM12G12E)
The meters and display illuminate when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
When disconnecting and reconnecting battery terminals
The following information data will be reset:
Average fuel consumption
Driving range
CAUTION
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating if the high engine coolant temperature
warning light comes on. In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (P. 561)

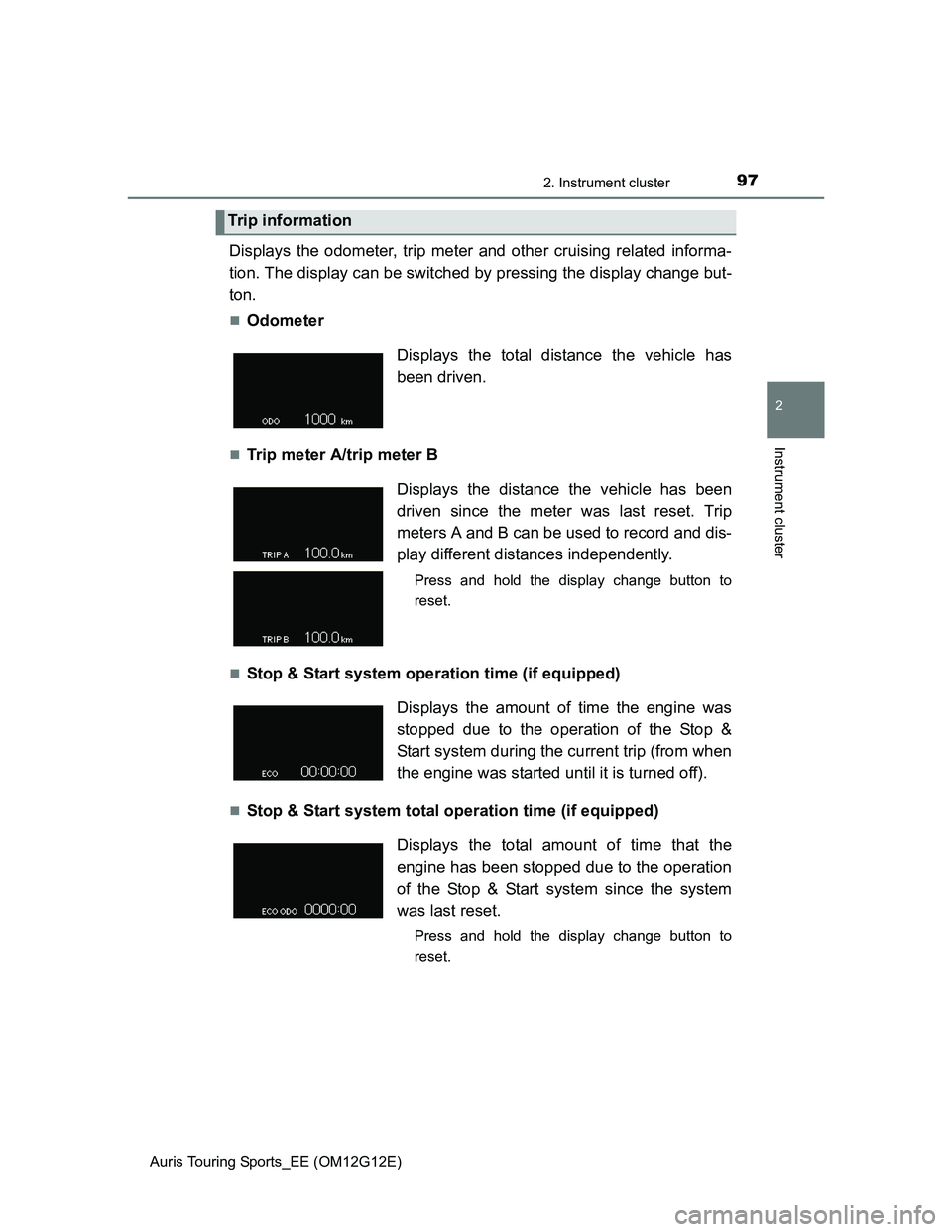

972. Instrument cluster
Auris Touring Sports_EE (OM12G12E)
2
Instrument cluster
Displays the odometer, trip meter and other cruising related informa-
tion. The display can be switched by pressing the display change but-
ton.
Odometer
Trip meter A/trip meter B
Stop & Start system operation time (if equipped)
Stop & Start system total operation time (if equipped)
Trip information
Displays the total distance the vehicle has
been driven.
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and dis-
play different distances independently.
Press and hold the display change button to
reset.
Displays the amount of time the engine was
stopped due to the operation of the Stop &
Start system during the current trip (from when
the engine was started until it is turned off).
Displays the total amount of time that the
engine has been stopped due to the operation
of the Stop & Start system since the system
was last reset.
Press and hold the display change button to
reset.

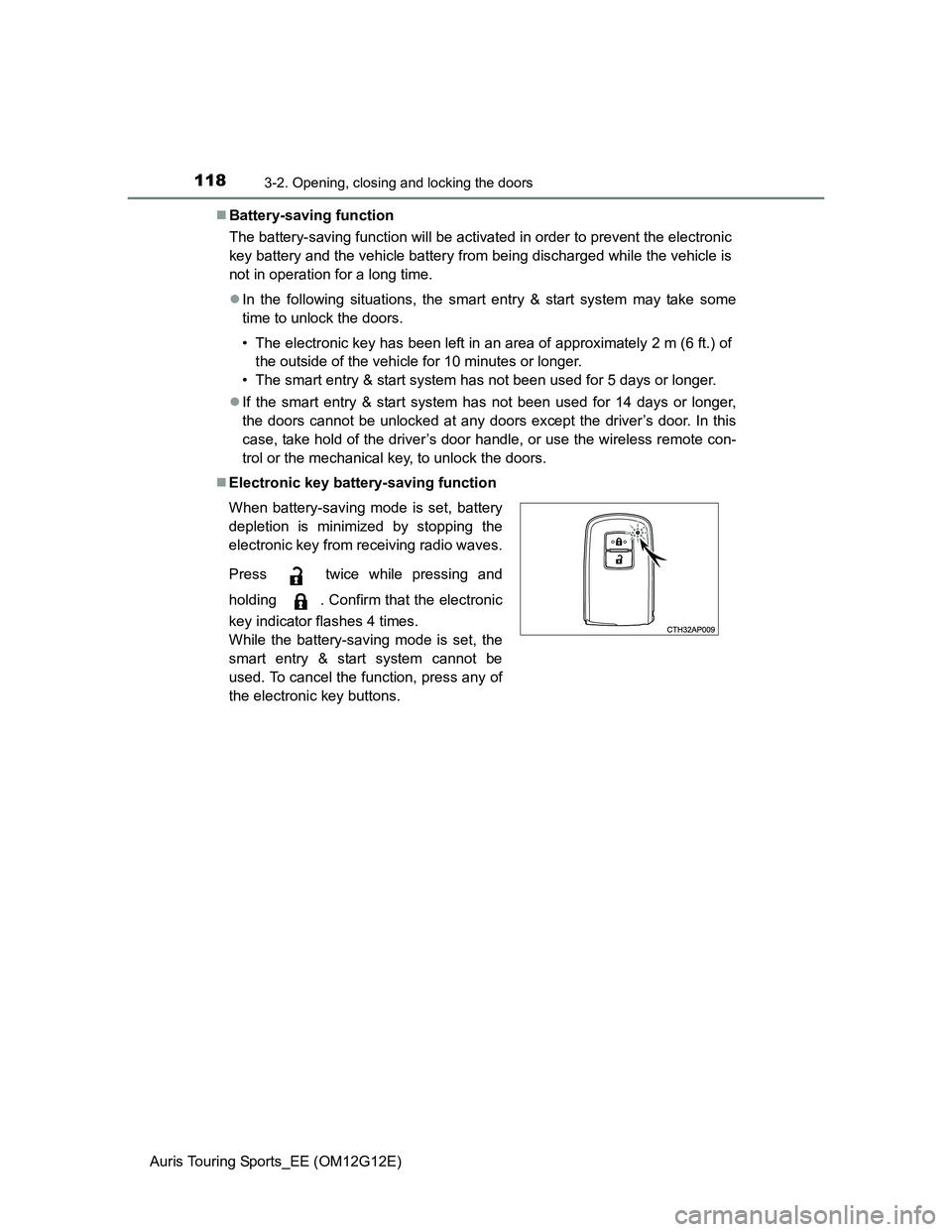

1183-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G12E)Battery-saving function
The battery-saving function will be activated in order to prevent the electronic
key battery and the vehicle battery from being discharged while the vehicle is
not in operation for a long time.
In the following situations, the smart entry & start system may take some
time to unlock the doors.
• The electronic key has been left in an area of approximately 2 m (6 ft.) of
the outside of the vehicle for 10 minutes or longer.
• The smart entry & start system has not been used for 5 days or longer.
If the smart entry & start system has not been used for 14 days or longer,
the doors cannot be unlocked at any doors except the driver’s door. In this
case, take hold of the driver’s door handle, or use the wireless remote con-
trol or the mechanical key, to unlock the doors.
Electronic key battery-saving function
When battery-saving mode is set, battery
depletion is minimized by stopping the
electronic key from receiving radio waves.
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart entry & start system cannot be
used. To cancel the function, press any of
the electronic key buttons.
