1. OVERVIEW
1) Mounting Locations
Door panel switch (driver)
Door panel switch (passenger)
Door panel switch (rear)
IP panel switch
Steering wheel switch
Front console switch
Trunk switch
Headlining switch 1.
2.
3.
4.
5.
6.
7.
8. This helps to enable the driver to drive the vehicle safely and comfortably by operating the switch for the
driving situation.

Drive door main switch
& outside mirror switchHeater and A/C control switch
(auto)
Start/stop switchSteering wheel remote
control switch
Center fascia switch
Passenger door switch
Lower main panel
switch
Cruise control switch
Multifunction switch
Switch layout

Lower main panel switch
3) Lower Main Panel Switch
Rear fog lamp switch (EU ONLY)
Steering wheel heating switchHLLD (Headlamp Leveling Device)4WD LOCK switch
ESP OFF switch This helps the driver to drive the vehicle comfortably by operating the switch for the driving situation.

8510-00
4WD LOCK switch
This switch is of push lock type, which
enables to increase/decrease the
torque to the rear wheels in AWD
mode.
Steering wheel heating
switch
This switch is of push return type,
which is used to activate or deactivate
the steering wheel heating function.
ESP OFF switch
The ESP OFF switch is of push return
type, which is used to stop or resume
the ESP function.
4WD LOCK switch
This switch is of push lock type, which
enables to increase/decrease the
torque to the rear wheels in AWD
mode.
HLLD
(Headlamp Leveling Device)
The headlamp aiming can be adjusted
by using this dial-type switch.
Rear fog lamp switch
(EU ONLY)
This switch is of push return type,
which sends ON/OFF signal to the
BCM so that the BCM can switch on
the lamps by activating the rear fog
lamp relay.

8510-00

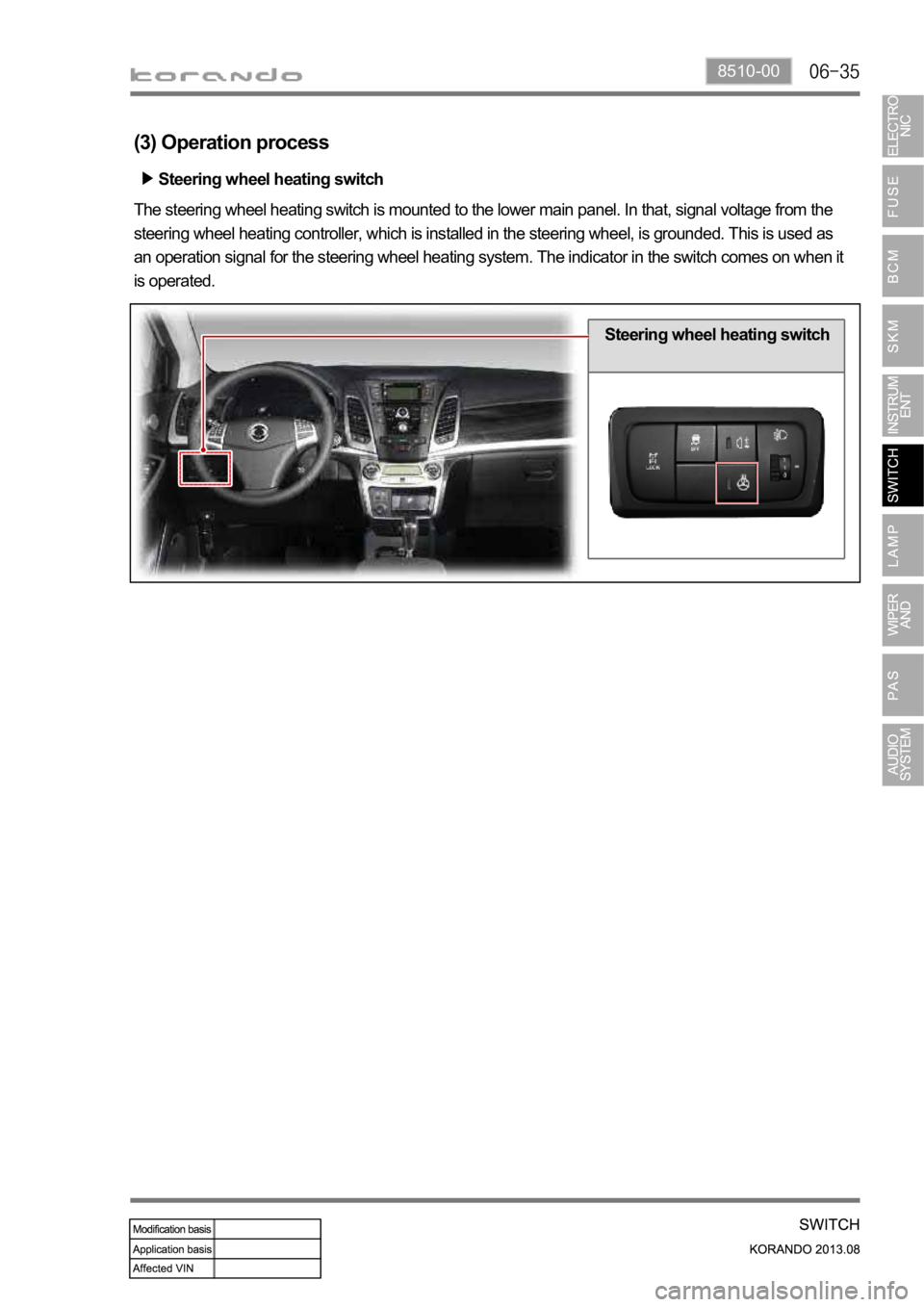

Steering wheel heating switch
The steering wheel heating switch is mounted to the lower main panel. In that, signal voltage from the
steering wheel heating controller, which is installed in the steering wheel, is grounded. This is used as
an operation signal for the steering wheel heating system. The indicator in the switch comes on when it
is operated.
Steering wheel heating switch
(3) Operation process

8510-00
Audio remote control switch (RH)Audio remote control switch (LH)
1) Audio Remote Control Switch
4. STEERING WHEEL SWITCH
MUTE & MODE switch
Volume UP/DOWN switchSEEK UP/DOWN switch
Handsfree switch
Tip switch (D+) Tip switch (D-)

8510-00
Multifunction wiper switches
2) Multifunction Switch
Multifunction light switches
Light switch
Front wiper switch
Wiper speed dial
Rear wiper switch Front fog lamp switch
Front auto washer switch The multifunction switch contains the auto washer and wiper switch, front fog lamp switch and auto
hazard warning flasher switch. For the vehicle with air bag, since the contact coil is fitted to the upper part
of the multifunction switch and ESP steering wheel angle sensor is fitted to upper part of the contact coil,
pay attention to when removing and fitting or checking the wiring.

Light switch
Headlamps ON
Headlamp, side-marker, tail,
license plate, fog, and
instrument cluster lamps come
on.
Tail lamp ON
Side-marker, tail, license plate,
fog, and instrument cluster
lamps come on.
Automatic light ON
Head- and tail lamps
automatically turn on or off based
upon the intensity of the sunlight
analyzed by the automatic light
sensor.Lights OFF
High beam ON
To turn on the headlamp high
beam, push the lever towards
the instrument cluster with the
headlamp low beam on.Right turn signal lamp blinks
Passing
Regardless of the position of the light
switch, when holding the lever toward the
steering wheel, the headlights are on high
beam during the hold.Front fog lamp switch
To turn on the fog lights, turn this
switch while the tail lamps or
headlamps are turned on. Left turn signal lamp blinks
