2013 Peugeot Partner Tepee Owner's Manual - RHD (UK, Australia)

23


Access

READY TO SET OFF
2


From the inside

Unlock the side door using this handle
and open it, guiding the rearward
sliding to the point of resistance. Pass
this point to hold the door open.

Close the side door using the handle
to start the sliding and pass the point
of resistance. Then, use the shaped
recess at the top of the door pillar to
guide the door until it locks.
Do not use the grab handle to slide the
door.

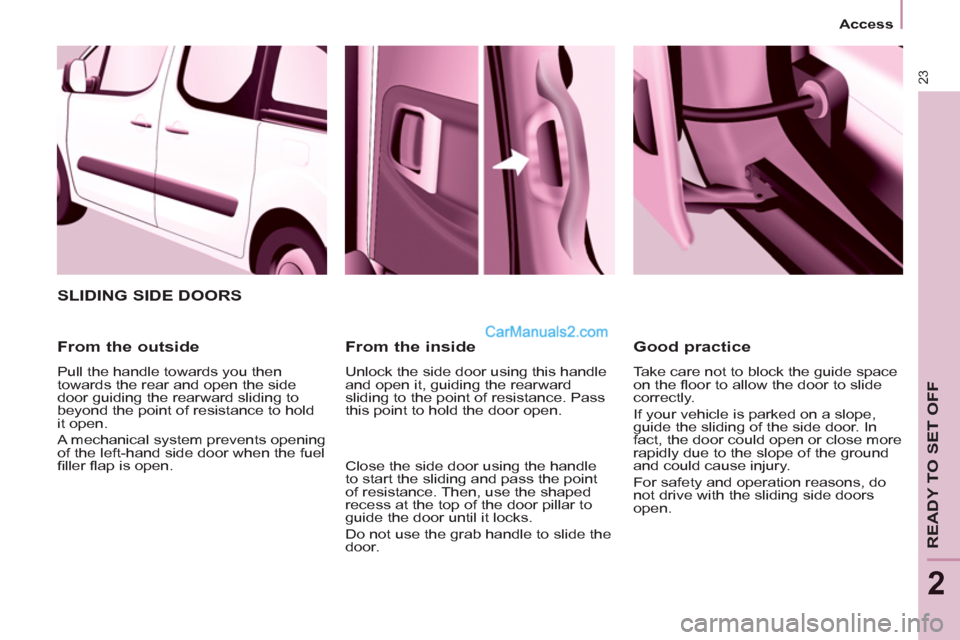

SLIDING SIDE DOORS

From the outside

Pull the handle towards you then
towards the rear and open the side
door guiding the rearward sliding to
beyond the point of resistance to hold
it open.
A mechanical system prevents opening
of the left-hand side door when the fuel
fi ller fl ap is open.


Good practice

Take care not to block the guide space
on the fl oor to allow the door to slide
correctly.
If your vehicle is parked on a slope,
guide the sliding of the side door. In
fact, the door could open or close more
rapidly due to the slope of the ground
and could cause injury.
For safety and operation reasons, do
not drive with the sliding side doors
open.

24
Access
TAILGATE

From inside


Emergency control
In the event of a central unlocking
operating fault, this permits unlocking
of the tailgate from the inside.
Insert a small screwdriver in the
opening, between the door and the
fl oor. To unlock the lock, move the
catch to the left then push the tailgate.



From outside

Locking/unlocking is by means of the
remote control.
To open, press the control below the
trim then raise the tailgate.
A pull strap is available to close the
tailgate in the high position.
Guide the closing of the tailgate to the
balance point of its travel then apply
a fi nal press on the tailgate to close it
fully.







Operation in the event of a
battery failure

Front and side passenger doors
In the event of a battery or central
locking fault, use the lock to lock the
doors mechanically.


)
To open the door and get out of the
vehicle, pull the interior control.

)
To lock the door, insert the key in
the lock, located on the edge of the
door, then turn it one eighth of a
turn
.


Driver's door


)
Insert the key in the lock, then turn
it to the right to lock or to the left to
unlock.

25


Access

READY TO SET OFF
2


Tailgate screen

The opening rear screen allows you to
access the rear of the vehicle directly,
without having to open the tailgate.

Opening
After unlocking the vehicle using the
remote control or the key, press the
control and raise the rear screen to
open it.

Closing
Close the rear screen by pressing
the centre of the glass until it is fully
closed.

HINGED REAR DOORS

From outside

To open, pull the handle towards you. Pull the lever to open the right-hand
door.
To close, start with the right-hand door
then close the left-hand door.
With the roof rear fl ap, the rear bumper
has been reinforced to serve as a
footrest when entering the vehicle.

The tailgate and tailgate screen cannot
both be open at the same time, to
prevent damage to the screen.
The hinged rear doors are
asymmetrical (2/3 - 1/3), with the
smaller door on the right.
They are fi tted with a central lock.

26
Access

From inside

Pull the handle towards you to open
the left-hand door.

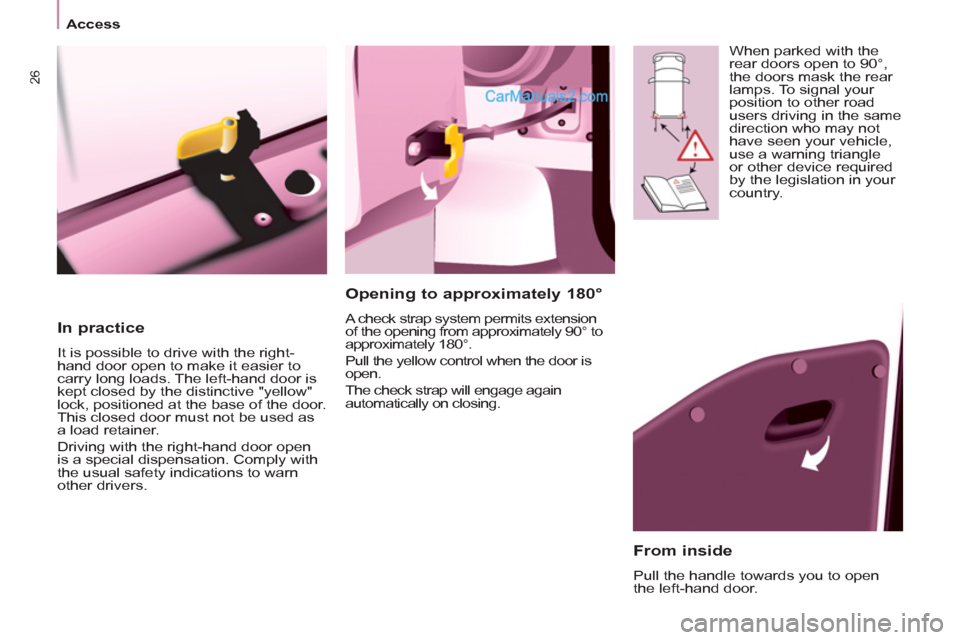

Opening to approximately 180°

A check strap system permits extension
of the opening from approximately 90° to
approximately 180°.
Pull the yellow control when the door is
open.
The check strap will engage again
automatically on closing. When parked with the
rear doors open to 90°,
the doors mask the rear
lamps. To signal your
position to other road
users driving in the same
direction who may not
have seen your vehicle,
use a warning triangle
or other device required
by the legislation in your
country.

In practice

It is possible to drive with the right-
hand door open to make it easier to
carry long loads. The left-hand door is
kept closed by the distinctive "yellow"
lock, positioned at the base of the door.
This closed door must not be used as
a load retainer.
Driving with the right-hand door open
is a special dispensation. Comply with
the usual safety indications to warn
other drivers.

27


Access

READY TO SET OFF
2

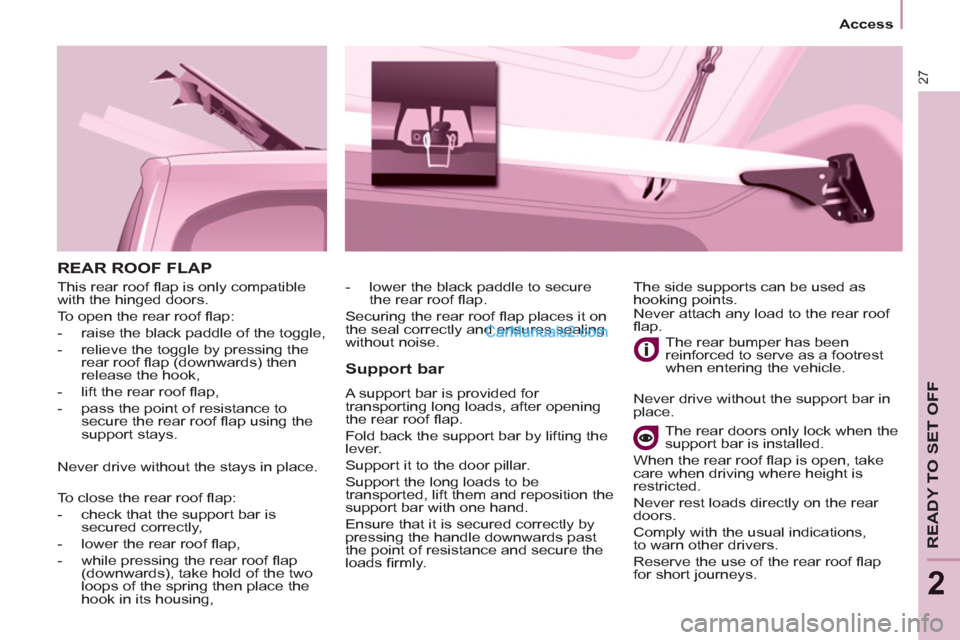

REAR ROOF FLAP

Support bar

A support bar is provided for
transporting long loads, after opening
the rear roof fl ap.
Fold back the support bar by lifting the
lever.
Support it to the door pillar.
Support the long loads to be
transported, lift them and reposition the
support bar with one hand.
Ensure that it is secured correctly by
pressing the handle downwards past
the point of resistance and secure the
loads fi rmly.
The rear bumper has been
reinforced to serve as a footrest
when entering the vehicle.
The rear doors only lock when the
support bar is installed.
When the rear roof fl ap is open, take
care when driving where height is
restricted.
Never rest loads directly on the rear
doors.
Comply with the usual indications,
to warn other drivers.
Reserve the use of the rear roof fl ap
for short journeys. The side supports can be used as
hooking points.
- lower the black paddle to secure
the rear roof fl ap.
Securing the rear roof fl ap places it on
the seal correctly and ensures sealing
without noise.
This rear roof fl ap is only compatible
with the hinged doors.
To open the rear roof fl ap:


- raise the black paddle of the toggle,

- relieve the toggle by pressing the
rear roof fl ap (downwards) then
release the hook,

- lift the rear roof fl ap,

- pass the point of resistance to
secure the rear roof fl ap using the
support stays.

Never drive without the stays in place.
To close the rear roof fl ap:


- check that the support bar is
secured correctly,

- lower the rear roof fl ap,

- while pressing the rear roof fl ap
(downwards), take hold of the two
loops of the spring then place the
hook in its housing,
Never attach any load to the rear roof
fl ap.

Never drive without the support bar in
place.

28
Access
CENTRAL LOCKING


An initial press permits
central locking of the vehicle,
when all of the doors are
closed.
A second press permits
central unlocking of the vehicle.
The control is inactive when the vehicle
has been locked using the remote
control or the key from the outside.
The doors can still be opened from the
inside.
Door open warning lamp


Driving with the doors locked may
make access to the interior more
diffi cult in an emergency.



Anti-intrusion security

If this warning lamp comes
on, check that all of your
vehicle's doors are closed
correctly.

Locking while driving
When the vehicle moves off, as soon
as you reach approximately 6 mph
(10 km/h), the system locks the doors.
The characteristic central locking noise
is heard. The LED in the switch on the
dashboard central switch panel comes on.
During the journey, opening a door
results in complete unlocking of the
vehicle.

Activating / deactivating
the function
With the ignition on, press
and hold this switch to
activate or deactivate the
function. The control switch LED:



- fl ashes when the doors are locked with
the vehicle stationary and the engine off,

- comes on when the doors are locked
and from the time the ignition is
switched on.

READY TO SET OFF
22


Instruments and controls


INSTRUMENT PANEL



Displays

INSTRUMENTS AND CONTROLS

Screens
The format of the information
presented in the screen depends on
the vehicle's equipment.


Dials


1.
Distance recorder in kilometres /
miles.

2.
Screen.

3.
Fuel level, coolant temperature.

4.
Rev counter.

5.
Trip distance recorder / service
indicator zero reset.

6.
Instrument panel lighting dimmer.




- Speed limiter / cruise control.

- Kilometres / Miles travelled.

- Service indicator, engine oil level
indicator, total kilometres / miles.

- Presence of water in the Diesel
fi lter.

- Diesel pre-heating.

30


Instruments and controls



Centre console with screen


Instrument panel without screen


- turn to the right to increase the
hours (hold the button to the right
for rapid scrolling),

- turn to the left: 24H or 12H is
displayed,

- turn to the right to select 24H or
12H,

- turn to the left to complete the time
adjustment.
After approximately 30 seconds
without any action, the screen returns
to the normal display.

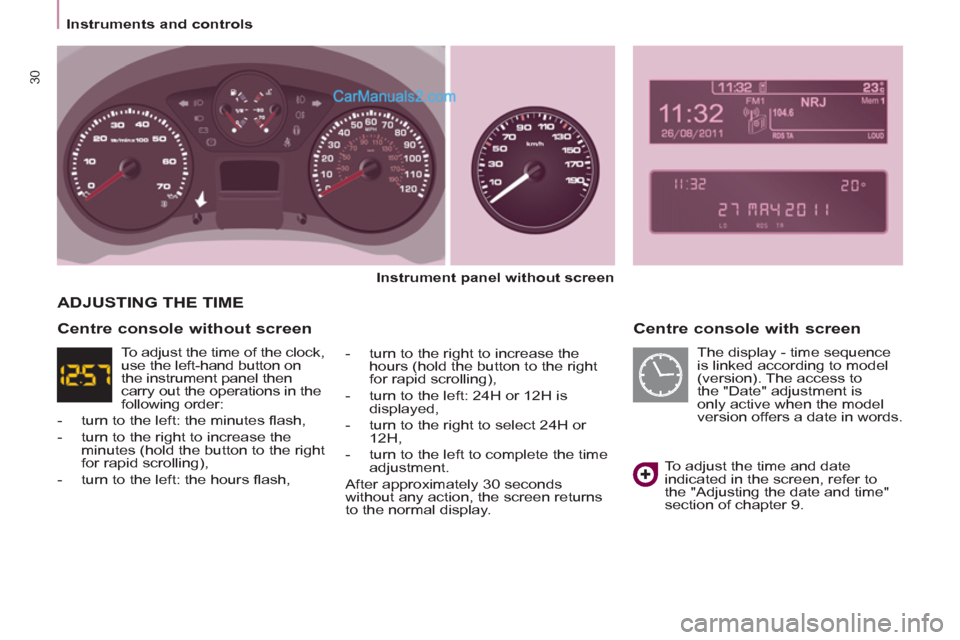

ADJUSTING THE TIME

To adjust the time and date
indicated in the screen, refer to
the "Adjusting the date and time"
section of chapter 9.


Centre console without screen

The display - time sequence
is linked according to model
(version). The access to
the "Date" adjustment is
only active when the model
version offers a date in words. To adjust the time of the clock,
use the left-hand button on
the instrument panel then
carry out the operations in the
following order:


- turn to the left: the minutes fl ash,

- turn to the right to increase the
minutes (hold the button to the right
for rapid scrolling),

- turn to the left: the hours fl ash,
