2013 Peugeot Partner Tepee Owner's Manual - RHD (UK, Australia)

79
EASE OF
USE and
COMFOR
T
3


Seats



Entering, exiting from row 3


Entering


- Place the row 2 seat in the table
position.

Exiting


- Lower the head restraint fully.

- Operate the yellow control, located
on the back of the row 2 seat back.

- Fold the seat back to the table
position. Ensure that the stored centre
seat belt is placed correctly in its
strengthener in the headlining.
- Tilt it to the fully folded position to
allow access.
- Pull the red strap to place the seat
in the fully folded position.

- Tilt the entire seat forwards.

- Exit via the side door.
Before folding it back, ensure
that the feet of the passenger
in row 3 are not obstructing the
row 2 seat anchoring points.

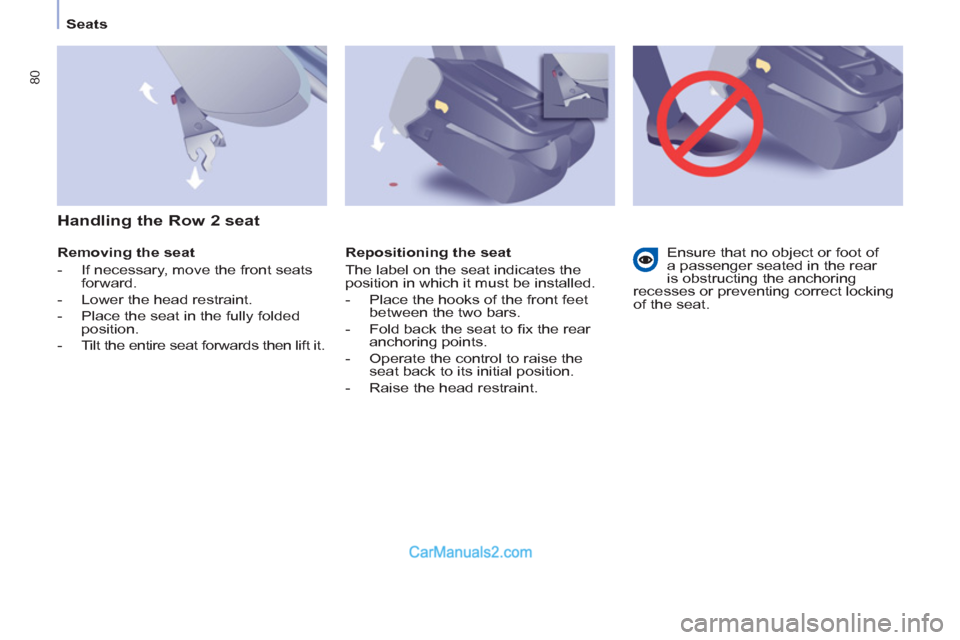

80
Seats

Removing the seat


- If necessary, move the front seats
forward.

- Lower the head restraint.

- Place the seat in the fully folded
position.

- Tilt the entire seat forwards then lift it.

Repositioning the seat
The label on the seat indicates the
position in which it must be installed.


- Place the hooks of the front feet
between the two bars.

- Fold back the seat to fi x the rear
anchoring points.

- Operate the control to raise the
seat back to its initial position.

- Raise the head restraint.

Ensure that no object or foot of
a passenger seated in the rear
is obstructing the anchoring
recesses or preventing correct locking
of the seat.



Handling the Row 2 seat

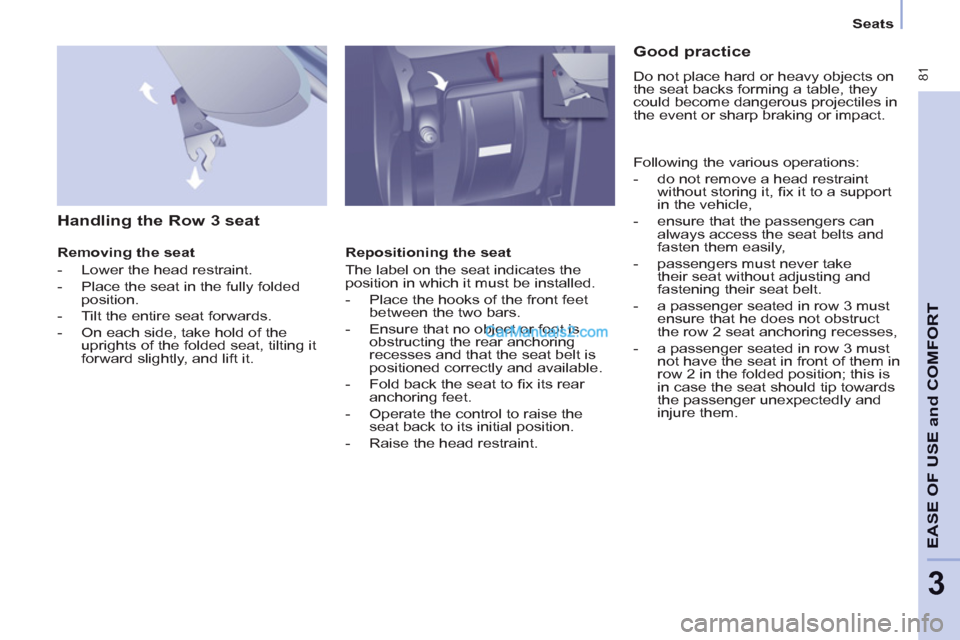

81
EASE OF
USE and
COMFOR
T
3


Seats



Handling the Row 3 seat


Removing the seat


- Lower the head restraint.

- Place the seat in the fully folded
position.

- Tilt the entire seat forwards.

- On each side, take hold of the
uprights of the folded seat, tilting it
forward slightly, and lift it.

Repositioning the seat
The label on the seat indicates the
position in which it must be installed.


- Place the hooks of the front feet
between the two bars.

- Ensure that no object or foot is
obstructing the rear anchoring
recesses and that the seat belt is
positioned correctly and available.

- Fold back the seat to fi x its rear
anchoring feet.

- Operate the control to raise the
seat back to its initial position.

- Raise the head restraint.




Good practice

Do not place hard or heavy objects on
the seat backs forming a table, they
could become dangerous projectiles in
the event or sharp braking or impact.
Following the various operations:


- do not remove a head restraint
without storing it, fi x it to a support
in the vehicle,

- ensure that the passengers can
always access the seat belts and
fasten them easily,

- passengers must never take
their seat without adjusting and
fastening their seat belt.

- a passenger seated in row 3 must
ensure that he does not obstruct
the row 2 seat anchoring recesses,

- a passenger seated in row 3 must
not have the seat in front of them in
row 2 in the folded position; this is
in case the seat should tip towards
the passenger unexpectedly and
injure them.

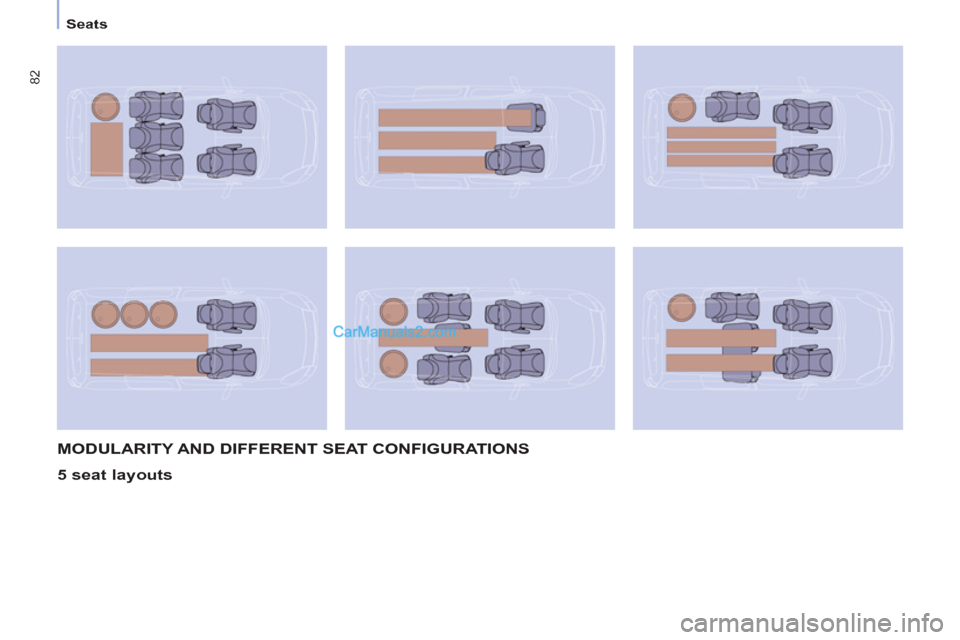

82
Seats
MODULARITY AND DIFFERENT SEAT CONFIGURATIONS

5 seat layouts

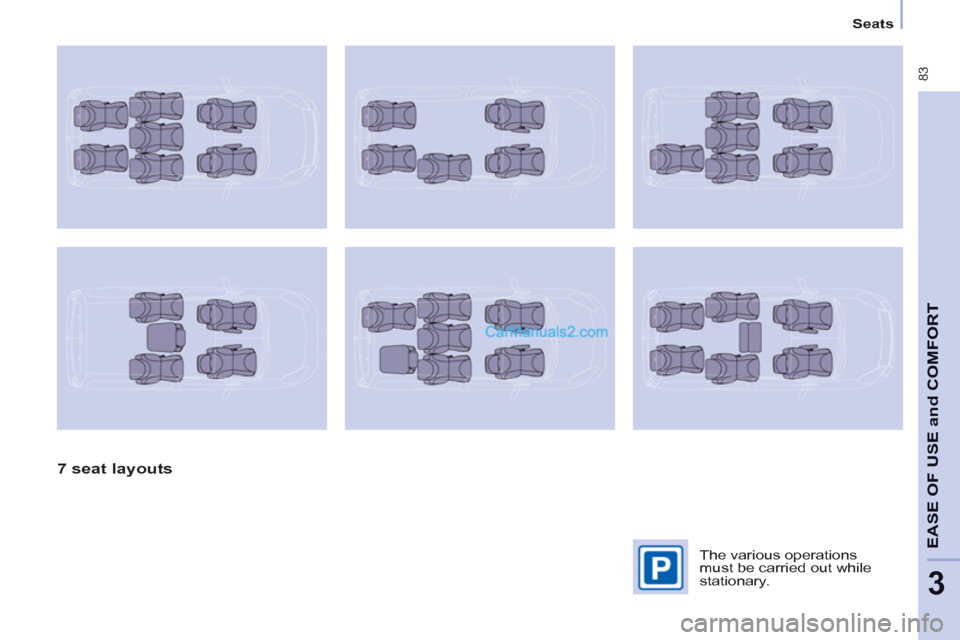

83
EASE OF
USE and
COMFOR
T
3


Seats



7 seat layouts


The various operations
must be carried out while
stationary.

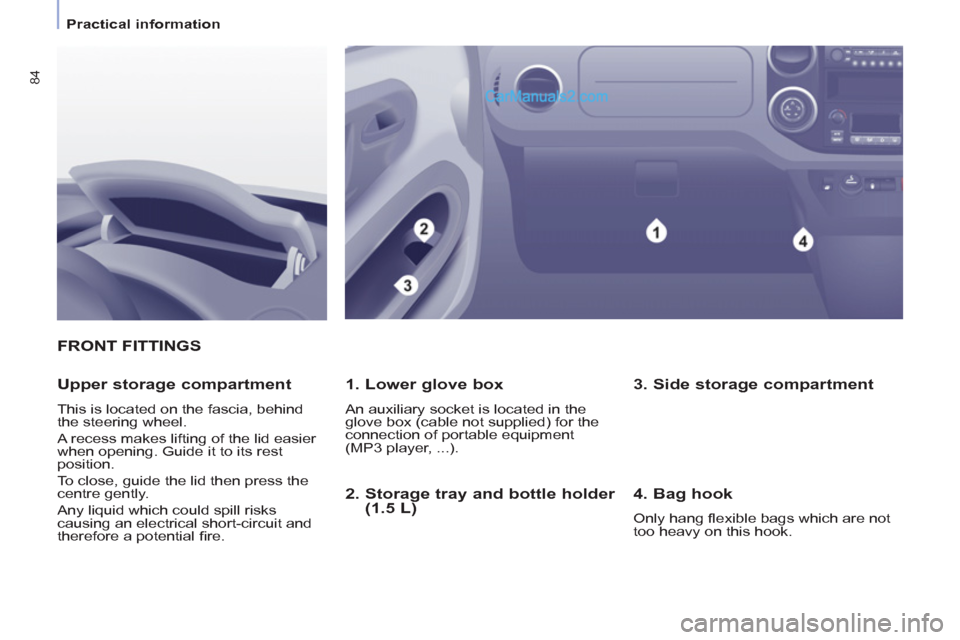

84


Practical information

FRONT FITTINGS

1. Lower glove box

An auxiliary socket is located in the
glove box (cable not supplied) for the
connection of portable equipment
(MP3 player, ...).


Upper storage compartment

This is located on the fascia, behind
the steering wheel.
A recess makes lifting of the lid easier
when opening. Guide it to its rest
position.
To close, guide the lid then press the
centre gently.
Any liquid which could spill risks
causing an electrical short-circuit and
therefore a potential fi re.


3. Side storage compartment

4. Bag hook

Only hang fl exible bags which are not
too heavy on this hook.


2. Storage tray and bottle holder
(1.5 L)

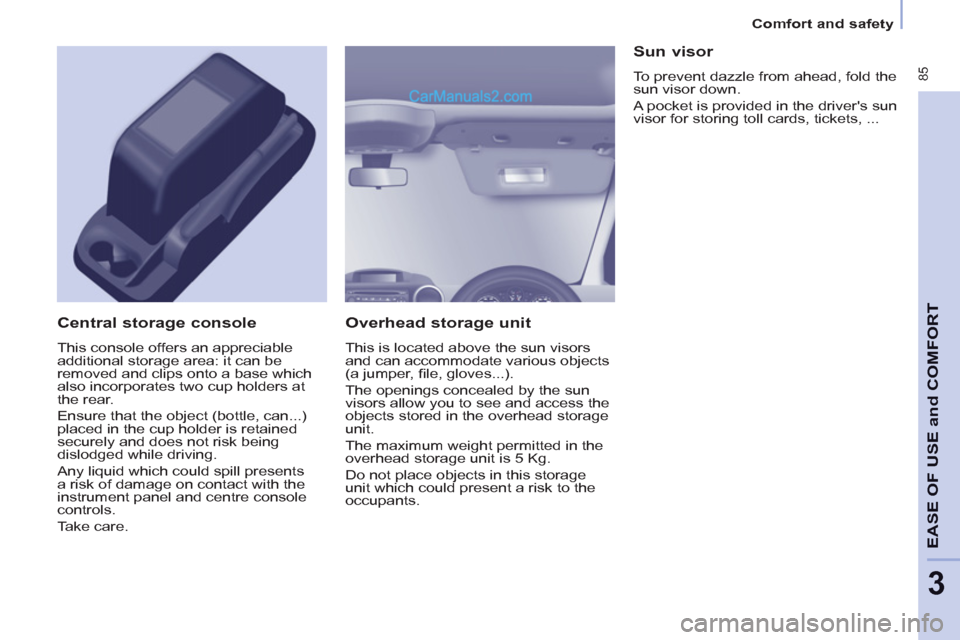

85
EASE OF
USE and
COMFOR
T
3
Comfort and safety

Overhead storage unit

This is located above the sun visors
and can accommodate various objects
(a jumper, fi le, gloves...).
The openings concealed by the sun
visors allow you to see and access the
objects stored in the overhead storage
unit.
The maximum weight permitted in the
overhead storage unit is 5 Kg.
Do not place objects in this storage
unit which could present a risk to the
occupants.


Central storage console

This console offers an appreciable
additional storage area: it can be
removed and clips onto a base which
also incorporates two cup holders at
the rear.
Ensure that the object (bottle, can...)
placed in the cup holder is retained
securely and does not risk being
dislodged while driving.
Any liquid which could spill presents
a risk of damage on contact with the
instrument panel and centre console
controls.
Take care.


Sun visor

To prevent dazzle from ahead, fold the
sun visor down.
A pocket is provided in the driver's sun
visor for storing toll cards, tickets, ...

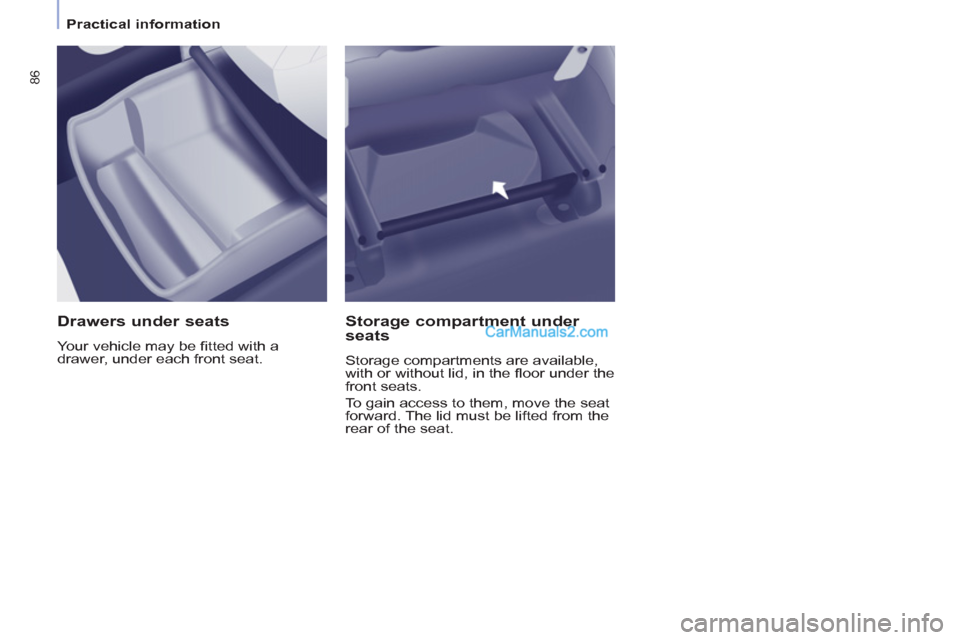

86


Practical information



Drawers under seats

Your vehicle may be fi tted with a
drawer, under each front seat.


Storage compartment under
seats
Storage compartments are available,
with or without lid, in the fl oor under the
front seats.
To gain access to them, move the seat
forward. The lid must be lifted from the
rear of the seat.
