QUICK HELP
7


Changing a fuse

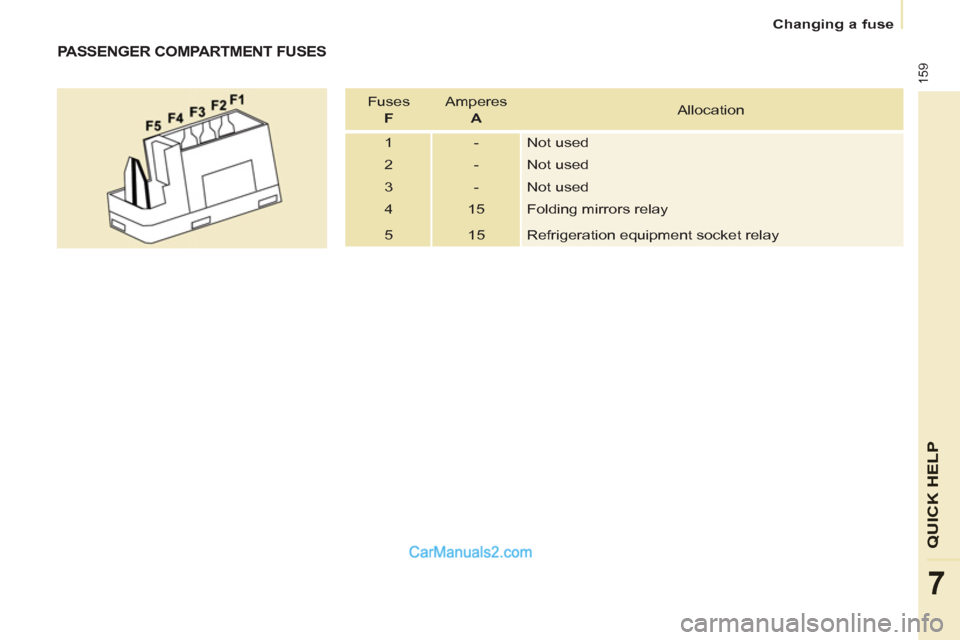

PASSENGER COMPARTMENT FUSES

Fuses
F
Amperes
A
Allocation
1 - Not used
2 - Not used
3 - Not used
4 15 Folding mirrors relay
5 15 Refrigeration equipment socket relay

160


Changing a fuse



FUSES UNDER THE BONNET

After opening the bonnet, unclip and tilt
the corresponding box to gain access
to the fuses. Fuses
F
Amperes
A
Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear wash-wipe pump
4 20 Headlamp wash pump
5 15 Engine components
6 10 Steering wheel angle sensor, ESC
7 10 Brake switch, clutch switch
8 25 Starter
9 10 Headlamp beam motor, parc management unit
10 30 Engine components
11 40 Not used
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped beam headlamp
18 15 Left-hand dipped beam headlamp

161
QUICK HELP
7

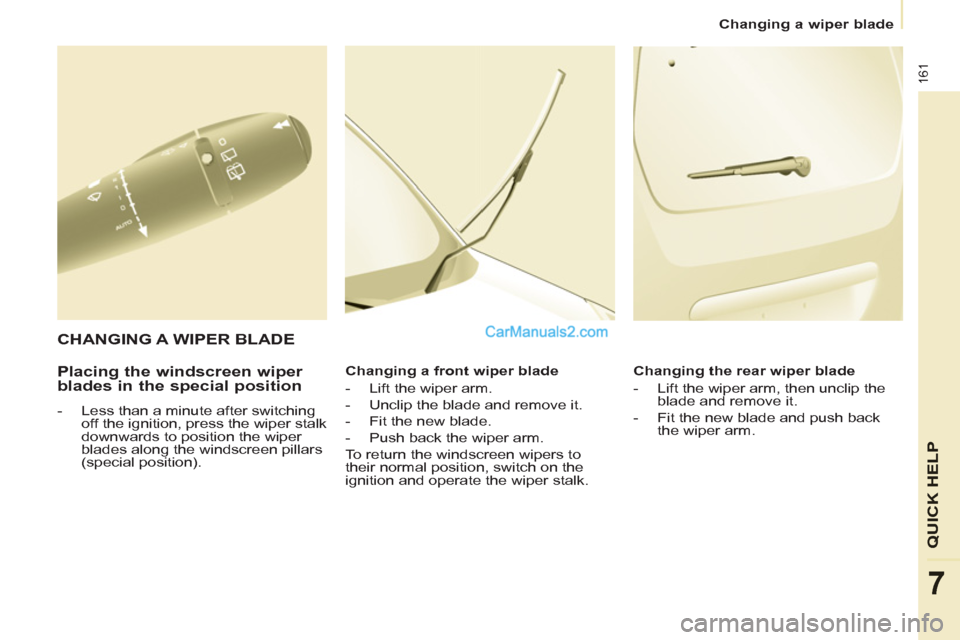

Changing a wiper blade



Placing the windscreen wiper
blades in the special position


- Less than a minute after switching
off the ignition, press the wiper stalk
downwards to position the wiper
blades along the windscreen pillars
(special position).
Changing a front wiper blade


- Lift the wiper arm.

- Unclip the blade and remove it.

- Fit the new blade.

- Push back the wiper arm.
To return the windscreen wipers to
their normal position, switch on the
ignition and operate the wiper stalk.
Changing the rear wiper blade


- Lift the wiper arm, then unclip the
blade and remove it.

- Fit the new blade and push back
the wiper arm.



CHANGING A WIPER BLADE

162


Having your vehicle towed



Without lifting (4 wheels on the
road)
You should always use a towing bar.

BEING TOWED

The towing eye is stored in the tool kit,
located under the left-hand seat.

From the front



- Unclip the cover by pressing the
bottom part.

- Fully screw in the removable towing
eye.



From the rear



- Unclip the cover using a coin or the
fl at part of the towing eye,

- Fully screw in the removable towing
eye.

When towing with the engine
switched off, there is no braking or
steering assistance.


Lifting (2 wheels on the road
only)
It is preferable to raise the vehicle
using professional lifting equipment.


Vehicles fitted with a manual
gearbox (Diesel version)
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in the neutral position, failure to
observe this special condition may
result in damage to transmission and
braking components and the absence
of braking assistance when the engine
is started again.

163
QUICK HELP

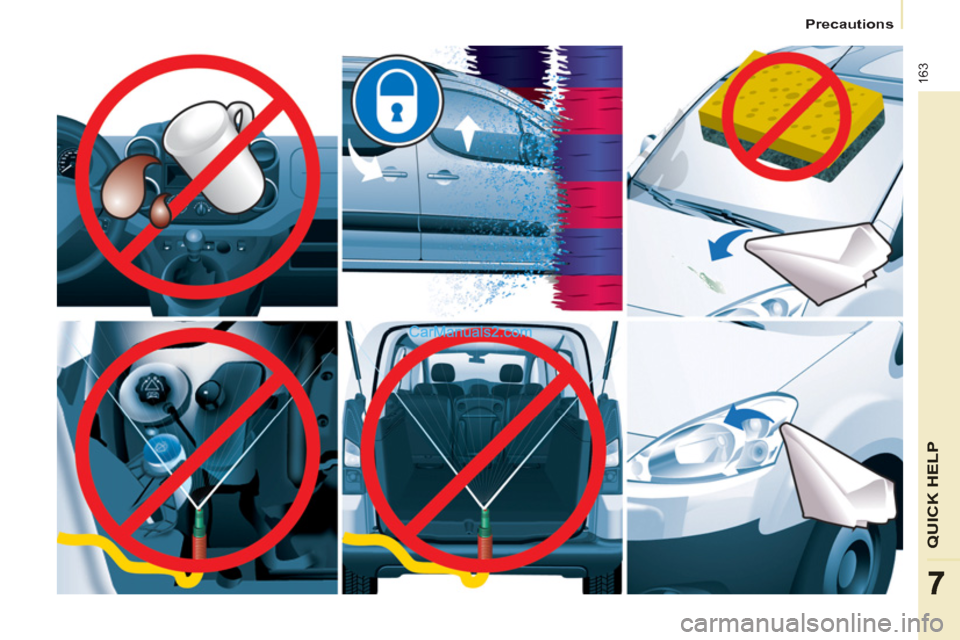

Precautions
77

164


Dimensions

165
Dimensions
TECHNICAL DAT
A
8

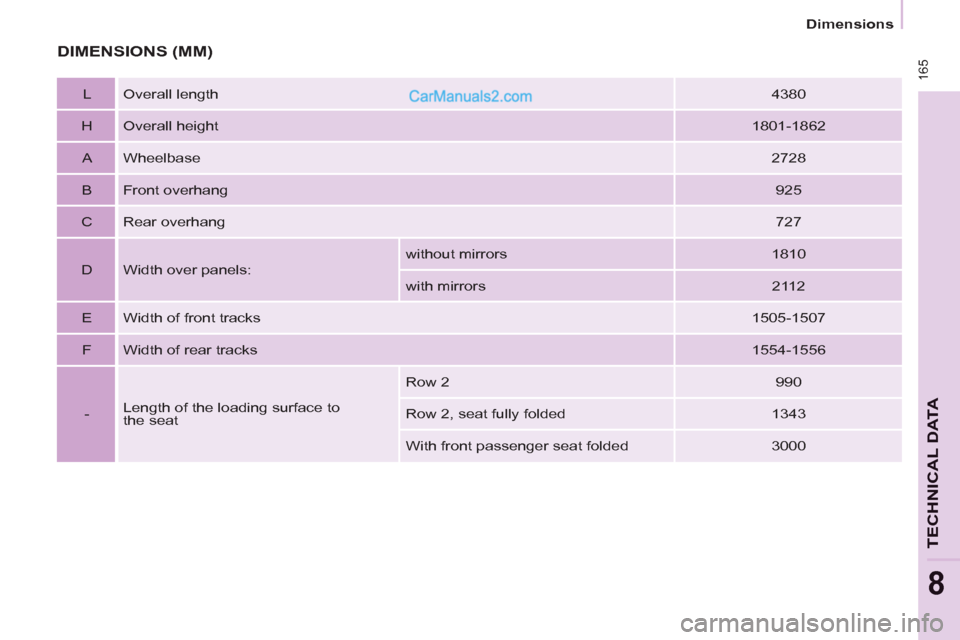

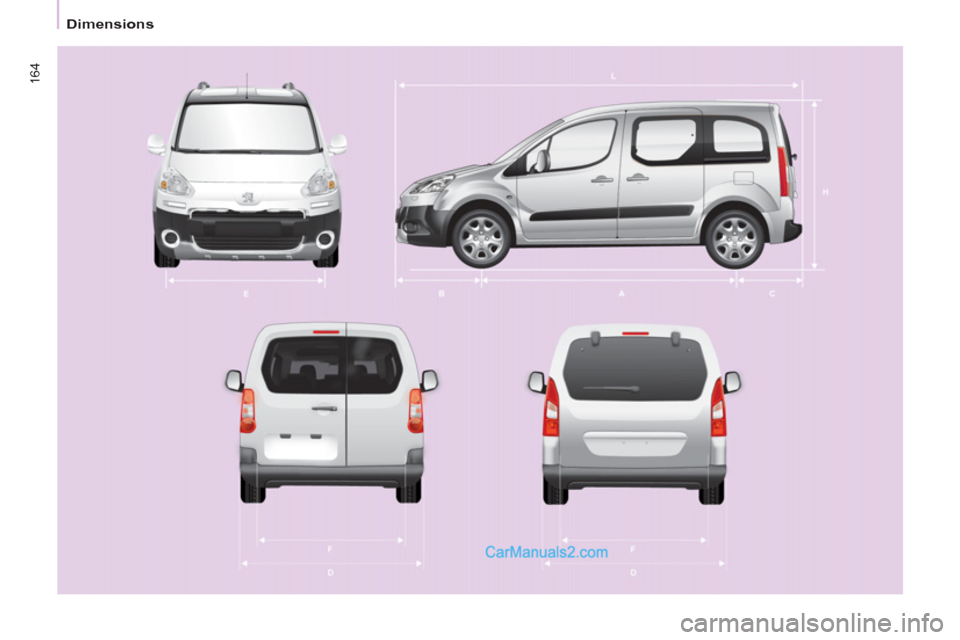

DIMENSIONS (MM)


L Overall length

4380

H Overall height

1801-1862

A Wheelbase

2728

B Front overhang

925

C Rear overhang

727

D Width over panels: without mirrors
1810
with mirrors
2112

E Width of front tracks
1505-1507

F Width of rear tracks
1554-1556

- Length of the loading surface to
the seat Row 2
990
Row 2, seat fully folded
1343
With front passenger seat folded
3000

166


Dimensions

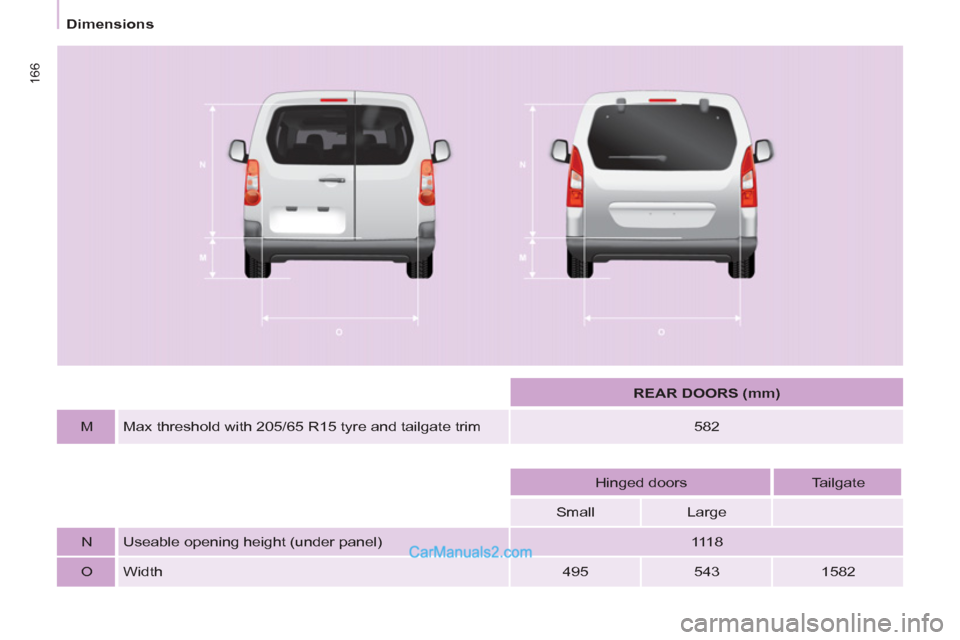

REAR DOORS (mm)



M
Max threshold with 205/65 R15 tyre and tailgate trim
582






Hinged doors
Tailgate

Small
Large




N Useable opening height (under panel)
111 8

O Width
495
543
1582
