2013 Peugeot Partner Tepee Owner's Manual - RHD (UK, Australia)

87
EASE OF
USE and
COMFOR
T
3
Comfort and safety

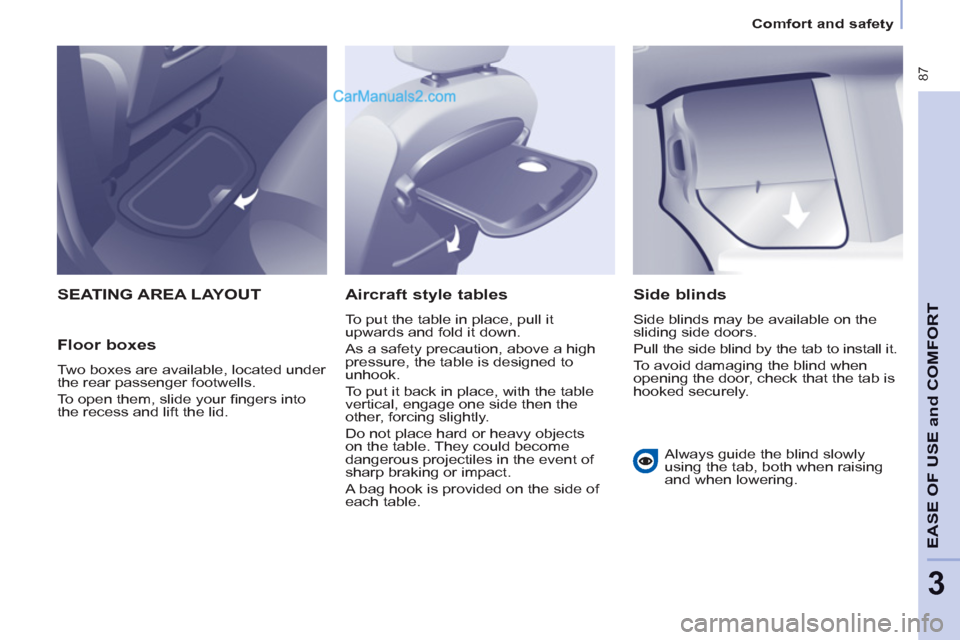

SEATING AREA LAYOUT

Floor boxes

Two boxes are available, located under
the rear passenger footwells.
To open them, slide your fi ngers into
the recess and lift the lid.


Aircraft style tables

To put the table in place, pull it
upwards and fold it down.
As a safety precaution, above a high
pressure, the table is designed to
unhook.
To put it back in place, with the table
vertical, engage one side then the
other, forcing slightly.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event of
sharp braking or impact.
A bag hook is provided on the side of
each table.


Side blinds

Side blinds may be available on the
sliding side doors.
Pull the side blind by the tab to install it.
To avoid damaging the blind when
opening the door, check that the tab is
hooked securely.
Always guide the blind slowly
using the tab, both when raising
and when lowering.

88


Practical information

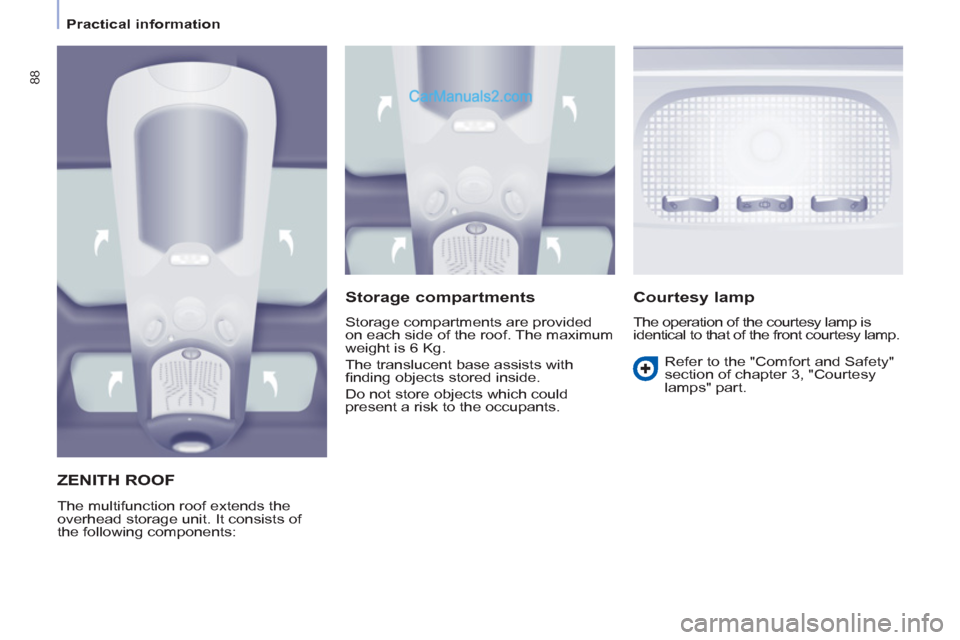

ZENITH ROOF

The multifunction roof extends the
overhead storage unit. It consists of
the following components:

Storage compartments

Storage compartments are provided
on each side of the roof. The maximum
weight is 6 Kg.
The translucent base assists with
fi nding objects stored inside.
Do not store objects which could
present a risk to the occupants.


Courtesy lamp

The operation of the courtesy lamp is
identical to that of the front courtesy lamp.
Refer to the "Comfort and Safety"
section of chapter 3, "Courtesy
lamps" part.

89
EASE OF
USE and
COMFOR
T
3
Comfort and safety

From inside

From outside

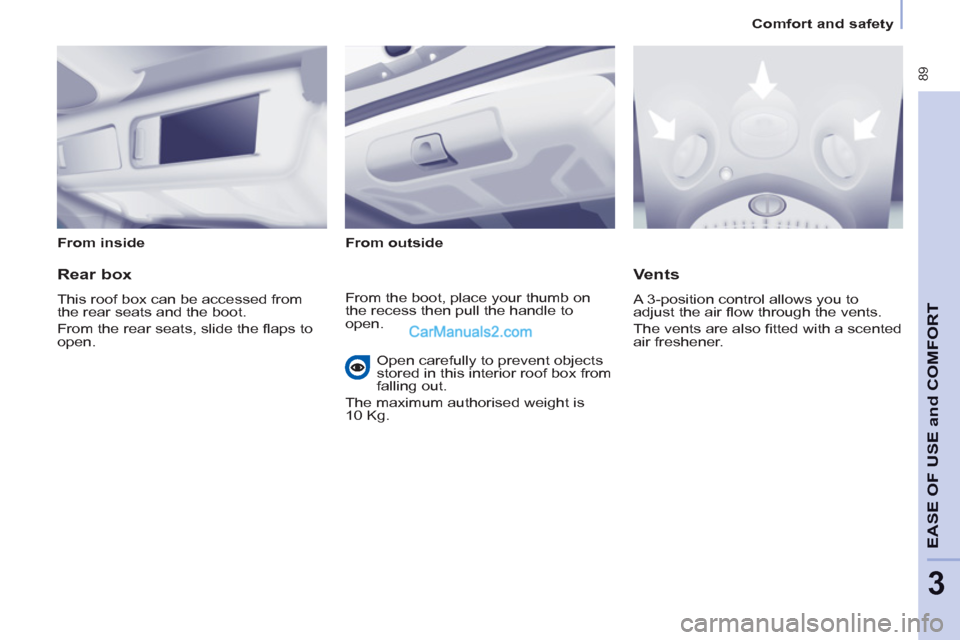

Rear box

This roof box can be accessed from
the rear seats and the boot.
From the rear seats, slide the fl aps to
open.

Vents

A 3-position control allows you to
adjust the air fl ow through the vents.
The vents are also fi tted with a scented
air freshener. From the boot, place your thumb on
the recess then pull the handle to
open.
Open carefully to prevent objects
stored in this interior roof box from
falling out.
The maximum authorised weight is
10 Kg.

90


Practical information

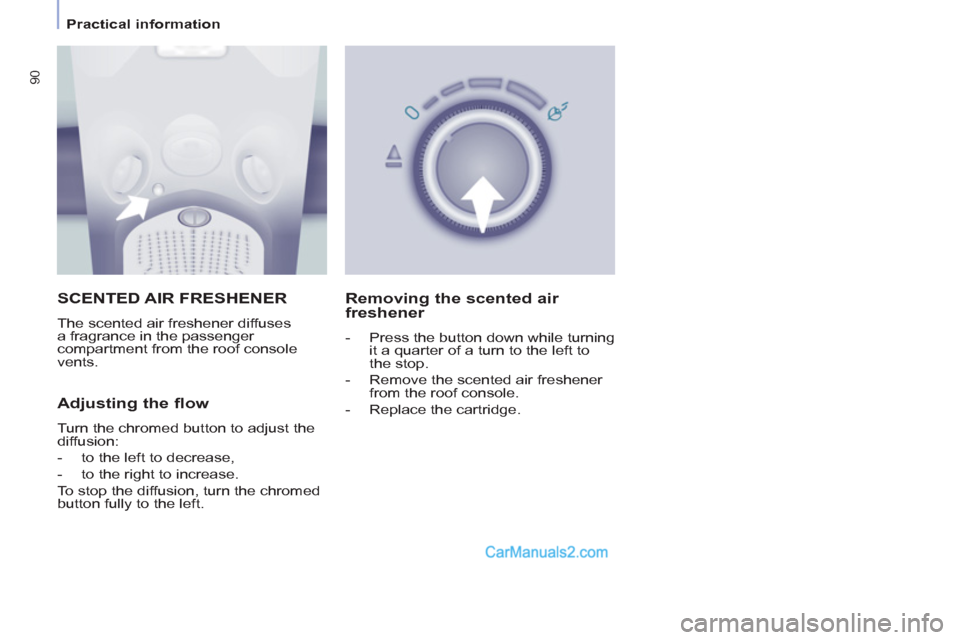

SCENTED AIR FRESHENER

The scented air freshener diffuses
a fragrance in the passenger
compartment from the roof console
vents.

Adjusting the flow

Turn the chromed button to adjust the
diffusion:


- to the left to decrease,

- to the right to increase.
To stop the diffusion, turn the chromed
button fully to the left.


Removing the scented air
freshener


- Press the button down while turning
it a quarter of a turn to the left to
the stop.

- Remove the scented air freshener
from the roof console.

- Replace the cartridge.

91
EASE OF
USE and
COMFOR
T
3
Comfort and safety

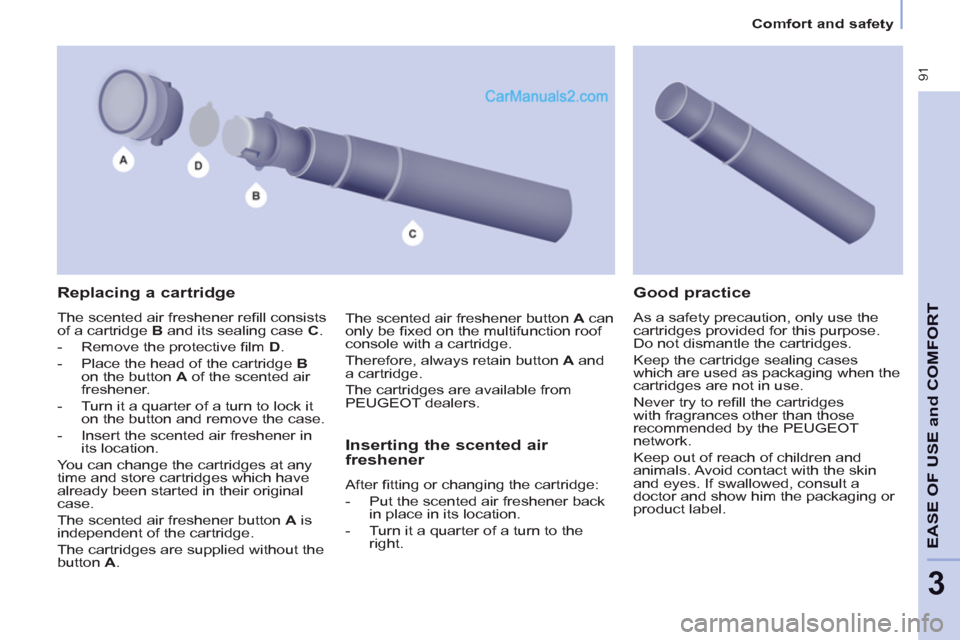

Replacing a cartridge

The scented air freshener refi ll consists
of a cartridge B
and its sealing case C
.


- Remove the protective fi lm D
.

- Place the head of the cartridge B

on the button A
of the scented air
freshener.

- Turn it a quarter of a turn to lock it
on the button and remove the case.

- Insert the scented air freshener in
its location.
You can change the cartridges at any
time and store cartridges which have
already been started in their original
case.
The scented air freshener button A
is
independent of the cartridge.
The cartridges are supplied without the
button A
.


Inserting the scented air
freshener
After fi tting or changing the cartridge:


- Put the scented air freshener back
in place in its location.

- Turn it a quarter of a turn to the
right.



Good practice

As a safety precaution, only use the
cartridges provided for this purpose.
Do not dismantle the cartridges.
Keep the cartridge sealing cases
which are used as packaging when the
cartridges are not in use.
Never try to refi ll the cartridges
with fragrances other than those
recommended by the PEUGEOT
network.
Keep out of reach of children and
animals. Avoid contact with the skin
and eyes. If swallowed, consult a
doctor and show him the packaging or
product label. The scented air freshener button A
can
only be fi xed on the multifunction roof
console with a cartridge.
Therefore, always retain button A
and
a cartridge.
The cartridges are available from
PEUGEOT dealers.

92


Practical information

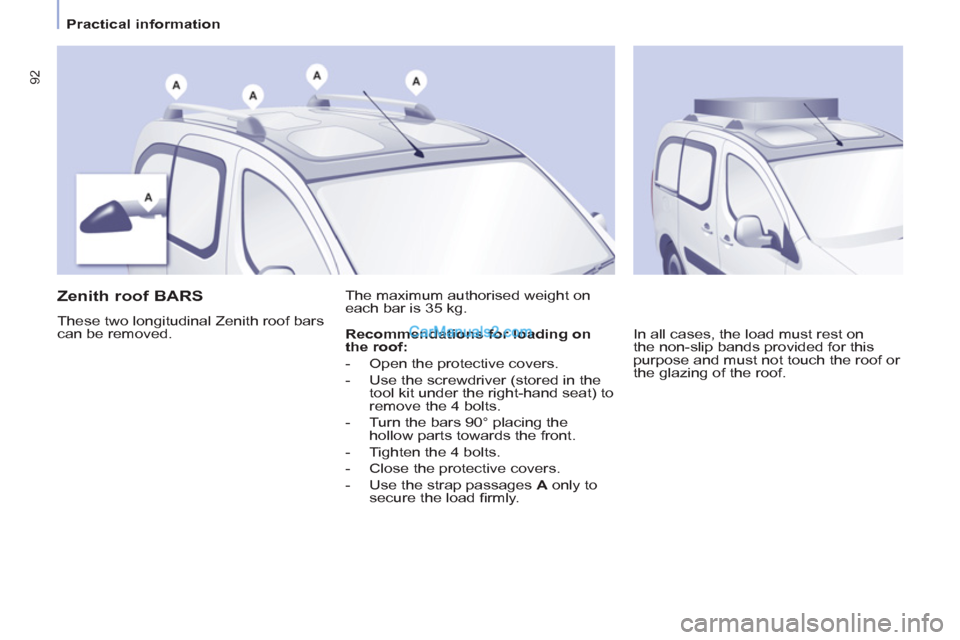

Zenith roof BARS

These two longitudinal Zenith roof bars
can be removed. The maximum authorised weight on
each bar is 35 kg.
In all cases, the load must rest on
the non-slip bands provided for this
purpose and must not touch the roof or
the glazing of the roof.
Recommendations for loading on
the roof:



- Open the protective covers.

- Use the screwdriver (stored in the
tool kit under the right-hand seat) to
remove the 4 bolts.

- Turn the bars 90° placing the
hollow parts towards the front.

- Tighten the 4 bolts.

- Close the protective covers.

- Use the strap passages A
only to
secure the load fi rmly.

93
EASE OF
USE and
COMFOR
T
3
Comfort and safety

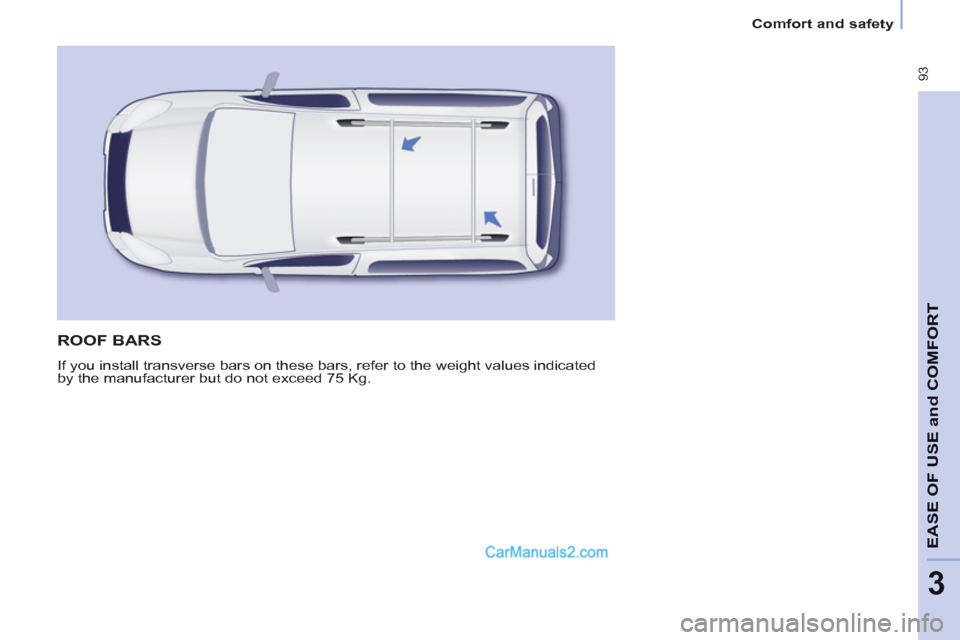

ROOF BARS

If you install transverse bars on these bars, refer to the weight values indicated
by the manufacturer but do not exceed 75 Kg.

94


Practical information


Automatic switching on/off
The front courtesy lamp comes on
when the key is removed from the
ignition, when the vehicle is unlocked,
when one of the front doors is opened
and for location of the vehicle using the
remote control.
It goes off gradually after the ignition
is switched on and when the vehicle is
locked. Front seats: comes on when
one of the front doors is
opened. These are switched on and off by
means of a manual switch, with
the ignition on.

Rear seats: comes on when
one of the rear doors is
opened.
If the doors remain open for
a few minutes, the courtesy
lamps go off.
Permanently off. Permanently on, ignition on.
Front courtesy lamp

COURTESY LAMPS


Rear courtesy lamp
Front individual reading lamps
