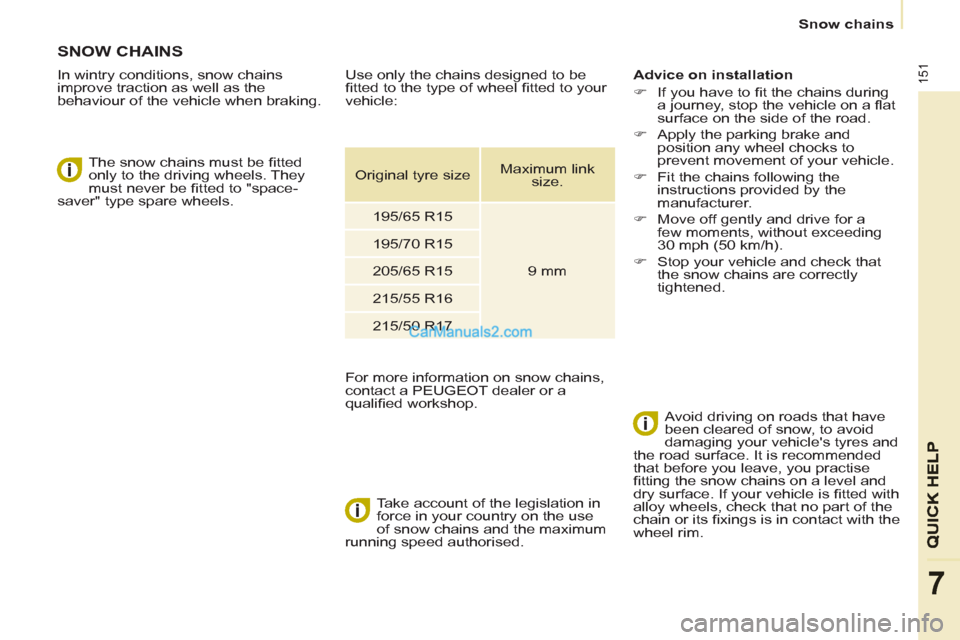

Snow chains

SNOW CHAINS


In wintry conditions, snow chains
improve traction as well as the
behaviour of the vehicle when braking.

The snow chains must be fi tted
only to the driving wheels. They
must never be fi tted to "space-
saver" type spare wheels.

Take account of the legislation in
force in your country on the use
of snow chains and the maximum
running speed authorised.
Advice on installation


)
If you have to fi t the chains during
a journey, stop the vehicle on a fl at
surface on the side of the road.

)
Apply the parking brake and
position any wheel chocks to
prevent movement of your vehicle.

)
Fit the chains following the
instructions provided by the
manufacturer.

)
Move off gently and drive for a
few moments, without exceeding
30 mph (50 km/h).

)
Stop your vehicle and check that
the snow chains are correctly
tightened.


Avoid driving on roads that have
been cleared of snow, to avoid
damaging your vehicle's tyres and
the road surface. It is recommended
that before you leave, you practise
fi tting the snow chains on a level and
dry surface. If your vehicle is fi tted with
alloy wheels, check that no part of the
chain or its fi xings is in contact with the
wheel rim.


Use only the chains designed to be
fi tted to the type of wheel fi tted to your
vehicle:
For more information on snow chains,
contact a PEUGEOT dealer or a
qualifi ed workshop.

Original tyre size
Maximum link
size.

195/65 R15

9 mm
195/70 R15

205/65 R15

215/55 R16

215/50 R17

152


Changing a bulb


CHANGING A BULB


Ty p e A

All glass bulb: pull gently
as it is fi tted by pressure.


High pressure washing


Open the bonnet. To access the bulbs,
reach behind the headlamp unit.
Carry out the operations in reverse
order to refi t each bulb and check that
the bonnet is closed securely.
Ty p e C

Halogen bulb: release the
retaining spring from its
housing.
Ty p e B

Bayonet bulb: press
on the bulb then turn it
anticlockwise.

Halogen bulbs must be changed
with the headlamp off. Wait a few
minutes (risk of serious burns).
Do not touch the bulb directly with your
fi ngers, use lint-free cloths.
It is normal for condensation to form
inside the headlamps. Regular use of
the vehicle eliminates this misting. The bulbs must be changed with
the ignition off or with the battery
disconnected. Wait approximately
3 minutes after changing the bulb
before reconnecting the battery.
Check that the lamps operate correctly
after each operation.
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lamps and their
edges to avoid damaging their coating
and seals.


Types of bulb

Various types of bulb are fi tted to your
vehicle. To remove them:

Ty p e D


Light emitting diode (LED):
for replacement of the
daytime running lamps,
contact a PEUGEOT dealer
or a qualifi ed workshop.

153
QUICK HELP
7


Changing a bulb


3.
Direction indicators

Type B
, PY21W - 21W (amber)


- Remove the cover by pulling the
fl exible rubber tab.

- Turn the bulb holder a quarter
turn anticlockwise.

- Remove the bulb by pressing
it lightly while turning it
anticlockwise.

- Change the bulb.

- Ensure that the cover is refi tted
correctly all round to assure
correct sealing.
2.
Sidelamps

Ty p e A
, W5W - 5W


- Remove the cover by pulling the
fl exible rubber tab.

- Remove the bulb holder fi tted by
pressure by pulling the connector.

- Change the bulb.

- Ensure that the cover is refi tted
correctly all round to assure
correct sealing.


FRONT LAMPS



1.
Dipped / Main beam headlamps

Type C
, H4 - 55W


- Remove the centre cover by
pulling the fl exible rubber tab.

- Disconnect the electrical
connector.

- Release the retaining tab.

- Change the bulb taking care
to align the metal part with the
grooves on the lamp.

- Reposition the retaining tab.

- Ensure that the cover is refi tted
correctly all round to assure
correct sealing.

154


Changing a bulb


4.
Foglamps

Type C
, H1 - 55W


- Remove the three clips and the screw
securing the wheelarch liner, located
below the bumper.

- Move the wheelarch liner upwards.

- Remove the foglamp by removing the
screw, which can be accessed via the
hole provided for this purpose in the
bumper, using a Torx
© 30 screwdriver.

- Unclip the foglamp by squeezing the clip
to release it.

- Remove the foglamp from the outside.

- Turn the yellow cover a 1/4 turn to open.

- Separate the clips which secure the base
of bulb on each side to release the bulb.

- Remove the bulb by pulling, keeping it
straight.

- Insert the new bulb, reposition the clips
around the base of the bulb and carry
out the operations in reverse order to put
the lamp unit and the bumper back in
position.



SIDE REPEATER


Ty p e A
, WY5W - 5W (amber)


- Push the repeater towards the rear
and disengage it by pulling the front.

- Contact a PEUGEOT dealer to
obtain a new repeater which is a
sealed component.

- To refi t, engage the repeater
towards the rear and bring it
towards the front.


COURTESY LAMPS


Type A
, 12V5W - 5W


- Unclip the lens by sliding a
screwdriver in the slots on each
side of the courtesy lamp.

- Pull the bulb out and change it.

- Clip the lens in its housing and
ensure that it is secured correctly.

Front / Rear

155
QUICK HELP
7


Changing a bulb


REAR LAMPS




- Identify the faulty bulb then open
the rear doors to 180°.
Refer to the "Access" section of
chapter 2.

- Remove the two fi xing bolts using
the screwdriver stored in the tool kit
under the right-hand seat.

- Pull the lamp unit from the outside.

- Holding the lamp, disconnect the
electrical connector.

When refi tting, take care to
reposition the tabs and the supply
wire correctly to avoid trapping the
wire.
After changing the rear direction
indicator bulb, the reinitialisation time is
above 2 minutes.

- Move aside the 4 tabs then extract
the bulb holder.

- Remove the faulty bulb by
pressing it lightly while turning it
anticlockwise.

- Change the bulb.


When removing the lamp unit:


- with tailgate, pull the lamp unit
towards the centre of the vehicle,

- with hinged doors, pull the lamp
unit towards you.
For more information concerning the
bulbs, refer to the "Types of bulb".


1.
Brake lamps / sidelamps

Type B
, P21/5W - 21/5W

2.
Direction indicators

Type B
, PY21W - 21W (amber)

3.
Reversing lamps

Type B
, P21W - 21W

4.
Foglamps

Type B
, P21W - 21W

High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the other lamps
and their edges to avoid damaging
their coating and seals.

156


Changing a bulb


NUMBER PLATE LAMPS




- Unscrew the two nuts.

- Push the pins.

- If necessary, disconnect the
connector to remove the lamp.

- Change the bulb.


With tailgate


- Disengage the plastic lens using a
screwdriver.

- Change the bulb.

- Replace the plastic lens and press
on it.

THIRD BRAKE LAMP


Ty p e A
, W16W - 16W

With hinged doors


- Unclip the interior trim.

- Disconnect the connector by
moving aside its tab.

- Turn the bulb holder a quarter turn
anticlockwise.

- Change the bulb.

- Put the bulb holder back in place
and reconnect the connector.

- Put the trim back in place.



Type A
, W5W - 5W

157
QUICK HELP
7


Changing a fuse


CHANGING A FUSE

The fuseboxes are located:


- in the lower dashboard on the left-
hand side (behind the cover),

- under the bonnet (near the battery).
The information given concerns only
those fuses which can be changed by
the user using the tweezer, located
behind the dashboard storage
compartment on the right-hand side.
For any other work, visit a PEUGEOT
dealer or a qualifi ed workshop.


Removing and fitting a fuse


Always replace a failed fuse with a
fuse of the same rating.

Motor trade technicians: for
complete information on the fuses
and relays, refer to the "Repair
Manual" diagrams via the dealer
network.
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from
the installation of accessories not
supplied and not recommended by the
PEUGEOT network and not installed
in accordance with its instructions,
in particular when the combined
consumption of all of the additional
equipment connected exceeds
10 milliamperes.
Before replacing a fuse, the cause of
the incident must be identifi ed and
rectifi ed.


●
Use the tweezer.

158


Changing a fuse



DASHBOARD FUSES

Tilt the cover to gain access to the
fuses. Fuses
F
Amperes
A
Allocation
1 15 Rear wiper
2 - Not used
3 5 Airbag
4 10 Air conditioning, diagnostic socket, mirror control,
headlamp beam
5 30 Electric windows
6 30 Locks
7 5 Rear courtesy lamp, front map reading lamp, roof
console
8 20 Audio equipment, screen, tyre under-infl ation
detection, alarm and siren
9 30 Front and rear 12V socket
10 15 Central column
11 15 Low current ignition switch
12 15 Rain and sunshine sensor, airbag
13 5 Instrument panel
14 15 Parking sensors, digital air conditioning controls,
hands-free phone kit
15 30 Locks
16 - Not used
17 40 Rear screen/mirrors demist/defrost
