QUICK HELP


Changing a fuse



N°



Rating
(Amps)


Functions



1

*


40

Electric sliding side door.


2

*


40

Electric sliding side door.


3

*

- Not used.


4

*


40

Trailer fuse box.


31



5

Main brake switch.


32



25

Driver's seat memorisation.


33



25

Passenger's seat memorisation.


34



20

Sunroof row 3.


35



20

Sunroof row 2.


36



10

Passenger's heated seat.


37



10

Driver's heated seat.


38



15

Not used.


39



20

12 V accessories socket row 3.


40



20

12 V accessories socket row 2.

*
The maxi-fuses provide additional protection for the electrical systems. All work must be carried out by a PEUGEOT dealer.

128


Changing a fuse



Fuse box

To access the fuses located in the
engine compartment (to the left of the
coolant reservoir):


- unclip the cover.
GINE COMPARTMENT
ENGIN
USES FUS

The designations communicated
only relate to the fuses which can
be changed by the user using
the pliers and spare fuses, located in
the glove box behind the instrument
panel fuse box, on the right-hand side.
For any other work, visit a PEUGEOT
dealer.

Carefully close the cover when you
have fi nished.

The electrical system of your vehicle is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, consult a PEUGEOT dealer.


PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not supplied
and not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular where the
equipment in question consumes more
than 10 milliamperes. Intended for professionals: for full
fuse and relay information, consult the
"Methods" diagram via the PEUGEOT
network.

129
QUICK HELP
7


Changing a fuse



N°



Rating
(Amps)


Functions



1



20

Engine control unit, Fuel supply and air supply systems, Fan assembly.


2



15

Horn.


3



10

Front and rear wash-wipe pump.


4



20

Headlamp wash pump.


5



15

Fuel supply system.


6



10

Power steering, Secondary brake pedal switch, Automatic gearbox control unit, Air fl ow sensor,
Automatic beam corrector with xenon bulbs.


7



10

Braking system (ABS/ESP).


8



20

Starter control.


9



10

Main brake switch.


10



30

Fuel supply and air supply systems, Emission control systems.


11



40

Front air conditioning.


12



30

Windscreen wipers.


13



40

Built-in systems interface.


14



30

Not used.


15



30

Child lock locking/unlocking/deadlocking control.

130

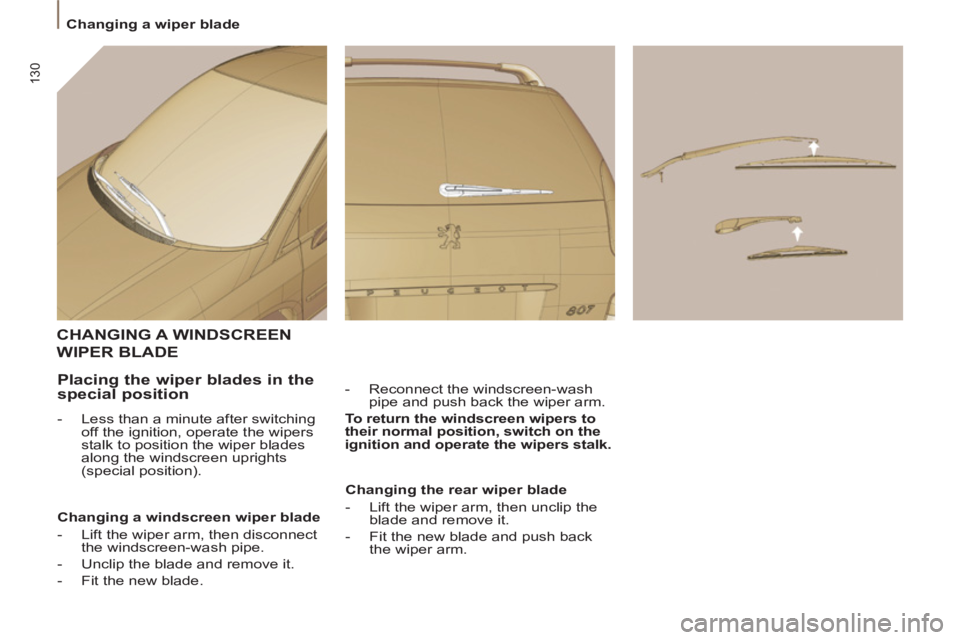

Changing a wiper blade

CHANGING A WINDSCREEN
WIPER BLADE


- Reconnect the windscreen-wash
pipe and push back the wiper arm.

To return the windscreen wipers to
their normal position, switch on the
ignition and operate the wipers stalk.



Placing the wiper blades in the
special position


- Less than a minute after switching
off the ignition, operate the wipers
stalk to position the wiper blades
along the windscreen uprights
(special position).

Changing a windscreen wiper blade


- Lift the wiper arm, then disconnect
the windscreen-wash pipe.

- Unclip the blade and remove it.

- Fit the new blade.
Changing the rear wiper blade


- Lift the wiper arm, then unclip the
blade and remove it.

- Fit the new blade and push back
the wiper arm.

131
QUICK HELP
7


Having your vehicle towed


From the rear


- unclip the top of the cover using a
coin,

- screw in the removable towing eye
until it locks.


TOWING YOUR VEHICLE
Special features of the
automatic gearbox
When being towed with four wheels on
the road, it is essential to observe the
following rules:


- selector lever in position N
,

- tow the vehicle at a speed below
30 mph (50 km/h) over a distance
limited to 30 miles (50 km)
maximum,

- do not add oil to the gearbox.
When towing with the engine switched
off, there is no braking or steering
assistance.
Without lifting (4 wheels on the
road)
You should always use a towbar.
The removable towing eye is inside the
engine compartment.

From the front


- unclip the cover by pressing the
bottom part,

- screw in the removable towing eye
until it locks.

Lifting (2 wheels on the road only)
It is preferable to raise the vehicle
using professional lifting equipment.

VEHICLES FITTED WITH A
MANUAL GEARBOX (diesel
version)
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in the neutral position. Failure to
observe this special condition may
result in damage to certain braking
components and the absence of
braking assistance the next time the
engine is started. Put the gear lever in neutral.
Failure to observe this rule may
result in damage to certain
components.

Diesel technical data

132



This table presents the Model Codes



Engine,
__xxx__ Diesel
2.0 HDi PEF
__RHR__


Number of seats,
xx_____


7 seats maximum
EA_____

Base model: 5 individual seats


8 seats maximum
EB_____


Type of gearbox
, _____xx


Manual



(6-speed)
_____H



Automatic



(6-speed)
_____J

Category and type of towing device A 50 X

Part number, instructions concerning
fi tting R 06-0049

133


Diesel technical data

TECHNICAL DATA
8


DIESEL ENGINE

Model codes


E_RHRH



E____H



E____J



Engine


2.0 HDi PEF



2.0 HDi PEF




Manual
Manual
Automatic

(6-speed)
(6-speed)
(6-speed)
Power (bhp)
140
163
Max. power: EU standard (KW)
100
120
Capacity (cm
3
)
1 997
1 997
Bore x stroke (mm)
85 x 88
85 x 88
Number of valves
16
16
Max. power engine speed (rpm)
4 000
4 000
Max. torque: EU standard (Nm)
320
320
Max. torque engine speed (rpm)
2 000
2 000
Fuel
Diesel
Diesel
Catalytic converter
Yes
Yes
Particle emission fi lter (PEF)
Yes
Yes
Electronic injection
Yes
Yes

Oil capacities (in litres)

Engines (with fi lter replacement)
5
5

Diesel technical data

134


DIESEL DIMENSIONS, WEIGHTS AND TOWING LOADS (in mm - in kg)

Model codes


EARHRH



EBRHRH



EA___H


EA___J



EB___H


EB___J




7 seats
8 seats
7 seats
8 seats

Engine


2.0 HDi PEF



2.0 HDi PEF


Wheelbase(s) (at full load)
2 823
-
-
on Axle 1
1 570
-
-
on Axle 2
1 548
-
-
Length
4 727
Width
1 850
Height at kerb weight
without roof bars
1 745 to 1 759
with fi xed roof bars
1 854 to 1 863
Kerb weight
1 854 to 1 957
1 818 to 1 983
-
-
on Axle 1
1 121 to 1 157
1 117 to 1 161
-

-
on Axle 2
733 to 800
701 to 822
-
-
