2013 Peugeot 807 Owner's Manual

4
7a
7b7b 2
4
7a5
5
2
7
1
FAMILIARISATIO
N
Exterior
Audible and/or visual rear
parking assistance. 87
Tailgate
Locking and unlocking by
remote control. Press the
handle and raise the tailgate.

Parking assistance 25

Transverse roof bars
Release the four levers,
move your bars then secure
the levers. 105

Spare wheel
Raise the wheel to be
repaired by means of the
cable until it is fl ush against
the fl oor. Close the cover on
the access opening securely. 117
Wheelbrace.
Jack box.
Towing eye.

11 7

8
Interior

9
1
FAMILIARISATIO
N

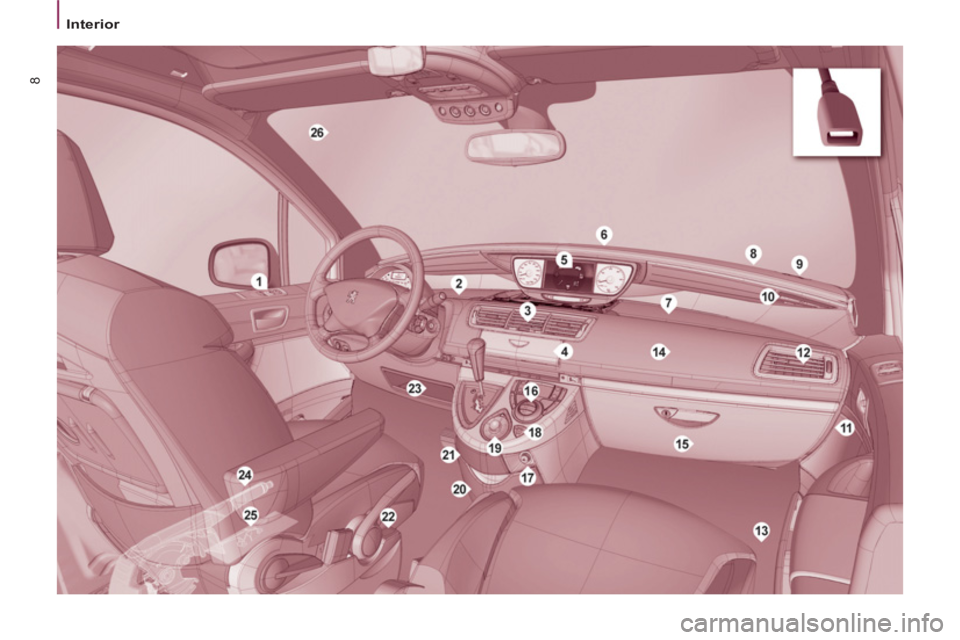

Interior


13.
Battery / Fuse box.

14.
Passenger airbag.

15.
Passenger's lower glove box / Fuse
box / RCA sockets.

16.
Air conditioning controls.

17.
Lighter /
12 V accessories socket.

18.
Hazard warning lights switch.

19.
Storage compartment or additional
telematics control.

20.
Cooled compartment.

21.
Ashtray / Can holder.

22.
Seat adjustment control.

23.
Storage compartment.

24.
Handbrake - on the left.

1.
Electric mirror controls.


- Electric window controls.

- Deactivation of the rear electric
controls.

2.
Driver's upper glove box.

3.
Central adjustable vents.

4.
Audio equipment or GPS
multimedia audio equipment with
fl ap.

5.
Instrument panel / Large colour
display.

6.
Sunshine and passenger
compartment temperature sensor.

7.
Passenger's upper glove box.
25.
Bonnet release under cover - on
the left.

26.
Acoustic windscreen.





INTERIOR OVERVIEW

SETTING THE DATE AND
TIME
For more information about
this adjustment, refer to the
"Setting the date and time" section of
the "In-car technology" chapter.


ADDITIONAL HEATER

With the engine at idle
or when the vehicle is
stationary, it is normal
to notice a high-pitched
whistling and a slight emission of
smoke and odour.
Bluetooth.

8.
Windscreen demisting vents.

9.
Speaker (tweeter).

10.
Front window demisting vents.

11 .
Passenger airbag disarming switch,
if fi tted on your vehicle.

12.
Side adjustable vent.

10
Interior

5.
Control block.

6.
Steering wheel audio equipment
controls.

7.
Wipers / wash-wipe / trip computer
controls.

8.
Gear lever.

9.
Ignition.

1.
Interior protection alarm
deactivation button.

2.
Speed limiter / cruise control
switches.

3.
Lights and direction indicators
controls.

4.
Driver's airbag.
Horn.
10.
Headlamp height adjustment.

11 .
a- Dynamic stability control button
(ESP/ASR).
b- Parking assistance button.

12.
Steering wheel adjustment control.



INSTRUMENTS AND CONTROLS

9
99
11
1
FAMILIARISATIO
N


Interior


INSTRUMENTS AND CONTROLS


Truly ergonomic control for access
to the functions of the Peugeot
Connect Media Navigation (RT5).


Peugeot Connect Navigation (RT6)


confi rmation




selection
Peugeot Connect Sound


Bluetooth



JACK / RCA socket

4
12
Interior

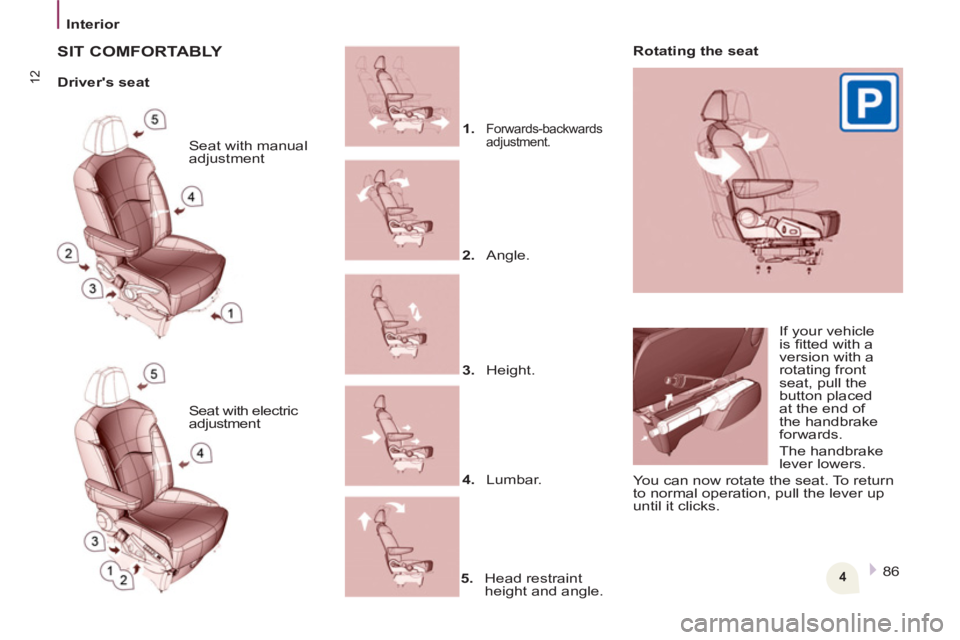

86 Seat with manual
adjustment
Seat with electric
adjustment If your vehicle
is fi tted with a
version with a
rotating front
seat, pull the
button placed
at the end of
the handbrake
forwards.
The handbrake
lever lowers.
You can now rotate the seat. To return
to normal operation, pull the lever up
until it clicks.

1.

Forwards-backwards
adjustment.

2.
Angle.

3.
Height.

4.
Lumbar.

5.
Head restraint
height and angle.

Rotating the seat


SIT COMFORTABLY


Driver's seat

3
13
1
FAMILIARISATIO
N


Interior

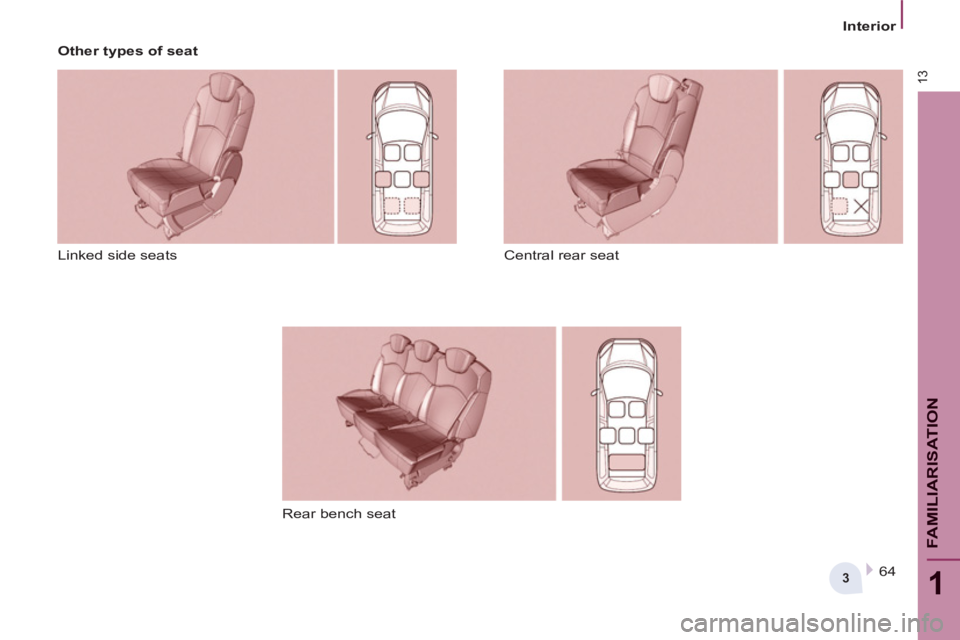

Linked side seats Central rear seat
Rear bench seat
Other types of seat
64

43
3
3
14
Interior
91

Repositioning


SIT COMFORTABLY
SEE CLEARLY

Adjust the height
and depth of the
steering wheel.
Electric exterior mirrors.
Selection
Seat belts
Height adjustment.
Fastening. Lights off
Side lights
Main beam headlamps (blue)
Dipped headlamps (green)

Wipers stalk
2 fast.
1 normal.
I intermittent.
0 off.
È
single wipe.
AUTO, press the stalk down. AUTO, automatic switching
on of the lights
Adjustment

82
43
46
