2013 Peugeot 807 Owner's Manual

SAFETY
95
Airbags
4

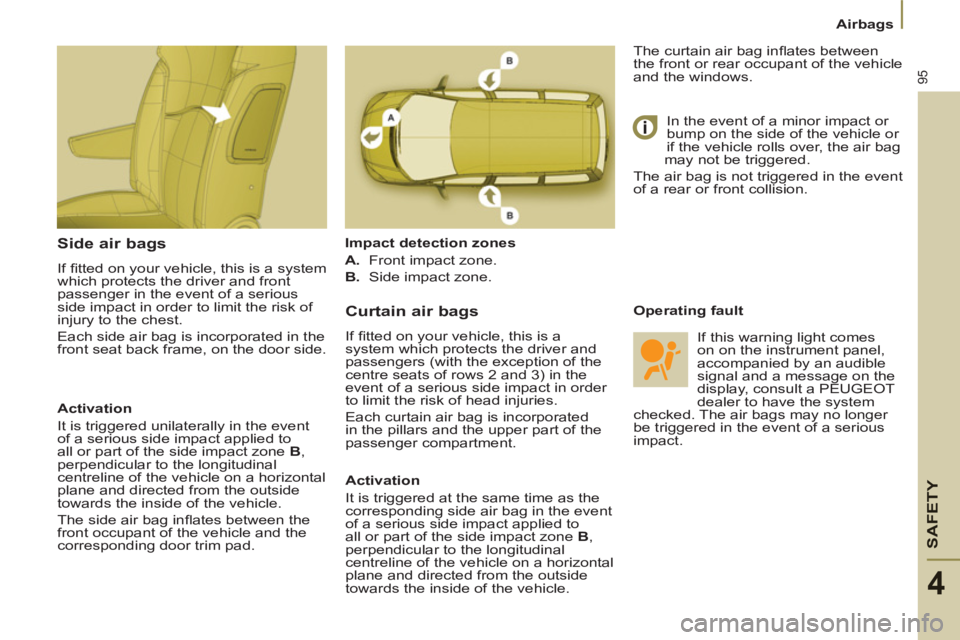

Side air bags

If fi tted on your vehicle, this is a system
which protects the driver and front
passenger in the event of a serious
side impact in order to limit the risk of
injury to the chest.
Each side air bag is incorporated in the
front seat back frame, on the door side. The curtain air bag infl ates between
the front or rear occupant of the vehicle
and the windows.

Impact detection zones


A.
Front impact zone.

B.
Side impact zone.

In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the air bag
may not be triggered.
The air bag is not triggered in the event
of a rear or front collision.

Operating fault


Curtain air bags

If fi tted on your vehicle, this is a
system which protects the driver and
passengers (with the exception of the
centre seats of rows 2 and 3) in the
event of a serious side impact in order
to limit the risk of head injuries.
Each curtain air bag is incorporated
in the pillars and the upper part of the
passenger compartment.
Activation
It is triggered unilaterally in the event
of a serious side impact applied to
all or part of the side impact zone B
,
perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside
towards the inside of the vehicle.
The side air bag infl ates between the
front occupant of the vehicle and the
corresponding door trim pad.
Activation
It is triggered at the same time as the
corresponding side air bag in the event
of a serious side impact applied to
all or part of the side impact zone B
,
perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside
towards the inside of the vehicle. If this warning light comes
on on the instrument panel,
accompanied by an audible
signal and a message on the
display, consult a PEUGEOT
dealer to have the system
checked. The air bags may no longer
be triggered in the event of a serious
impact.

96
Airbags

Disarming
The passenger's front air bag alone
can be disarmed:




- With
the
ignition
switched
off
,
insert the key into the passenger air
bag disarming switch,

- turn it to the "OFF"
position,
-


then remove the key keeping the
slot in this position.

Front air bags

The front air bags are incorporated in
the centre of the steering wheel for the
driver and in the fascia for the front
passenger.

Front air bag fault
Reactivation
In the "OFF"
position, the passenger
air bag will not be triggered in the
event of an impact.
As soon as the child seat is removed,
turn the air bag slot to the "ON"

position to re-activate the air bag
and thus ensure the safety of your
passenger in the event of an impact. To ensure the safety of your
child, it is essential to disarm the
passenger air bag when you install
a rear-facing child seat on the front
passenger seat. Otherwise, the child
would risk being killed or seriously
injured if the air bag were to infl ate.
The air bag warning light
on the instrument panel is
lit throughout the period of
disarming.
If the two air bag warning lights
are lit continuously, do not install
a rear-facing child seat. Consult a
PEUGEOT dealer.

Activation
They are deployed simultaneously,
unless the passenger's front air bag
has been disarmed, in the event of a
serious front impact applied to all or
part of the front impact zone A
in the
longitudinal centreline of the vehicle
on a horizontal plane directed from the
front towards the rear of the vehicle.
The front air bag infl ates between
the front occupant of the vehicle and
the fascia to cushion his forward
movement. If this warning light comes on,
accompanied by an audible
signal and a message on the
display, consult a PEUGEOT
dealer to have the system
checked.

SAFETY
97


Child safety

4

CHILD SAFETY
GENERAL POINT
S RELATING
TO CHILD SEATS


"Rearwards-facing"
Recommended on the rear seats up to
the age of 2.
When a "rearwards-facing" child seat is
installed on the front passenger seat, it
is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate.
"Forwards-facing"
Recommended on the rear seats over
the age of 2.
When a "forwards-facing" child seat is
installed on the front passenger seat,
leave the passenger airbag activated.



CHILD SEAT IN THE FRONT


The rules for carrying children are
specifi c to each country. Consult the
current legislation in your country.
Please consult the list of seats
approved in your country. The Isofi x
mountings, the rear seats, the
passenger airbag and the deactivation
of this airbag depend on the version
sold.
The child seats function and the
passenger's airbag deativation function
are common to the entire PEUGEOT
range.
Although one of PEUGEOT's main
criteria when designing your vehicle,
the safety of your children also
depends on you.
For maximum safety, please follow
these precautions:


- all children under the age of 12 or
less than one metre fi fty tall must
travel in approved child seats suited
to their weight, on seats fi tted with
a seat belt or ISOFIX mountings,

- statistically, the safest seats in your
vehicle for the transportation of
children are the rear seats,

- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear,

- the passenger must not travel with
a child on his lap.


Refer to chapter 4, "Airbags"
section.
If the passenger's airbag is not
deactivated, the installation of a
"rearwards-facing" child seat in the
front is strictly prohibited.

98


Child safety

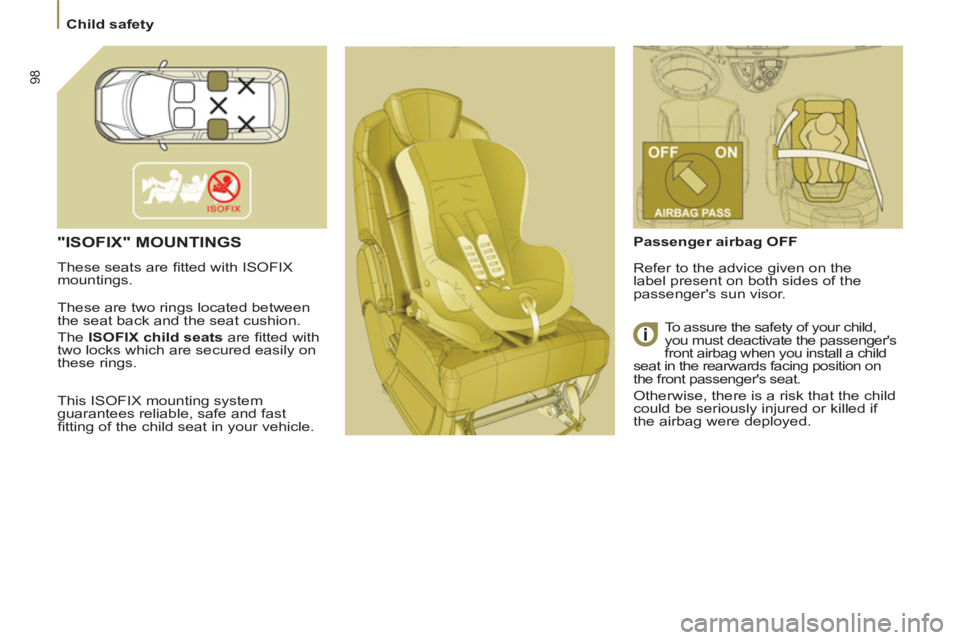

"ISOFIX" MOUNTINGS

These seats are fi tted with ISOFIX
mountings.
These are two rings located between
the seat back and the seat cushion.
The ISOFIX child seats
are fi tted with
two locks which are secured easily on
these rings.
This ISOFIX mounting system
guarantees reliable, safe and fast
fi tting of the child seat in your vehicle.





Passenger airbag OFF

Refer to the advice given on the
label present on both sides of the
passenger's sun visor.

To assure the safety of your child,
you must deactivate the passenger's
front airbag when you install a child
seat in the rearwards facing position on
the front passenger's seat.
Otherwise, there is a risk that the child
could be seriously injured or killed if
the airbag were deployed.

SAFETY
99


Child safety

4

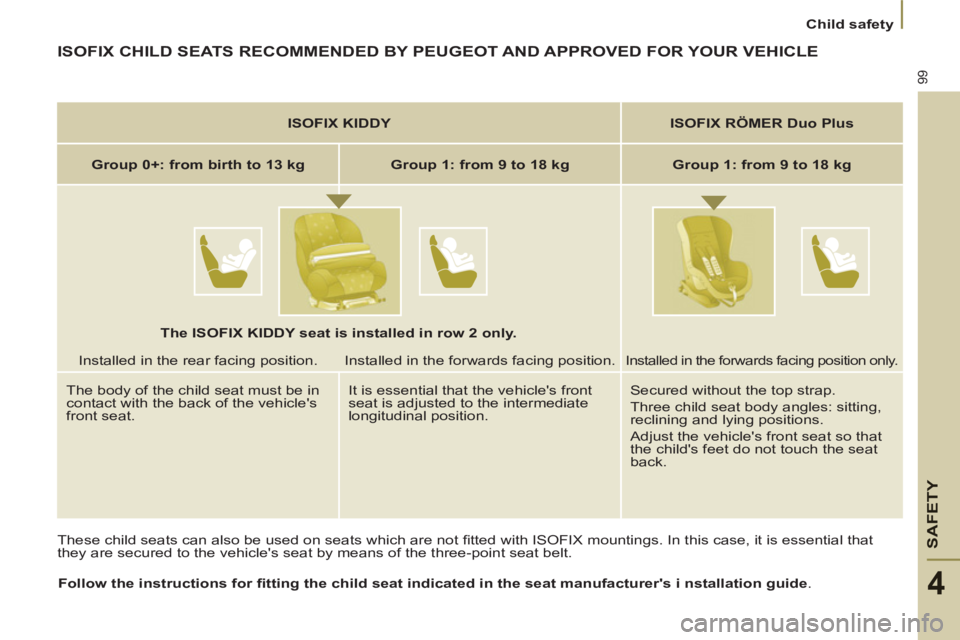

ISOFIX CHILD SEATS RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE

These child seats can also be used on seats which are not fi tted with ISOFIX mountings. In this case, it is essential that
they are secured to the vehicle's seat by means of the three-point seat belt.

Follow the instructions for fi tting the child seat indicated in the seat manufacturer's i
nstallation guide
.

ISOFIX KIDDY


ISOFIX RÖMER Duo Plus


Group 0+: from birth to 13 kg

Group 1: from 9 to 18 kg

Group 1: from 9 to 18 kg

Installed in the rear facing position. Installed in the forwards facing position.

Installed in the forwards facing position only.

The body of the child seat must be in
contact with the back of the vehicle's
front seat. It is essential that the vehicle's front
seat is adjusted to the intermediate
longitudinal position. Secured without the top strap.
Three child seat body angles: sitting,
reclining and lying positions.
Adjust the vehicle's front seat so that
the child's feet do not touch the seat
back.
The ISOFIX KIDDY seat is installed in row 2 only.

100


Child safety



CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are
secured using a three point seat belt
:

INSTALLING CHILD SEATS
ATTACHED USING THE SEAT
BELT
The table presented on the following
page indicates the options for installing
child seats secured using a seat
belt and universally approved in
accordance with the weight of the child
and the seat in the vehicle.

Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg




L1


"ROMER Baby-Safe Plus"
Installed in the rear-facing position






Groups 1, 2 and 3: from 9 to 36 kg




L2


"KIDDY Life"
The use of the restraining cushion is
compulsory for transporting young
children (from 9 to 18 kg).


Groups 2 and 3: from 15 to 36 kg




L3


"RECARO Start''

L4


"KLIPPAN
Optima"
From the age
of 6 years
(approximately
22 kg), the booster
is used on its own.

SAFETY
101


Child safety

4




a
: Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.

b
: consult the legislation in force in your country before installing your child on this seat.

U
: seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear facing" and/or
"forward facing".

L-
: only the child seats indicated can be installed on the seat concerned (according to country).

X
: seat not suitable for the installation of a child seat of the weight group indicated.



Seat


Weight of the child and indicative age




Under 13 kg

(groups 0 ( a
) and 0+)
Up to approx 1 year

From 9 to 18 kg

(group 1)
1 to 3 years approx

From 15 to 25 kg

(group 2)
3 to 6 years approx



From 22 to 36 kg

(group 3)
6 to 10 years approx
Front passenger
seat ( b
)

U



U



U



U


Side seats
of row 2

U



U



U



U


Centre seat
of row 2

U



U



U



U


Side seats of row 2,
placed in row 3

L1



L2



L2, L3, L4



L2, L3, L4


Centre seat of row 2,
placed in row 3

U



U



U



U


3-seat bench seat,
placed in row 3

L1



L2



L2, L3, L4



L2, L3, L4




X



L2



L2, L3, L4



L2, L3, L4

102


Child safety

ADVICE ON CHILD SEATS

The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack
in relation to the child's body to a
minimum
, even for short journeys.
To protect young children from the
rays of the sun, fi t side blinds to
the rear windows.

CHILD MONITORING MIRROR

This mirror enables the driver or front
passenger to observe all the rear
seats.
Fitted on its own ball joint and able to
retract into its housing in the roof, it
provides a panoramic view of the rear
interior of the vehicle. For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back
of the vehicle's seat and that the head
restraint does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Deactivate the passenger airbag when
a "rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.
As a safety precaution, do not leave:


- one or more children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

- the keys within reach of children
inside the vehicle.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.

Installing a booster seat

The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fi tted
with a seat belt guide at shoulder level.
