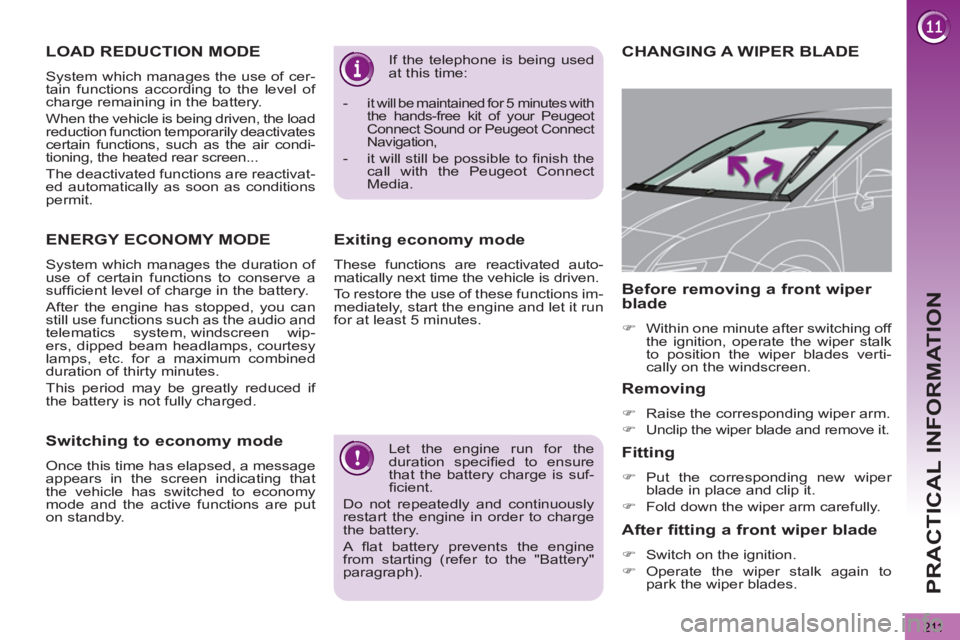

PRACTICAL INFORMATION
211
Let the engine run for the
duration specifi ed to ensure
that the battery charge is suf-
fi cient.
Do not repeatedly and continuously
restart the engine in order to charge
the battery.
A fl at battery prevents the engine
from starting (refer to the "Battery"
paragraph). If the telephone is being used
at this time:


- i
t will be maintained for 5 minutes with
the hands-free kit of your Peugeot
Connect Sound or Peugeot Connect
Navigation,

- it will still be possible to fi nish the
call with the Peugeot Connect
Media.



Exiting economy mode

These functions are reactivated auto-
matically next time the vehicle is driven.
To restore the use of these functions im-
mediately, start the engine and let it run
for at least 5 minutes.
CHANGING A WIPER BLADE

Removing



)
Raise the corresponding wiper arm.

)
Unclip the wiper blade and remove it.



Fitting



)
Put the corresponding new wiper
blade in place and clip it.

)
Fold down the wiper arm carefully.



Before removing a front wiper
blade


)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades verti-
cally on the windscreen.



After fitting a front wiper blade



)
Switch on the ignition.

)
Operate the wiper stalk again to
park the wiper blades.

LOAD REDUCTION MODE

System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy
lamps, etc. for a maximum combined
duration of thirty minutes.
This period may be greatly reduced if
the battery is not fully charged.

Switching to economy mode

Once this time has elapsed, a message
appears in the screen indicating that
the vehicle has switched to economy
mode and the active functions are put
on standby.

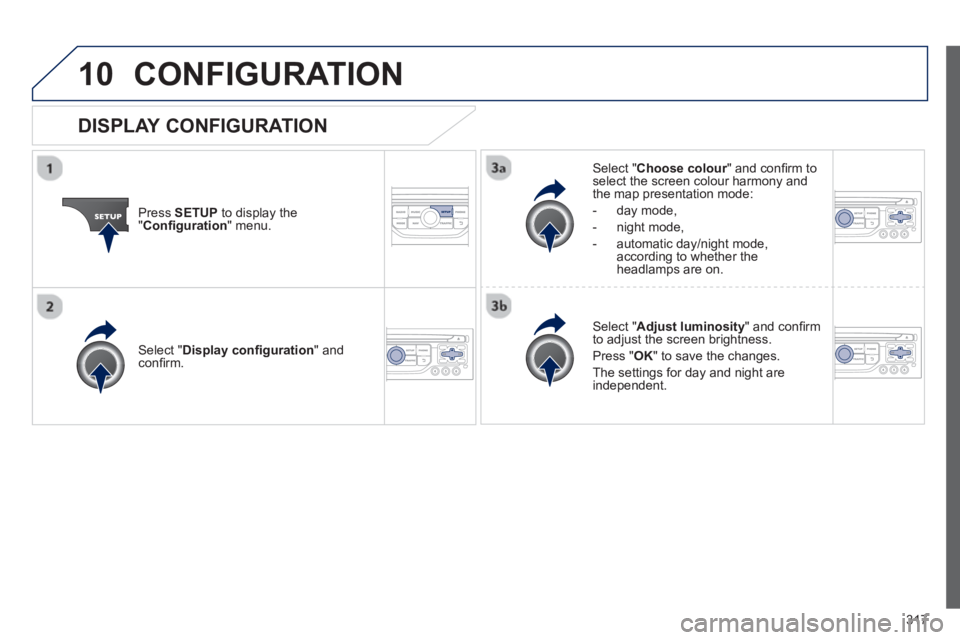

317
10CONFIGURATION
Press SETUP
to display the"Confi guration
" menu.
Select " Choose colour" and confi rm torselect the screen colour harmony and
the map presentation mode:
-
day mode,
- n
ight mode,
- automatic day
/night mode,according to whether the
headlamps are on.
Select " Adjust luminosity" and confi rm
to adjust the screen brightness.
Pr
ess " OK" to save the changes.
The settings
for day and night are independent.

Select " Display confi guration" andconfi rm.


DISPLAY CONFIGURATION

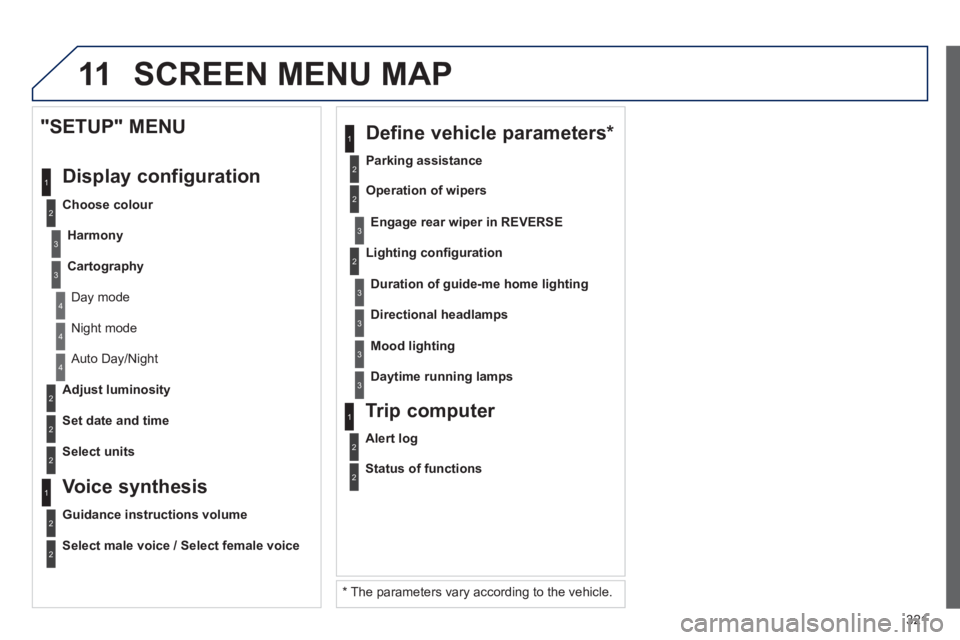

321
11
2
3
3
1
4
2
2
1
4
4
2
2
Night mode

Auto Day/Night

Ad
just luminosity


Set date and time


"SETUP" MENU
Displa
y configuration


Choose colour
Harmon
y
Cartography
Day mode

Voice synthesis


Guidance instructions volume

Select male voice / Select female voice
2

Select units
SCREEN MENU MAP
2
3
3
2

Lighting confi guration
Parkin
g assistance
En
gage rear wiper in REVERSE
Duration of guide-me home lighting
1
Define vehicle parameters *
2

Operation of wipers
3Directional headlamps
3Mood lighting
3Daytime running lamps
* The parameters var
y according to the vehicle.
2

Alert log
1
Trip computer
2

Status of functions

ALPHABETICAL INDEX
349
Accessories ...........................216
Accessory socket,
12V ...................... 101, 103, 113
Accessory socket,
12 volt .........................108, 109
Access to the 3rd row ..............69
Adjusting headlamps ...............93
Adjusting head restraints ...65, 67
Adjusting seat belt height ......133
Adjusting the steering wheel....73
Airbags ............................ 36, 116
Airbags, curtain..............139, 140
Airbags, front .................137, 140
Airbags, lateral...............139, 140
Air conditioning ........................25
Air conditioning, digital.......57, 60
Air conditioning, manual ....57, 58
Air fi lter ..................................179
Air fl ow .....................................25
Air vents...................................56
Alarm .......................................79
Anti-pinch.........................81, 107
Anti-theft ..................................76
Armrest, rear ..........................109
Assistance call .......................228
Audible warning .....................129
Audio/video sockets...............258
Audio streaming
(Bluetooth) ..................314, 341
Audio systems .........................51
Automatic illumination of
headlamps ......................89, 92
Automatic operation of hazard
warning lamps .....................129
Automatic rain sensitive
windscreen wipers ..........95, 97
Auxiliary socket..............315, 338
Auxiliary sockets ............258, 336Capacity, fuel tank ...................87
CD MP3 .................................335
Central locking ...................75, 84
Centre console ......................103
Changing a bulb ....196, 199, 200
Changing a fuse ....................201
Changing a wheel ..........190, 192
Changing a wiper blade.... 97, 211
Changing the date .......42, 44, 46
Changing the remote control
battery ...................................77
Changing the time .......42, 44, 46
Checking levels .............177, 178
Checking the engine oil level ....40
Checking tyre pressures
(using the kit) ......................181
Checks...........175, 176, 179, 180
Child lock ...............................128
Children .................121, 125, 126Child seats ............ 115, 116, 123
Child seats,
conventional ................ 119, 121
Closing the boot.................75, 85
Closing the doors...............75, 83
Cold climate screen ...............215
Colour screen,
retractable .......................49, 51
Concertina boards ...70, 108, 109
Connectors, audio ........102, 103,
336, 338
Control for panoramic
sunroof blind .......................107
Coolant level ....................37, 178
Coolant temperature
indicator ................................37
Courtesy lamps........................98
Courtesy mirror ......................102
Cruise control ........................155
Cup holder .............101, 108, 109
A
Backup starting ......................209
Battery ................... 179, 208-210
Battery, charging ....................209
Battery, remote control ......77, 78
Blind for panoramic sunroof...107
Blinds ..................................... 114
Bluetooth (hands-free)... 259-261,
298, 339
Bluetooth (telephone) ... 259-261,
298
Bonnet ...................................173
Bonnet stay............................173
Boot .........................................85
Boot lamp ...................... 100, 114
Brake discs ............................180
Brake lamps...........................199
Brake pads ............................180
Brakes ...................................180
B
CDate (setting) ...............42, 44, 46
Daytime running
lamps ....................91, 196, 198
Deactivating the passenger
airbag ..................................137
Deadlocking .............................75
Defrosting ....................58, 59, 72
Demisting.................................58
Dials and gauges .....................27
Diesel additive level ...............178
Dimensions ............................224
Dipped beam ...........89, 196, 197
Dipstick ............................40, 177
Directional lighting ...................94
Direction indicators ... 129, 196, 199
Distance alert.........................151
Doors .......................................83
Doors emergency control ........85
Door trays ..............................101
D

ALPHABETICAL INDEX
350
Jack ...............................190, 192JACK socket ...103, 315, 336, 338
Jukebox (copy) ......................256
Jukebox (playing) ..................257
Keeping children safe ... 115, 116,
125, 126, 137
Key with remote
control ....................... 74-76, 78
I
J
Eco-driving ..............................25
Eco-driving (advice) .................25
Economical driving .................25
Economy mode...................... 211
Electric window controls ..........81
Electronic engine
immobiliser ......................76, 78
Electronic stability control
(ESC) ..................................131
Emergency boot release..........86
Emergency call ..............228, 229
Emergency warning lamps ....129
Energy economy mode.......... 211
Engine, Diesel ........88, 174, 176,
219, 220, 223
Engine, petrol ...88, 175, 217, 218
Engine compartment .....175, 176
Engine compartment
fusebox ...............................201
Engine oil level indicator ....40, 177
Engines..........................217, 219
Environment ......................25, 78
ESC/ASR ...............................131Height and reach adjustment,
steering wheel .......................73
High load retaining net........... 111
Hill start assist .......................146
Hooks ............................ 109, 113
Horn .......................................129 Fuel consumption ....................25
Fuel fi ller cap ...........................87
Fuel fi ller fl ap .....................87, 88
Fuel gauge...............................87
Fuel tank ............................87, 88
Fusebox, dashboard ..............201
Fuses .....................................201 Dynamic emergency braking ... 144
Dynamic stability control
(DSC) ......................32, 35, 132
E
G
F
Filling with fuel ...................87, 88
Fitting a wheel .......................194
Fitting roof bars......................214
Fittings, boot ..................108, 109
Flashing indicators.................129
Foglamps, rear ........................90
Folding the rear seats ...67, 69, 70
Front foglamps.........90, 196, 198
Front seats...................63, 64, 66
Fuel..............................25, 87, 88G.P.S. ............................242, 284
Gearbox,
automatic ............162, 180, 210
Gearbox, electronic
gear control ...158, 165, 180, 210
Gearbox, manual ...157, 165, 180
Gear lever ................................25
Gear lever, automatic
gearbox ...............................162
Gear lever, electronic gear
control gearbox ...................158
Gear lever, manual gearbox ....157
Gear shift indicator ................157
Glove box ......................101, 102
Grab handles .........................101
Guidance ...............242, 282, 289
Guide-me-home.......................92Identifi cation plates ................225
Indicator lamps, status.......30, 31
Indicators, direction ...............129
Infl ating accessories
(using the kit) ......................181
Infl ating tyres ...........................25
Inputs for audio system ...258, 315,
336, 338
Instrument panel lighting .........41
Instrument panels ..............27, 28
Instrument panel screen ....27, 157
Intelligent Traction Control .....131
Interior fi ttings ........................101
Interior mood lighting ...............99
ISOFIX ...................................125
ISOFIX child seats ......... 124-126
ISOFIX mountings .................124
Halogen headlamps...............196
Hands-free kit ................298, 339
Hazard warning lamps ...........129
Head-up display.....149, 153, 155
Headlamp adjustment..............93
Headlamps, directional ....94, 196
Headlamp wash .......................96
Headlamp wash reservoir ......178
Head restraints, front ...............65
Head restraints, rear ................67
Heated seats ...........................65
Heating ........................25, 57, 58
H
K

ALPHABETICAL INDEX
351
Multimedia, rear .............103, 106
Music media players ......254, 310
Oil fi lter ..................................179
Oil level ............................40, 177
Opening the bonnet ...............173
Opening the boot ...............74, 85
Opening the doors .............74, 83
Opening the panoramic
sunroof blind .......................107
Opening the retractable
screen ...................................51
Operation indicator lamps ...29-32Peugeot Connect Sound
(RD5) ............46, 329, 342, 344
PEUGEOT services ...............229
PIN code ................................262
Player, CD MP3 .....................335
POIs (updating) .....................249
Port, USB.......103, 315, 336, 338
Priming the fuel system .........174
Protecting children ........ 115, 116,
121, 124-126, 137
Puncture ........................181, 187 Navigation..............242, 281, 282
Net ......................................... 110
Number plate lamps ..............200
N
O
M
Paint colour code ...................225
Panoramic glass sunroof .......107
Parking brake ........................180
Parking brake, electric ...141, 144
Parking sensors, rear ............168
Parking space sensor ...........170
Particle emission fi lter....178, 179
Passenger compartment fi lter ... 179
PEUGEOT call button ............229
PEUGEOT CONNECT
ASSISTANCE .....................228
Peugeot Connect Media
Navigation
(NG4 3D) ....231, 234, 237, 264
Peugeot Connect Navigation
(RT6) .............................49, 275
PEUGEOT
CONNECT SOS ..........228, 229 Labels, identifi cation ..............225
Lamps, warning and
indicator ....................29, 32, 33
LED daytime running lamps ....91
Level, brake fl uid ...................177
Level, headlamp wash .....96, 178
Level, power steering fl uid .....177
Levels and checks ......... 175-178
Lighting ..................................100
Lighting, guide-me home ...91, 92
Lighting, interior .................98, 99
Lighting bulbs
(replacement) ......196, 199, 200
Lighting control stalk ................89
Lighting dimmer .......................41
Loading ......................25, 71, 214
Load reduction mode ............. 211
Load space cover ........... 108-110
Locating your vehicle ...............75
Locking from the inside............84
Long objects, transporting ....66, 71
Luggage retaining net ............ 112
L
Main beam ............... 89, 196-198
Maintenance ............................25
Map reading lamps ..................98
Markings, identifi cation ..........225
Mat.........................................104
Menu, main ............................332
Mini fuel level ...........................87
Mirror, rear view .......................73
Mirrors, door ............................72
Misfuel prevention ...................88
Modularity, seats ......................71
Motorway function
(direction indicators) ...........129
Mountings for ISOFIX seats ....124
MP3 CD .................................335
P
Radio .............253, 307, 308, 333
RCA sockets ..........................258
Reading lamps, rear ................98
Rear foglamp .................199, 200
Rear screen (demisting) ....59, 72
Recharging the battery ..........209
Reduction of electrical load ... 211
Regeneration of the particle
emissions fi lter ....................179
Reinitialising the electric
windows ................................81
Reinitialising the remote control ... 77
Remote control ............74, 75, 78
Removable screen
(snow shield) .......................215
Removing a wheel .................194
Removing the mat .................104
Repair kit, puncture .......181, 187
Replacing bulbs .....196, 199, 200
Replacing fuses .....................201
Replacing the air fi lter ............179
Replacing the oil fi lter ............179
Replacing the passenger
compartment fi lter ...............179
Replacing wiper blades ... 97, 211
Resetting the service indicator ....39
Resetting the trip recorder .......41
Rev counter .............................27
R

ALPHABETICAL INDEX
352
Xenon headlamps..................196
X
Vehicle identifi cation ..............225
Ventilation .......................... 56-58
Voice commands ...................234
V
Under-infl ation (detection) .....130
Under fl oor storage ................ 113
Unlocking .................................74
Unlocking from the inside ........84
Update risk areas ..........249, 286
Updating POIs .......................249
USB (Peugeot Connect) ...103, 336
Warning lamps .......30, 31, 33, 34
Wash-wipe, rear ......................96
Weights ..................218, 220, 223
Welcome lighting ...............91, 99
Window controls ......................81
Wiper, rear ...............................96
Wiper control stalk ............. 95-97
Wipers ...............................95, 97 Start .......................................209
Starting the vehicle ....76, 158, 162
Steering mounted controls,
audio ...........................236, 331
Stopping the vehicle ...76, 158, 162
Stop & Start ...55, 59, 62, 87, 165,
173, 179, 208
Storage ...101, 103, 105, 108, 109
Storage box ...........................102
Storage drawer ......................105
Storage wells .................108, 109
Stowing rings .................108, 109
Sun visor................ 101, 102, 114
Synchronising the remote
control ...................................77
Synthesiser, voice..................292
System, navigation ........242, 282 Reversing lamp......................199
Rigid panel...............................69
Risk areas (update) .......249, 286
Roof bars ...............................214
Routine checks ..............179, 180
Running out of fuel (Diesel) ...174
Safety for children....81, 121, 128
Screen, colour 16/9 .......237, 264
Screen, colour and
mapping ......................279, 318
Screen,
monochrome .......332, 342, 344
Screen, monochrome C...........53
Screen, multifunction (with audio
equipment) ..........44, 46, 49, 51
Screen, multifunction
(without audio equipment) ....42
Screen-wash reservoir...........178
Screen menu map ........264, 318,
342, 344
Screenwash, front....................96
Screenwash fl uid level .....96, 178
Seat adjustment...........63, 64, 67
Seat belts.......109, 133, 134, 136
Seat confi gurations ..................71
Seats, electric ..........................64
Seats, rear ...................67, 69, 70
Serial number, vehicle ...........225
Service indicator ......................38
Servicing ..................................25
Setting the clock ..........42, 44, 46
Short-cut menus ............238, 280
Sidelamps .......... 89, 91, 196-199
Side repeater .........................198
SIM card ........................102, 262
Spare wheel...................190, 192
Spectacles storage ................101
Speed limiter..........................153
Speedometer ...........................27
Spotlamps, side .......................99
T
S
Traffi c information (TA) ....252, 296,
309, 334
Traffi c information (TMC) ......251,
252, 295, 296
Trailer ....................................213
Trip computer ..............52, 53, 55
Trip distance recorder ..............41
Tyre pressures .......................225
Tyres ........................................25
Tyre under-infl ation detection ....130
U
Table of weights .....218, 220, 223
Tables, aircraft .......................105
Tables of engines...........217, 219
Tables of fuses.......................201
Tank, fuel .................................88
Technical data........ 217-220, 223
Telephone ............. 229, 259-261,
298, 302
Telephone, hands-free ... 259-261
Temperature, coolant ...............37
Temperature control for heated
seats .....................................65
Temporary tyre repair kit ........181
Third brake lamp....................200
TMC (Traffi c info) ...........251, 295
Tools ..............................190, 192
Torch .............. 100, 108, 109, 114
Total distance recorder ............41
Towbar ...................................213
Towed loads...........218, 220, 223
Towing another vehicle ..........212
Traction control (ASR) .......32, 35
W

VISUAL SEARCH
EXTERIOR


Exterior welcome lighting.............. 91
Door mirror spotlamps .................. 99
Lighting, automatic,
directional .............................. 89-94
Headlamp height adjustment ........ 93
Very cold climate screen............. 215
Changing bulbs.................... 196-198


- front lamps

- foglamps

- direction indicator repeaters

Fuel tank .................................. 87-88
Misfuel prevention ........................ 88

Boot ......................................... 85-86


- opening / closing

- emergency release
Temporary puncture
repair kit ............................ 181-189
Changing a wheel ................ 190-195


- tools

- removing

Remote control key.................. 74-78


- opening / closing

- anti-theft protection

- starting

- battery


Parking sensors ................... 168-169
Towing ................................. 212-213
Towbar ................................. 213-214

Changing rear bulbs ............ 199-200


- rear lamps

- 3rd brake lamp

- number plate lamps

- foglamps

Accessories ................................ 216
Roof bars, fi nishers..................... 214
Panoramic sunroof ..................... 107

Door mirrors .................................. 72

Doors ....................................... 83-86


- opening / closing

- central locking

- emergency control
Alarm ....................................... 79-80
Electric windows ...................... 81-82

ESC: ABS, EBFD, EBA, ASR,
DSC .................................. 131-132
CTI (traction on snow) ................ 131
Tyre under-infl ation detection ..... 130
Tyre pressures ............................ 225

Parking space sensors ........ 170-171
Wiper ....................................... 95-97
Changing a wiper blade ........ 97, 211
