Page 178 of 364
CHECKS
176

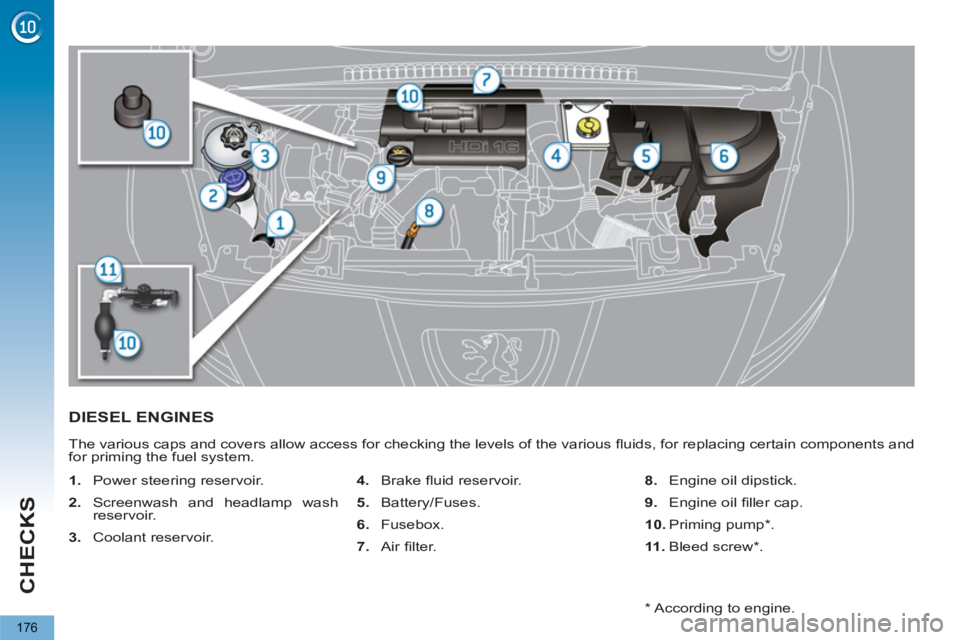

DIESEL ENGINES
The various caps and covers allow access for checking the levels of the various fl uids, for replacing certain components and
for priming the fuel system.
1.
Power steering reservoir.
2.
Screenwash and headlamp wash
reservoir.
3.
Coolant reservoir.
4.
Brake fl uid reservoir.
5.
Battery/Fuses.
6.
Fusebox.
7.
Air fi lter.
8.
Engine oil dipstick.
9.
Engine oil fi ller cap.
10.
Priming pump * .
11 .
Bleed screw * .
*
According to engine.
Page 180 of 364
CHECKS
178
Avoid prolonged contact of
used oil or fl uids with the skin.
Most of these fl uids are harm-
ful to health or indeed very corrosive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a PEUGEOT
dealer or a qualifi ed workshop
(France) or to an authorised waste
disposal site.
Diesel additive level (Diesel engine
with particle emission filter)
Used products
Topping up
This additive must be topped up by a
PEUGEOT dealer or a qualifi ed work-
shop without delay.
A low additive level is indi-
cated by illumination of the
service warning lamp, accom-
panied by an audible warning
and a message in the instrument panel
screen.
Fluid specifi cation
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up with or replaced with plain water.
In the case of vehicles fi tted
with headlamp washers, the
low fl uid level is indicated by an
audible signal and a message
in the instrument panel screen.
Top up the reservoir when you next stop
the vehicle.
Screenwash and headlamp
wash fluid
The cooling fan may start after
switching off the engine: take care
with articles and clothing that might
become caught by the fan blades.
Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.
Changing the coolant
The coolant does not have to be
changed.
Coolant level
The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the
temperature of the coolant is regulated
by the fan.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Page 198 of 364
PRACTICAL INFORMATION
196
Risk of electrocution
Xenon bulbs (D1S-35W) must
be replaced by a PEUGEOT
dealer or a qualifi ed workshop.

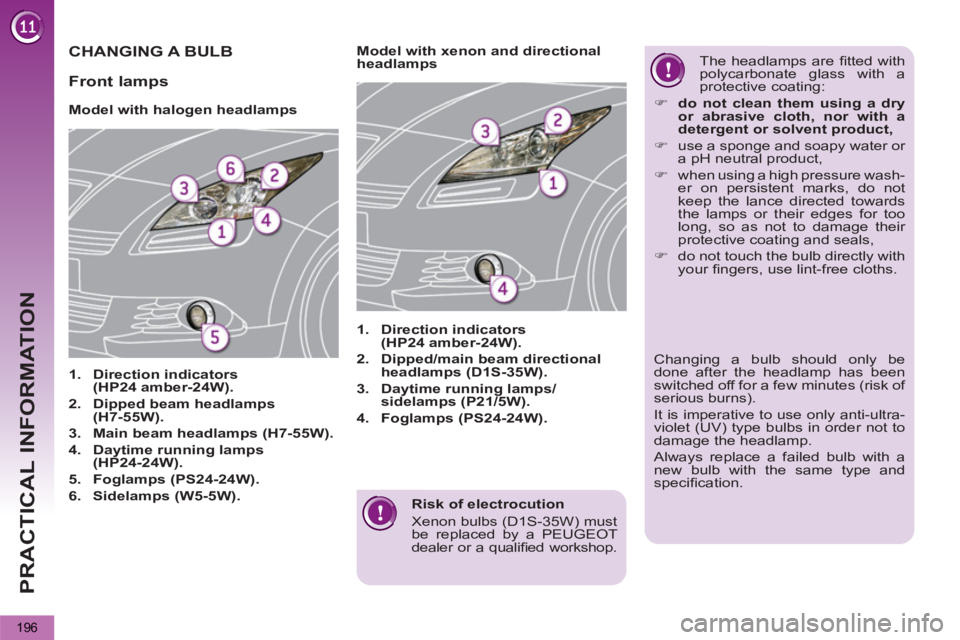

CHANGING A BULB
Model with halogen headlamps
1.
Direction indicators
(HP24 amber-24W).
2.
Dipped beam headlamps
(H7-55W).
3.
Main beam headlamps (H7-55W).
4.
Daytime running lamps
(HP24-24W).
5.
Foglamps (PS24-24W).
6.
Sidelamps (W5-5W).
1.
Direction indicators
(HP24 amber-24W).
2.
Dipped/main beam directional
headlamps (D1S-35W).
3.
Daytime running lamps/
sidelamps (P21/5W).
4.
Foglamps (PS24-24W).
Model with xenon and directional
headlamps The headlamps are fi tted with
polycarbonate glass with a
protective coating:
)
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,
)
use a sponge and soapy water or
a pH neutral product,
)
when using a high pressure wash-
er on persistent marks, do not
keep the lance directed towards
the lamps or their edges for too
long, so as not to damage their
protective coating and seals,
)
do not touch the bulb directly with
your fi ngers, use lint-free cloths.
Front lamps
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk of
serious burns).
It is imperative to use only anti-ultra-
violet (UV) type bulbs in order not to
damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation.
Page 199 of 364
PRACTICAL INFORMATION
197
Changing main beam headlamp and
sidelamp bulbs
Changing dipped beam headlamp bulbs
(models with halogen headlamps)
)
Remove the protective plastic cover
by pulling on the tab.
)
Disconnect the bulb connector.
)
Extract the bulb by pulling and
change it.
To r efi t, carry out these operations in re-
verse order.
)
Remove the protective plastic cover
by pulling on the tab.
)
Disconnect the bulb connector.
)
Remove the bulb by pulling and
change it.
To r efi t, carry out these operations in re-
verse order.
Changing direction indicator and
daytime running lamp bulbs (models
with halogen headlamps)
Contact a PEUGEOT dealer or a quali-
fi ed workshop.
Page 200 of 364
PRACTICAL INFORMATION
198

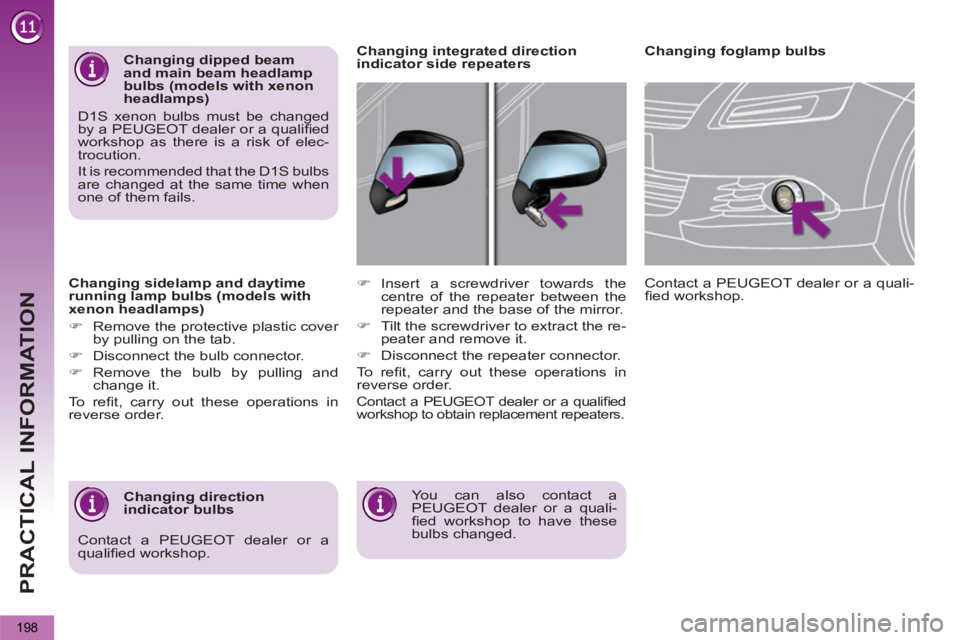

Changing sidelamp and daytime
running lamp bulbs (models with
xenon headlamps)
)
Remove the protective plastic cover
by pulling on the tab.
)
Disconnect the bulb connector.
)
Remove the bulb by pulling and
change it.
To r efi t, carry out these operations in
reverse order.
Changing foglamp bulbs
You can also contact a
PEUGEOT dealer or a quali-
fi ed workshop to have these
bulbs changed.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.
)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
)
Tilt the screwdriver to extract the re-
peater and remove it.
)
Disconnect the repeater connector.
To r efi t, carry out these operations in
reverse order.
Contact a PEUGEOT dealer or a qualifi ed
workshop to obtain replacement repeaters.
Changing integrated direction
indicator side repeaters
Changing direction
indicator bulbs
Changing dipped beam
and main beam headlamp
bulbs (models with xenon
headlamps)
D1S xenon bulbs must be changed
by a PEUGEOT dealer or a qualifi ed
workshop as there is a risk of elec-
trocution.
It is recommended that the D1S bulbs
are changed at the same time when
one of them fails.
Contact a PEUGEOT dealer or a
qualifi ed workshop.
Page 207 of 364
PRACTICAL INFORMATION
205
Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery.
Access to the fuses
)
Unclip the cover.
)
Change the fuse (see corresponding
paragraph).
)
When you have fi nished, close the
cover carefully to ensure correct
sealing of the fusebox.
Fuse table
Fuse
N°
Rating
(A)
Functions
F1
20
Engine management unit supply, injection pump
and EGR electrovalves (2 litre HDI), injectors
(2 litre HDI).
F2
15
Horn.
F3
10
Front / rear screenwash.
F4
10
Daytime running lamps.
F5
15
Canister purge electrovalves, turbine discharge
and Turbo pressure regulation electrovalves
(1.6 litre THP), oil vapour heater (1.6 litre THP),
diesel heater (1.6 litre HDI).
F6
10
Diagnostic socket, directional headlamps, particle
emission fi lter pump (Diesel), Distance alert,
engine coolant level detector, mirror adjustment
control.
F7
10
Power steering control unit, automatic gearbox,
directional headlamps height adjustment motor.
F8
20
Starter motor control.
F9
10
Clutch and brake pedal switches.
F10
30
Engine management unit actuators (petrol:
ignition coils, electrovalves, oxygen sensors,
injectors, heaters, fuel pump, electronic thermostat)
(Diesel: electrovalves, heaters).
F11
40
Air conditioning blower.
Page 208 of 364
PRACTICAL INFORMATION
206
Fuse
N°
Rating
(A)
Functions
F12
30
Windscreen wipers slow / fast speed.
F13
40
Built-in systems interface supply (ignition positive).
F14
30
Air pump.
F15
10
Right-hand main beam headlamp.
F16
10
Left-hand main beam headlamp.
F17
15
Left-hand dipped headlamp.
F18
15
Right-hand dipped headlamp.
F19
15
Oil vapour heater (1.6 litre VTi), Turbo pressure
regulation electrovalve (Diesel), engine coolant
level detector (Diesel).
F20
10
Electronic thermostat, variable timing electrovalves,
Turbo pressure regulation electrovalve (Diesel),
engine coolant level detector (Diesel).
F21
5
Fan assembly relay supply, Valvetronic relay
control (1.6 litre VTi), Turbo cooling (1.6 litre THP),
air fl ow sensor (1.6 litre HDI).
Page 209 of 364
PRACTICAL INFORMATION
207
Table of mini and midi-fuses above the battery
Fuse N°
Rating
(A)
Functions
F1
-
Not used.
F2
5
Dual function brake switch.
F3
5
Battery charge unit.
F4
25
ABS/DSC electrovalves.
F5
5
ABS/DSC control unit.
F6
15
Automatic gearbox, electronic gear control gearbox.
F7 *
80
Power steering electropump assembly.
F8
*
60
Fan assembly.
F9 *
80 / 30
Pre-heat unit (Diesel), Valvetronic electric motor
(1.6 litre THP).
F10 *
40
ABS/DSC electropump assembly.
F11 *
100
Switching and protection unit.
F12 *
30
Electronic gear control gearbox electropump assembly.
Fuse N°
Rating (A)
Functions
MF1 *
-
Not used.
MF2 *
30
Trailer fuse box.
MF3 *
50
Passenger compartment fusebox.
MF4 *
80
Built-in systems interface.
MF5 *
80
Built-in systems interface.
MF6 *
30
Electric parking brake.
MF7 *
30
Heated front seats.
MF8 *
20
Headlamp wash.
Table of maxi-fuses
*
The maxi-fuses and certain other fuses
provide additional protection for the elec-
trical systems. All work on the these fus-
es must be carried out by a PEUGEOT
dealer or a qualifi ed workshop.
