M
U
43

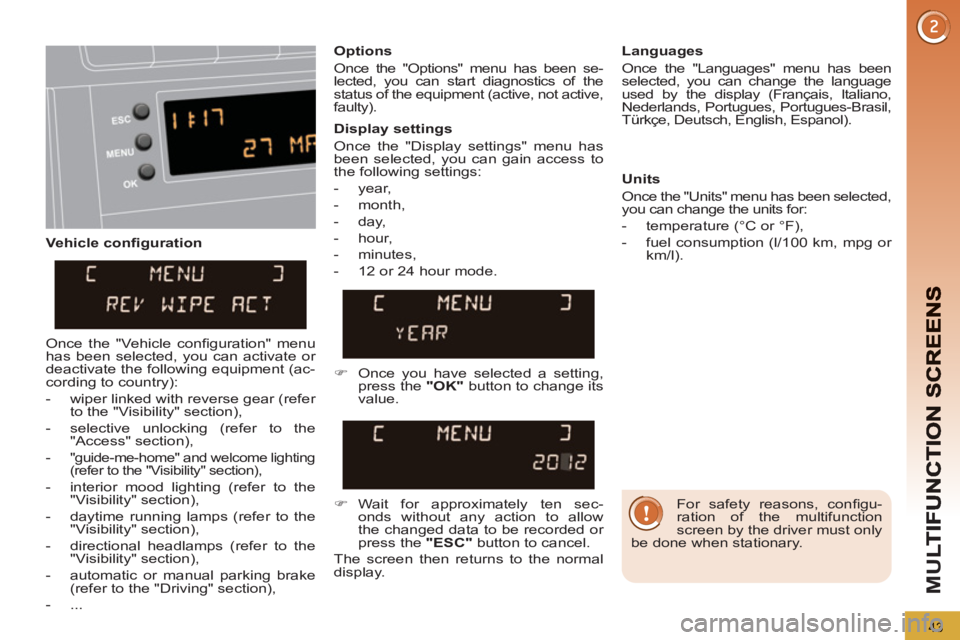

Vehicle confi guration
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not active,
faulty).
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-Brasil,
Türkçe, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Units
Once the "Units" menu has been selected,
you can change the units for:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
)
Once you have selected a setting,
press the "OK"
button to change its
value.
)
Wait for approximately ten sec-
onds without any action to allow
the changed data to be recorded or
press the "ESC"
button to cancel.
The screen then returns to the normal
display.
Once the "Vehicle confi guration" menu
has been selected, you can activate or
deactivate the following equipment (ac-
cording to country):
- wiper linked with reverse gear (refer
to the "Visibility" section),
- selective unlocking (refer to the
"Access" section),
-
"guide-me-home" and welcome lighting
(refer to the "Visibility" section),
- interior mood lighting (refer to the
"Visibility" section),
- daytime running lamps (refer to the
"Visibility" section),
- directional headlamps (refer to the
"Visibility" section),
- automatic or manual parking brake
(refer to the "Driving" section),
- ...
For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.
Page 47 of 364
M
U
45
For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.

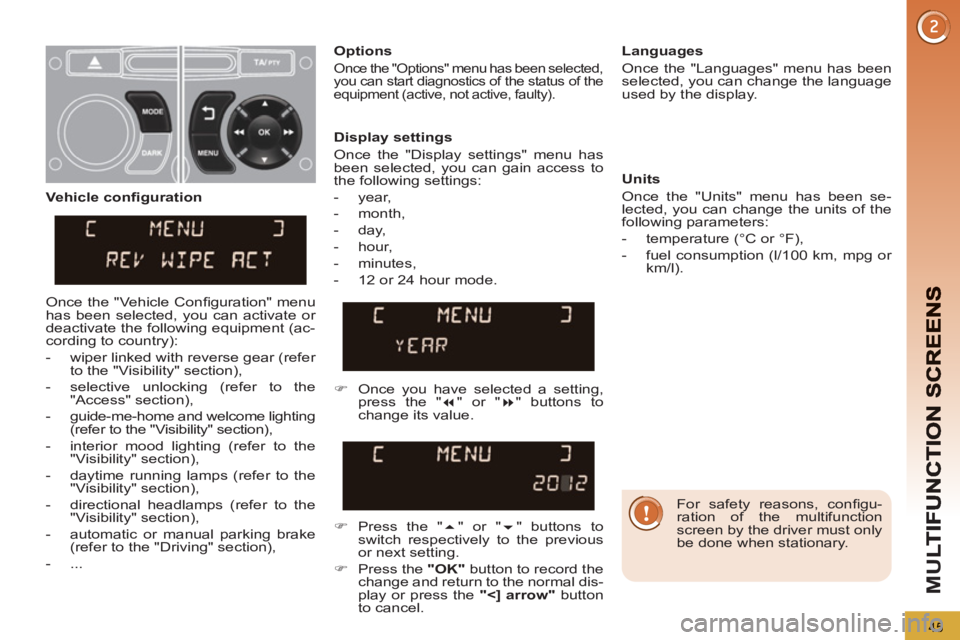

Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display.
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
)
Once you have selected a setting,
press the "
" or "
" buttons to
change its value.
)
Press the "
" or "
" buttons to
switch respectively to the previous
or next setting.
)
Press the "OK"
button to record the
change and return to the normal dis-
play or press the " < ] arrow"
button
to cancel.
Vehicle confi guration
Once the "Vehicle Confi guration" menu
has been selected, you can activate or
deactivate the following equipment (ac-
cording to country):
- wiper linked with reverse gear (refer
to the "Visibility" section),
- selective unlocking (refer to the
"Access" section),
- guide-me-home and welcome lighting
(refer to the "Visibility" section),
- interior mood lighting (refer to the
"Visibility" section),
- daytime running lamps (refer to the
"Visibility" section),
- directional headlamps (refer to the
"Visibility" section),
- automatic or manual parking brake
(refer to the "Driving" section),
- ...
Options
Once the "Options" menu has been selected,
you can start diagnostics of the status of the
equipment (active, not active, faulty).
Page 49 of 364
M
U
47

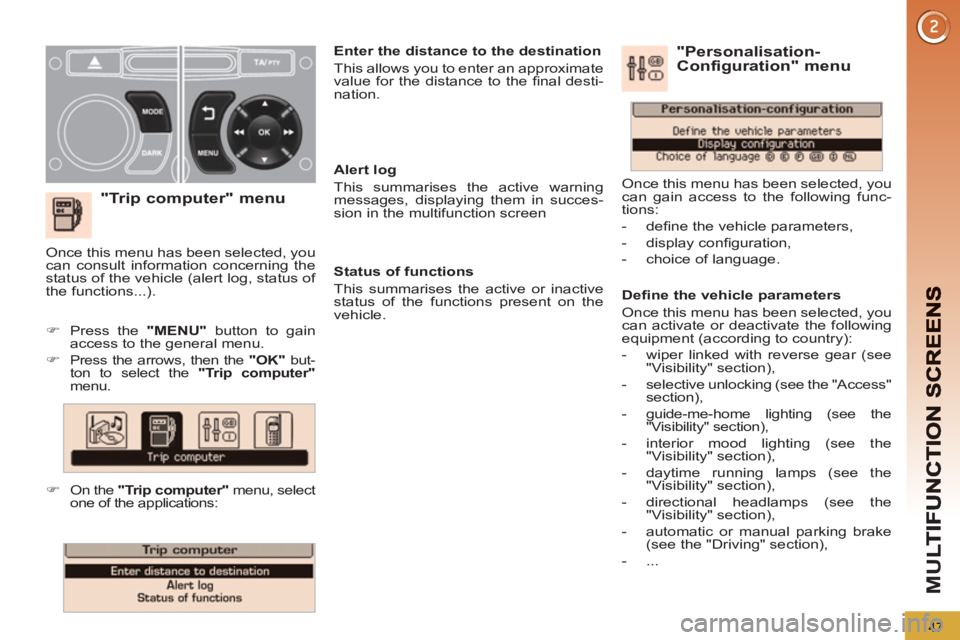

"Trip computer" menu
Alert log
This summarises the active warning
messages, displaying them in succes-
sion in the multifunction screen
Status of functions
This summarises the active or inactive
status of the functions present on the
vehicle.
)
Press the "MENU"
button to gain
access to the general menu.
)
Press the arrows, then the "OK"
but-
ton to select the "Trip computer"
menu.
Once this menu has been selected, you
can consult information concerning the
status of the vehicle (alert log, status of
the functions...).
Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment (according to country):
- wiper linked with reverse gear (see
"Visibility" section),
- selective unlocking (see the "Access"
section),
- guide-me-home lighting (see the
"Visibility" section),
- interior mood lighting (see the
"Visibility" section),
- daytime running lamps (see the
"Visibility" section),
- directional headlamps (see the
"Visibility" section),
- automatic or manual parking brake
(see the "Driving" section),
- ...
"Personalisation-
Configuration" menu
Once this menu has been selected, you
can gain access to the following func-
tions:
- defi ne the vehicle parameters,
- display confi guration,
- choice of language.
)
On the "Trip computer"
menu, select
one of the applications:
Enter the distance to the destination
This allows you to enter an approximate
value for the distance to the fi nal desti-
nation.
Page 50 of 364
M
U
48
Display confi guration
Once this menu has been selected, you
have access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Choice of language
Once this menu has been selected,
you can change the screen display lan-
guage.
Example: setting of the duration of the
guide-me-home lighting
)
Press the "
" or "
" buttons, then
the " OK
" button to select the menu
required.
)
Press the "
" or "
" buttons, then
the " OK
" button to select the "Guide-
me-home headlamps" line.
)
Press the "
" or "
" buttons to set
the value required (15, 30 or 60 sec-
onds), then press the " OK
" button to
confi rm.
)
Press the "
" or "
" buttons, then the
" OK
" button to select the " OK
" box and
confi rm or press the "
< ] arrow
" button
to cancel.
"Telephone" menu
For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.
For more information on the
telephone application, refer to
the Peugeot Connect Sound
(RD5) section. With the audio equipment switched on,
once this menu has been selected you
can confi gure your Bluetooth hands-free
kit (pairing), consult the various telephone
directories (calls log, services...) and man-
age your communications (pick up, hang
up, call waiting, secret mode...).
Page 52 of 364
M
U
50

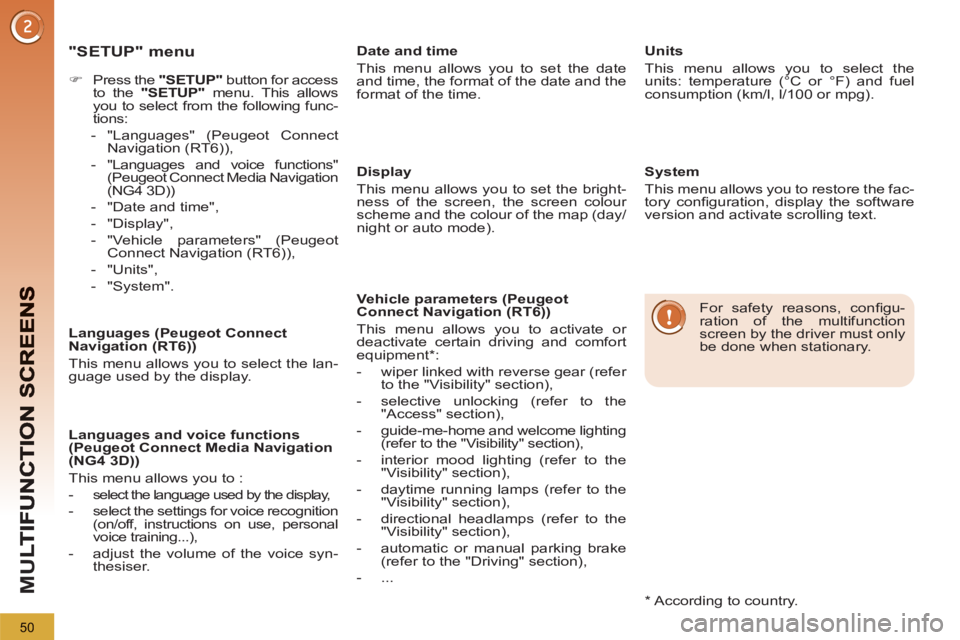

"SETUP" menu
)
Press the "SETUP"
button for access
to the "SETUP"
menu. This allows
you to select from the following func-
tions:
- "Languages" (Peugeot Connect
Navigation (RT6)),
- "Languages and voice functions"
(Peugeot Connect Media Navigation
(NG4 3D))
- "Date and time",
- "Display",
- "Vehicle parameters" (Peugeot
Connect Navigation (RT6)),
- "Units",
- "System".
Languages (Peugeot Connect
Navigation (RT6))
This menu allows you to select the lan-
guage used by the display.
Languages and voice functions
(Peugeot Connect Media Navigation
(NG4 3D))
This menu allows you to :
- select the language used by the display,
- select the settings for voice recognition
(on/off, instructions on use, personal
voice training...),
- adjust the volume of the voice syn-
thesiser.
Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time.
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Vehicle parameters (Peugeot
Connect Navigation (RT6))
This menu allows you to activate or
deactivate certain driving and comfort
equipment * :
- wiper linked with reverse gear (refer
to the "Visibility" section),
- selective unlocking (refer to the
"Access" section),
- guide-me-home and welcome lighting
(refer to the "Visibility" section),
- interior mood lighting (refer to the
"Visibility" section),
- daytime running lamps (refer to the
"Visibility" section),
- directional headlamps (refer to the
"Visibility" section),
- automatic or manual parking brake
(refer to the "Driving" section),
- ...
For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.
Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100 or mpg).
*
According to country.
System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.
Page 75 of 364
CO
73
Adjustment
)
Adjust the mirror so that the glass is di-
rected correctly in the "day" position.
As a safety measure, the mir-
rors should be adjusted to re-
duce the "blind spot".
Manual day/night model
Day/night position
)
Pull the lever to change to the "night"
anti-dazzle position.
)
Push the lever to change to the normal
"day" position.
Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass and re-
duces the nuisance to the driver caused
by the sun, headlamps from other ve-
hicles...
In order to ensure optimum vis-
ibility during your manoeuvres,
the mirror lightens automatically when reverse gear is engaged.
Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
)
When stationary
, pull the con-
trol lever to release the adjustment
mechanism.
)
Adjust the height and reach to suit
your driving position.
)
Push the control lever to lock the ad-
justment mechanism.
As a safety precaution, these
operations should only be car-
ried out while the vehicle is
stationary.
Page 78 of 364
AC
C
76

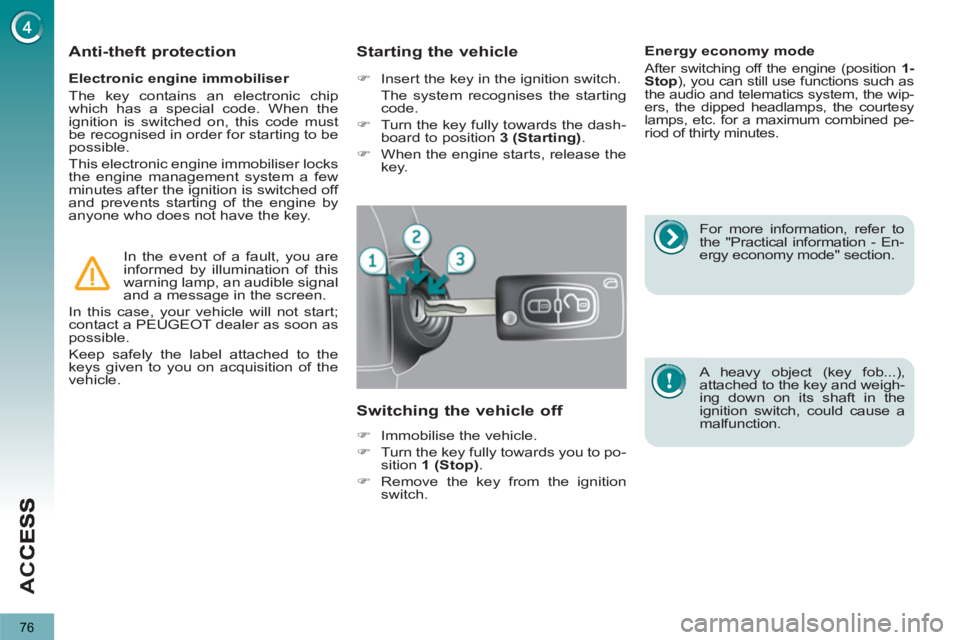

Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle will not start;
contact a PEUGEOT dealer as soon as
possible.
Keep safely the label attached to the
keys given to you on acquisition of the
vehicle.
For more information, refer to
the "Practical information - En-
ergy economy mode" section.
Starting the vehicle
)
Insert the key in the ignition switch.
The system recognises the starting
code.
)
Turn the key fully towards the dash-
board to position 3 (Starting)
.
)
When the engine starts, release the
key.
Switching the vehicle off
)
Immobilise the vehicle.
)
Turn the key fully towards you to po-
sition 1 (Stop)
.
)
Remove the key from the ignition
switch.
Energy economy mode
After switching off the engine (position 1-
Stop
), you can still use functions such as
the audio and telematics system, the wip-
ers, the dipped headlamps, the courtesy
lamps, etc. for a maximum combined pe-
riod of thirty minutes.
A heavy object (key fob...),
attached to the key and weigh-
ing down on its shaft in the
ignition switch, could cause a
malfunction.
Page 91 of 364
89
LIGHTING CONTROLS
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.
Main lighting
The various front and rear lamps of
the vehicle are designed to adapt the
lighting progressively in relation to the
climatic conditions and so improve the
driver's visibility:
- sidelamps, to be seen,
- dipped beam headlamps to see
without dazzling other drivers,
- main beam headlamps to see clearly
when the road is clear,
- directional headlamps for improved
visibility when cornering.
Additional lighting
Other lamps are installed to fulfi l the
requirements of particular driving con-
ditions:
- a rear foglamp to be seen from a dis-
tance,
- front foglamps for even better visibility,
- daytime running lamps to be seen
during the day.
Programming
Various automatic lighting control modes
are also available according to the fol-
lowing options:
- guide-me-home lighting,
- automatic lighting,
- directional headlamps.
Model without AUTO lighting
Model with AUTO lighting
Automatic illumination of
headlamps.
Manual controls
The lighting is controlled directly by the
driver by means of the ring A
and the
stalk B
.
A.
Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.
Lighting off / daytime running
lamps.
Sidelamps.
B.
Stalk for switching headlamps: pull
the stalk towards you to switch the
lighting between dipped and main
beam headlamps.
In the lamps off and sidelamps modes, the
driver can switch on the main beam head-
lamps temporarily ("headlamp fl ash") by
maintaining a pull on the stalk. Dipped headlamps or main
beam headlamps.
Displays
Illumination of the corresponding indicator
lamp in the instrument panel confi rms that
the lighting selected is on.
