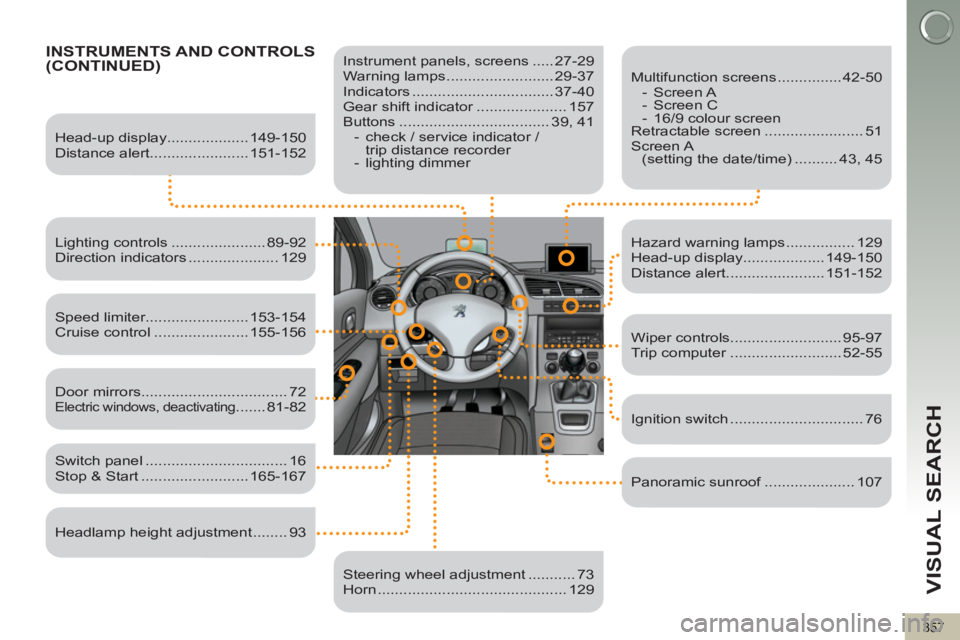

VISUAL SEARCH
357
INSTRUMENTS AND CONTROLS(CONTINUED)
Instrument panels, screens ..... 27-29
Warning lamps ......................... 29-37
Indicators ................................. 37-40
Gear shift indicator ..................... 157
Buttons ................................... 39, 41
- check / service indicator /
trip distance recorder
- lighting dimmer
Head-up display................... 149-150
Distance alert....................... 151-152
Lighting controls ...................... 89-92
Direction indicators ..................... 129
Speed limiter........................ 153-154
Cruise control ...................... 155-156
Switch panel ................................. 16
Stop & Start ......................... 165-167
Door mirrors .................................. 72
Electric windows, deactivating ....... 81-82
Headlamp height adjustment ........ 93
Steering wheel adjustment ........... 73
Horn ............................................ 129
Multifunction screens ............... 42-50
- Screen A
- Screen C
- 16/9 colour screen
Retractable screen ....................... 51
Screen A
(setting the date/time) .......... 43, 45
Hazard warning lamps ................ 129
Head-up display................... 149-150
Distance alert....................... 151-152
Wiper controls.......................... 95-97
Trip computer .......................... 52-55
Ignition switch ............................... 76
Panoramic sunroof ..................... 107

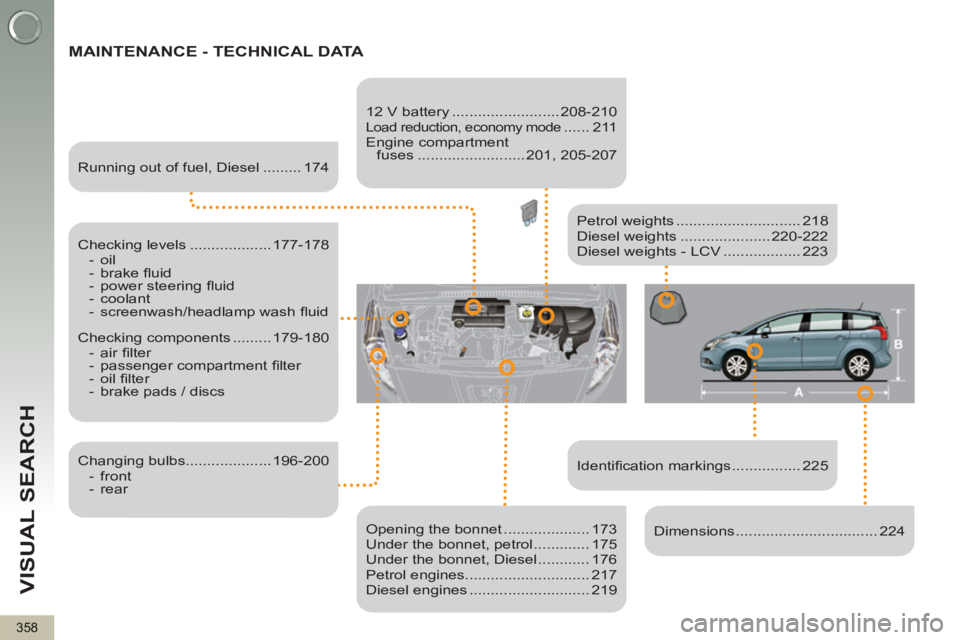

VISUAL SEARCH
358
MAINTENANCE - TECHNICAL DATA
Identifi cation markings ................ 225
Petrol weights ............................. 218
Diesel weights ..................... 220-222
Diesel weights - LCV .................. 223
Running out of fuel, Diesel ......... 174
Checking levels ................... 177-178
- oil
- brake fl uid
- power steering fl uid
- coolant
- screenwash/headlamp wash fl uid
Checking components ......... 179-180
- air fi lter
- passenger compartment fi lter
- oil fi lter
- brake pads / discs
Changing bulbs.................... 196-200
- front
- rear
12 V battery ......................... 208-210
Load reduction, economy mode ...... 211
Engine compartment
fuses ......................... 201, 205-207
Opening the bonnet .................... 173
Under the bonnet, petrol ............. 175
Under the bonnet, Diesel ............ 176
Petrol engines............................. 217
Diesel engines ............................ 219
Dimensions ................................. 224
