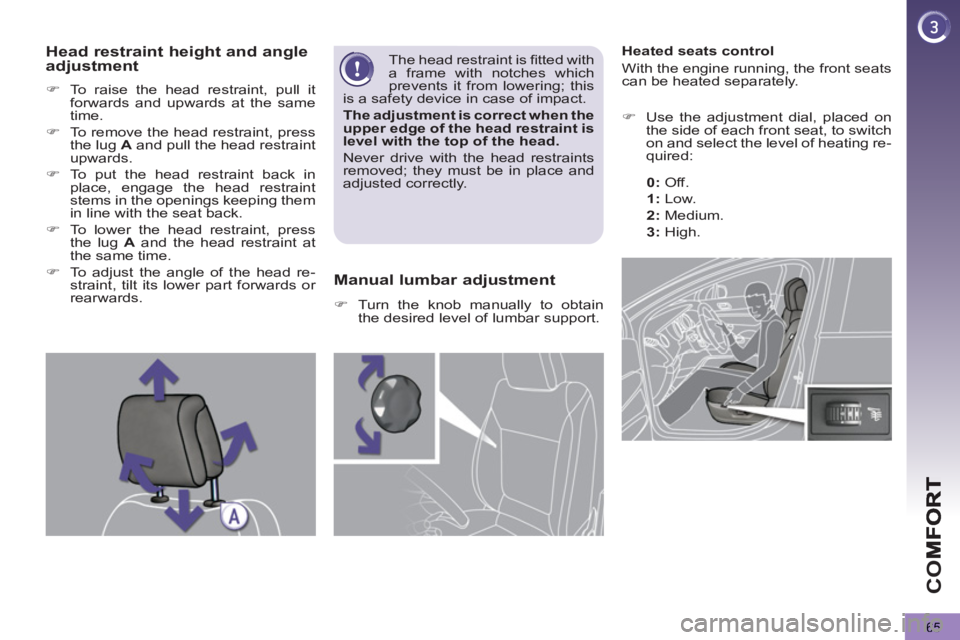

Heated seats control
With the engine running, the front seats
can be heated separately.
)
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0:
Off.
1
:
Low.
2
:
Medium.
3
:
High.
)
To raise the head restraint, pull it
forwards and upwards at the same
time.
)
To remove the head restraint, press
the lug A
and pull the head restraint
upwards.
)
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.
)
To lower the head restraint, press
the lug A
and the head restraint at
the same time.
)
To adjust the angle of the head re-
straint, tilt its lower part forwards or
rearwards.
The head restraint is fi tted with
a frame with notches which
prevents it from lowering; this
is a safety device in case of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Manual lumbar adjustment
)
Turn the knob manually to obtain
the desired level of lumbar support.
Head restraint height and angle adjustment
