2013 PEUGEOT 5008 service indicator

IN
S

Screen(s)
Instrument panel navigator

This group of buttons permits:


- When stationary
, confi guration of the
vehicle's equipment and the screen
settings (languages, units...),

- While driving
, scrolling of the active
functions (trip computer, navigation...).
Controls
There are four buttons to control the
screen in the instrument panel:


1.
Access the main menu, confi rm the
selection.

2.
Move up through the menu.

3.
Move down through the menu.

4.
Return to the previous display, exit
from the menu.



A.
Speed limiter

or
Cruise control.

(mph or km/h)

B.
Trip distance recorder.

(miles or km)
C.
Service indicator.

(miles or km) or,
Engine oil level indicator.

or
distance recorder.

(miles or km)

D.
6-speed electronic gear control
or automatic gearbox.


E.
Warning messages and function
status messages, trip computer,
GPS navigation information.

38
IN
S
Service indicator
System which informs the driver when
the next service is due, in accordance
with the manufacturer's servicing
schedule.
The point at which the service is due is
calculated using the distance covered
since the last time the service indicator
was reset.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 5 seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line indicates
the distance remaining before the next
service is due.

Example:
1 700 miles (2 800 km) remain
before the next service is due.
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched
on, the spanner goes off
; the distance
recorder resumes its normal operation.
The screen then indicates the total and
trip distances.
Less than 600 miles (1 000 km) remain
before the next service is due

Example:
560 miles (900 km) remain
before the next service is due.
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner remains
on
to indicate that a service must be car-
ried out soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no ser-
vice information appears in the screen.

39
IN
S
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at
least fi ve minutes for the zero reset
to be taken into account.






Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:


)
switch off the ignition,

)
press and hold the trip distance re-
corder zero reset button,

)
switch on the ignition; the distance re-
corder display begins a countdown,

)
when the display indicates "=0"
,
release the button; the spanner dis-
appears.

The distance remaining may
be weighted by the time fac-
tor, depending on the driving
conditions.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.

Service overdue
For 5 seconds after the ignition is
switched on, the spanner fl ashes
to
indicate that the service must be carried
out as soon as possible.

Example:
the service is overdue by
186 miles (300 km).
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on
.
Retrieving the service information
You can access the service information
at any time.


)
Press the trip distance recorder zero
reset button.
The service information is displayed
for a few seconds, then disappears.

IN
S

The level shown will only be
correct if the vehicle is on lev-
el ground and the engine has
been off for more than 30 minutes.
Engine oil level indicator

This information is displayed for a few
seconds when the ignition is switched
on, after the service information.

Oil level correct

Oil level low
Oil level indicator fault

Dipstick

This is indicated by the fl ashing of "OIL"
, linked with the service warning lamp, ac-
companied by an audible signal and a
message in the multifunction screen.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to prevent damage to the
engine. This is indicated by the fl ashing of "OIL--"
.
Contact a PEUGEOT dealer or a qualifi ed
workshop.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.

There are 2 marks on the
dipstick:


-
A
= max; never exceed
this level (risk of damage
to the engine),

- B
= min; top up the level via the oil fi ller cap, using the grade of oil suited to
your engine.

AC
79
ALARM
System which protects and provides a
deterrent against the theft of your vehicle.
It provides two types of protection, exte-
rior and interior, as well as an anti-tamper
function.

Locking the vehicle with fullalarm


Do not make any modifi ca-
tions to the alarm system, this
could cause malfunctions.

To be effective, this deactiva-
tion must be carried out each
time the ignition is switched
off.

Reactivation of the interior
volumetric protection


)
Unlock the vehicle using the unlock-
ing button on the remote control.

)
Relock the vehicle using the remote
control.
The alarm is activated again with both
types of protection; the indicator lamp in
button A
switches off.


Locking the vehicle with exterior protection alarm only


Deactivation


)
Unlock the vehicle using the unlocking
button on the remote control.
The alarm is deactivated; the indicator
lamp in button A
switches off.

Exterior perimiter protection

The system detects opening of the
vehicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection

The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Anti-tamper function

The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Activation


)
Switch off the ignition and get out of
the vehicle.

)
Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator lamp
in button A
fl ashes once per second.
Deactivation of the interior
volumetric protection


)
Switch off the ignition.

)
Within ten seconds, press button A

until the indicator lamp is on contin-
uously.

)
Get out of the vehicle.

)
Lock or deadlock the vehicle using
the locking button on the remote
control.
The exterior protection alarm alone re-
mains activated; the indicator lamp in
button A
fl ashes once per second.

CHECKS
177

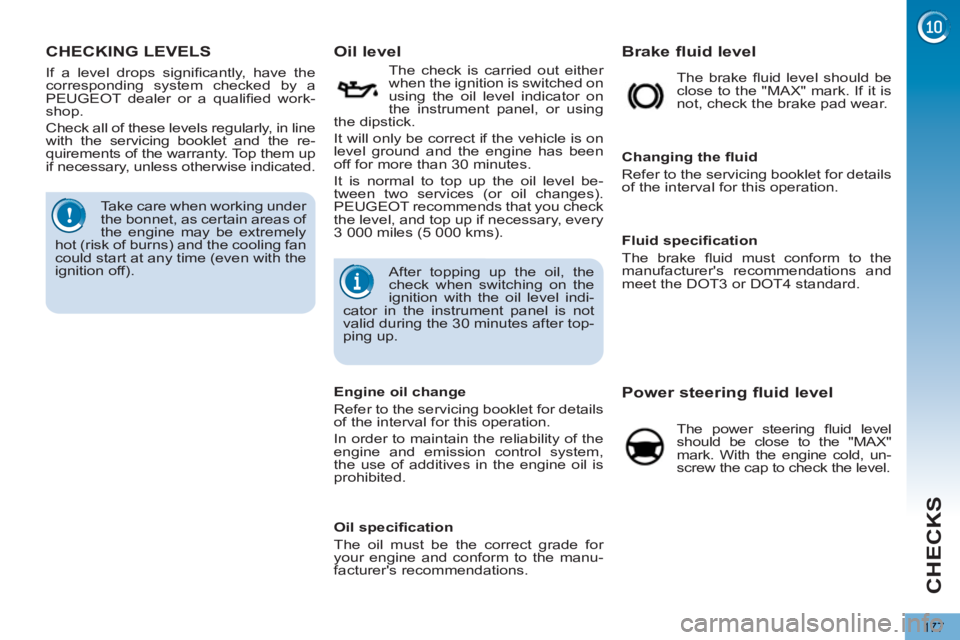

CHECKING LEVELS
















Oil level


The check is carried out either
when the ignition is switched on
using the oil level indicator on
the instrument panel, or using
the dipstick.
It will only be correct if the vehicle is on
level ground and the engine has been
off for more than 30 minutes.
It is normal to top up the oil level be-
tween two services (or oil changes).
PEUGEOT recommends that you check
the level, and top up if necessary, every
3 000 miles (5 000 kms).
Take care when working under
the bonnet, as certain areas of
the engine may be extremely
hot (risk of burns) and the cooling fan
could start at any time (even with the
ignition off).

If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer or a qualifi ed work-
shop.
Check all of these levels regularly, in line
with the servicing booklet and the re-
quirements of the warranty. Top them up
if necessary, unless otherwise indicated.











Power steering fluid level

The power steering fl uid level
should be close to the "MAX"
mark. With the engine cold, un-
screw the cap to check the level.
Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
meet the DOT3 or DOT4 standard.

Changing the fl uid
Refer to the servicing booklet for details
of the interval for this operation.











Brake fluid level

The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.

Engine oil change
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited. After topping up the oil, the
check when switching on the
ignition with the oil level indi-
cator in the instrument panel is not
valid during the 30 minutes after top-
ping up.

Oil specifi cation
The oil must be the correct grade for
your engine and conform to the manu-
facturer's recommendations.

229
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
EMERGENCY OR ASSISTANCE CALL USING
Peugeot Connect Media
In an emergency, press the SOS button until an audible
signal is heard and a "Confi rmation / Cancellation"
screen is displayed (if valid SIM card inserted).
A call is made to the PEU
GEOT Emergency team
which receives locating information from the vehicleand can send a detailed alert to the relevant emergency services.
In countries in which the team is not operational, or
when the locatin
g service has been expressly declined,
the call is sent to the emergency services (11 2). Warning - the emergency call and the services are only active
i
f the internal telephone is used with a valid SIM card. With a
Bluetooth telephone and without a SIM card, these services are not
operational. Press this button for access to PEUGEOT services.
Customer call Select "Customer call" to request
an
y information about the PEUGEOT marque.

Select "PEUGEOT Assistance"
to make a roadside assistance call.
PEUGEOT Assistance
This service is subject to conditions and availability. Consult a
PEUGEOT dealer. If you have purchased your vehicle outside the
PEUGEOT dealer network, we invite you to have a dealer check theconfi guration of these services and, if desired, modifi ed to suit your
wishes.

If an impact is detected b
y the airbag control unit, and independentlyof the deployment of any airbags, an emergency call is made
automatically.

The message "Deteriorated emergency call" associated withfl ashing of the orange indicator lamp indicates a malfunction.Contact a PEUGEOT dealer.

ALPHABETICAL INDEX
351
Multimedia, rear .............103, 106
Music media players ......254, 310
Oil fi lter ..................................179
Oil level ............................40, 177
Opening the bonnet ...............173
Opening the boot ...............74, 85
Opening the doors .............74, 83
Opening the panoramic
sunroof blind .......................107
Opening the retractable
screen ...................................51
Operation indicator lamps ...29-32Peugeot Connect Sound
(RD5) ............46, 329, 342, 344
PEUGEOT services ...............229
PIN code ................................262
Player, CD MP3 .....................335
POIs (updating) .....................249
Port, USB.......103, 315, 336, 338
Priming the fuel system .........174
Protecting children ........ 115, 116,
121, 124-126, 137
Puncture ........................181, 187 Navigation..............242, 281, 282
Net ......................................... 110
Number plate lamps ..............200
N
O
M
Paint colour code ...................225
Panoramic glass sunroof .......107
Parking brake ........................180
Parking brake, electric ...141, 144
Parking sensors, rear ............168
Parking space sensor ...........170
Particle emission fi lter....178, 179
Passenger compartment fi lter ... 179
PEUGEOT call button ............229
PEUGEOT CONNECT
ASSISTANCE .....................228
Peugeot Connect Media
Navigation
(NG4 3D) ....231, 234, 237, 264
Peugeot Connect Navigation
(RT6) .............................49, 275
PEUGEOT
CONNECT SOS ..........228, 229 Labels, identifi cation ..............225
Lamps, warning and
indicator ....................29, 32, 33
LED daytime running lamps ....91
Level, brake fl uid ...................177
Level, headlamp wash .....96, 178
Level, power steering fl uid .....177
Levels and checks ......... 175-178
Lighting ..................................100
Lighting, guide-me home ...91, 92
Lighting, interior .................98, 99
Lighting bulbs
(replacement) ......196, 199, 200
Lighting control stalk ................89
Lighting dimmer .......................41
Loading ......................25, 71, 214
Load reduction mode ............. 211
Load space cover ........... 108-110
Locating your vehicle ...............75
Locking from the inside............84
Long objects, transporting ....66, 71
Luggage retaining net ............ 112
L
Main beam ............... 89, 196-198
Maintenance ............................25
Map reading lamps ..................98
Markings, identifi cation ..........225
Mat.........................................104
Menu, main ............................332
Mini fuel level ...........................87
Mirror, rear view .......................73
Mirrors, door ............................72
Misfuel prevention ...................88
Modularity, seats ......................71
Motorway function
(direction indicators) ...........129
Mountings for ISOFIX seats ....124
MP3 CD .................................335
P
Radio .............253, 307, 308, 333
RCA sockets ..........................258
Reading lamps, rear ................98
Rear foglamp .................199, 200
Rear screen (demisting) ....59, 72
Recharging the battery ..........209
Reduction of electrical load ... 211
Regeneration of the particle
emissions fi lter ....................179
Reinitialising the electric
windows ................................81
Reinitialising the remote control ... 77
Remote control ............74, 75, 78
Removable screen
(snow shield) .......................215
Removing a wheel .................194
Removing the mat .................104
Repair kit, puncture .......181, 187
Replacing bulbs .....196, 199, 200
Replacing fuses .....................201
Replacing the air fi lter ............179
Replacing the oil fi lter ............179
Replacing the passenger
compartment fi lter ...............179
Replacing wiper blades ... 97, 211
Resetting the service indicator ....39
Resetting the trip recorder .......41
Rev counter .............................27
R
