2013 NISSAN VERSA SEDAN engine

TABLe Of cOnTenTS
New SYSTe M FeaTureS
RearView Monitor (if so equipped) ................................. 2
Twin Trip Odometer/Trip computer (if so equipped) .................. 2
u SB/iPod
® interface (if so equipped) ............................. 2

eSS eNTial iNF orMa TioN
Loose fuel cap ................................................ 3
Tire Pressure Monitoring System (TPMS) ...........................3

Fir ST Drive Fea TureS
ni SSAn intelligent k ey
® System (if so equipped) ....................4
Trunk Lid Release (if so equipped) ................................. 5
Seat Adjustments .............................................. 5
Power Outside Mirror control Switch (if so equipped) ................5
Starting/Stopping the engine ..................................... 6
Headlight control .............................................. 7
Windshield Wiper/Washer Switch ................................ 7
climate controls ............................................... 8
f M/AM/SiriusXM™ Satellite Radio with cd Player (if so equipped) ..... 9
cruise control (if so equipped) .................................. 10
fuel-filler door ............................................... 10

S YST eM GuiDe
Bluetooth
® Hands-free Phone System (if so equipped) ...............11
navigation System (if so equipped) ...............................14
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
f or more information, refer to the “Safety –– Seats, seat belts and sup-
plemental restraint system (section 1)”,
“Display screen, heater, air
conditioner, audio and phone systems (section 4)” and “Starting and
driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also available in your Owner’s Manual, navigation System Owner’s Manual and at www.nissanusa.com.
To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2013/versasedan or snap this barcode with an appropriate barcode reader.

4
first drive features
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\hfo.mobi

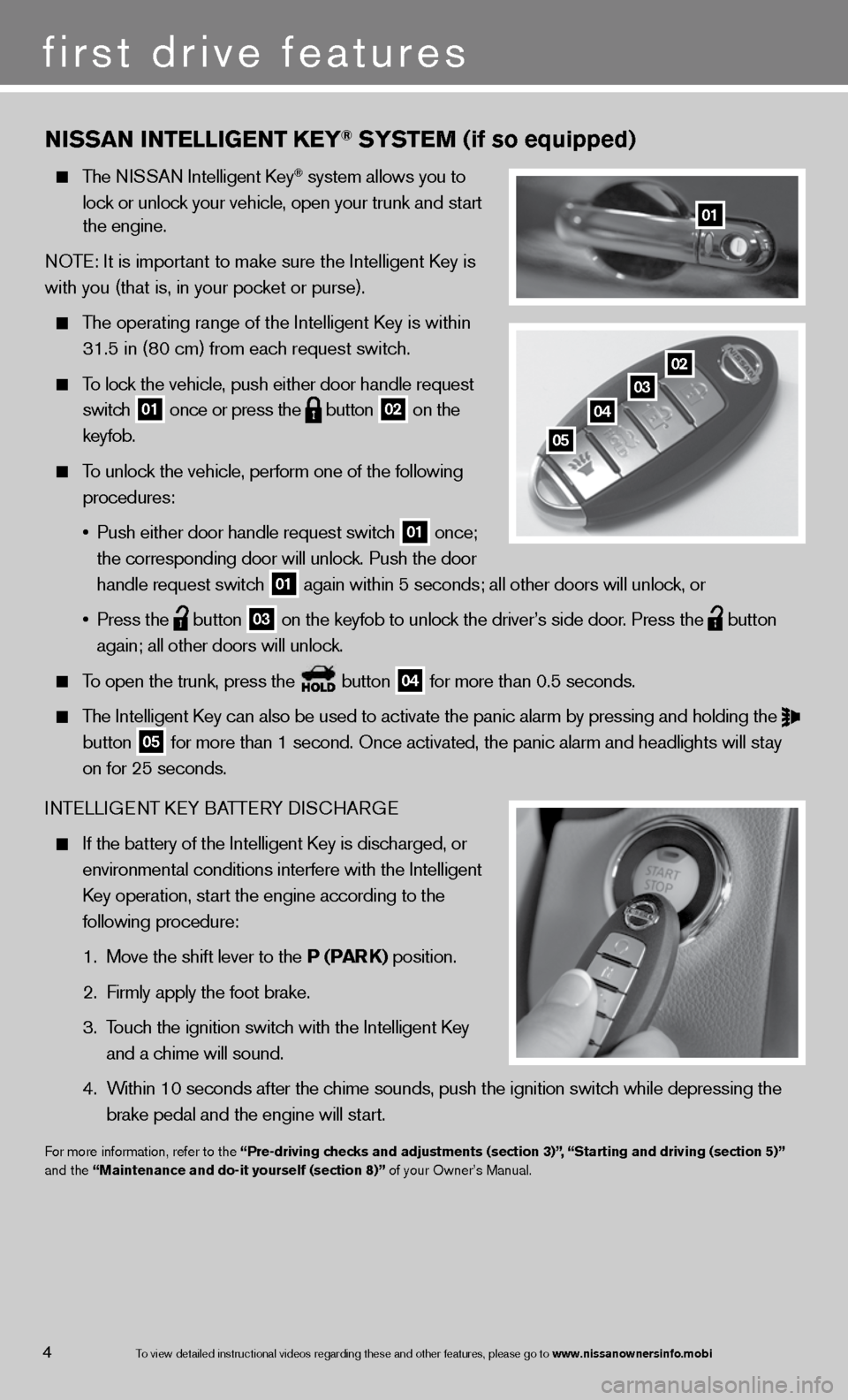

NiSSaN iNTelliGeNT KeY® SYSTeM (if so equipped)
The niSSAn intelligent k ey® system allows you to
lock or unlock your vehicle, open your trunk and start
the engine.
NOTE: It is important to make sure the Intelligent Key is
with you (that is, in your pocket or purse).

The operating range of the intelligent k ey is within
31.5 in (80 cm) from each request switch.

To lock the vehicle, push either door handle request
switch

01 once or press the
button
02 on the
keyfob.

To unlock the vehicle, perform one of the following
procedures:
• Push either door handle request switch

01 once;
the corresponding door will unlock. Push the door
handle request switch

01 again within 5 seconds; all other doors will unlock, or
• Press the

button
03 on the keyfob to unlock the driver’s side door. Press the
button

again; all other doors will unlock.

To open the trunk, press the button
04 for more than 0.5 seconds.

The Intelligent Key can also be used to activate the panic alarm by pressing and holding the

button
05 for more than 1 second. Once activated, the panic alarm and headlights w\
ill stay

on for 25 seconds.
inTe LLiGenT keY BATTe RY diSc HARG e

If the battery of the Intelligent Key is discharged, or
environmental conditions interfere with the intelligent
k ey operation, start the engine according to the
following procedure:
1. Move the shift lever to the P (Par K) position.
2. Firmly apply the foot brake.
3. Touch the ignition switch with the intelligent k ey
and a chime will sound.
4. Within 10 seconds after the chime sounds, push the ignition switch while depressing the
brake pedal and the engine will start.
for more information, refer to the “Pre-driving checks and adjustments (section 3)”, “Starting and driving (section 5)”
and the “Maintenance and do-it yourself (section 8)” of your Owner’s Manual.
0203
04
05
01

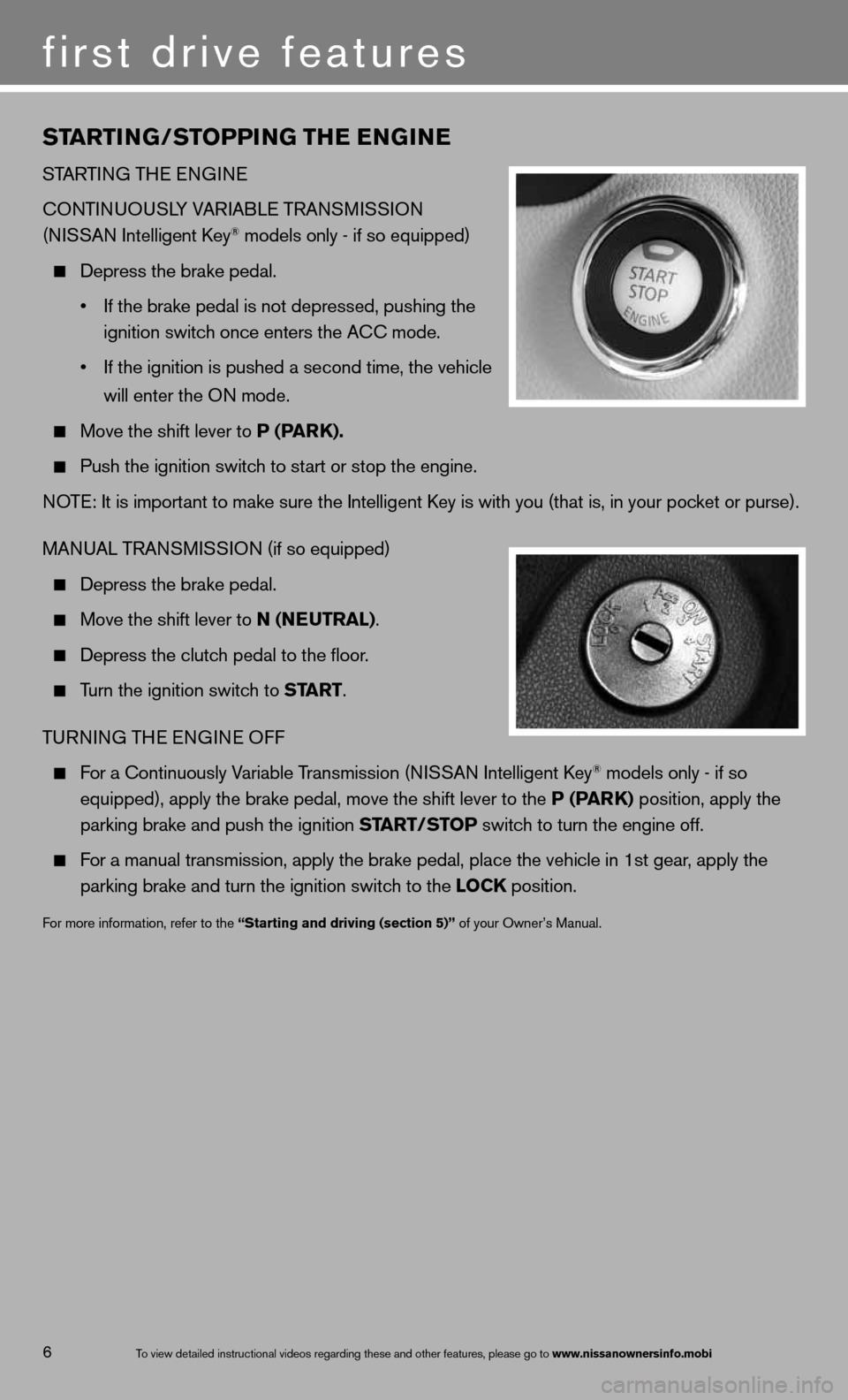

STarTi NG/ST oPPiNG TH e eNGiN e
STARTin G THe enGine
cOn TinuOuSLY VAR iABL e TRA nSM iSSiOn
(ni SSAn intelligent k ey
® models only - if so equipped)

Depress the brake pedal.
• If the brake pedal is not depressed, pushing the
ignition switch once enters the A cc mode.
• If the ignition is pushed a second time, the vehicle
will enter the O n mode.

Move the shift lever to P (P arK).

Push the ignition switch to start or stop the engine.
NOTE: It is important to make sure the Intelligent Key is with you (that is, in your pocket or purse).
MAnu AL TRAn SMiSS iO n (if so equipped)

Depress the brake pedal.

Move the shift lever to N (N euTral).

depress the clutch pedal to the floor.

Turn the ignition switch to ST arT.
T uRnin G THe enGine Off

For a Continuously Variable Transmission (NISSAN Intelligent Key® models only - if so
equipped), apply the brake pedal, move the shift lever to the P (P arK) position, apply the
parking brake and push the ignition ST arT/SToP switch to turn the engine off.

For a manual transmission, apply the brake pedal, place the vehicle in 1st gear, apply the
parking brake and turn the ignition switch to the loCK position.
for more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
