2013 MERCEDES-BENZ CLA COUPE Owners Manual

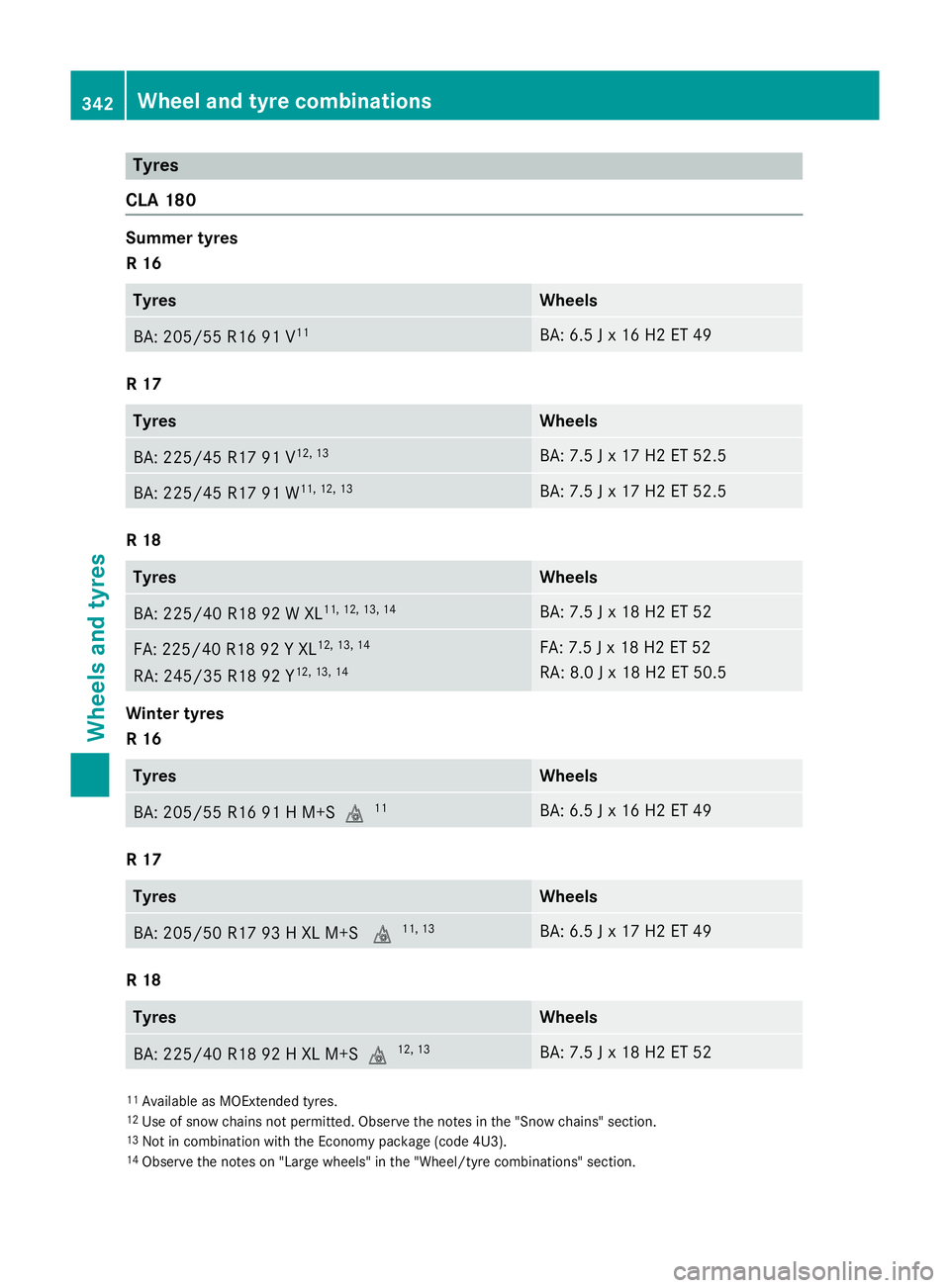

Tyres
CLA 180 Summer tyres
R 16
Tyres Wheels
BA: 205/5
5 R16 91 V 11 BA: 6.5 J x 16 H2 ET 49
R 17
Tyres Wheels
BA: 225/45 R17 91 V
12, 13 BA: 7.5 J x 17 H2 ET 52.5
BA: 225/45 R17 91 W
11, 12, 13 BA: 7.5 J x 17 H2 ET 52.5
R 18
Tyres Wheels
BA: 225/40 R18 92 W XL
11, 12, 13, 14 BA: 7.5 J x 18 H2 ET 52
FA: 225/40 R18 92 Y XL
12, 13, 14
RA: 245/35 R18 92 Y 12, 13, 14 FA: 7.5 J x 18 H2 ET 52
RA: 8.0 J x 18 H2 ET 50.5
Winter tyres
R 16
Tyres Wheels
BA: 205/55 R16 91 H M+S
i11 BA: 6.5 J x 16 H2 ET 49
R 17
Tyres Wheels
BA: 205/50 R17 93 H XL M+S
i11, 13 BA: 6.5 J x 17 H2 ET 49
R 18
Tyres Wheels
BA: 225/40 R18 92 H XL M+S
i12, 13 BA: 7.5 J x 18 H2 ET 52
11
Available as MOExtended tyres.
12 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
13 Not in combination with the Economy package (code 4U3).
14 Observe the notes on "Large wheels" in the "Wheel/tyre combinations" section. 342
Wheel and tyre combinationsWheels and tyres

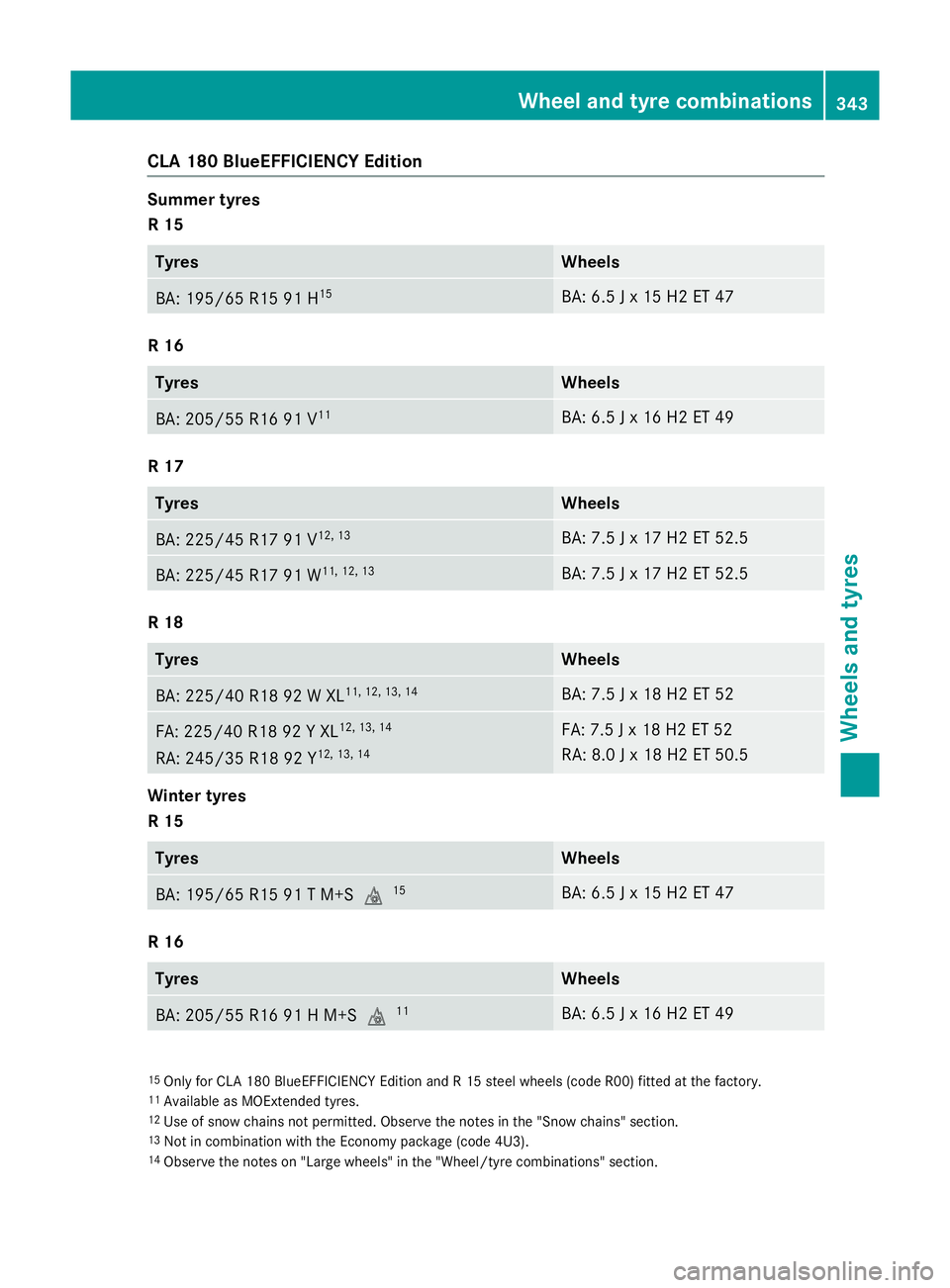

CLA 180 BlueEFFICIENCY Edition
Summer tyres
R 15
Tyres Wheels
BA: 195/65 R15 91 H
15 BA: 6.5 J x 15 H2 ET 47
R 16
Tyres Wheels
BA: 205/55 R16 91 V
11 BA: 6.5 J x 16 H2 ET 49
R 17
Tyres Wheels
BA: 225/45 R17 91 V
12, 13 BA: 7.5 J x 17 H2 ET 52.5
BA: 225/45 R17 91 W
11, 12, 13 BA: 7.5 J x 17 H2 ET 52.5
R 18
Tyres Wheels
BA: 225/40 R18 92 W XL
11, 12, 13, 14 BA: 7.5 J x 18 H2 ET 52
FA: 225/40 R18 92 Y XL
12, 13, 14
RA: 245/35 R18 92 Y 12, 13, 14 FA: 7.5 J x 18 H2 ET 52
RA: 8.0 J x 18 H2 ET 50.5
Winter tyres
R 15
Tyres Wheels
BA: 195/65 R15 91 T M+S
i15 BA: 6.5 J x 15 H2 ET 47
R 16
Tyres Wheels
BA: 205/55 R16 91 H M+Si
11 BA: 6.5 J x 16 H2 ET 49
15
Only for CLA 180 BlueEFFICIENCY Edition and R 15 steel wheels (code R00) fitted at the factory.
11 Available as MOExtended tyres.
12 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
13 Not in combination with the Economy package (code 4U3).
14 Observe the notes on "Large wheels" in the "Wheel/tyre combinations" section. Wheel and tyre combinations
343Wheels and tyres Z

R 17
Tyres Wheels
BA: 205/50 R17 93 H XL M+S
i11, 13 BA: 6.5 J x 17 H2 ET 49
R 18
Tyres Wheels
BA: 225/40 R18 92 H XL M+S
i12, 13 BA: 7.5 J x 18 H2 ET 52
CLA 200
Summer tyres
R 16
Tyres Wheels
BA: 205/55 R16 91 V
11 BA: 6.5 J x 16 H2 ET 49
R 17
Tyres Wheels
BA: 225/45 R17 91 V
12, 13 BA: 7.5 J x 17 H2 ET 52.5
BA: 225/45 R17 91 W
11, 12, 13 BA: 7.5 J x 17 H2 ET 52.5
R 18
Tyres Wheels
BA: 225/40 R18 92 W XL
11, 12, 13, 14 BA: 7.5 J x 18 H2 ET 52
FA: 225/40 R18 92 Y XL
12, 13, 14
RA: 245/35 R18 92 Y 12, 13, 14 FA: 7.5 J x 18 H2 ET 52
RA: 8.0 J x 18 H2 ET 50.5
Winter tyres
R 16
Tyres Wheels
BA: 205/55 R16 91 H M+S
i11 BA: 6.5 J x 16 H2 ET 49
11
Available as MOExtended tyres.
13 Not in combination with the Economy package (code 4U3).
12 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
14 Observe the notes on "Large wheels" in the "Wheel/tyre combinations" section. 344
Wheel and tyre combinationsWheels and tyres

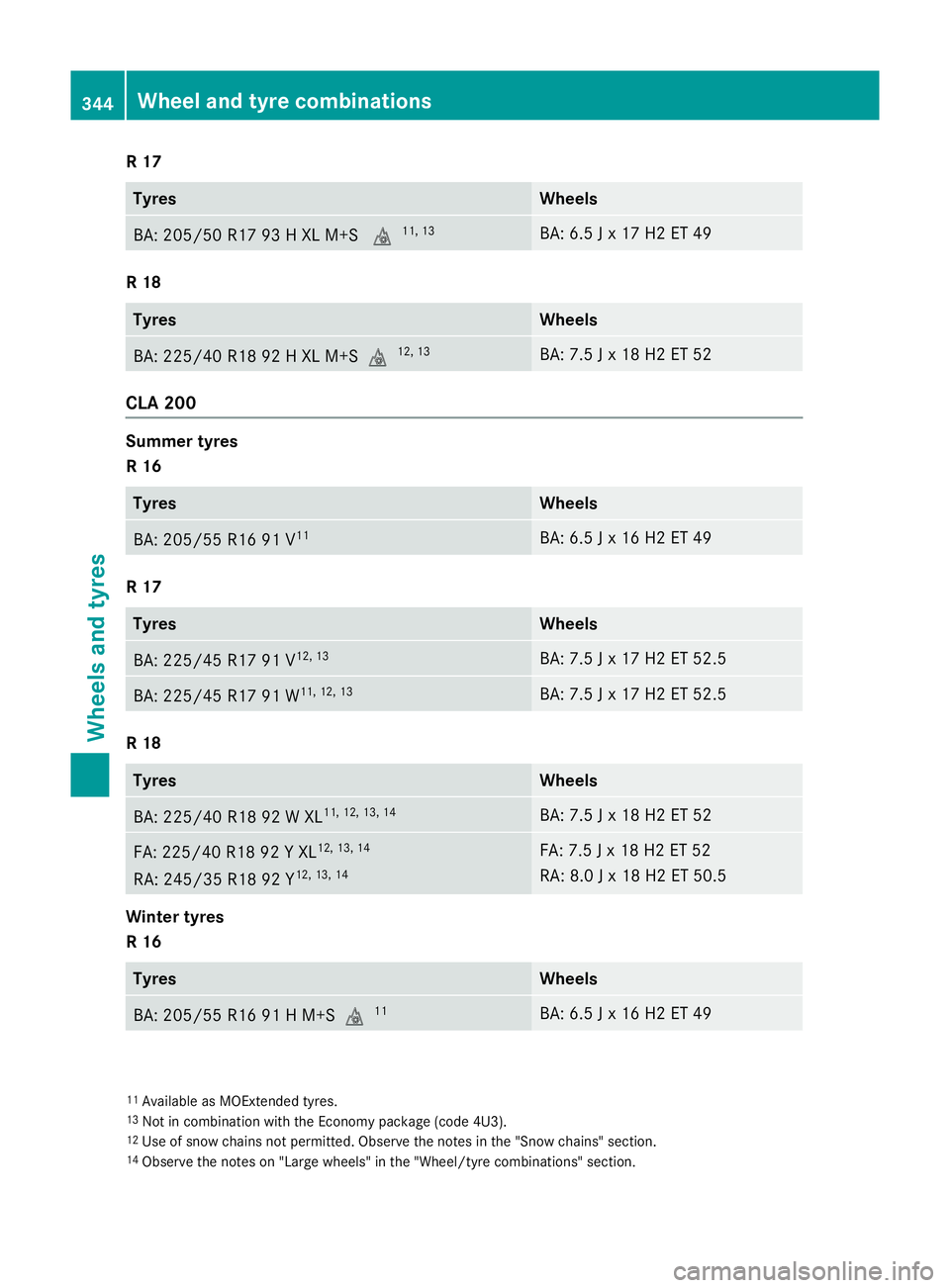

R 17
Tyres Wheels
BA: 205/50 R17 93 H XL M+S
i11, 13 BA: 6.5 J x 17 H2 ET 49
R 18
Tyres Wheels
BA: 225/40 R18 92 H XL M+S
i12, 13 BA: 7.5 J x 18 H2 ET 52
CLA 200 CDI
Summer tyres
R 16
Tyres Wheels
BA: 205/55 R16 91 V
11 BA: 6.5 J x 16 H2 ET 49
R 17
Tyres Wheels
BA: 225/45 R17 91 V
12, 13 BA: 7.5 J x 17 H2 ET 52.5
BA: 225/45 R17 91 W
11, 12, 13 BA: 7.5 J x 17 H2 ET 52.5
R 18
Tyres Wheels
BA: 225/40 R18 92 W XL
11, 12, 13, 14 BA: 7.5 J x 18 H2 ET 52
FA: 225/40 R18 92 Y XL
12, 13, 14
RA: 245/35 R18 92 Y 12, 13, 14 FA: 7.5 J x 18 H2 ET 52
RA: 8.0 J x 18 H2 ET 50.5
Winter tyres
R 16
Tyres Wheels
BA: 205/55 R16 91 H M+S
i11 BA: 6.5 J x 16 H2 ET 49
11
Available as MOExtended tyres.
13 Not in combination with the Economy package (code 4U3).
12 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
14 Observe the notes on "Large wheels" in the "Wheel/tyre combinations" section. Wheel and tyre combinations
345Wheels and tyres Z

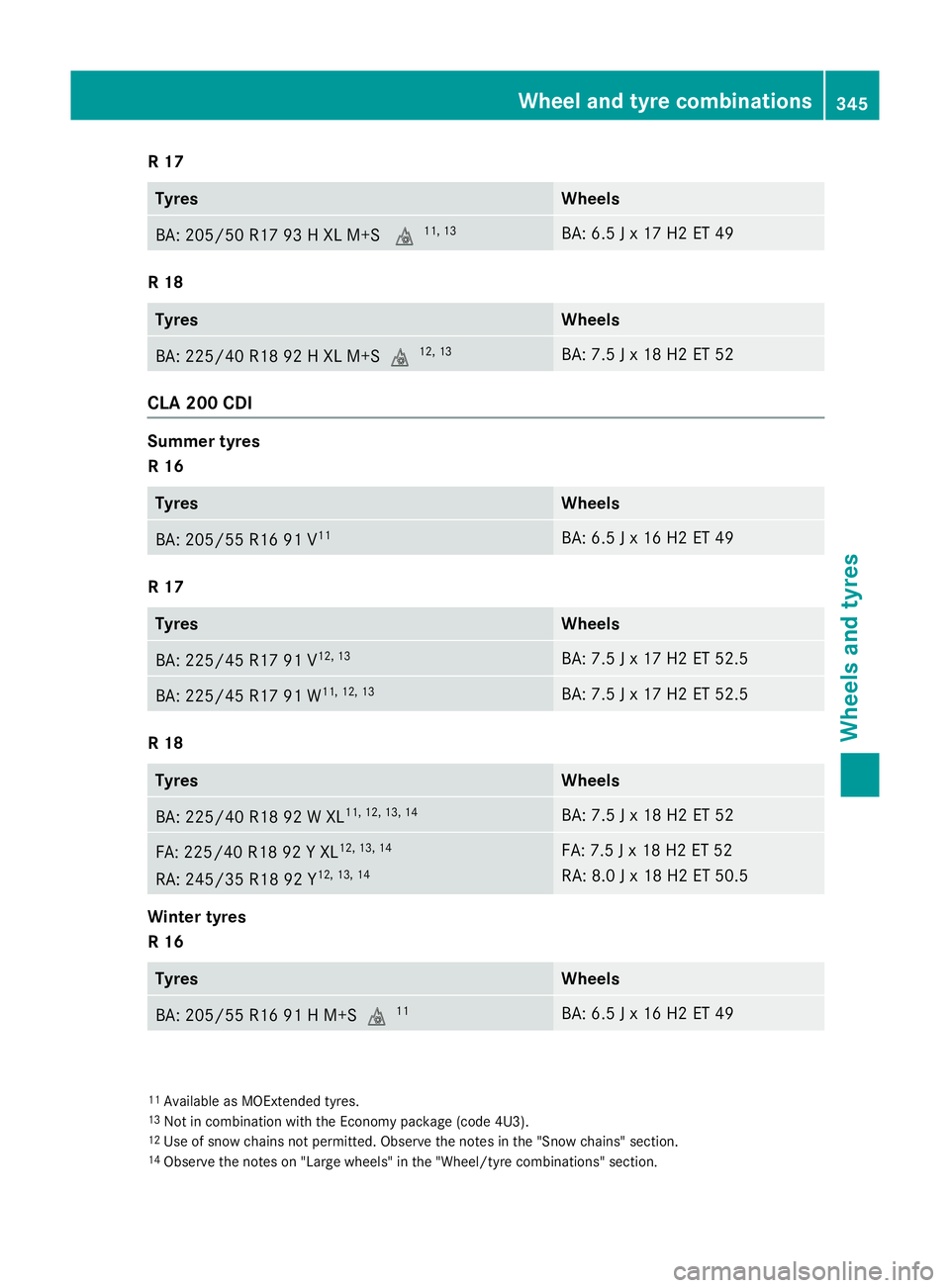

R 17
Tyres Wheels
BA: 205/50 R17 93 H XL M+S
i11, 13 BA: 6.5 J x 17 H2 ET 49
R 18
Tyres Wheels
BA: 225/40 R18 92 H XL M+S
i12, 13 BA: 7.5 J x 18 H2 ET 52
CLA 220 CDI
Summer tyres
R 16
Tyres Wheels
BA: 205/55 R16 91 V
11, 16 BA: 6.5 J x 16 H2 ET 49
R 17
Tyres Wheels
BA: 225/45 R17 91 V
12, 13 BA: 7.5 J x 17 H2 ET 52.5
BA: 225/45 R17 91 W
11, 12, 13 BA: 7.5 J x 17 H2 ET 52.5
R 18
Tyres Wheels
BA: 225/40 R18 92 W XL
11, 12, 13, 14 BA: 7.5 J x 18 H2 ET 52
FA: 225/40 R18 92 Y XL
12, 13, 14
RA: 245/35 R18 92 Y 12, 13, 14 FA: 7.5 J x 18 H2 ET 52
RA: 8.0 J x 18 H2 ET 50.5
Winter tyres
R 16
Tyres Wheels
BA: 205/55 R16 91 H M+S
i11, 16 BA: 6.5 J x 16 H2 ET 49
11
Available as MOExtended tyres.
13 Not in combination with the Economy package (code 4U3).
12 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
16 Not in conjunction with Sports package (code 950).
14 Observe the notes on "Large wheels" in the "Wheel/tyre combinations" section. 346
Wheel and tyre combinationsWheels and tyres

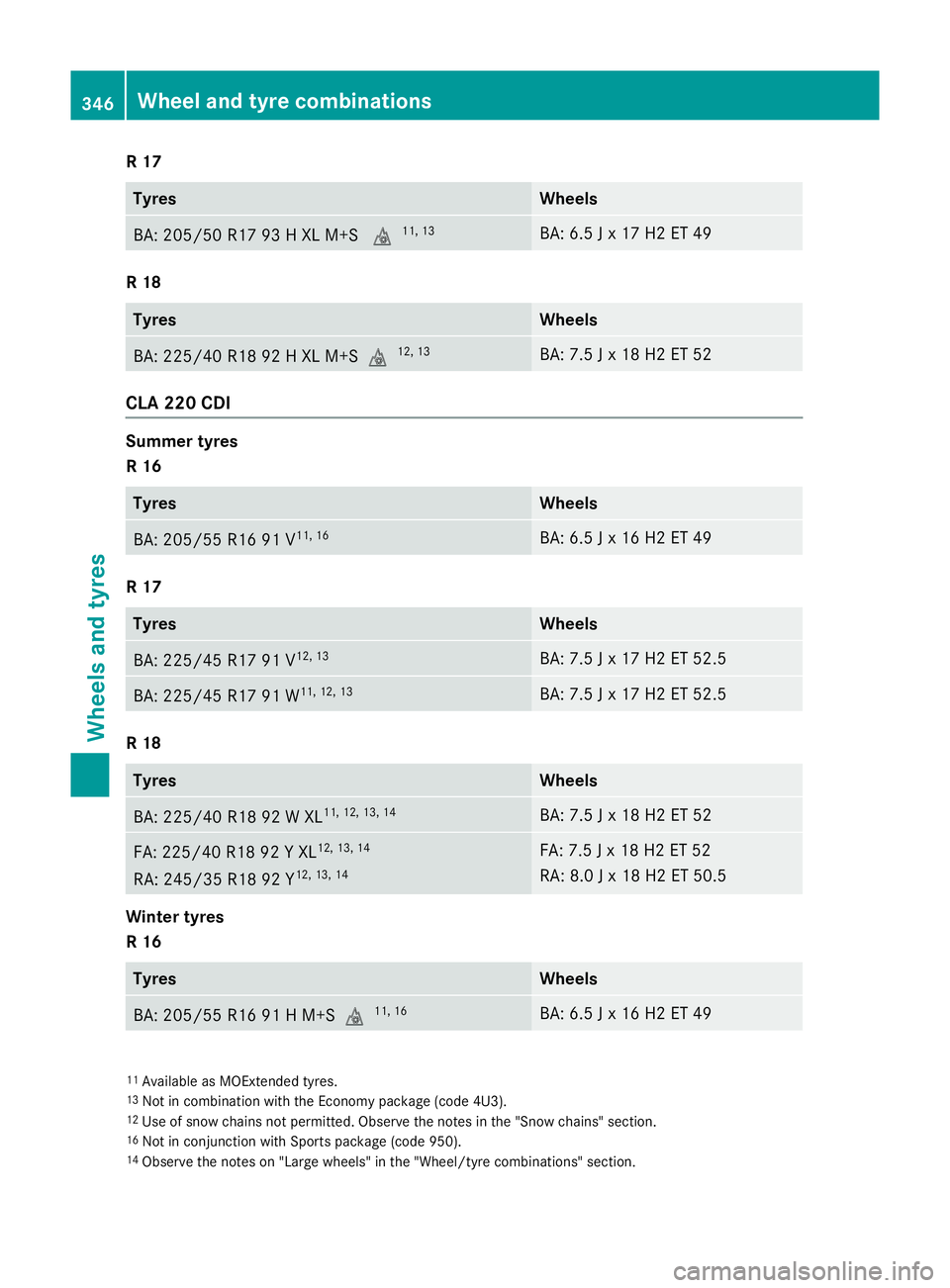

R 17
Tyres Wheels
BA: 205/50 R17 93 H XL M+S
i11, 13 BA: 6.5 J x 17 H2 ET 49
R 18
Tyres Wheels
BA: 225/40 R18 92 H XL M+S
i12, 13 BA: 7.5 J x 18 H2 ET 52

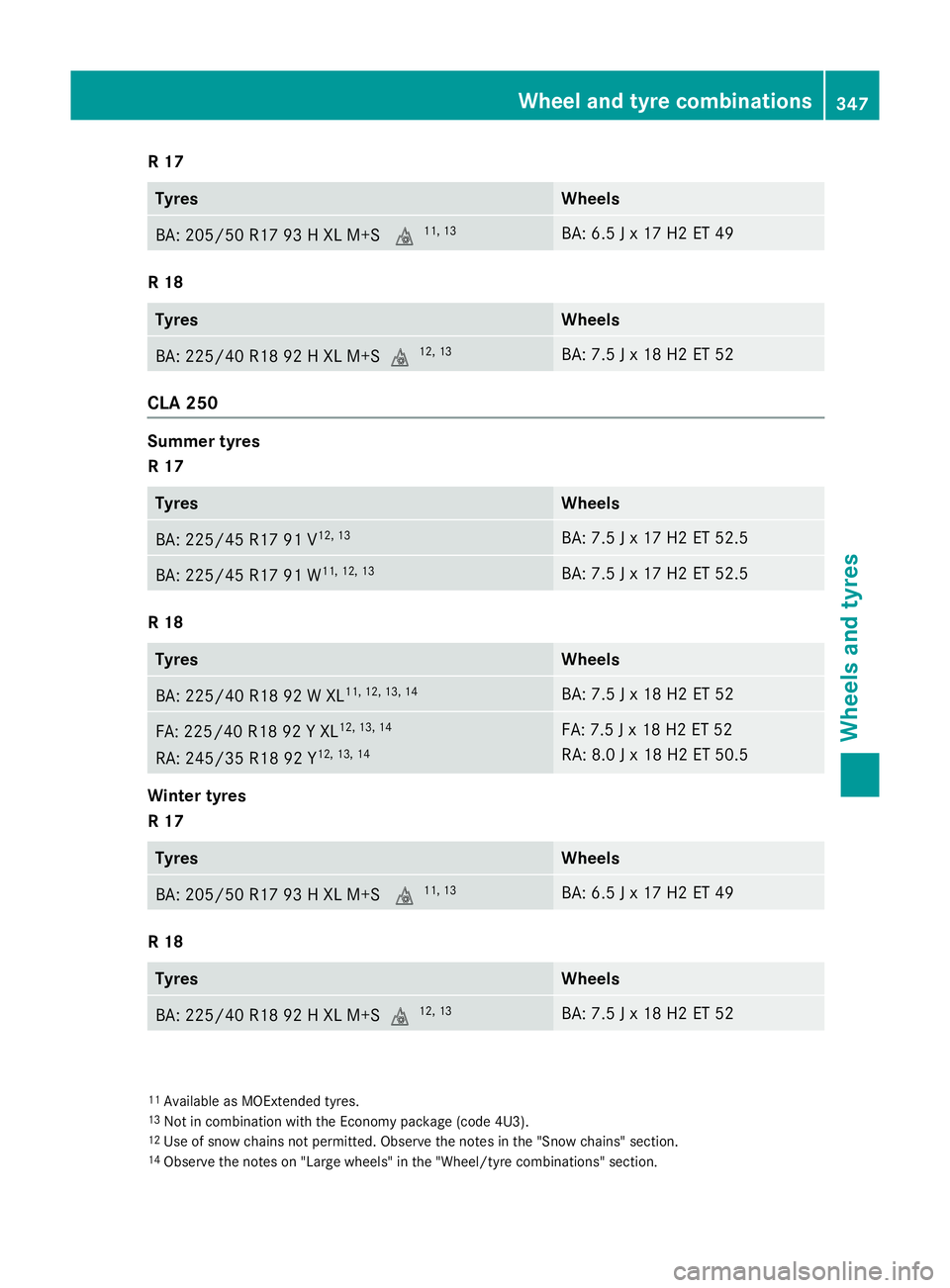

CLA 250
Summer tyres
R 17
Tyres Wheels
BA: 225/45 R17 91 V
12, 13 BA: 7.5 J x 17 H2 ET 52.5
BA: 225/45 R17 91 W
11, 12, 13 BA: 7.5 J x 17 H2 ET 52.5
R 18
Tyres Wheels
BA: 225/40 R18 92 W XL
11, 12, 13, 14 BA: 7.5 J x 18 H2 ET 52
FA: 225/40 R18 92 Y XL
12, 13, 14
RA: 245/35 R18 92 Y 12, 13, 14 FA: 7.5 J x 18 H2 ET 52
RA: 8.0 J x 18 H2 ET 50.5
Winter tyres
R 17
Tyres Wheels
BA: 205/50 R17 93 H XL M+S
i11, 13 BA: 6.5 J x 17 H2 ET 49
R 18
Tyres Wheels
BA: 225/40 R18 92 H XL M+S
i12, 13 BA: 7.5 J x 18 H2 ET 52
11
Available as MOExtended tyres.
13 Not in combination with the Economy package (code 4U3).
12 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
14 Observe the notes on "Large wheels" in the "Wheel/tyre combinations" section. Wheel and tyre combinations
347Wheels and tyres Z

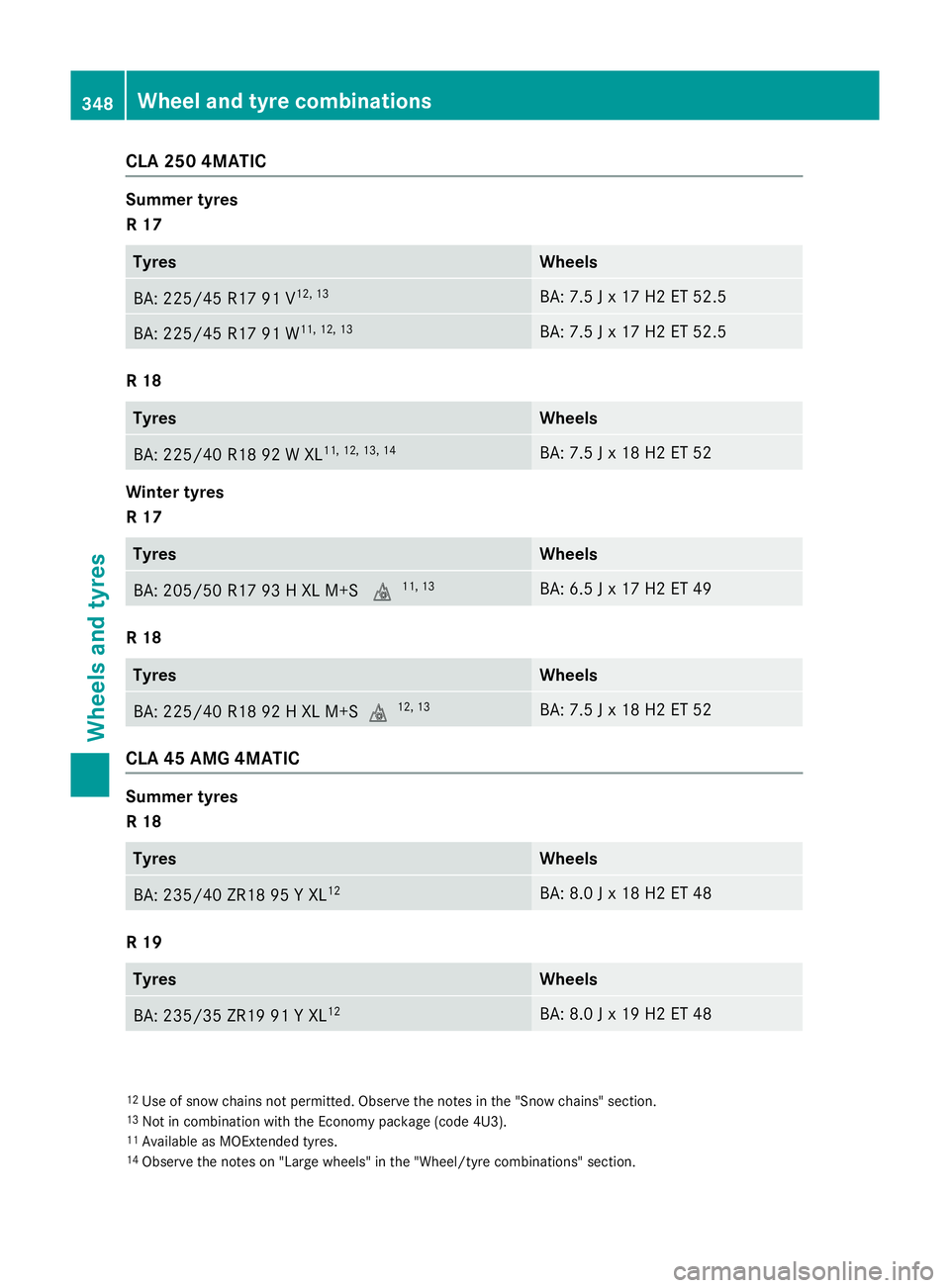

CLA 250 4MATIC
Summer tyres
R 17
Tyres Wheels
BA: 225/45 R17 91 V
12, 13 BA: 7.5 J x 17 H2 ET 52.5
BA: 225/45 R17 91 W
11, 12, 13 BA: 7.5 J x 17 H2 ET 52.5
R 18
Tyres Wheels
BA: 225/40 R18 92 W XL
11, 12, 13, 14 BA: 7.5 J x 18 H2 ET 52
Winter tyres
R 17
Tyres Wheels
BA: 205/50 R17 93 H XL M+S
i11, 13 BA: 6.5 J x 17 H2 ET 49
R 18
Tyres Wheels
BA: 225/40 R18 92 H XL M+Si
12, 13 BA: 7.5 J x 18 H2 ET 52
CLA 45 AMG 4MATIC
Summer tyres
R 18 Tyres Wheels
BA: 235/40 ZR18 95 Y XL
12 BA: 8.0 J x 18 H2 ET 48
R 19
Tyres Wheels
BA: 235/35 ZR19 91 Y XL
12 BA: 8.0 J x 19 H2 ET 48
12
Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
13 Not in combination with the Economy package (code 4U3).
11 Available as MOExtended tyres.
14 Observe the notes on "Large wheels" in the "Wheel/tyre combinations" section. 348
Wheel and tyre combinationsWheels and tyres

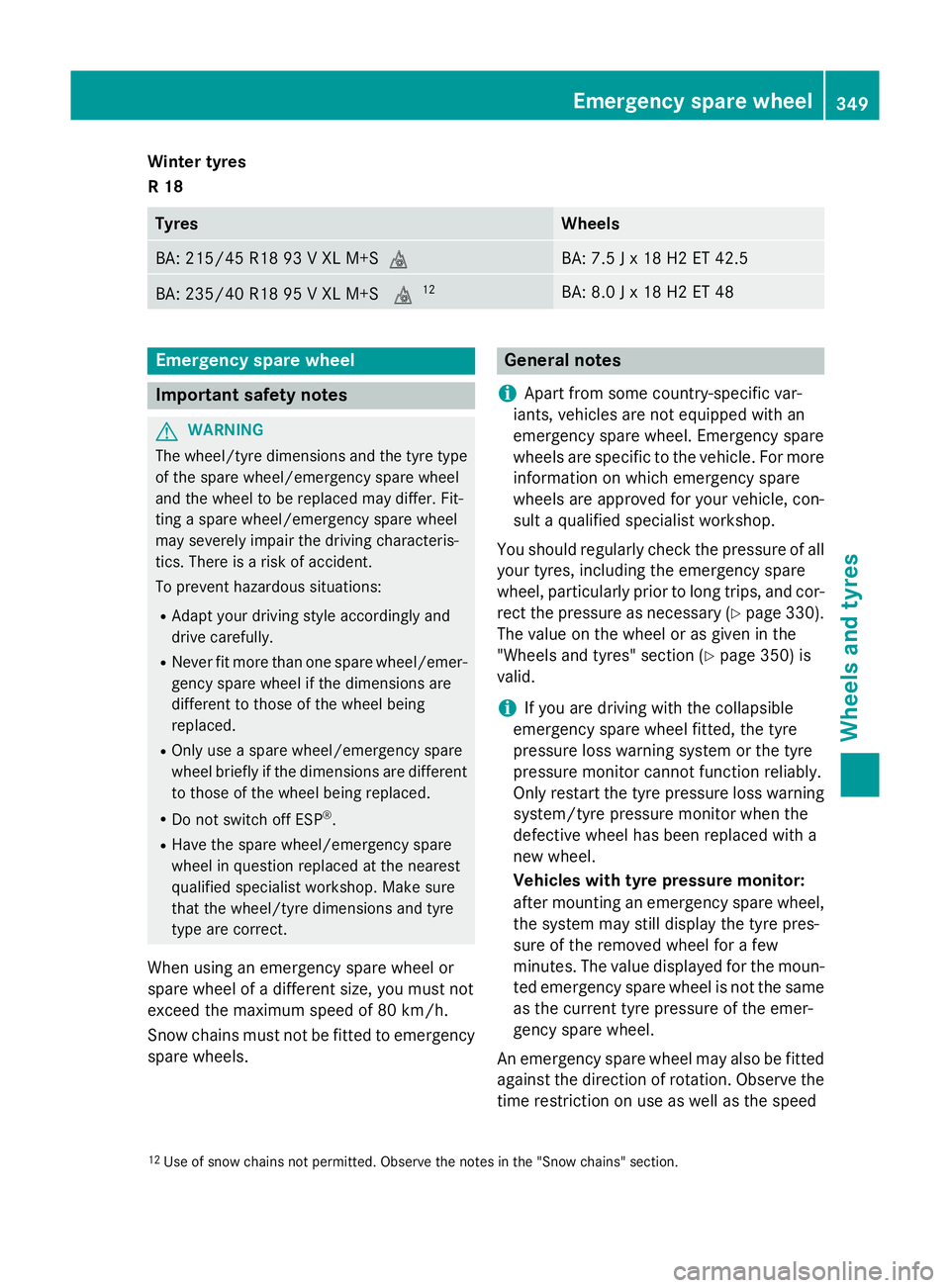

Winter tyres
R 18
Tyres Wheels
BA: 215/45 R18 93 V XL M+Si BA: 7.5 J x 18 H2 ET 42.5
BA: 235/40 R18 95 V XL M+S
i12 BA: 8.0 J x 18 H2 ET 48
Emergency spare wheel
Important safety notes
G
WARNING
The wheel/tyre dimensions and the tyre type of the spare wheel/emergency spare wheel
and the wheel to be replaced may differ. Fit-
ting a spare wheel/emergency spare wheel
may severely impair the driving characteris-
tics. There is a risk of accident.
To prevent hazardous situations:
R Adapt your driving style accordingly and
drive carefully.
R Never fit more than one spare wheel/emer-
gency spare wheel if the dimensions are
different to those of the wheel being
replaced.
R Only use a spare wheel/emergency spare
wheel briefly if the dimensions are different to those of the wheel being replaced.
R Do not switch off ESP ®
.
R Have the spare wheel/emergency spare
wheel in question replaced at the nearest
qualified specialist workshop. Make sure
that the wheel/tyre dimensions and tyre
type are correct.
When using an emergency spare wheel or
spare wheel of a different size, you must not
exceed the maximum speed of 80 km/h.
Snow chains must not be fitted to emergency
spare wheels. General notes
i Apart from some country-specific var-
iants, vehicles are not equipped with an
emergency spare wheel. Emergency spare
wheels are specific to the vehicle. For more information on which emergency spare
wheels are approved for your vehicle, con-
sult a qualified specialist workshop.
You should regularly check the pressure of all
your tyres, including the emergency spare
wheel, particularly prior to long trips, and cor- rect the pressure as necessary (Y page 330).
The value on the wheel or as given in the
"Wheels and tyres" section (Y page 350) is
valid.
i If you are driving with the collapsible
emergency spare wheel fitted, the tyre
pressure loss warning system or the tyre
pressure monitor cannot function reliably.
Only restart the tyre pressure loss warning system/tyre pressure monitor when the
defective wheel has been replaced with a
new wheel.
Vehicles with tyre pressure monitor:
after mounting an emergency spare wheel,
the system may still display the tyre pres-
sure of the removed wheel for a few
minutes. The value displayed for the moun-
ted emergency spare wheel is not the same as the current tyre pressure of the emer-
gency spare wheel.
An emergency spare wheel may also be fitted against the direction of rotation. Observe the
time restriction on use as well as the speed
12 Use of snow chains not permitted. Observe the notes in the "Snow chains" section. Emergency spare wheel
349Wheels and tyres Z
