Trailer Tow Hitch Attaching PointsAnd Overhang Dimensions
A 638.9 mm
B 746.1 mm
C 831.1 mm
D (maximum
overhang) 1161.5 mm
E 535.3 mm
F 520.3 mm RECREATIONAL
TOWING (BEHIND
MOTORHOME, ETC.)
Recreational towing (with all four
wheels on the ground, or using a tow
dolly) is
NOT ALLOWED. The only
acceptable method for towing this ve-
hicle (behind another vehicle) is on a
vehicle trailer with all four wheels
OFF the ground.
CAUTION!
Towing this vehicle in violation of
the above requirements can cause
severe transmission damage. Such
damage is not covered by the New
Vehicle Limited Warranty.
251

252

6
WHAT TO DO IN EMERGENCIES
 HAZARD WARNING FLASHERS . . . . . . . . . . . . .254
 IF YOUR ENGINE OVERHEATS . . . . . . . . . . . . . .254
 TIREFIT KIT (for versions/markets, where provided) . . . . . . . . . . . . . . . . . . . . . . . . . .255
 TIREFIT STORAGE . . . . . . . . . . . . . . . . . . . . .255
 TIREFIT KIT COMPONENTS AND OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . .255
 TIREFIT USAGE PRECAUTIONS . . . . . . . . . . .256
 SEALING A TIRE WITH TIREFIT. . . . . . . . . . .257
 JUMP-STARTING PROCEDURES . . . . . . . . . . . . .260
 PREPARATIONS FOR JUMP-START . . . . . . . . .261
 JUMP-STARTING PROCEDURE . . . . . . . . . . . .261
 FREEING A STUCK VEHICLE . . . . . . . . . . . . . . .262
 TOW EYES . . . . . . . . . . . . . . . . . . . . . . . . . . . . .263
 SHIFT LEVER OVERRIDE — 5 SPEED TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . .263
 MANUAL PARK RELEASE — 8 SPEED TRANSMISSION (3.6L Engine) . . . . . . . . . . . . . . .264
 TOWING A DISABLED VEHICLE . . . . . . . . . . . .266  Without The Ignition Key . . . . . . . . . . . . . . . . .267
253

HAZARD WARNING
FLASHERS
The Hazard Warning flasher switch is
located in the center of the instrument
panel between the center air outlets.Press the switch to turn on the
Hazard Warning flashers.
When the switch is activated, all di-
rectional turn signals will flash on and
off to warn oncoming traffic of an
emergency. Press the switch a second
time to turn off the Hazard Warning
flashers.
This is an emergency warning system
and it should not be used when the
vehicle is in motion. Use it when your
vehicle is disabled and it is creating a
safety hazard for other motorists.
When you must leave the vehicle to
seek assistance, the Hazard Warning
flashers will continue to operate even
though the ignition is placed in the
OFF position.
NOTE: With extended use the
Hazard Warning flashers may
wear down your battery. IF YOUR ENGINE
OVERHEATS
In any of the following situations, you
can reduce the potential for overheat-
ing by taking the appropriate action.
 On the highways — slow down.
 In city traffic — while stopped,
place the transmission in NEU-
TRAL, but do not increase the en-
gine idle speed.
NOTE: There are steps that you
can take to slow down an impend-
ing overheat condition:
 If your air conditioner (A/C) is on, turn it off. The A/C system
adds heat to the engine cooling
system and turning the A/C off
can help remove this heat.
 You can also turn the tempera- ture control to maximum heat,
the mode control to floor and the
blower control to high. This al-
lows the heater core to act as a
supplement to the radiator and
aids in removing heat from the
engine cooling system.
CAUTION!
Driving with a hot cooling system
could damage your vehicle. If the
temperature gauge reads “H,” pull
over and stop the vehicle. Idle the
vehicle with the air conditioner
turned off until the pointer drops
back into the normal range. If the
pointer remains on the “H,” turn
the engine off immediately and call
for service.WARNING!You or others can be badly burned
by hot engine coolant (antifreeze) or
steam from your radiator. If you see
or hear steam coming from under
the hood, do not open the hood until
the radiator has had time to cool.
Never try to open a cooling system
pressure cap when the radiator or
coolant bottle is hot.
254

TIREFIT KIT
(for versions/markets,
where provided)
Small punctures up to 6 mm in the tire
tread can be sealed with TIREFIT.
Foreign objects (e.g., screws or nails)
should not be removed from the tire.
TIREFIT can be used in outside tem-
peratures down to approximately
­20°C.
This kit will provide a temporary tire
seal, allowing you to drive your ve-
hicle up to 160 km with a maximum
speed of 88 km/h.
TIREFIT STORAGE
The TIREFIT kit is located in the
trunk.TIREFIT KIT
COMPONENTS AND
OPERATION
1. Sealant Bottle
2. Deflation Button
3. Pressure Gauge
4. Power Button
5. Mode Select Knob
6. Sealant Hose (Clear)
7. Air Pump Hose (Black)
8. Power PlugUsing The Mode Select Knob And
Hoses
Your TIREFIT kit is equipped with
the following symbols to indicate the
air or sealant mode.
Selecting Air Mode
Turn the Mode Select
Knob (5) to this position for
air pump operation only.
Use the Black Air Pump
Hose (7) when selecting this mode.
Selecting Sealant Mode
Turn the Mode Se-
lect Knob (5) to
this position to in-
ject the TIREFIT
Sealant and to in-
flate the tire. Use
the Sealant Hose
(clear hose) (6) when selecting this
mode.
TIREFIT Location
255

Using The Power Button
Push and release the Power
Button (4) once to turn On
the TIREFIT kit. Push and
release the Power Button (4)
again to turn Off the TIREFIT kit.
Using The Deflation Button
Press the Deflation But-
ton (2) to reduce the air
pressure in the tire if it be-
comes over-inflated.
TIREFIT USAGE
PRECAUTIONS
 Replace the TIREFIT Sealant Bottle (1) and Sealant Hose (6)
prior to the expiration date (printed
on the bottle label) to assure opti-
mum operation of the system. Refer
to “Sealing a Tire with TIREFIT”
section (F) “Sealant Bottle and
Hose Replacement”.
 The Sealant Bottle (1) and Sealant Hose (6) are a one tire application
use. After each use, always replace
these components immediately at
an authorized dealer.  When the TIREFIT sealant is in a
liquid form, clean water, and a
damp cloth will remove the mate-
rial from the vehicle or tire and
wheel components. Once the seal-
ant dries, it can easily be peeled off
and properly discarded.
 For optimum performance, make sure the valve stem on the wheel is
free of debris before connecting the
TIREFIT kit.
 You can use the TIREFIT air pump to inflate bicycle tires. The kit also
comes with two needles, located in
the Accessory Storage Compart-
ment (on the bottom of the air
pump) for inflating sport balls,
rafts, or similar inflatable items.
However, use only the Air Pump
Hose (7) and make sure the Mode
Select Knob (5) is in the Air Mode
when inflating such items to avoid
injecting sealant into them. The
TIREFIT Sealant is only intended
to seal punctures less than 6 mm
diameter in the tread of your
vehicle.  Do not lift or carry the TIREFIT kit
by the hoses.
WARNING!
 Do not attempt to seal a tire onthe side of the vehicle close to
traffic. Pull far enough off the
road to avoid the danger of being
hit when using the TIREFIT kit.
 Do not use TIREFIT or drive the
vehicle under the following cir-
cumstances:– If the puncture in the tire tread is approximately 6 mm or
larger.
– If the tire has any sidewall damage.
– If the tire has any damage from
driving with extremely low tire
pressure.
– If the tire has any damage from
driving on a flat tire.
– If the wheel has any damage.
– If you are unsure of the condi- tion of the tire or the wheel.
 Keep TIREFIT away from open flame or heat source.
(Continued)
256

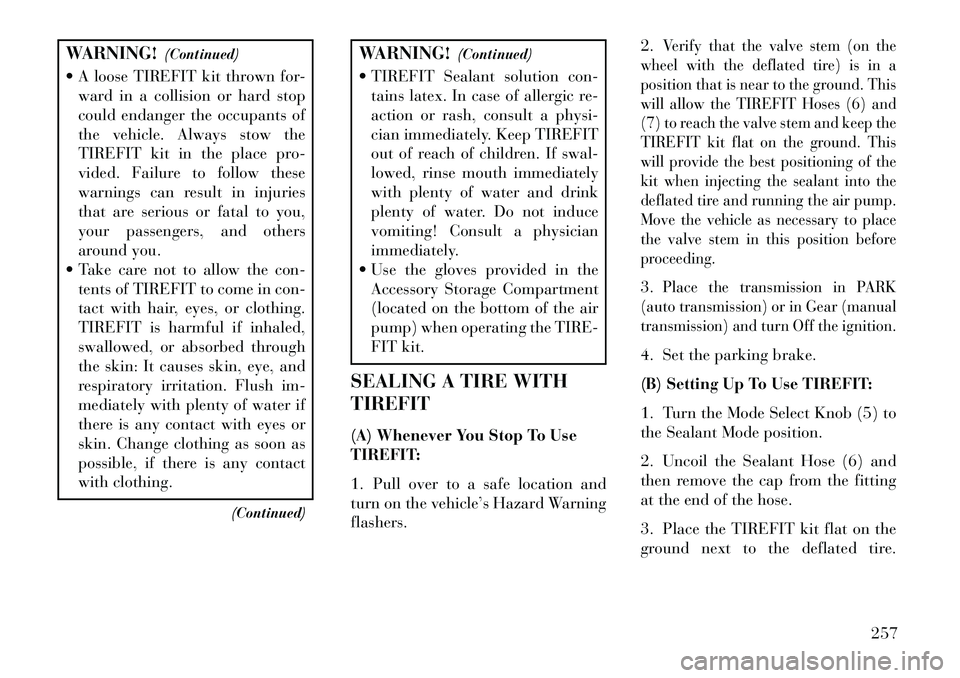

WARNING!(Continued)
 A loose TIREFIT kit thrown for- ward in a collision or hard stop
could endanger the occupants of
the vehicle. Always stow the
TIREFIT kit in the place pro-
vided. Failure to follow these
warnings can result in injuries
that are serious or fatal to you,
your passengers, and others
around you.
 Take care not to allow the con- tents of TIREFIT to come in con-
tact with hair, eyes, or clothing.
TIREFIT is harmful if inhaled,
swallowed, or absorbed through
the skin: It causes skin, eye, and
respiratory irritation. Flush im-
mediately with plenty of water if
there is any contact with eyes or
skin. Change clothing as soon as
possible, if there is any contact
with clothing.
(Continued)
WARNING!(Continued)
 TIREFIT Sealant solution con- tains latex. In case of allergic re-
action or rash, consult a physi-
cian immediately. Keep TIREFIT
out of reach of children. If swal-
lowed, rinse mouth immediately
with plenty of water and drink
plenty of water. Do not induce
vomiting! Consult a physician
immediately.
 Use the gloves provided in the Accessory Storage Compartment
(located on the bottom of the air
pump) when operating the TIRE-
FIT kit.
SEALING A TIRE WITH
TIREFIT
(A) Whenever You Stop To Use
TIREFIT:
1. Pull over to a safe location and
turn on the vehicle’s Hazard Warning
flashers. 2.
Verify that the valve stem (on the
wheel with the deflated tire) is in a
position that is near to the ground. This
will allow the TIREFIT Hoses (6) and
(7) to reach the valve stem and keep the
TIREFIT kit flat on the ground. This
will provide the best positioning of the
kit when injecting the sealant into the
deflated tire and running the air pump.
Move the vehicle as necessary to place
the valve stem in this position before
proceeding.
3.
Place the transmission in PARK
(auto transmission) or in Gear (manual
transmission) and turn Off the ignition.
4. Set the parking brake.
(B) Setting Up To Use TIREFIT:
1. Turn the Mode Select Knob (5) to
the Sealant Mode position.
2. Uncoil the Sealant Hose (6) and
then remove the cap from the fitting
at the end of the hose.
3. Place the TIREFIT kit flat on the
ground next to the deflated tire.
257

4. Remove the cap from the valve
stem and then screw the fitting at the
end of the Sealant Hose (6) onto the
valve stem.
5. Uncoil the Power Plug (8) and in-
sert the plug into the vehicle’s 12 Volt
power outlet.
NOTE: Do not remove foreign ob-
jects (e.g., screws or nails) from the
tire.
(C) Injecting TIREFIT Sealant
Into The Deflated Tire:
 Always start the engine beforeturning ON the TIREFIT kit.
NOTE: Manual transmission ve-
hicles must have the parking
brake engaged and the shift lever
in NEUTRAL.
 After pressing the Power But- ton (4), the sealant (white fluid)
will flow from the Sealant Bottle (1)
through the Sealant Hose (6) and
into the tire.
NOTE: Sealant may leak out
through the puncture in the tire. If the sealant (white fluid) does not
flow
within 0 – 10 seconds through
the Sealant Hose (6):
1. Press the Power Button (4) to turn
Off the TIREFIT kit. Disconnect the
Sealant Hose (6) from the valve stem.
Make sure the valve stem is free of
debris. Reconnect the Sealant
Hose (6) to the valve stem. Check that
the Mode Select Knob (5) is in the
Sealant Mode position and not Air
Mode. Press the Power Button (4) to
turn On the TIREFIT kit.
2. Connect the Power Plug (8) to a
different 12 Volt power outlet in your
vehicle or another vehicle, if avail-
able. Make sure the engine is running
before turning ON the TIREFIT kit.
3. The Sealant Bottle (1) may be
empty due to previous use. Call for
assistance.
NOTE: If the Mode Select
Knob (5) is on Air Mode and the
pump is operating, air will dis-
pense from the Air Pump Hose (7)
only, not the Sealant Hose (6). If the sealant (white fluid) does
flow
through the Sealant Hose (6):
1. Continue to operate the pump un-
til sealant is no longer flowing
through hose (typically takes 30 -
70 seconds). As the sealant flows
through the Sealant Hose (6), the
Pressure Gauge (3) can read as high
as 5 Bar. The Pressure Gauge (3) will
decrease quickly from approximately
5 Bar to the actual tire pressure when
the Sealant Bottle (1) is empty.
2. The pump will start to inject air
into the tire immediately after the
Sealant Bottle (1) is empty. Continue
to operate the pump and inflate the
tire to the pressure indicated on the
tire pressure label on the driver-side
latch pillar (recommended pressure).
Check the tire pressure by looking at
the Pressure Gauge (3).
If the tire does not inflate to at least
1.8 Bar pressure within 15 min-
utes:
 The tire is too badly damaged. Do not attempt to drive the vehicle fur-
ther. Call for assistance.
258
