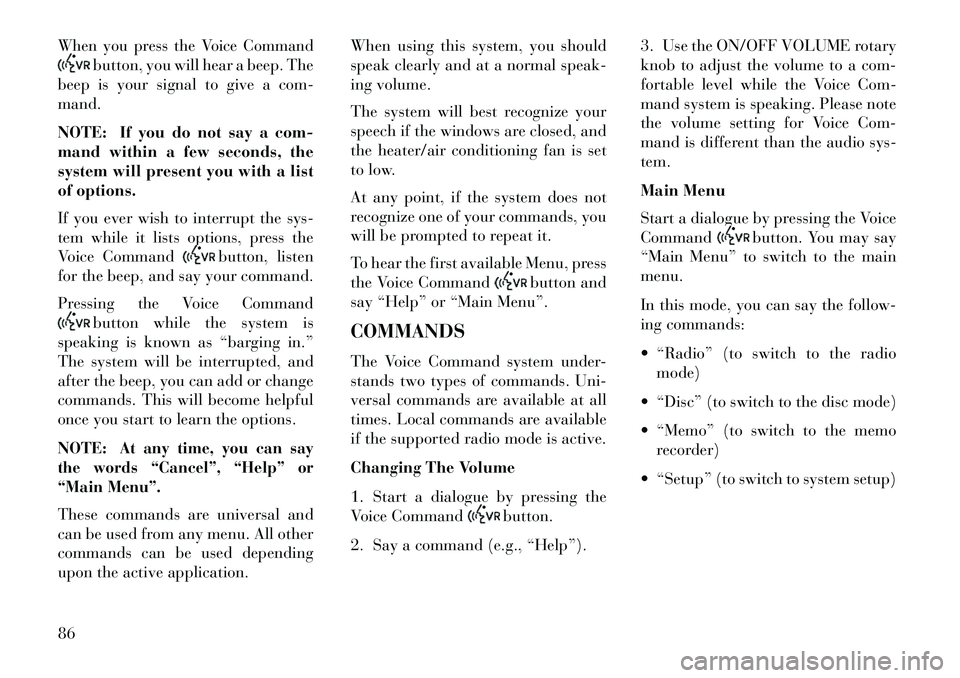

When you press the Voice Command
button, you will hear a beep. The
beep is your signal to give a com-
mand.
NOTE: If you do not say a com-
mand within a few seconds, the
system will present you with a list
of options.
If you ever wish to interrupt the sys-
tem while it lists options, press the
Voice Command
button, listen
for the beep, and say your command.
Pressing the Voice Command
button while the system is
speaking is known as “barging in.”
The system will be interrupted, and
after the beep, you can add or change
commands. This will become helpful
once you start to learn the options.
NOTE:
At any time, you can say
the words “Cancel”, “Help” or
“Main Menu”.
These commands are universal and
can be used from any menu. All other
commands can be used depending
upon the active application. When using this system, you should
speak clearly and at a normal speak-
ing volume.
The system will best recognize your
speech if the windows are closed, and
the heater/air conditioning fan is set
to low.
At any point, if the system does not
recognize one of your commands, you
will be prompted to repeat it.
To hear the first available Menu, press
the Voice Command
button and
say “Help” or “Main Menu”.
COMMANDS
The Voice Command system under-
stands two types of commands. Uni-
versal commands are available at all
times. Local commands are available
if the supported radio mode is active.
Changing The Volume
1. Start a dialogue by pressing the
Voice Command
button.
2. Say a command (e.g., “Help”). 3. Use the ON/OFF VOLUME rotary
knob to adjust the volume to a com-
fortable level while the Voice Com-
mand system is speaking. Please note
the volume setting for Voice Com-
mand is different than the audio sys-
tem.
Main Menu
Start a dialogue by pressing the Voice
Command
button. You may say
“Main Menu” to switch to the main
menu.
In this mode, you can say the follow-
ing commands:
 “Radio” (to switch to the radio mode)
 “Disc” (to switch to the disc mode)
 “Memo” (to switch to the memo recorder)
 “Setup” (to switch to system setup)
86

Radio Am (Or Radio Long Wave
Or Radio Medium Wave)
To switch to the AM band, say “AM”
or “Radio AM”. In this mode, you may
say the following commands:
 “Frequency #” (to change the fre-quency)
 “Next Station” (to select the next station)
 “Previous Station” (to select the previous station)
 “Menu Radio” (to switch to the ra- dio menu)
 “Main Menu” (to switch to the main menu)
Radio FM
To switch to the FM band, say “FM”
or “Radio FM”. In this mode, you may
say the following commands:
 “Frequency #” (to change the fre- quency)
 “Next Station” (to select the next station)  “Previous Station” (to select the
previous station)
 “Menu Radio” (to switch to the ra- dio menu)

“Main Menu” (to switch to the main
menu)Disc
To switch to the disc mode, say
“Disc”. In this mode, you may say the
following commands:
 “Track” (#) (to change the track)
“Next Track” (to play the next track) “Previous Track” (to play the pre- vious track)
 “Main Menu” (to switch to the main menu) Memo
To switch to the voice recorder mode,
say “Memo”. In this mode, you may
say the following commands:
 “New Memo” (to record a new
memo) — During the recording,
you may press the Voice Command
button to stop recording. You
proceed by saying one of the follow-
ing commands:
– “Save” (to save the memo)
– “Continue” (to continue record- ing)
– “Delete” (to delete the record- ing)

“Play Memos” (to play previously re-
corded memos) — During the play-
back you may press the Voice Com-
mand
button to stop playing
memos. You proceed by saying one
of the following commands:
– “Repeat” (to repeat a memo)
– “Next” (to play the next memo)
– “Previous” (to play the previous memo)
– “Delete” (to delete a memo)
 “Delete All” (to delete all memos)
87

System Setup
To switch to system setup, you may
say on of the following:
 “Change to system setup”
 “Main menu system setup”
 “Switch to system setup”
 “Change to setup”
 “Main menu setup” or
 “Switch to setup”
In this mode, you may say the follow-
ing commands:
 “Language English”
 “Language French”
 “Language Spanish”
 “Language Dutch”
 “Language Deutsch”
 “Language Italian”
 “Tutorial”
 “Voice Training”NOTE: Keep in mind that you
have to press the Voice Command
button first and wait for the
beep before speaking the “Barge
In” commands.
VOICE TRAINING
For users experiencing difficulty with
the system recognizing their voice com-
mands or numbers the Uconnect™
Voice “Voice Training” feature may be
used.1.
Press the Voice Command
but-
ton, say “System Setup” and once you
are in that menu then say “Voice
Training.” This will train your own
voice to the system and will improve
recognition.
2. Repeat the words and phrases
when prompted by Uconnect™ Voice.
For best results, the Voice Training
session should be completed when the
vehicle is parked, engine running, all
windows closed, and the blower fan
switched off. This procedure may be
repeated with a new user. The system
will adapt to the last trained voice
only. SEATS
Seats are a part of the Occupant Re-
straint System of the vehicle.
WARNING!
 It is dangerous to ride in a cargo
area, inside or outside of a ve-
hicle. In a collision, people riding
in these areas are more likely to
be seriously injured or killed.
 Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat
belts. In a collision, people riding
in these areas are more likely to
be seriously injured or killed.
 Be sure everyone in your vehicle is in a seat and using a seat belt
properly.
POWER SEATS
The power seat switch is on the out-
board side of the seat near the floor.
Use the switch to move the seat up,
down, forward, rearward, or to tilt the
seat.
88

WARNING!
 Adjusting a seat while drivingmay be dangerous. Moving a seat
while driving could result in loss
of control which could cause a
collision and serious injury or
death.
 Seats should be adjusted before
fastening the seat belts and while
the vehicle is parked. Serious in-
jury or death could result from a
poorly adjusted seat belt.
 Do not ride with the seatback re- clined so that the shoulder belt is
no longer resting against your
chest. In a collision you could
slide under the seat belt, which
could result in serious injury or
death.
CAUTION!
Do not place any article under any
seat as it may cause damage to the
seat controls.
Adjusting The Seat Forward Or
Rearward
The seat can be adjusted both forward
and rearward. Push the seat switch
forward or rearward, the seat will
move in the direction of the switch.
Release the switch when the desired
position has been reached.
Adjusting The Seat Up Or Down
The height of the seats can be ad-
justed up or down. Pull upward or
push downward on the seat switch,
the seat will move in the direction of
the switch. Release the switch when
the desired position has been reached.
Tilting The Seat Up Or Down
The angle of the seat cushion can be
adjusted in four directions. Pull up-
ward or push downward on the front
or rear of the seat switch, the front or
rear of the seat cushion will move in
the direction of the switch. Release the
switch when the desired position has
been reached. HEATED SEATS
On some models, the front driver and
passenger seats may be equipped with
heaters in both the seat cushions and
seatbacks. The controls for the front
heated seats are located on the center
instrument panel area.
You can choose from HIGH, LOW or
OFF heat settings. Amber indicator
lights in each switch indicate the level
of heat in use. Two indicator lights
will illuminate for HIGH, one for
LOW and none for OFF.
Press the switch once to se-
lect HIGH-level heating.
Press the switch a second
time to select LOW-level
heating. Press the switch a third time
to shut the heating elements OFF.
If HIGH-level heating is selected, the
system automatically switches to
LOW-level heating and turns one indi-
cator light OFF after a maximum of
60 minutes of continuous operation. It
will turn the heater and the remaining
indicator light OFF after a maximum
of 45 minutes of continuous operation.
Power Seat Switch
89

LIGHTS
MULTIFUNCTION LEVER
The multifunction lever on the left
side of the steering column controls
the operation of the headlights, park-
ing lights, turn signal lights, instru-
ment panel lights, instrument panel
light dimming, interior lights and fog
lights.
HEADLIGHTS AND
PARKING LIGHTSTurn the end of the multifunction lever
to the first detent for parking light op-
eration. Turn the end of the lever to the
second detent for headlight operation.
LIGHTS-ON REMINDER
If the headlights or parking lights are
on after the ignition is turned to the
LOCK position, a chime will sound to
alert the driver when the driver's door
is opened.
AUTOMATIC HEADLIGHTSThis system automatically turns the
headlights on or off according to ambi-
ent light levels. To turn the system on,
turn the end of the multifunction lever
to the AUTO position. When the system
is on, the Headlight Time Delay feature
is also on. This means the headlights
will stay on for up to 90 seconds after
you turn the ignition switch to the
LOCK position. To turn the Automatic
System off, turn the end of the multi-
function lever out of the AUTO position.
NOTE: The engine must be run-
ning before the headlights will
turn on in the Automatic mode.
HEADLIGHTS WITH
WIPERS (AVAILABLE
WITH AUTOMATIC
HEADLIGHTS ONLY)
When this feature is active, the head-
lights will turn on approximately
10 seconds after the wipers are turned
on if the multifunction lever is placed
in the AUTO position. In addition, the
headlights will turn off when the wip-
ers are turned off if they were turned
on by this feature.
Multifunction Lever
Headlight Switch
Headlight Switch
94

The top compartment holds small
items, such as a pen and note pad,
while the larger bottom compartment
will hold CDs and alike. Lift upward
on the larger of the latches to access
the lower storage compartment. The
larger bottom compartment will hold
CDs and alike. The bottom compart-
ment also contains a 12 Volt power
outlet.
NOTE:
 A notch in the front of the con-sole base allows for use of a cel-
lular phone while it is plugged
into the power outlet with the
armrest latched down.
 The power outlet can also ener- gize the cigar lighter in the op-
tional cup holder ash receiver.WARNING!
Do not operate this vehicle with a
console compartment lid in the
open position. Cellular phones, mu-
sic players, and other handheld
electronic devices should be stowed
while driving. Use of these devices
(Continued)
WARNING!(Continued)
while driving can cause an accident
due to distraction, resulting in
death or injury.
REAR WINDOW
FEATURES
REAR WINDOW
DEFROSTER The rear window defroster
button is located on the cli-
mate control (Mode) knob.
Press this button to turn on the rear
window defroster and the heated out-
side mirrors. An indicator in the but-
ton will illuminate when the rear win-
dow defroster is on. The rear window
defroster automatically turns off after
approximately 10 minutes. For an
additional five minutes of operation,
press the button a second time. NOTE: To prevent excessive bat-
tery drain, use the rear window
defroster only when the engine is
operating.
CAUTION!Failure to follow these cautions can
cause damage to the heating ele-
ments: Use care when washing the inside
of the rear window. Do not use
abrasive window cleaners on the
interior surface of the window.
Use a soft cloth and a mild wash-
ing solution, wiping parallel to
the heating elements. Labels can
be peeled off after soaking with
warm water.
 Do not use scrapers, sharp instru- ments, or abrasive window clean-
ers on the interior surface of the
window.
 Keep all objects a safe distance from the window.
105

15. Cruise IndicatorThis indicator shows that
the Electronic Speed Con-
trol System is ON.
16. Odometer/Trip Odometer Reset
Button
Trip OdometerPress and release this button to change
the display from odometer to “Trip A.”
Press and release it a second time to
change the display to “Trip B.” Press
and release it a third time to change the
display back to the odometer.
To reset the trip odometer, first display
the trip mileage that you want to reset,
“Trip A” or “Trip B.” Then push and
hold the button (approximately 2 sec-
onds) until the display resets to 0 miles
(km). The odometer must be in Trip
Mode to reset the trip odometer.
17. Electronic Throttle Control
(ETC) Indicator Light
This light informs you of a
problem with the Electronic
Throttle Control (ETC) sys-
tem. If a problem is detected,
the light will come on while the engine is
running. If the light remains lit with the
engine running, your vehicle will usu-
ally be drivable and not need towing,
however see your authorized dealer for
service as soon as possible.
If the light is flashing when the engine
is running you may experience power
loss, an elevated/rough idle, and in-
creased brake pedal effort, and your
vehicle may require towing. Immedi-
ate service is required.
The light will come on when the igni-
tion switch is first turned on and re-
main on approximately 15 seconds as
a bulb check. This is normal. If the
light does not come on during start-
ing, have the system checked by an
authorized dealer. 18. Park/Headlight ON Indicator
This indicator will illumi-
nate when the park lights or
headlights are turned on.
19. Electronic Stability Control
(ESC) OFF Indicator Light This light indicates the
Electronic Stability Control
system (ESC) has been
turned off by the driver.
20. Turn Signal Indicators
The arrows will flash in uni-
son with the exterior turn
signal, when using the turn
signal lever. A chime will
sound if the vehicle is driven more than
1.6 km with either turn signal on.
NOTE: If either indicator flashes
at a rapid rate, check for a defec-
tive outside light bulb.
21. Front Fog Light Indicator
This indicator will illuminate
when the front fog lights are on.
115

28. High Beam IndicatorThis light indicates that the
headlights are on high beam.
Pull the turn signal lever toward the
steering wheel to switch the head-
lights to low beam.
29. Electronic Vehicle Information
Center (EVIC) DisplayThis display shows the EVIC messages
when the appropriate conditions exist.
Refer to “Electronic Vehicle Infor-
mation Center (EVIC)” for further
information.30. Rear Fog Light Indicator
This indicator will illuminate
when the rear fog lights are on.
ELECTRONIC VEHICLE
INFORMATION CENTER
(EVIC)
The Electronic Vehicle Information
Center (EVIC) features a driver-
interactive display that is located in
the instrument cluster.
The EVIC consists of the following:
 Compass Heading Display (N, S, E, W, NE, NW, SE, SW)
 Average Fuel Economy  Distance To Empty (DTE)
 Tire Pressure Monitor System
(TPMS)
 Elapsed Time
 Display Units
 System Warnings (Door Ajar, etc.)

Personal Settings (Customer-
Programmable Features)Outside Temperature Display
(°F or °C) Audio Mode Displays – 12 preset Radio Stations or CD Title and
Track number when playing
Electronic Vehicle Information Center (EVIC)
119
