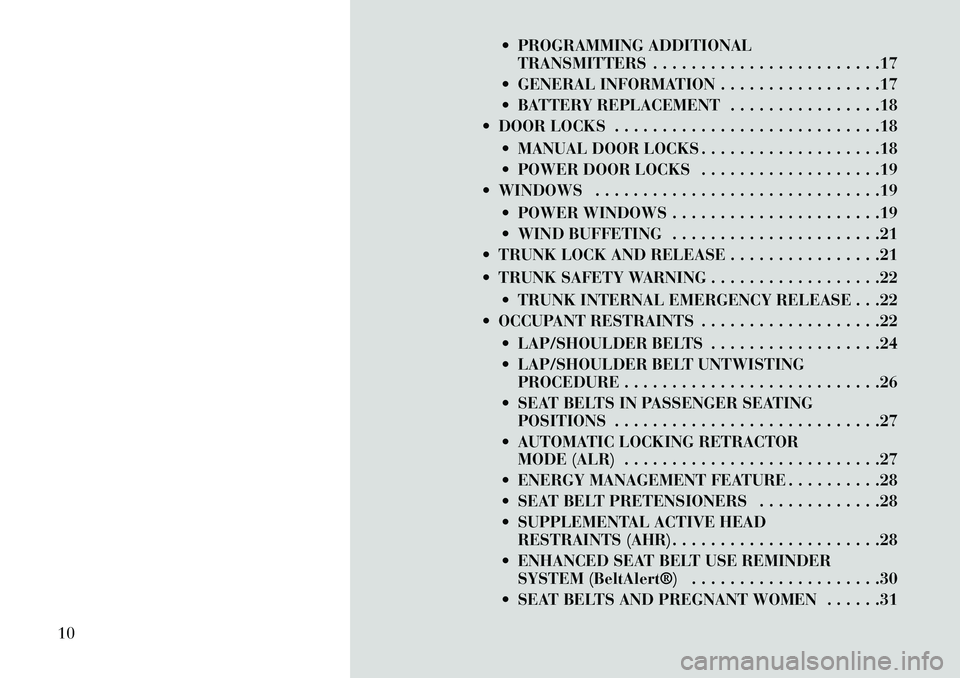

 PROGRAMMING ADDITIONALTRANSMITTERS . . . . . . . . . . . . . . . . . . . . . . . .17
 GENERAL INFORMATION . . . . . . . . . . . . . . . . .17
 BATTERY REPLACEMENT . . . . . . . . . . . . . . . .18
 DOOR LOCKS . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
 MANUAL DOOR LOCKS . . . . . . . . . . . . . . . . . . .18
 POWER DOOR LOCKS . . . . . . . . . . . . . . . . . . .19
 WINDOWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
 POWER WINDOWS . . . . . . . . . . . . . . . . . . . . . .19
 WIND BUFFETING . . . . . . . . . . . . . . . . . . . . . .21
 TRUNK LOCK AND RELEASE . . . . . . . . . . . . . . . .21
 TRUNK SAFETY WARNING . . . . . . . . . . . . . . . . . .22
 TRUNK INTERNAL EMERGENCY RELEASE . . .22
 OCCUPANT RESTRAINTS . . . . . . . . . . . . . . . . . . .22
 LAP/SHOULDER BELTS . . . . . . . . . . . . . . . . . .24
 LAP/SHOULDER BELT UNTWISTINGPROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . .26
 SEAT BELTS IN PASSENGER SEATING POSITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
 AUTOMATIC LOCKING RETRACTOR MODE (ALR) . . . . . . . . . . . . . . . . . . . . . . . . . . .27
 ENERGY MANAGEMENT FEATURE . . . . . . . . . .28
 SEAT BELT PRETENSIONERS . . . . . . . . . . . . .28
 SUPPLEMENTAL ACTIVE HEAD RESTRAINTS (AHR) . . . . . . . . . . . . . . . . . . . . . .28
 ENHANCED SEAT BELT USE REMINDER SYSTEM (BeltAlert®) . . . . . . . . . . . . . . . . . . . .30
 SEAT BELTS AND PREGNANT WOMEN . . . . . .31
10

VEHICLE SECURITY
ALARM
The Vehicle Security Alarm monitors
the doors, and trunk for unauthorized
entry and ignition switch for unau-
thorized operation.
While the Vehicle Security Alarm is
armed, interior switches for door
locks and decklid release are disabled.
If something triggers the alarm, the
Vehicle Security Alarm will sound the
horn intermittently, flash the head-
lights, the park lights, and the tail-
lights, and flash the Vehicle Security
Light in the cluster.
REARMING OF THE
SYSTEM
If something triggers the alarm, and
no action is taken to disarm it, the
Vehicle Security Alarm will turn off
the horn after three minutes, turn off
all of the visual signals after 15 min-
utes, and then the Vehicle Security
Alarm will rearm itself.TO ARM THE SYSTEM
1. Remove the keys from the ignition
switch and exit the vehicle.
2. Lock the doors by pressing the
power door lock switch or the LOCK
button on the Remote Keyless Entry
(RKE) transmitter.
NOTE: The Vehicle Security
Alarm will not arm if you lock the
doors with the manual door lock
plungers.
3. Close all doors. The Vehicle Secu-
rity Light in the instrument cluster
will flash rapidly for 16 seconds. This
shows that the Vehicle Security Alarm
is arming. After 16 seconds, the Ve-
hicle Security Light will flash slowly.
This shows that the Vehicle Security
Alarm is fully armed.
NOTE:
 During the 16–second arming
period, if a door is opened or the
ignition switch is turned to ON/
RUN, the Vehicle Security Alarm
will automatically disarm.
While the Vehicle Security Alarm
is armed, interior switches for
door locks and decklid release are
disabled.TO DISARM THE SYSTEM
Either press the UNLOCK button on
the RKE transmitter or insert a valid
Sentry Key® into the ignition switch
lock cylinder and turn the key to the
ON/RUN or START position.
NOTE:
 The driver's door key cylinder
and the trunk button on the RKE
transmitter cannot arm or dis-
arm the Vehicle Security Alarm.
The Vehicle Security Alarm re-
mains armed during trunk entry.
Pressing the trunk button will not
disarm the Vehicle Security
Alarm. If someone enters the ve-
hicle through the trunk and opens
any door, the alarm will sound.When the Vehicle Security Alarm
is armed, the interior power door
lock switches will not unlock the
doors.
15

TO UNLOCK THE DOORS
Press and release the UNLOCK but-
ton on the RKE transmitter once to
unlock the driver's door or twice to
unlock all doors. The turn signal
lights will flash to acknowledge the
unlock signal. The illuminated entry
system will also turn on.
Remote Key Unlock — Driver
Door/All Doors First
This feature lets you program the sys-
tem to unlock either the driver's door
or all doors on the first press of the
UNLOCK button on the RKE trans-
mitter.Refer to “Electronic Vehicle Informa-
tion Center (EVIC)/Personal Settings
(Customer-Programmable Features)”
in “Understanding Your Instrument
Panel” for further information.TO LOCK THE DOORS
Press and release the LOCK button on
the transmitter to lock all doors.TO UNLATCH THE TRUNK
Press the trunk button on the trans-
mitter two times to unlatch the trunk.
FLASH LIGHTS WITH
LOCK
The feature will cause the turn signal
lights to flash when the doors are
locked or unlocked with the RKE
transmitter. This feature can be
turned on or turned off.
Refer to “Electronic Vehicle Informa-
tion Center (EVIC)/Personal Settings
(Customer-Programmable Features)”
in “Understanding Your Instrument
Panel” for further information.PROGRAMMING
ADDITIONAL
TRANSMITTERS
Refer to Sentry Key® “Customer Key
Programming.”
If you do not have a programmed
RKE transmitter, contact your autho-
rized dealer for details.GENERAL INFORMATION
Transmitter and receivers operate on
a carrier frequency of 433.92 MHz.
Operation is subject to the following
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any inter-
ference that may be received includ-
ing interference that may cause unde-
sired operation.
NOTE: Changes or modifications
not expressly approved by the
party responsible for compliance
could void the user's authority to
operate the equipment.
If your RKE transmitter fails to oper-
ate from a normal distance, check for
these two conditions:
1.
Weak battery in transmitter. The ex-
pected life of a battery is five years.
2. Closeness to a radio transmitter
such as a radio station tower, airport
transmitter, military base, and some
mobile or CB radios.
17

Window Lockout SwitchThe window lockout switch on the
driver's door trim panel allows you to
disable the window control on the pas-
senger door. To disable the window
control on the passenger door, press
and release the window LOCK button
(setting it in the down position). To
enable the window control, press and
release the window LOCK button
again (setting it in the up position).WIND BUFFETING
Wind buffeting can be described as
the perception of pressure on the ears
or a helicopter-type sound in the ears.Your vehicle may exhibit wind buffet-
ing with one window down in certain
open or partially open positions. This
is a normal occurrence and can be
minimized. If the buffeting occurs
with one window open, then open
both windows together to minimize
the buffeting.
TRUNK LOCK AND
RELEASE
To unlatch the trunk lid from inside
the vehicle, press and release the
TRUNK RELEASE Button located on
the instrument panel to the left of the
steering wheel.
NOTE:
 The convertible top must be ei-
ther closed and latched or open
and latched to release the trunk.
 The transmission must be in PARK before the button will op-
erate. The trunk release
button on the dash
will be disabled if
the vehicle is
locked by pressing
the power door
lock switch or by
pressing the LOCK
button on the Re-
mote Keyless Entry (RKE) transmit-
ter. The trunk release button will be
enabled when the vehicle is unlocked
by the RKE or if the key is inserted
into the ignition and turned to ON/
RUN or START.
NOTE: This provides a locked
area in the vehicle even if the con-
vertible top is open.
To unlatch the trunk lid from outside
the vehicle, press and release the
TRUNK RELEASE button on the
RKE transmitter two times.
The words “Trunk Ajar” will display
in the Electronic Vehicle Information
Center (EVIC).
Window Lockout Switch
Trunk Release Button
21

TRUNK SAFETY
WARNINGWARNING!
Do not allow children to have ac-
cess to the trunk, either by climbing
into the trunk from outside, or
through the inside of the vehicle.
Always close the trunk lid when
your vehicle is unattended. Once in
the trunk, young children may not
be able to escape, even if they en-
tered through the rear seat. If
trapped in the trunk, children can
die from suffocation or heat stroke.
TRUNK INTERNAL
EMERGENCY RELEASE
As a security measure, a Trunk Inter-
nal Emergency Release lever is built
into the trunk latching mechanism. In
the event of an individual being
locked inside the trunk, the trunk can
be simply opened by pulling on the
glow-in-the-dark handle attached to
the trunk latching mechanism. OCCUPANT RESTRAINTS
Some of the most important safety
features in your vehicle are the re-
straint systems:
 Three-point lap and shoulder belts
for all seating positions
 Advanced Front Air Bags for driver and front passenger
 Supplemental Active Head Re- straints (AHR) located on top of the
front seats (integrated into the head
restraint)
 Supplemental Seat-Mounted Side Air Bags (SAB)
 An energy-absorbing steering col- umn and steering wheel  Knee bolsters/blockers for front
seat occupants
 Front seat belts incorporate preten- sioners that may enhance occupant
protection by managing occupant
energy during an impact event
 Rear passenger seat belts include Automatic Locking Retractors
(ALRs), which lock the seat belt
webbing into position by extending
the belt all the way out and then
adjusting the belt to the desired
length to restrain a child seat or
secure a large item in a seat.
Please pay close attention to the infor-
mation in this section. It tells you how
to use your restraint system properly,
to keep you and your passengers as
safe as possible.
If you will be carrying children too
small for adult-sized seat belts, the
seat belts or the ISOFIX feature also
can be used to hold infant and child
restraint systems. For more informa-
tion, refer to ISOFIX — Child Seat
Anchorage System.
Trunk Internal Emergency Release
22

Installing a Child Restraint with an
ALR:
1. To install a child restraint with
ALR, first, pull enough of the seat belt
webbing from the retractor to route it
through the belt path of the child re-
straint. Slide the latch plate into the
buckle until you hear a “click.” Next,
extract all the seat belt webbing out of
the retractor and then allow the belt to
retract into the retractor. As the belt
retracts, you will hear a ratcheting
sound. This indicates the safety belt is
now in the Automatic Locking mode.
2. Finally, pull on any excess web-
bing to tighten the lap portion around
the child restraint. Any seat belt sys-
tem will loosen with time, so check the
belt occasionally, and pull it tight if
necessary.
 In the rear seat, you may havetrouble tightening the lap/shoulder
belt on the child restraint because
the buckle or latch plate is too close
to the belt path opening on the re-
straint. Disconnect the latch plate from the buckle and twist the short
buckle-end belt several times to
shorten it. Insert the latch plate into
the buckle with the release button
facing out.
 If the belt still can’t be tightened, or if pulling and pushing on the re-
straint loosens the belt, disconnect
the latch plate from the buckle,
turn the buckle around, and insert
the latch plate into the buckle
again. If you still can’t make the
child restraint secure, try a differ-
ent seating position.
To attach a child restraint tether
strap:
1.
If lowered, raise the convertible top.
NOTE: The convertible top must
be in the UP position to access the
tether anchor.
2. Open the access port cover (A) be-
hind the seat where you are placing
the child restraint. 3. Push the tether strap and hook (B)
through the access port and down into
the trunk.
NOTE: Route the tether strap to
provide the most direct path from
the child seat to the anchor.
4. Open the access cover (C) on the
carpet covering the back of the seat
and attach the tether strap hook (D)
to the anchor.
Child Tether Access Port Cover
Child Tether Anchor
46

CAUTION!(Continued)
 Make sure there is sufficient clearance of at least 2.2 m for the
top to move up.
 To prevent striking a low ceiling or automatic door opener with
the top, it is strongly recom-
mended that you do not operate
the power top inside a garage or
parking structure.
Failure to follow these cautions can
cause damage to the convertible top
components, trunk contents, and
the vehicle interior.CAUTION!
 Do not operate the power top with the hydraulic pump valve open.
 Do not allow the top to remain in
the suspended position. After ap-
proximately 10 minutes in the
suspended position, the hydraulic
pressure will release, which will
allow the top and the trunk lid to
lower. Pressing the power top
switch will cancel this operation.
(Continued)
CAUTION!(Continued)
 Always use a normal ice scraper to remove snow or ice from the
rear window. Use of a sharp ob-
ject or other tools could scratch
the panels (hard top) or tear the
fabric (soft top) when removing
snow or ice.
 Always close the top when leaving your vehicle so as not to leave the
interior exposed to potentially
damaging outdoor conditions.
 Do not leave the top lowered for
several weeks at a time. Close it
occasionally to prevent discolor-
ation in the folds of the fabric and
to allow the creases to smooth
out. This is especially important
if the top was stowed when not
completely dry.
Failure to follow these cautions can
cause damage to the convertible top
components, trunk contents, and
the vehicle interior.
WARNING!
Failure to follow these warnings
can result in injuries that are seri-
ous or fatal to you, your passengers,
and others around you:
 Before operating the power top, make sure that no moving parts
of the convertible top can injure a
person or animal.
 Never place any extremities (hands, feet, etc.) near the con-
vertible top components, the up-
per windshield area, the shelf
area behind the rear seats, or the
convertible top stowage area
while raising or lowering the con-
vertible top.
 When using the power top button
on RKE transmitter, if potential
danger exists while lowering the
top, release the button immedi-
ately to interrupt the operation.
 When using the power top switch on the instrument panel, if poten-
tial danger exists while lowering
the top, release the switch imme-
diately to interrupt the operation.
(Continued)
57

WARNING!(Continued)
 When using the power top switch on the instrument panel, if poten-
tial danger exists while raising the
top, release the switch immedi-
ately to interrupt the operation.
 Only drive the vehicle with the convertible top completely closed
and latched or fully lowered into
its stowage compartment.
 Do not operate the power top when the vehicle is in motion.
CARGO SHIELD
The cargo shield is located in the
trunk. Before lowering the convertible
top, you must unfold the cargo shield
and seat the tabs at each end of the
cargo shield in the V slots in the trunk
liner. Doing so closes a switch that
allows top operation. If the switch is
not closed, a warning message dis-
plays in the instrument cluster to no-
tify the driver. Positioning The Cargo Shield For
Top Operation
Pull the cargo shield toward you to
begin unfolding the panels. Grasp the
handle in the center of the outermost
(top) panel and raise the cargo shield.
Then, align and seat the tabs at each
end of the cargo shield in the V slots in
the trunk liner as shown in the illus-
tration.
CAUTION!
Do not place items on top of the
cargo shield. Items placed on cargo
protector will interfere with the top
during operation and cause exces-
sive damage to the top and cargo
shield.
Positioning The Cargo Shield For
Cargo Storage
To maximize the storage space in the
trunk, the cargo shield can be stowed
in the forward portion of the trunk.
To stow the cargo shield, grasp the
handle of the upright panel of the
cargo shield, lifting the pins out of the
V slots in the trunk trim. Continue
folding the upright panel forward
onto the horizontal panel, then grasp
both panels and lift them to the for-
ward, upright position in the trunk.
NOTE: The convertible top will
NOT operate with the cargo shield
in the stowed position.
Cargo Shield
Stowed Cargo Shield
58
